Product Description

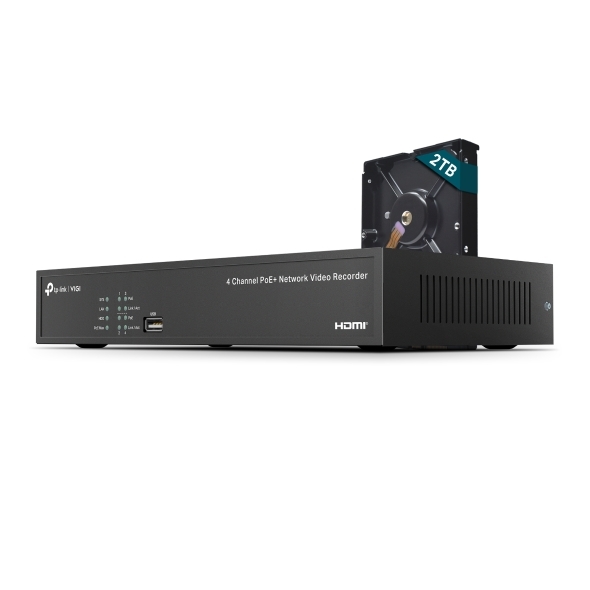

VIGI NVR1004H-4P-2TB

VIGI 4 Channel PoE+ Network Video Recorder

4-Channel Live View and 4K HDMI Video Output

4 10/100 Mbps PoE+ Ports with 53 W PoE Budget

Up to 8-ch @ 2MP (25fps) / 4-ch @ 4MP (25fps) Decoding Capability

4-Channel Synchronous Playback

80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth

1x SATA Interface and 1 Up to 10 TB (1x 2TB HDD Preinstalled)

H.265+ Compression Technology

HDMI and VGA Simultaneous Output

Remote Monitoring
Video and Audio
IP Video Input
4-Channel
Incoming Bandwidth
80 Mbps
Outgoing Bandwidth
60 Mbps
HDMI Output Resolution
1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution
1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output Mode
HDMI/VGA Simultaneous Output
Multi-View Display
1/4
DECODING
Audio Compression
G.711A/G.711U/G.726
Video Compression
H.265+/H.265/ H.264+/H.264
Record Resolution
8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/
2CIF/CIF/QCIF
Synchronous Playback
4-Channel
Capability
25fps:
2-ch at 8MP, 4-ch at 4MP
30fps:
4-ch at 4MP, 3-ch at 5MP
Record Management
Record Mode
Manual Recording
Scheduling Recording
Motion Detection Recording
Playback Mode
Instant Playback
Regular Playback
Tag Playback
Event Playback
Backup Mode
Regular Backup
Video Clip Backup
Playback Function
Play
Pause
Stop
Fast Forward
Fast Backward
Play By Frame
Full Screen
Video Clip
Export Clip
Digital Zoom
Lock Recording
Audio On/Off
NETWORK
Protocol
UPnP (Plug and Play), NTP (Network Timing), SMTP, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Mobile Phone Access
Android, iOS
Web Browser
Chrome (57+), Firefox (52+), Edge (91+)
Interoperability
ONVIF Profile S, CGI
External Interface
Network Interface
1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface
1 Front USB 2.0 Port, 1 Rear USB 2.0 Port
Audio Interface
1-ch RCA Input 1-ch RCA Output
Alarm In/Out
N/A
Serial Interface
N/A
Power
1x DC Jack
Reset Button
1
Speaker
N/A
eSATA
N/A
HDMI
1
VGA
1
HARD DISK
SATA
1 SATA Interface
Capacity
Up to 10 TB Capacity for Each HDD
1 x 2TB HDD Preinstalled
PoE
Standard
802.3at/af Compliant
Interface
1- 4, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
PoE Budget
53 W Available for All PoE+ Ports, 30 W Max per Port
Alarm
General Alarm
Motion Detection
Video Tampering
Scene Change Detection
Line-Crossing Detection
Intrusion Detection
Region Entering Detection
Region Exiting Detection
Loitering Detection
Object Abandoned/Removal Detection
Vehicle Detection
Human Detection
Abnormal Sound Detection
Smart Frame
Note: The alarm function requires the use of a camera.
Anomaly Alarm
Video Loss
Offline and IP Conflict
Disk Exception
Login Exception
Note: The alarm function requires the use of a camera.
Alarm Linkage
Recording
White Light Alarm
Buzzer
Log
Audible Alarm
Note: The alarm function requires the use of a camera.
GENERAL
Storage Temperature
-40-70 ^oC
Storage Humidity
10%-90% RH Non-Condensing
Package Contents
VIGI Network Video Recorder
Power Adapter
Power Cables
Rubber Feet
Mouse
Quick Installation Guide
Working Temperature
NVR: -10-55 ^oC
Power Adapter: 0-40 ^oC
Working Humidity
10%-90% RH Non-Condensing
Power Supply
53.5V DC/1.31A
Power Consumption
4.25 W (Without Disk)
13.10 W (With Disk)
Certifications
CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
Item Dimension (L"xW"xH")
14 x 9 x 4

Weight
4.19 lbs

Warranty Information
NA

Available Quantity

5

UPC

840030712258

SKU

mingleVIGI NVR1004H-4P-2TB
