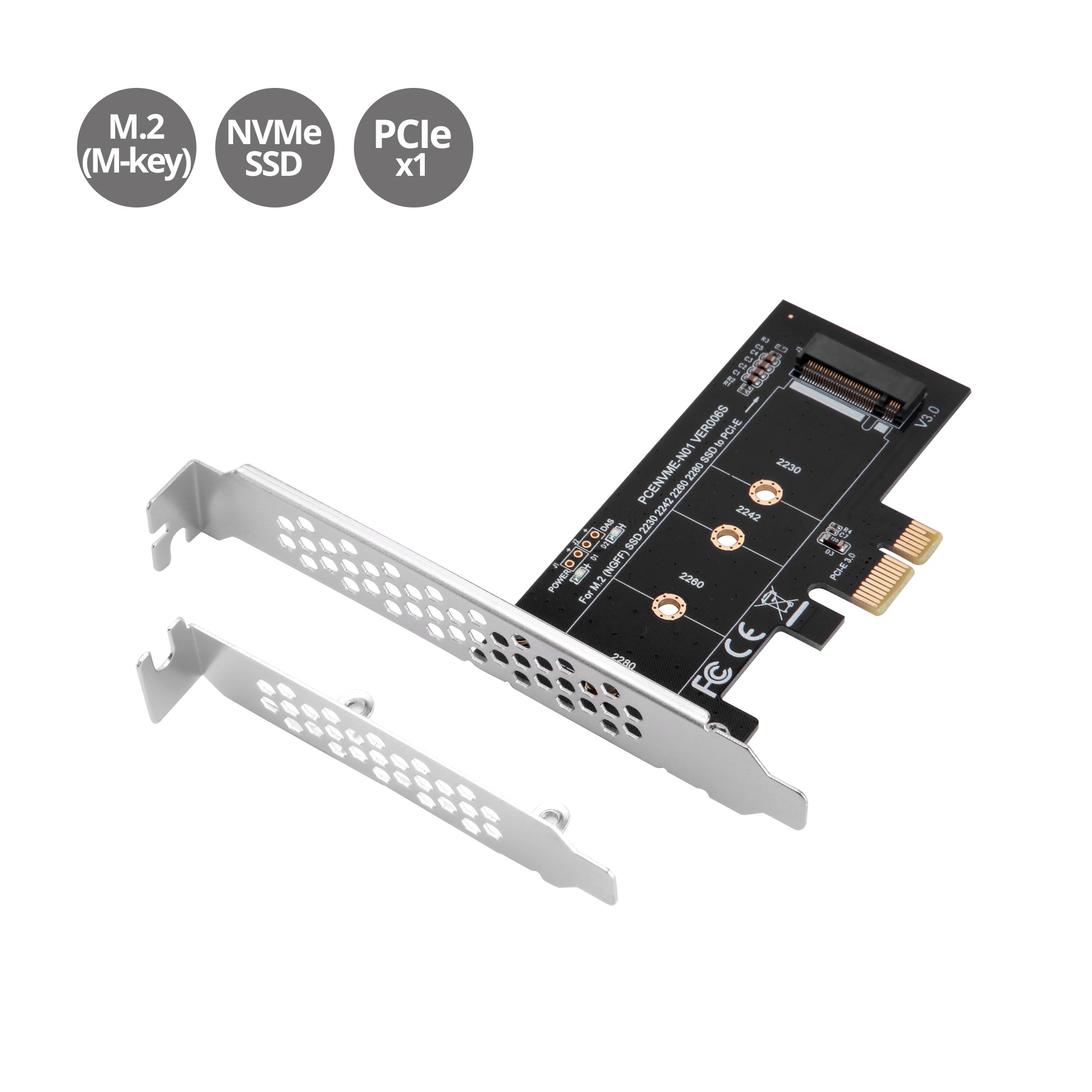

Item SIIG Accessory SC-M20111-S1 M.2 PCIe SSD to PCIe Adapter Brown Box
|
|
Show more images
|
|
Please note, Login or Registration at time of checkout will be required. Thank you.
|
Price $20.00
Buy Now
Expand to see more details...
Rebate 10% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping Free 2 day shipping
Return Policy 6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description Adds one M.2 M key PCIe (NVMe or AHCI) SSD to your PCIe equipped desktop computer to dramatically increase speed and performance
Note: This adapter is not compatible with B key M.2 PCIe SSDs or M.2 SATA SSDs
Accommodates 2230, 2242, 2260 and 2280 form factor M.2 PCIe SSDs (NVMe or AHCI) via multiple mounting hole options
Compatible with PCIe 3.0 specification and backward compatible with PCIe 1.0 and PCIe 2.0 specifications
Works seamlessly in PCIe x1, x4, x8, and x16 bus slots
Includes both low-profile and full-profile slot brackets for flexible system chassis installation
Plug and Play with no driver installation required
Compliant with PCIe 3.0 specification
Bus type
PCIe x1
Drive type (not included)
M.2 M key PCIe SSD (NVMe or AHCI)
Note: Systems released prior to 2015 may not support NVMe SSDs. Please check with your system provider for compatible SSD
Note: Not compatible with M.2 SATA SSDs
Compatible drive length
30 / 42 / 60 / 80 (mm)
Product
Color: Black
Connector
Host bus connector: PCI Express x1
SSD: M.2 connector (M key)
Environmental conditions
Operating temperature: 32 to 122 degrees F
Storage temperature: 14 to 140 degrees F
Relative humidity: 10% to 90% RH (non-condensing)
TAA compliant
Certifications/Standards
FCC, CE, RoHS
Item Dimension (L"xW"xH")
7 x 9 x 2
Weight
1 lb
Warranty Information
2 years
Available Quantity 5
UPC 662774042282
SKU mingleSC-M20111-S1

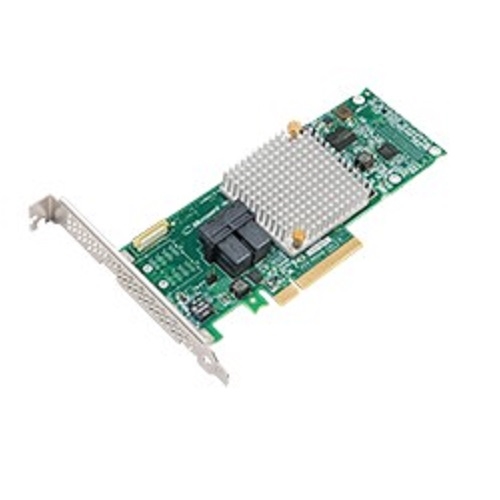

Item Adaptec Controller Card 2294001-R 12Gb/s 8Port RAID PCIE SAS/SATA LP/MD2 Adapters Retail
|
|
Show more images
|
|
Please note, Login or Registration at time of checkout will be required. Thank you.
|
Price $308.89
Buy Now
Expand to see more details...
Rebate 10% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping Free 2 day shipping
Return Policy 6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description Entry-level 12 Gbps PCIe Gen3 SAS/SATA Hardware RAID Adapter with 8 internal native ports and LP/MD2 form factor.
Operating System
Microsoft Windows
Red Hat Linux
SUSE Linux
Fedora
Debian Linux
Ubuntu Linux
Sun Solaris
FreeBSD
VMware ESXi
Benefits
Ideal for entry-level 12 Gbps servers and workstations for redundant boot support and I/O intensive applications such as databases or video editing
Key Differentiators
True hardware Hybrid RAID
Performance acceleration through 512 MB DDR3 (1600 MHz) cache
Key RAID Features
Flexible Configuration: HBA Mode Auto Volume Mode for automatic deployment
Optimized Disk Utilization (Multiple Arrays per disk)
Supported RAID levels: 0, 1, and 10
Support for native 4K sector SAS and SATA devices in addition to 512byte sector devices
Hybrid RAID 1 10
Quick initialization
Online Capacity Expansion
Copyback Hot Spare
Dynamic caching algorithm
Native Command Queuing (NCQ)
Background initialization
Hot-plug drive support
RAID Level Migration
Hot spares - global, dedicated, and pooled
Automatic/manual rebuild of hot spares
SES and SAF-TE enclosure management
Configurable stripe size
Dual Firmware
S.M.A.R.T. support
Multiple arrays per disk drive
Dynamic sector repair
Staggered drive spin-up
Bootable array support
Support for Tape Devices, Autoloaders
MSI-X support for all device driver for all supported Operating Systems
Secure boot support for the uEFI host bios
USB image available, after shipping, on start.microsemi.com to boot maxView GUI from any USB device for enhanced GUI based setup and offline maintenance
Management Utilities
Software
maxView Storage Manager :
Web based GUI Management Utility
OS Support: Windows, Linux, Solaris VMware
Remote configuration, monitoring notification
Remote firmware updates
SMI-S Support
SMTP
ARCCONF :
Command Line Interface
SMI-S support for VMware
BIOS Configuration Utility (CTRL+A) :
BIOS level configuration utility
Flashable BIOS support
uEFI BIOS Configuration Utility : HII based configuration utility
Flashable BIOS support
Event Monitor : Lightweight event monitoring and logging tool
Distributes adapter events and notifies user
VMWare vSphere plugin
Data Transfer Rate
12 Gbps per port
Bus System Interface
x8 PCIe 3.0
Form Factor
MD2 Low Profile
Cache Memory
512 MB DDR3 (1600 MHz)
Connector Configuration
Two internal mini SAS HD (SFF-8643)
Package Contents
Microsemi Adaptec RAID 8805E adapter
Additional low profile vented bracket
Operating Temperature
0oC to 55oC (with 200 LFM airflow)
Regulatory Certification
CE, FCC, UL, C-tick, VCCI, KCC, CNS
Environmental Compliance
RoHS
Mean Time Before Failure (MTBF)
2,000,000 hours at 40oC
Item Dimension (L inchxW inchxH inch)
12 x 8 x 2
Weight
2.00 lb
Warranty Information
3 years
Available Quantity 5
UPC 760884157831
SKU mingle2294001-R

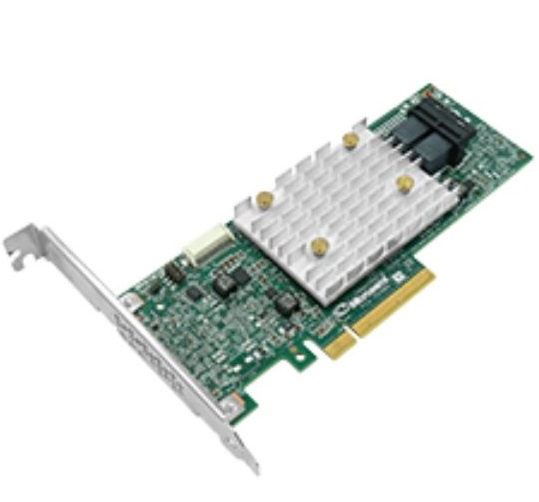

Item Adaptec Controller Card 2290400-R AHA-2100-8i 8Port Internal 12Gbps MD2-LP SmartHBA Adapter Retail
|
|
Show more images
|
|
Please note, Login or Registration at time of checkout will be required. Thank you.
|
Price $351.67
Buy Now
Expand to see more details...
Rebate 10% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping Free 2 day shipping
Return Policy 6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description The SmartHBA 2100 is an ideal solution for server-based storage systems that require maximum bandwidth and I/O connectivity, low power consumption, high reliability, plus options for data availability. The Smart Storage Platform even allows a combination of RAID and raw devices. This is useful in SDS environments where hardware RAID significantly increases OS boot reliability, but full HBA features and performance are otherwise needed. The SmartHBA 2100 also provides enhanced enclosure management capabilities to both RAID and raw devices, and enables enclosure services by providing a virtual SEP to software stacks if needed.
Features
Combines full HBA functionality with basic hardware RAID
Offers basic RAID functionality for up to 32 devices supporting RAID levels 0, 1, 10, and 5 in conjunction with full HBA functionality for up to 238 device, in the same solution
Broad operating system support through highly efficent, low-latency PQIdriver driver (fully open-source for Linux/ FreeBSD)
Performance of up to 1.7 million random read IOPS with extremely low-latency 4 KB I/Os Highlights
Up to 24 native SAS/SATA ports; low-profile MD2 form factor
12 Gbps SAS data rates using mini-SAS HD connectors
Significant power savings delivers lowest total cost of ownership versus competing solutions
The unified maxView management tools and drivers across the Microsemi HBA, RAID, and expander solutions enable easy manageability across the entire product line
Proven compatibility with existing Microsemi Adaptec solutions, multiple operating systems, servers, enclosures, SSDs, HDDs, and LTO tape drives
Uses the latest 28 nm SmartIOC 2100 SAS/SATA protocol controller to drive efficiency and performance while also having the industry's lowest power consumption
Quality and reliability through the unified, hardened Smart Storage stack, which is deployed in over 30 million servers
Ports
8 external
Connectors
2 x SFF-8643 6
Package Contents
SmartHBA 2100-8i adapter
Additional low profile vented bracket
RAID Levels
0, 1, 10
Form Factor
MD2-Low Profile
Bus Interface
8-Lane PCIe Gen3
Processor
12 Gbps ROC
Key software features
- Support for up to 256 SAS/SATA target devices (238 SSD/HDDs maximum support and remainder are reserved for expanders and enclosure management)
- Support for up to 32 drives in RAID arrays
- Hardware RAID level 0,1,10,5 support
- Multi-LUN support
- SAS expander support
- TLR
- SATA NCQ
- Hot plug drive support
- S.M.A.R.T.
- MPIO support
- Multi-initiator (host)/clustering for SAS (HBA devices only)
- Enclosure management
- SES-2, SES-3
- SFF-8485, SGPIO
- SFF-8489, IBPI
- BMC support
Management utilities
- maxView Storage Manager:
- Web-based GUI management utility
- OS support: Windows, Linux, Solaris, VMware
- Remote configuration, monitoring, and notification
- Remote firmware updates
- SMI-S
- SMTP ARCCONF
- Command-line interface
- SMI-S support for VMware
BIOS Configuration Utility (CTRL+A):
- Legacy configuration utility
- Flashable BIOS support uEFI BIOS Configuration Utility
- HII-based configuration utility
- Flashable BIOS support:
Event Monitor:
- Lightweight event monitoring and logging tool
- Distributes adapter events and notifies user
Operating Systems
Microsoft Windows, Red Hat, SuSE, CentOS, Ubuntu, VMware ESXi, FreeBSD, Solaris, Citrix Xen Server, and open-source Linux drivers.
Operating Temperature
0oC to 55oC with 200 LFM airflow.
Note: This adapter contains a powerful I/O processor that requires adequate airflow to operate reliably. Please install this card only into server or PC chassis with at least 200 LFM airflow. Temperature measured 1 inch from adapter.
Regulatory Certification
CE, FCC, UL, C-tick, VCCI, KCC, CNS
Environmental Compliance
RoHS
MTBF
1.76 million hours, measured at 40oC
Item Dimension ( L inchxW inchxH inch)
15 x 10 x 2
Weight
2.00 lb
Warranty Information
3 Years
Available Quantity 5
UPC 760884157671
SKU mingle2290400-R

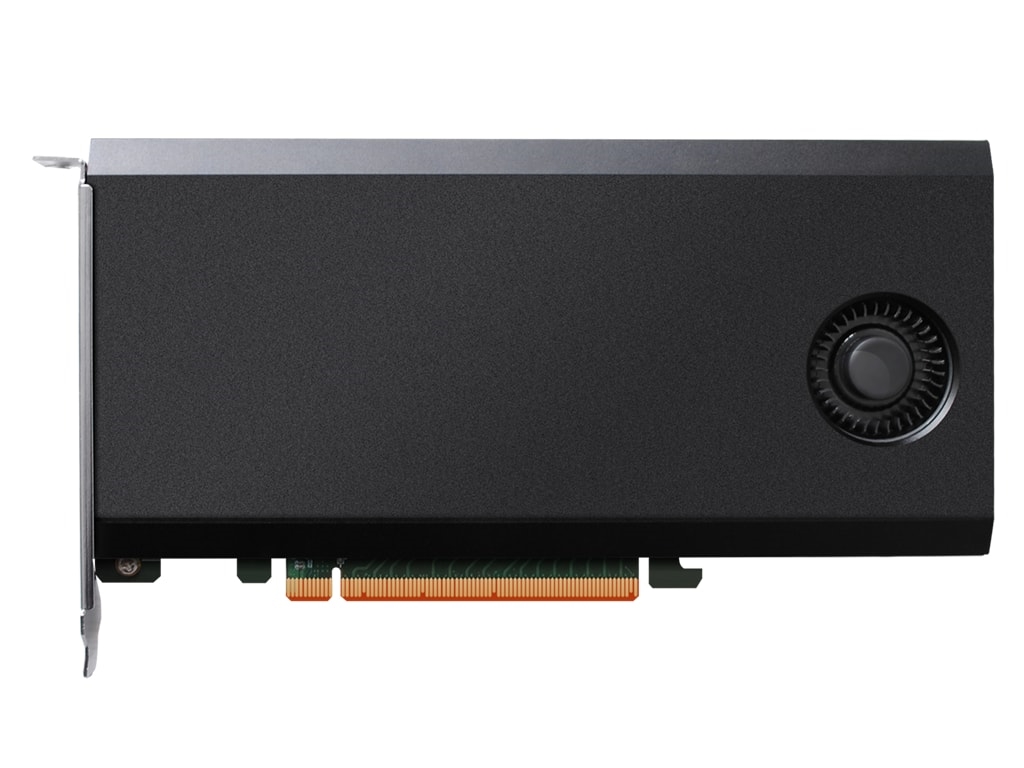

Item HighPoint Controller Card SSD7101A-1 4x dedicated M.2 to PCIe 3.0x16 RAID Controller Retail
|
|
Show more images
|
|
Please note, Login or Registration at time of checkout will be required. Thank you.
|
Price $423.33
Buy Now
Expand to see more details...
Rebate 10% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping Free 2 day shipping
Return Policy 6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description Dedicated PCIe 3.0 x16 bus bandwidth
Dedicated PCIe 3.0 x4 bandwidth for each NVMe M.2 SSD
Over 8X faster than NVMe storage locked behind Intel DMI 3.0
Independent, Stand-Alone NVMe SSD Solution
Scale Performance across Multiple SSD7101A-1 NVMe RAID Controllers
Supports Windows & Linux Systems
Product Information
Bus Interface
PCI-Express 3.0 x16
Number of Channel / Port
4x 2280 M.2 NVMe Ports (Dedicated PCIe 3.0 x4 per M.2 Port)
Data Transfer Rates
8GT/ 8Gbps per lane
Number of Devices
Up to 4x M.2 NVMe SSDs (Qualified: Samsung 960 EVO Pro SSD)
Form Factor
Full-Height
Operating System Support
Windows 10 64-bit
Linux Kernel 3.3 or later
Cooling Fan
Aluminum casing with single 50 x 50mm cooling fan
Storage Mode
Data Storage only (non-bootable)
NVMe Configurations
RAID Mode Support
0, 1, 5, 10 JBOD
NVMe RAID Management
RAID Management Suites
Browser-Based management tool
CLI (Command Line Interface- scriptable configuration tool)
API package
SMTP Email Alert Notification
Yes
Alarm Buzzer
Yes
Storage Health Inspector
Yes
NVMe SMART status
Yes
Redundant RAID Configurations
Yes
Single-RAID and Multi-RAID Arrays per Controller
Yes
Cross-Sync RAID Solution over multi-SSD7101A-1 Controllers
Yes
Operating Environment
Work Temp
5o to 55oC
Storage Temp
-20o to 80oC
Relative Humidity
5% - 60% non condensing
Operating Voltage
PCI-e: 12V, 3.3V
Power
Typical: 8W
MTBF (Mean Time Before Failure)
920,585 Hours
Certification / Approval
FCC, CE, ROHS REACH
Kit Contents
1x SSD7101A-1 RAID Controller
1x Quick Installation Guide
Item Dimension (L inchxW inchxH inch)
14 x 8 x 3
Weight
3.00lb
Warranty Information
1 Year
Available Quantity 5
UPC 643653710119
SKU mingleSSD7101A-1
|
