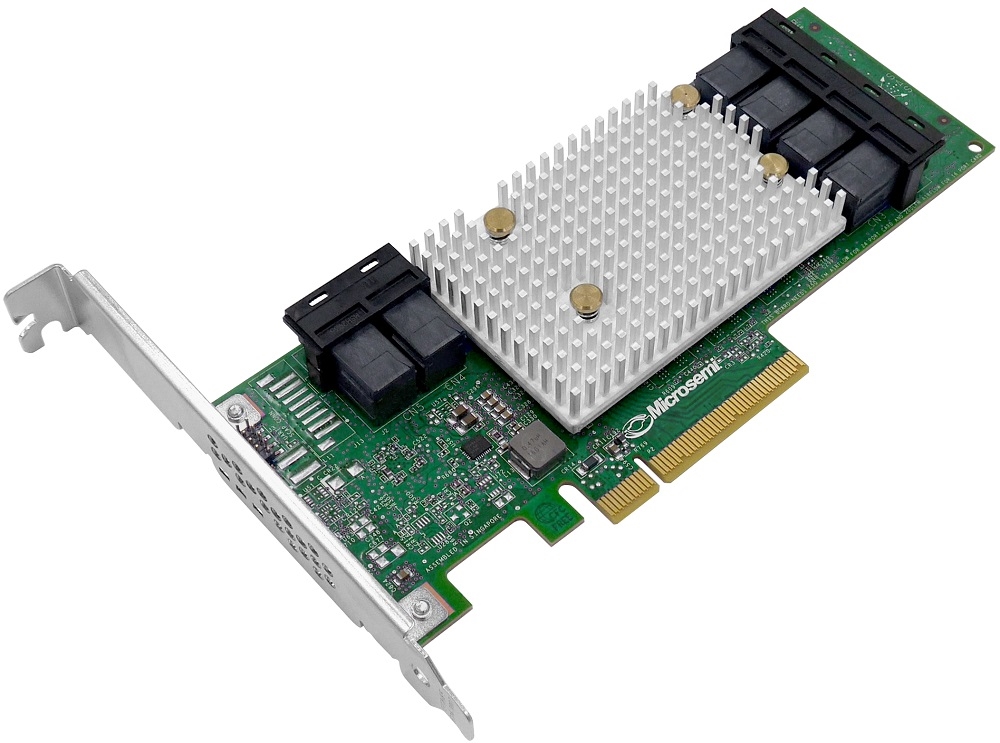

Item Adaptec Controller Card 2293500-R AHA-1100-16i 8 Internal 12Gbps 8xPCIe Gen3 HBA 1100 Adapter Retail
|
|
Show more images
|
|
Please note, Login or Registration at time of checkout will be required. Thank you.
|
Price $476.11
Buy Now
Expand to see more details...
Rebate 10% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping Free 2 day shipping
Return Policy 6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description The HBA 1100 delivers enterprise resiliency with its broadly deployed Smart Storage stack. Based on the PM8222 8x12G SmartIOC 2100 SAS/SATA protocol controller, the HBA 1100 Series provides a robust and stable solution that can handle the toughest system workloads and configurations. It offers over 40 percent power savings compared to previous generations, and significant power advantages versus competing solutions. It is fully tools-compatible with existing and future Microsemi HBA, RAID, and expander solutions.
Optimized for New Devices and New Use Cases
The HBA 1100 supports SMR HDDs and their specific command sets (ZAC/ZBC for SAS/SATA SMR drives), enabling cost-efficient solutions for warm and cold storage applications. It also supports the latest SAS and SATA SSDs. The HBA 1100 is also optimized for software-defined storage solutions, such as Microsoft Storage Spaces Direct, VMWare vSAN, and OpenStack Swift/Ceph.
Features
Up to 24 native SAS/SATA ports; low-profile/ MD2 form factor
12 Gbps SAS data rates using mini-SAS HD connectors
Quality and reliability through the unified, hardened Smart Storage stack, which is deployed in over 30 million servers
Proven compatibility with existing Microsemi Adaptec solutions, multiple operating systems, servers, enclosures, SSDs, HDDs, and LTO tape drives
Uses the latest 28 nm SmartIOC 2100 SAS/ SATA protocol controller to drive efficiency and performance while also having the industry's lowest power consumption
Ports
16 internal
Connectors
4 x SFF-8643 6
Package Contents
HBA 1100-16i adapter
Additional low profile vented bracket
Bus Interface
8-Lane PCIe Gen3
Processor
12 Gbps ROC
Key software features
- Support for up to 256 SAS/SATA target devices (238 SSD/HDDs maximum support and remainder are reserved for expanders and enclosure management)
- Multi-LUN support
- SAS expander support
- TLR
- SATA NCQ
- Hot plug drive support
- S.M.A.R.T
- MPIO support
- Multi-initiator (host)/clustering for SAS
- Enclosure management
- SES-2, SES-3
- SFF-8485, SGPIO
- SFF-8489, IBPI
- BMC support
Management utilities
maxView Storage Manager:
- Web-based GUI management utility
- OS support: Windows, Linux, Solaris, VMware
- Remote configuration, monitoring, and notification
- Remote firmware updates
- SMI-S
- SMTP
ARCCONF:
- Command-line interface
- SMI-S support for VMware
BIOS Configuration Utility (CTRL+A):
- Legacy configuration utility
- Flashable BIOS support
uEFI BIOS Configuration Utility:
- HII-based configuration utility
- Flashable BIOS support
Event Monitor:
- Lightweight event monitoring and logging tool
- Distributes adapter events and notifies user
Operating Systems
Microsoft Windows, Red Hat, SuSE, CentOS, Ubuntu, and VMware ESXi, FreeBSD, Solaris, Citrix XEN Server
Operating Temperature
0oC to 55oC with 200 LFM airflow.
Note: This adapter contains a powerful I/O processor that requires adequate airflow to operate reliably. Please install this card only into a server or PC chassis with at least 200 LFM airflow. Temperature measured 1 inch from adapter.
Regulatory Certification
CE, FCC, UL, C-tick, VCCI, KCC, CNS
Environmental Compliance
RoHS
MTBF
2.73 million hours, measured at 40oC
Item Dimension ( L inchxW inchxH inch)
15 x 10 x 2
Weight
2.00 lb
Warranty Information
3 Years
Available Quantity 5
UPC 760884157787
SKU mingle2293500-R

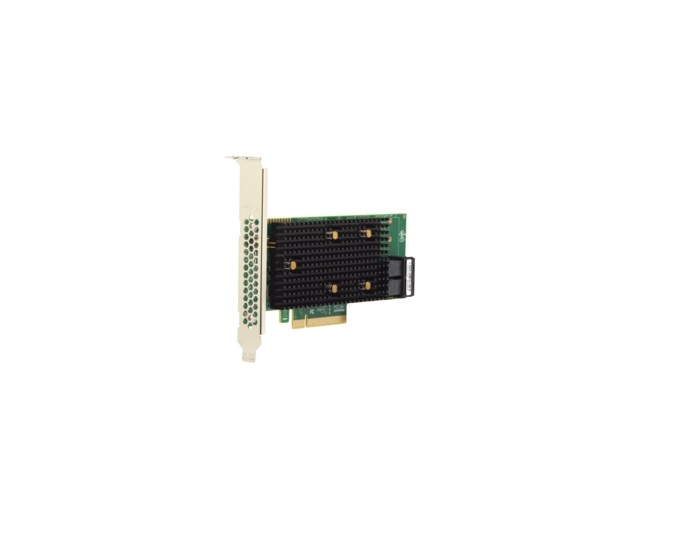

Item LSI Logic Controller Cards 05-50077-03 9500-8i 8 Ports Internal. 12Gb/s Tri-mode SATA+SAS+PCI Express(NVMe) Retail
|
|
Show more images
|
|
Please note, Login or Registration at time of checkout will be required. Thank you.
|
Price $388.89
Buy Now
Expand to see more details...
Rebate 10% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping Free 2 day shipping
Return Policy 6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description PCIe Gen 4.0 HBA provides high bandwidth and unprecedented flexibility to today s expanding data centers with Tri-Mode connectivity and NVMe devices
The 9500-8i Tri-Mode, PCIe Gen 4.0 HBA with eight internal ports is ideal for increased connectivity and maximum performance for enterprise data center flexibility.
With increased bandwidth and IOPS performance compared to previous generations, the 9500-8i adapter delivers the performance and scalability needed by critical applications.
Connects up to 1024 SAS/SATA devices or 32 NVMe devices
Provides maximum connectivity and performance for high-end servers and applications
Support critical applications with the bandwidth of PCIe 4.0 connectivity
Universal Bay Management (UBM) Ready
Lifecycle
Active
Typical Power
5.96W
Host Bus Type
x8 lane PCI Express 4.0
Devices Supported
SAS/SATA: 1024, NVMe: 32
Internal Connectors
1 x8 SFF-8654 (SlimSAS)
Internal Ports
8
Operating Temperature
0oC to 55oC
OS Support
Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
I/O Controller
SAS3808
MTBF
> 5,000,000 hours at 40oC
Operating Humidity
20% to 80% Non-condensing
Brackets
Full height and low profile
Regulatory Certifications
Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 and 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
Management Software
LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
Item Dimension (L inchxW inchxH inch)
12 x 6 x 10
Weight
6.00 LB
Warranty Information
3 Years
Available Quantity 5
UPC 830343007509
SKU mingle05-50077-03

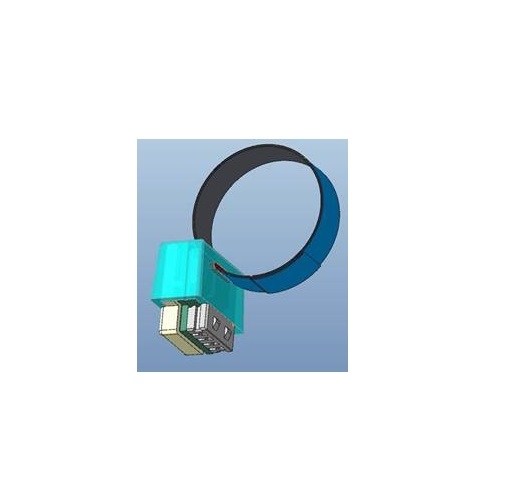

Item Intel Controller Card VROCISSDMOD Virtual RAID 5Module Brown Box
|
|
Show more images
|
|
Please note, Login or Registration at time of checkout will be required. Thank you.
|
Price $122.98
Buy Now
Expand to see more details...
Rebate 10% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping Free 2 day shipping
Return Policy 6 months free return. Return item within the time specified.
Add or Remove from Cart
Product Description Intel Controller Card VROCISSDMOD Virtual RAID 5Module Brown Box
Essentials
Product Collection: Intel Virtual RAID on CPU (Intel VROC)
Code Name: Products formerly Turtle Bay
Target Market: Mainstream
Supported Operating Systems: Windows 2016, Windows 2012 R2, Windows 10, Windows 7 SP2 Red Hat Enterprise Linux 7.3, SUSE Linux Enterprise 12 SP3
RAID Level Supported: 0, 1, 10, 5
Number of Devices Supported: 24
Keying: 4pin
Additional Features: See Product Brief
Included Items: Intel VROC Intel SSD Only Hardware Key
Supplemental Information
Description: A scalable, enterprise RAID solution for NVMe SSDs connected directly to the CPU. Note: This SKU is only compatible with Intel brand enterprise and professional SSDs
Item Dimension (L"xW"xH")
7 x 6 x 4
Weight
2 lbs
Warranty Information
3-Years Standard
Available Quantity 5
UPC 735858337274
SKU mingleVROCISSDMOD

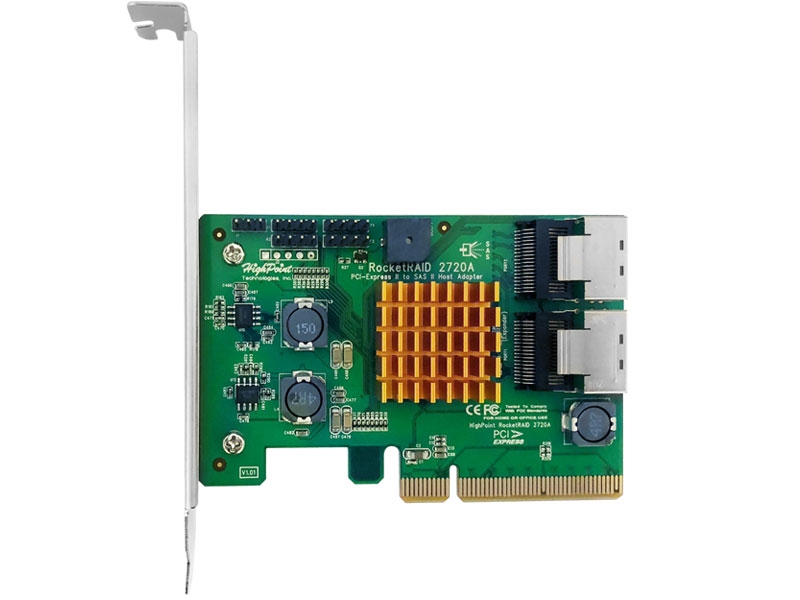

Item HighPoint Controller Card RR2720A RocketRAID2720A 8CH 12Gb/s 8xPCIe3.0 SAS/SATA RAID Retail
|
|
Show more images
|
|
Please note, Login or Registration at time of checkout will be required. Thank you.
|
Price $179.48
Expand to see more details...
Rebate 10% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping Free 2 day shipping
Return Policy 6 months free return. Return item within the time specified.
Product Description HighPoint RocketRAID 2700 HBAs are cost-effective, high-performance PCI-Express 2.0 6Gb/s SAS RAID controllers, and are ideal for SMB server and workstation configurations.
HighPoint Turbo-RAID Technology: For over a decade, HighPoint has strived to take the cost and complexity out of RAID. We were the first to introduce affordable RAID 5 solutions to the storage marketplace, for both SMB and consumer applications. HighPoint Turbo RAID Products and Solutions are powered by our industry proven RAID stack, which leverages the powerful system resources and robust 2nd generation PCIe x8 host interface of todays modern computing platforms. Turbo RAID Technology delivers the industrys best Cost-Performance value, and the industrys most affordableRAID-6 Storage Solutions. RocketRAID 272x/271x HBAs support a wide-range of storage configurations including RAID 0, 1, 5, 6, 10, 50, and JBOD.
Complete, Flexible Upgrade Paths: RocketRAID 2700 HBAs are fully backwards compatible with SAS/SATA 3Gb/s devices, PCI-Express 1.0 and 2.0 motherboards, and are compliant with all major operating systems including Windows, Linux and macOS.
RAID arrays can be freely moved to any other RocketRAID 2700 HBA. Upgrading, scaling and expanding storage has never been easier.
RocketRAID 2700 external-port HBAs were designed to work in conjunction with Rocket EJ Series SATA JBOD Expander and SAS-Expansion modules, which can dramatically expand the storage capability of each Mini-SAS connector.
Simple and Easy Storage Expansion: RocketRAID 2700 series HBAs allow customers to expand capacity and convert existing RAID arrays from one level to another without having to start from scratch: your data remains intact and accessible during the transition
Feature Specifications
Port Type
2x SFF-8087 (Mini-SAS) - (replacement for RocketRAID 2720SGL)
Number of Channels / Ports
8x 6Gb/s SAS/SATA Channels
Number of Devices
8x SAS /SATA Hard Drive / SSD
Bus Interface
PCIe 2.0 x8
Form Factor
Low Profile
RAID Mode
0, 1, 5, 6, 10, 50 and JBOD / non-RAID Mode
Note:
RAID 6 is not supported on macOS
Bootable RAID 6 is not supported
Operating System
Window Server 2008 and Window 7 and later
Linux
macOS 10.6 and later
Driver embedded into macOS 10.8 and later
Advanced RAID Features
Flash ROM for Upgradeable BIOS
Yes
Storage Health Inspector
Yes
Redundant RAID Configurations
Yes
BIOS PnP (plug and play) and BBS (BIOS boot specification) support
Yes: RocketRAID 2720SGL
Bootable RAID Array
Yes
EFI for Mac Platform
Yes
Multiple RAID Partitions supported
Suport up to 4 RAID partition per disk
Storage Configurations Support Details
Direct Attached
Multiple RAID Adapters supported
Suport up to 4 RAID controllers per one system
Online Array Roaming
Yes
Online RAID Level Migration (ORLM)
Yes
Online Capacity Expansion (OCE)
Yes
RAID Initialization Background/Foreground/Quick
Yes
Global Hot Spare Disk support
Yes
Automatic and configurable RAID Rebuilding Priority
Yes
Disk Format compatible: 512, 512e, 4Kn
Yes
Larger than 2 TB Drive and RAID Array support
Yes
Spin down Massive Arrays of Idle Disks support
Yes
Native Command Queuing
Yes
Staggered Drive Spin Up
Yes
Write Back and Write Through
Yes
RAID Monitoring and Management Suite
RAID Management Suite:
BIOS/UEFI/Firmware configuration tool
Browser-Based management tool
CLI(Command Line Interface- scriptable configuration tool)
API package
Yes
Enclosure Management Interface: SGPIO, SES-2 and I2C (Drive LEDs supported: SGPIO, SES-2 and LED Header)
Yes
except RR2711, 2722 only support via SES"
SMTP Email Alert Notification
Yes
Alarm Buzzer
Yes
Operating Environment
Work Temp
+5oC -+ 55oC
Storage Temp
-20oC - +80oC
Relative Humidity
5% - 60% non condensing
Operating Voltage
PCI-e: 12V/3.3V Power: 11W
MTBF (Mean Time Before Failure)
920,585 Hours
Certification Approval
CE, FCC, RoHS, REACH, WEEE
Kit Contents
1x RocketRAID 2720 Controller card
1x Low Profile Bracket
1x Quick Installation Guide
Item Dimension (L"xW"xH")
7 x 8 x 2
Weight
1 lb
Warranty Information
1 Year
Note Currently out of stock
Available Quantity 0
UPC 643653272051
SKU mingleRR2720A
|
