Product Description

WD Red Pro NAS Hard Drive - 10TB



Enterprise-class hard drives engineered to deliver high performance and reliability to commercial and enterprise NAS environments.

WD Red Pro drives are engineered to handle high-intensity workloads in 24 7 multi-user commercial and enterprise NAS environments. WD Red Pro drives deliver the performance, scalability and dependability businesses require to store, share and collaborate on large amounts of data in multi-bay RAID-optimized NAS systems.


Optimized for NAS with NASware

Western Digital s exclusive NASware technology fine tunes drive parameters to match NAS system workloads, which helps increase performance and reliability.


Designed for Continuous Operation

WD Red Pro hard drives are designed to handle the rigorous demands of high-intensity 24x7 multi-user NAS environments and increase system durability.


Tested for Dependable Compatibility

Western Digital partners with a wide range of NAS system vendors for extensive testing to ensure compatibility with most NAS enclosures.


Protected against Excessive Vibration

WD Red Pro drives include Rotation Vibration (RV) sensors that anticipate and proactively counteract disturbances caused by increased vibration. By dispersing excess vibration across the drive chassis, turbulence is minimized, performance is maintained and drives are protected.


Built to Absorb Shock

WD Red Pro hard drives include a multi-axis shock sensor to detect subtle shock events and automatically compensate with dynamic fly height technology to further protect the drives in NAS enclosures.
Capacity
10TB
Form Factor
3.5-Inch
Interface
SATA
Transfer Rate
up to 267MB/s
Disk Speed (RPM)
7200 RPM
Recording Technology
CMR
Cache Size
512MB
Operating Temperature
0^oC to 65^oC
Non-Operating Temperature
-40^oC to 70^oC
Certifications
BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
Product Features
- Ideal for creative pros, medium to large businesses, and commercial/enterprise NAS systems
- For RAID-optimized NAS systems with an unlimited number of bays
- Rated for 550TB/year workloads¹ and up to 2.5M hours MTBF
Compatibility
RAID-optimized NAS systems with unlimited Number of bays
Note
1. Workload Rate is defined as the amount of user data transferred to or from the hard drive. Workload Rate is annualized (TB transferred x (8760 / recorded power-on hours)). Workload Rate will vary depending on your hardware and software components and configurations.
Item Dimension (L inchxW inchxH inch)
6 x 4 x 2

Weight
1.65 lb

Warranty Information
5-Year Limited Warranty






Note: 1 Hard Drive in a Static Shield Bag only. Does not come with cable, instructions, or any other accessories.

Available Quantity

5

UPC

Does not apply

SKU

mingleWD103KFBX

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

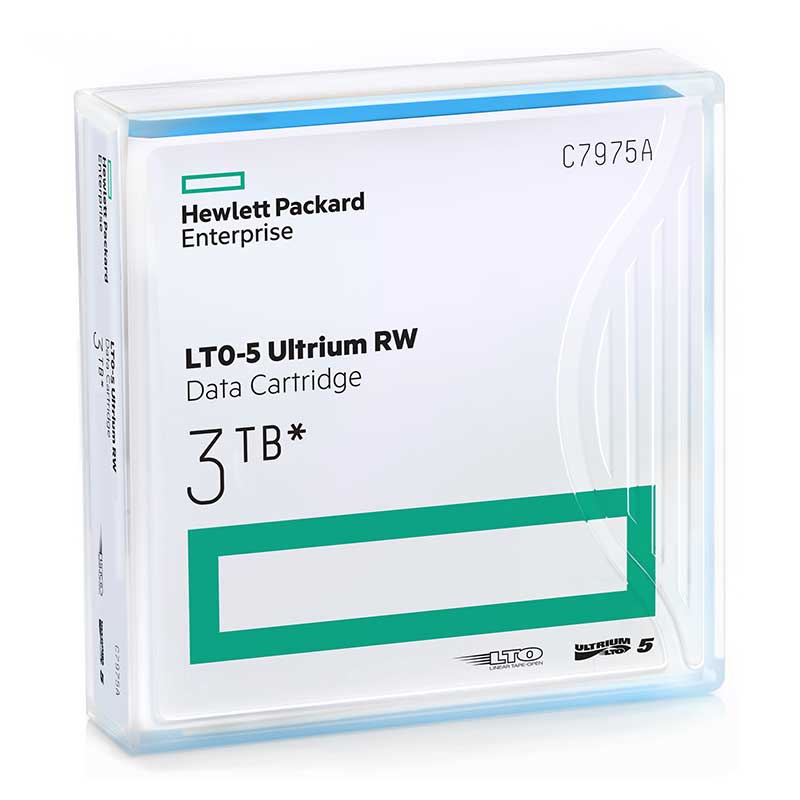

HPE LTO, Ultrium-5, 1.5TB/3TB, RW, with case RW, with case

Available Quantity

5

UPC

884962925348

SKU

mingleC7975A

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

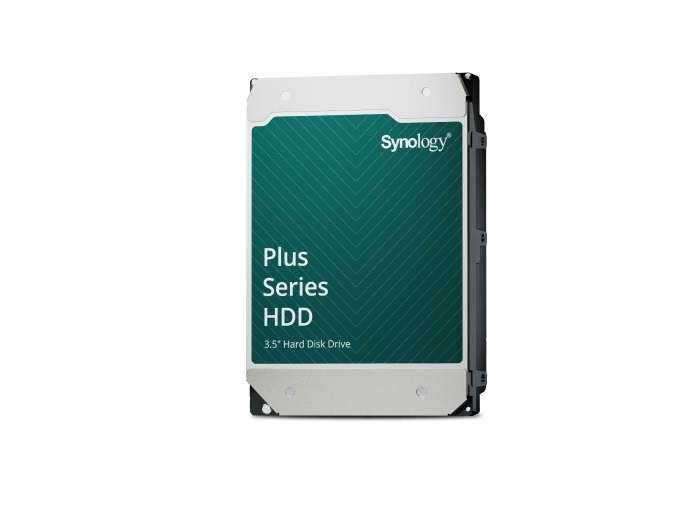

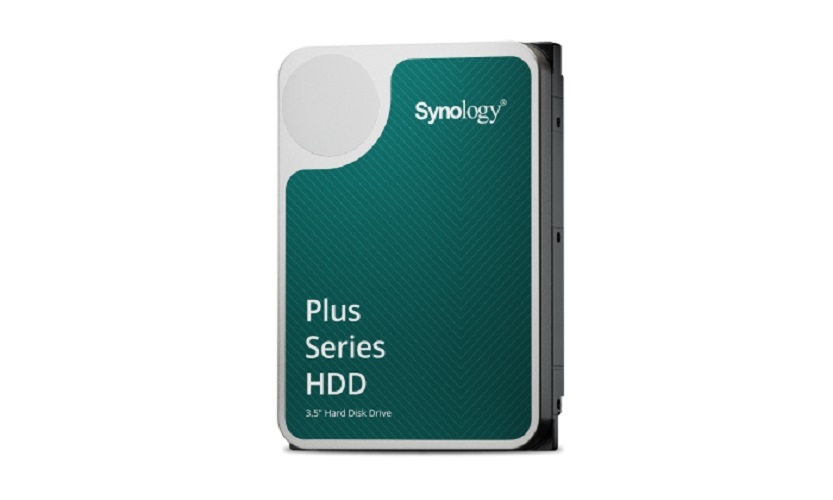

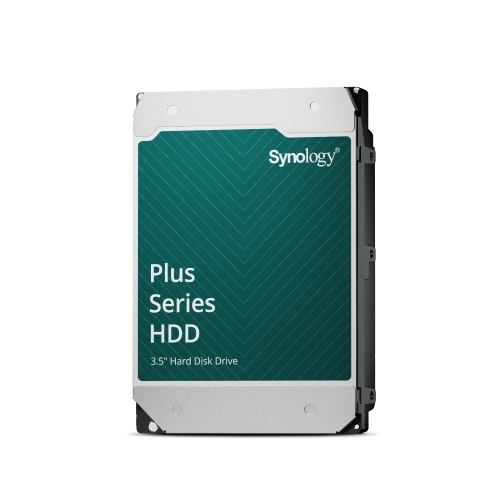

Plus Series 3.5" SATA HDD
Reliable hard drives purpose-built for Synology systems in home and small office environments.
The Synology advantage
Durability
Designed for 24/7 operation
Updates
Seamless firmware updates through DSM
One-stop support
Fast troubleshooting from Synology
Hard drives designed for Synology systems
Superior dependability
Using 100% conventional magnetic recording (CMR) technology, Plus Series disk drives ensure consistent write performance throughout their lifespans.
Easy firmware updates
Firmware updates can be performed directly through DSM, ensuring drives benefit from the latest patches while eliminating the need for disk removal.
Comprehensive testing
Synology Plus Series drives are subjected to thorough compatibility and stress testing to ensure smooth 24/7 operation under multi-user workloads.
Hardware Specifications
HAT3310-16T
General

Capacity
16 TB
Form Factor
3.5"
Interface
SATA 6 Gb/s
Performance
Rotational Speed
7,200 rpm
Maximum Sustained Data Transfer Speed (Typ.)
281 MB/s
Power Consumption
Active Idle (Typ.)
4.14 W
Random Read / Write (4KB Q1) (Typ.)
7.48 W
Notes
Power consumption may differ according to configurations and platforms.
Temperature
Operating
5^oC to 60^oC (41^oF to 140^oF)
Non-operating
-40^oC to 70^oC (-40^oF to 158^oF)
Item Dimension (L"xW"xH")
2 x 5 x 6

Weight
1.59 lbs

Warranty Information
3 years

Available Quantity

5

UPC

846504005598

SKU

mingleHAT3310-16T

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Grow your data, not your footprint

The explosive growth of data from AI/ML, 5G networks, IoT, connected vehicles, and more is fueling growth in data centers. HDD innovation drives the ability to capture, store, analyze, and protect much of this data. Higher-capacity HDDs deliver higher data density, enabling data center expansion and efficiency.


22TB to Fuel Data Center Expansion

The explosive growth of data from AI/ML, 5G networks, IoT, connected vehicles, and more is fueling growth in data centers. HDD innovation drives the ability to capture, store, analyze, and protect much of this data. Higher-capacity HDDs deliver higher data density, enabling data center expansion and efficiency.

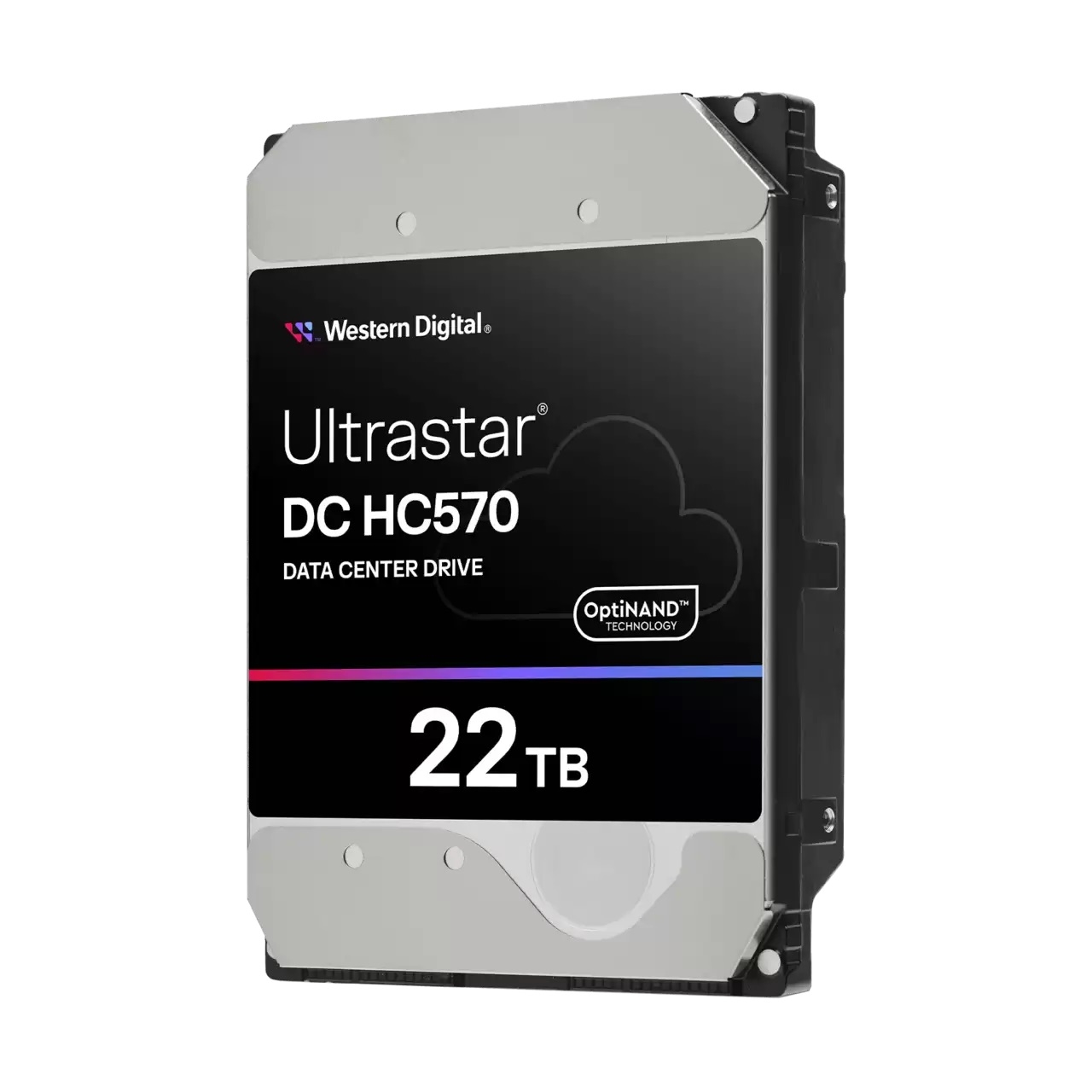

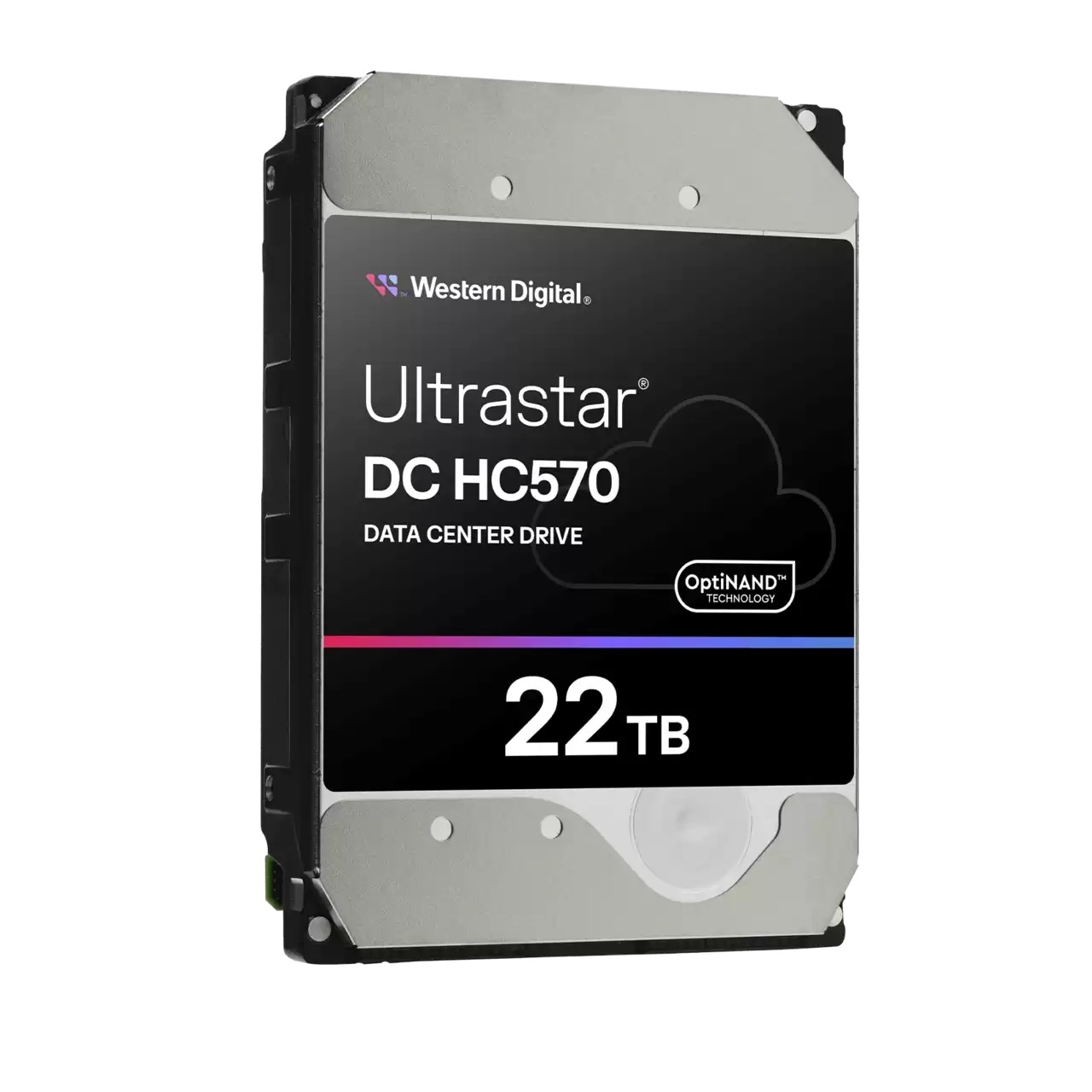

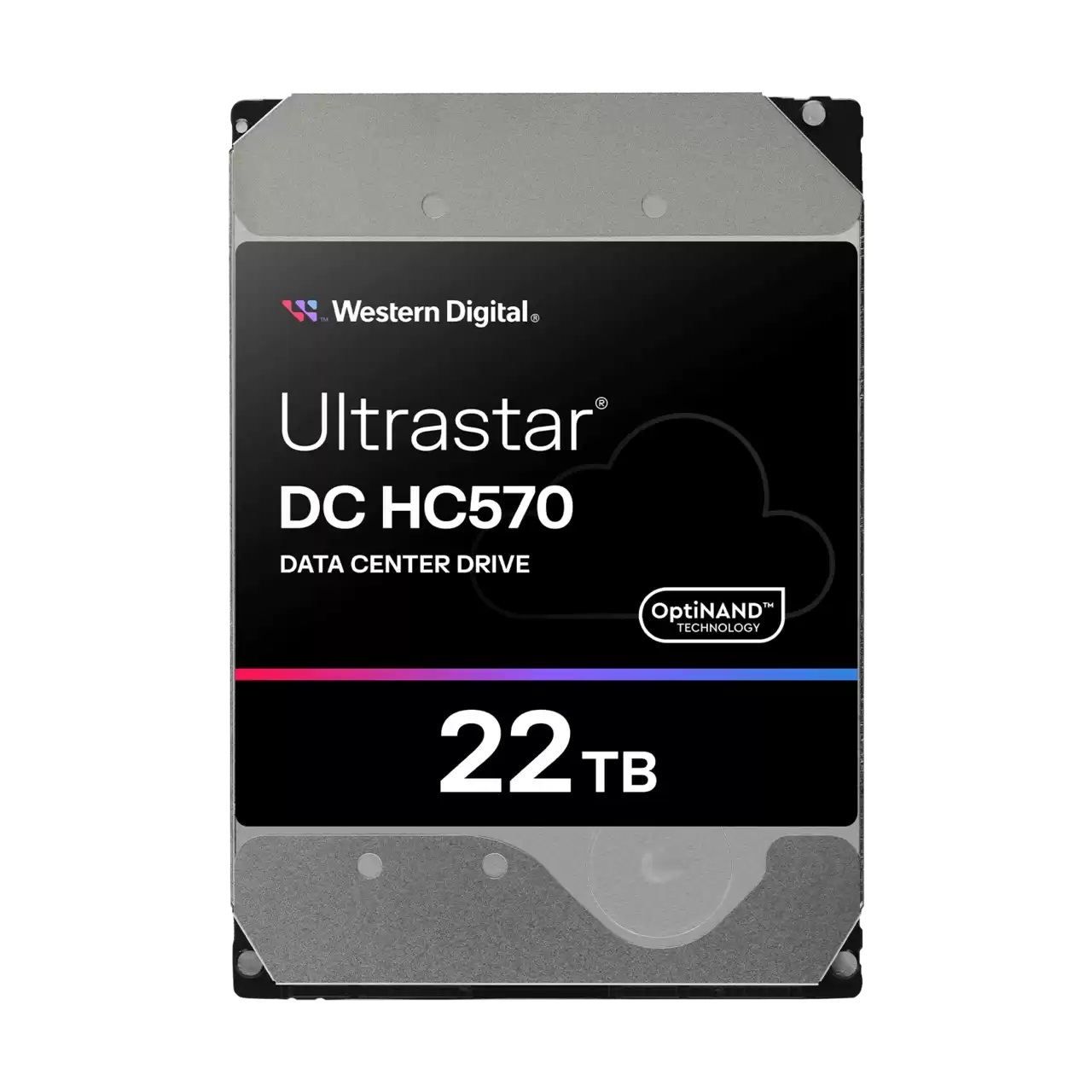

The Ultrastar DC HC570 22TB¹ data center HDD with OptiNAND technology is the next leap in data density. This 22TB data center HDD enables an incredible 22.44PB of raw storage in a typical rack3. This higher volumetric density allows data centers to maximize their storage, especially in footprint- and power-constrained environments.

The Ultrastar DC HC570 combines several industry-first technologies on a 10-disk CMR drive, delivering the performance, quality, and reliability that data center customers require.


Low Power for Lower Operating Costs

Ultrastar HDDs are designed for optimal power over a variety of workloads. The DC HC570 features low power sequential read/write and mixed random read/write workloads.


Note:

1. 1GB = 1 billion bytes and 1TB = one trillion bytes. Actual user capacity may be less depending on operating environment.
Features
- Ideal for common data center workloads thanks to low power consumption
- OptiNAND technology for highest capacities with ArmorCache
- ePMR, Triple Stage Actuator (TSA), HelioSeal technologies
- Projected 2.5M hours MTBF
Capacity
22TB
Form Factor
3.5-Inch
Connector
SATA
Interface
SATA
Transfer Rate
up to 291MB/s
Disk Speed (RPM)
7200 RPM
Recording Technology
CMR
Cache Size
512MB
Security
SE
Operating Temperature
5^oC to 60^oC
Non-Operating Temperature
-40^oC to 70^oC
Drive
3.5"
Item Dimension (L inchxW inchxH inch)
6 x 4 x 2

Weight
1.50 lb

Warranty Information
5 Years

Available Quantity

5

UPC

Does not apply

SKU

mingle0F48155

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

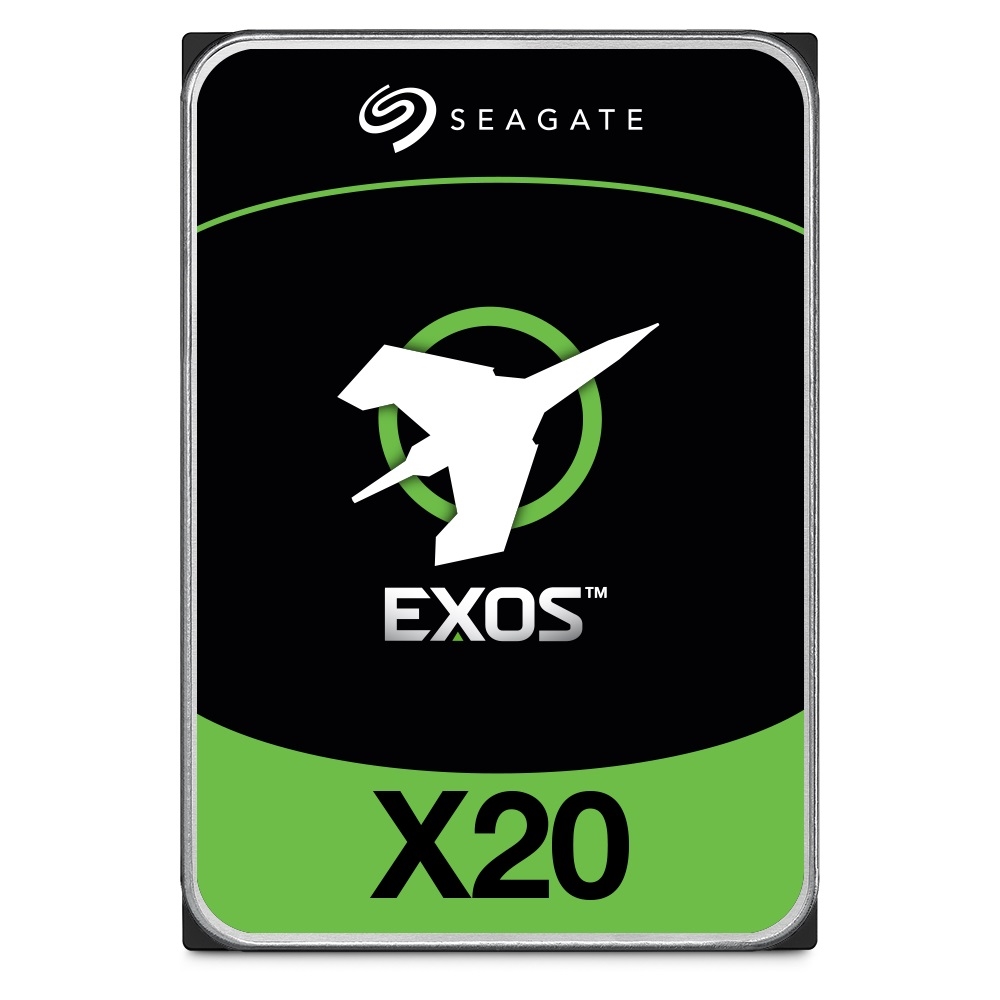

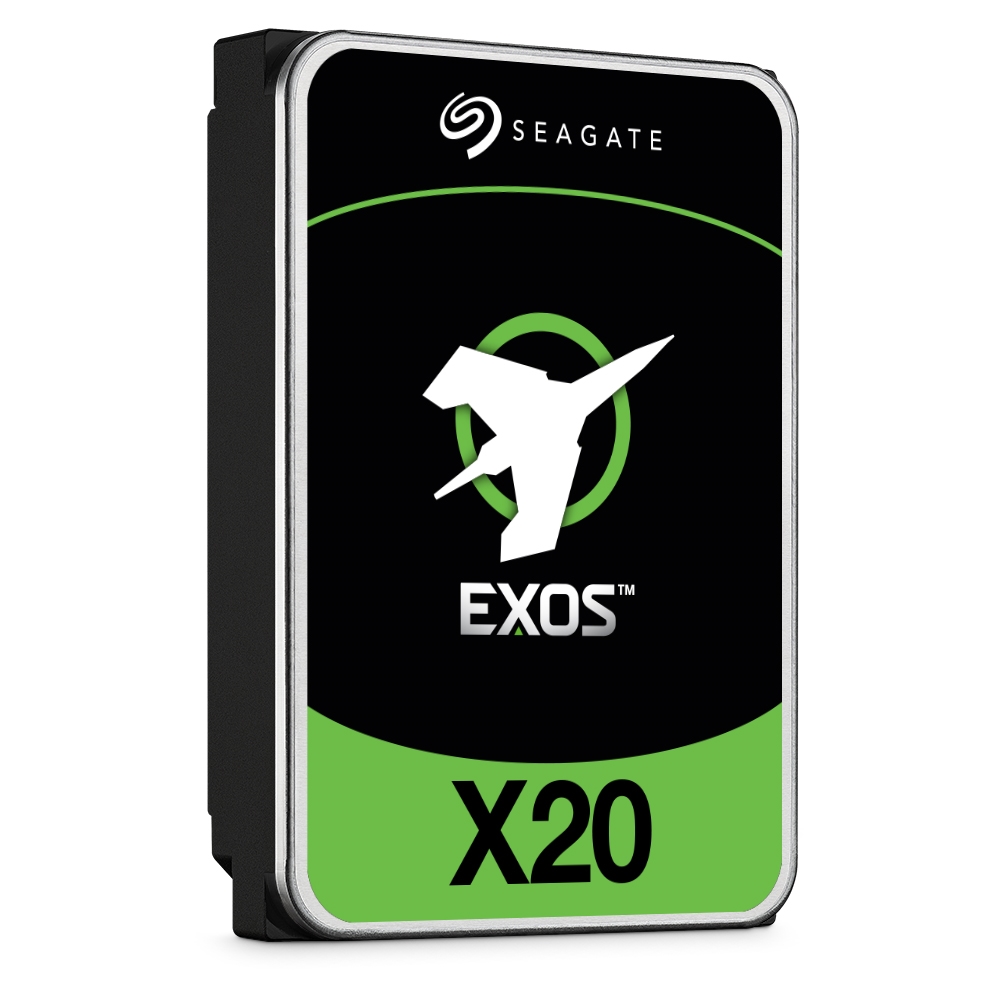

"Designed with the highest rack-space efficiency and protected with Seagate Secure Exos X20 offers extreme market-leading capacity, earning customer confidence by delivering trusted peace of mind."
Maximum Storage Capacity for Highest Rack Space Efficiency
Market-leading 20TB HDD offering the highest capacity available for more petabytesper rack
Highly reliable performance with enhanced caching, making it the logical choice for cloud data center and massive scale-out data center applications
Hyperscale SATA model tuned for large data transfers and low latency
PowerBalance feature optimizes Watts/TB
Maximize total cost of ownership savings through lower power and weight with helium sealed-drive design
Proven helium side-sealing weld technology for added handling robustness and leak protection
Digital environmental sensors to monitor internal drive conditions for optimal operation and performance
Data protection and security Seagate Secure features for safe, affordable, fast, and easy drive retirement
Proven enterprise-class reliability backed by 5-year limited warranty and 2.5M-hr MTBF rating
Capacity
18TB
Features
Helium Sealed-Drive Design
Yes
Conventional Magnetic Recording (CMR)
Yes
Protection Information (T10 DIF)
-
Super Parity
Yes
Low Halogen
Yes
PowerChoice Idle Power Technology
Yes
PowerBalance Power/Performance Technology
Yes
Hot-Plug Support
Yes
Cache, Multisegmented (MB)
256
Organic Solderability Preservative
Yes
RSA 3072 Firmware Verification (SDandD)
Yes
Reliability/Data Integrity
Mean Time Between Failures (MTBF, hours)
2,500,000
Reliability Rating at Full 24x7 Operation (AFR)
0.35%
Nonrecoverable Read Errors per Bits Read
1 sector per 10E15
Power-On Hours per Year (24x7)
8760
512e Sector Size (Bytes per Sector)
512
4Kn Sector Size (Bytes per Sector)
4096
Performance
Spindle Speed (RPM) 7200RPM Interface Access Speed (Gb/s)
6.0, 3.0
Max. Sustained Transfer Rate OD (MB/s,MiB/s)
285/272
Random Read/Write 4K QD16 WCD (IOPS)
168/550
Average Latency (ms)
4.16
Interface Ports
Single
Rotation Vibration at 20-1500 Hz (rad/sec²)
12.5
Power Consumption
Idle A (W) Average
5.4W
Max Operating, Random Read/Write 4K/16Q (W)
9.4, 6.4
Power Supply Requirements
+12 V and +5 V
Environmental
Temperature, Operating (^oC)
5^oC - 60^oC
Vibration, Nonoperating: 2 to 500Hz (Grms)
2.27
Shock, Operating 2ms (Read/Write) (Gs)
40
Shock, Nonoperating 2ms (Gs)
200
Item Dimension (L"xW"xH")
2 x 5 x 6

Weight
1.48 lbs

Warranty Information
5 Years













Note: 1 Hard Drive in a Static Shield Bag only. Does not come with cable, instructions, or any other accessories.

Available Quantity

5

UPC

763649153178

SKU

mingleST18000NM003D

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

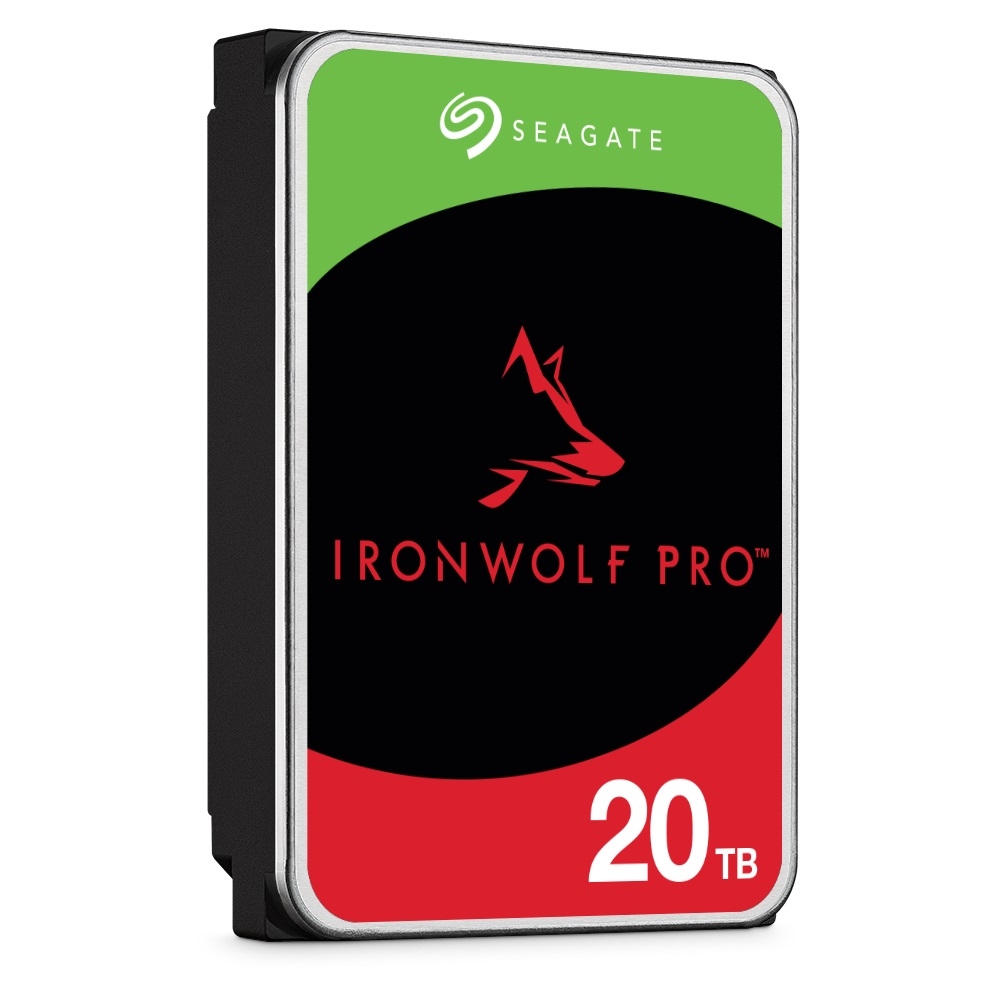

IronWolf Pro is designed to deliver reliable and dependable performance in 24x7 intensive workload environments. It is engineered to perform in commercial and enterprise multi-bay, multiuser, multi-application NAS storage solutions.


Key Advantages

Optimized for NAS with AgileArray AgileArray uses dual-plane balancing and time-limited error recovery (TLER) to deliver best-in-class RAID performance in multi-bay systems.

Always On, Always Accessible IronWolf Pro drives are designed for 24x7 performance, allowing users to access their data anytime, anywhere.

All-CMR Portfolio All IronWolf Pro drives utilize conventional magnetic recording (CMR) technology for consistent, best-in-class NAS performance.

Built Tough IronWolf Pro drives are rated for up to 550TB/year workload rate, allowing commercial and enterprise NAS users to seamlessly store, share, and collaborate on large amounts of data over a network.

Class-Leading Reliability and Dependability IronWolf Pro drives are rated for up to 2.5M hours MTBF and include a 5-year limited warranty for hassle-free data storage and best-in-class total cost of ownership (TCO).

Rotational Vibration (RV) sensors Built-in RV sensors coupled with dynamic fly-height technology correct for external vibration to deliver consistently high performance and reliability in multi-bay systems.

IronWolf Health Management (IHM)¹Actively protect your data with prevention, intervention, and recovery recommendations to ensure peak system health.

1 IHM is enabled on all leading NAS systems. Please check with your NAS vendor or a Seagate sales representative for more details.
Capacity
16TB
Interface
SATA 6Gb/s
Features
Drive Bays Supported
Unlimited
Recording Technology
CMR
Drive Design (Air or Helium)
Helium
Workload Rate Limit (WRL)
550
Rotational Vibration (RV) Sensors
Yes
Cache (MB)
256
Reliability/Data Integrity
Mean Time Between Failures (MTBF, hours)
2,500,000
Nonrecoverable Read Errors per Bits Read, Max
1 per 10E15
Power-On Hours (per year)
8760
Sector Size (Bytes per Logical Sector)
512E
Rescue Data Recovery Services(years) ³
3
Performance
Spindle Speed (RPM)
7200
Interface Access Speed (Gb/s)
6.0, 3.0, 1.5
Max. Sustained Transfer Rate OD (MB/s)
270MB/s
Rotational Vibration at 10-1500 Hz (rad/s)
12.5
Power Consumption
Startup Current, Typical (12V, A)
2
Idle Power, Average (W)
5
Average Operating Power (W)
7.6W
Note: 1 Hard Drive in a Static Shield Bag only. Does not come with cable, instructions, or any other accessories.

Available Quantity

5

UPC

763649176276

SKU

mingleST16000NT001

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

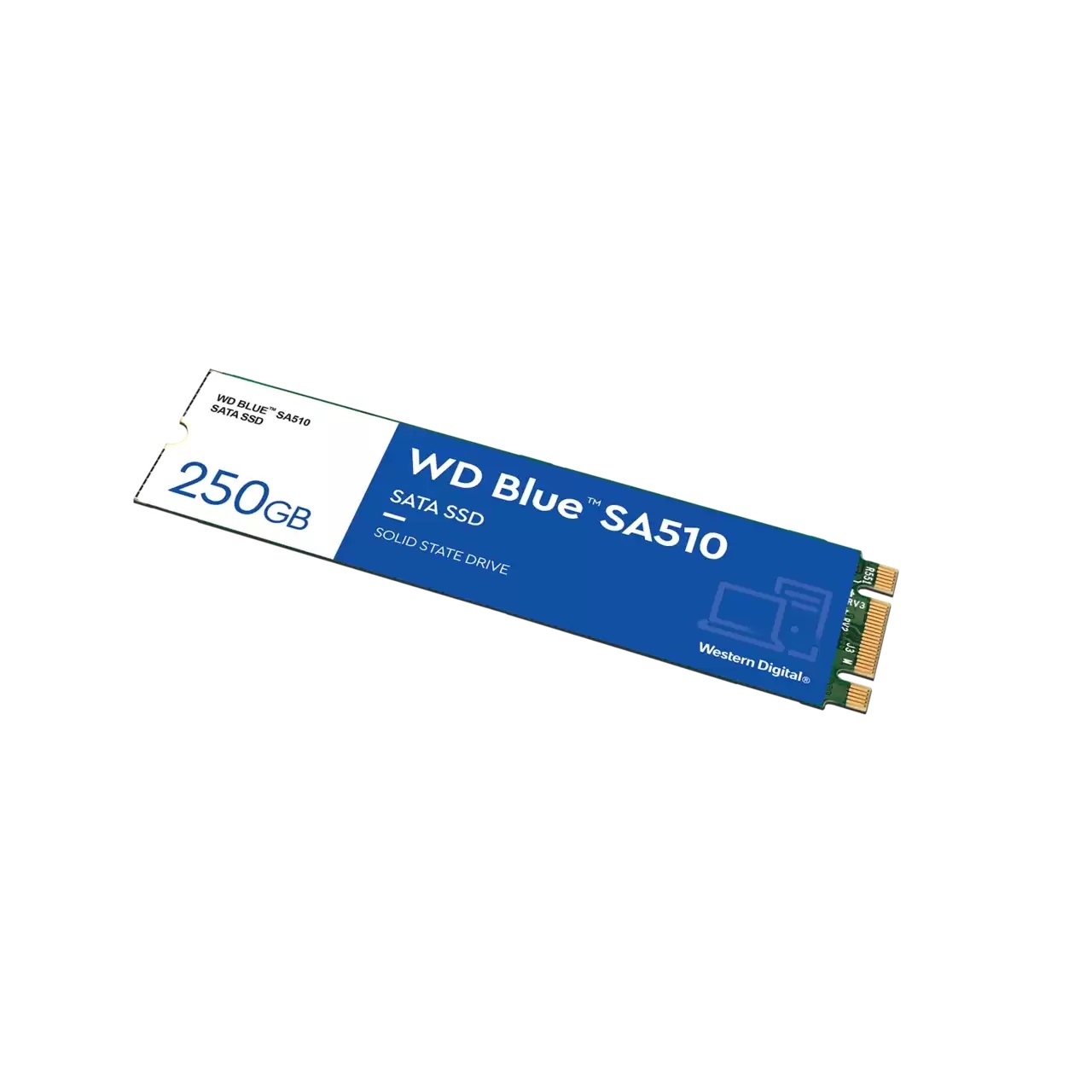

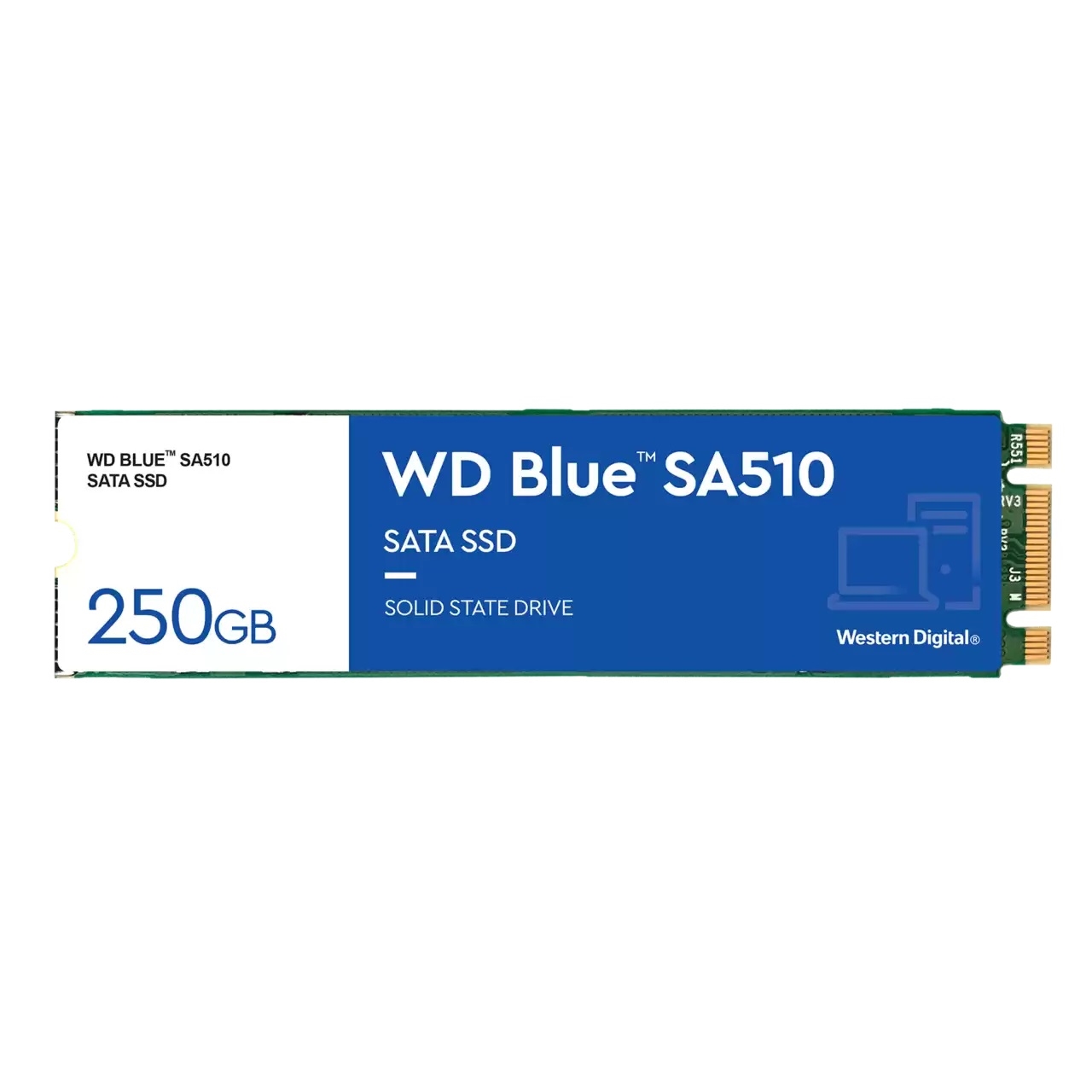

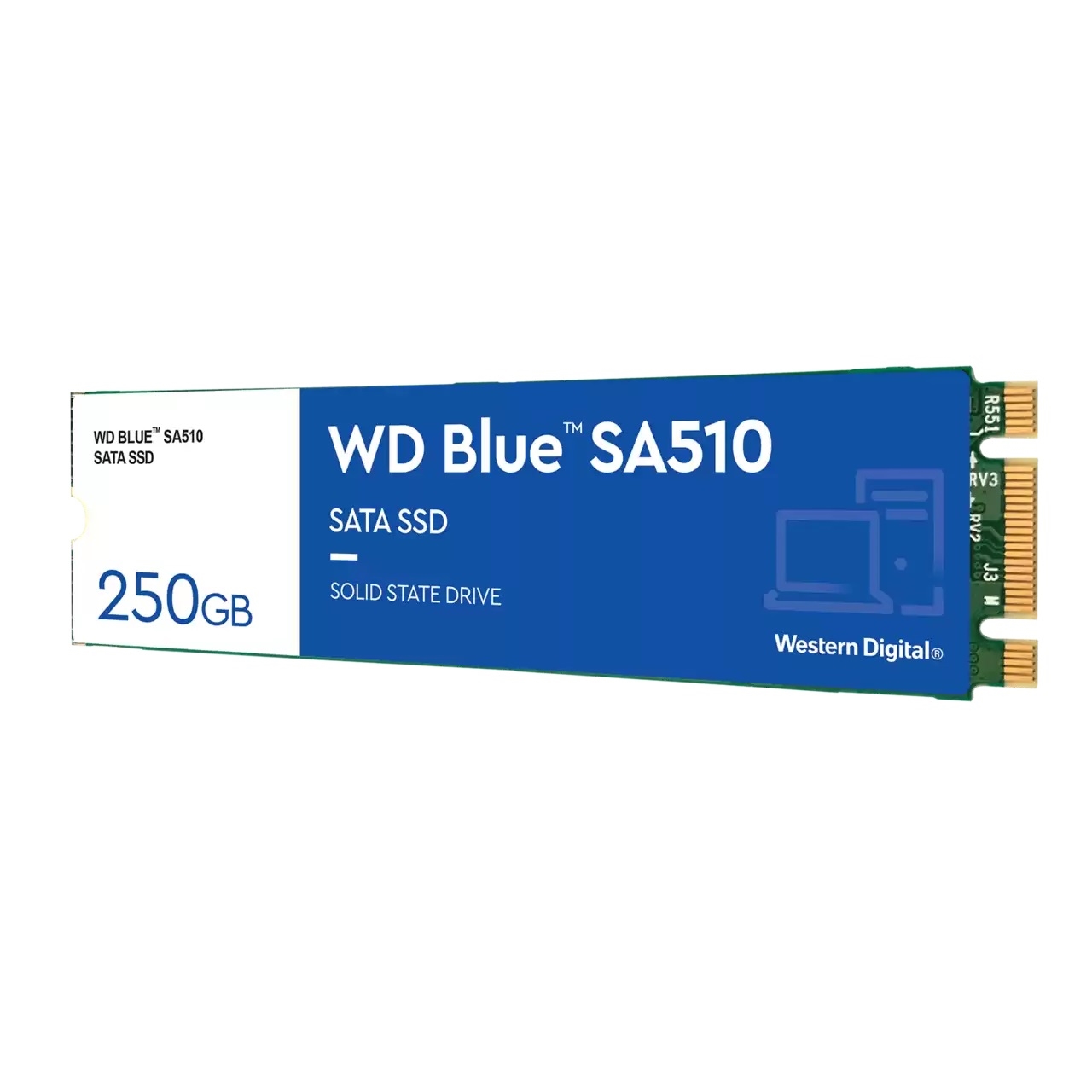

Elevate Your Creativity

Breathe new life into your PC so you can push your work further and grow your creative potential. Designed specifically for professionals, content creators, and editors, the WD Blue SA510 SATA SSD includes Acronis True Image for Western Digital backup and cyber protection software3 plus a free three month Dropbox Professional trial⁴.


Upgrade Your Creativity

Featuring read speeds up to 560MB/s¹ (500GB and 1TB models), this fast SATA SSD delivers a performance boost that keeps up with your workloads so you can stay creative and be more productive.


Give Your PC a Makeover

Why buy an expensive new desktop With capacities of up to 1TB², high endurance,plus low power draw for more laptop life between charges and reduced vibrations compared to HDDs, the WD Blue SA510 SATA SSD is the perfect drive for a powerful PC upgrade.


Note:

1. 1GB = 1 billion bytes and 1TB = 1 trillion bytes. Actual user capacity may be less depending on operating environment.

2. Based on read speed. 1 MB/s = 1 million bytes per second. Based on internal testing; performance may vary depending upon host device, usage conditions, drive capacity, and other factors.

4. Internet connection required. Offer must be redeemed by September 30, 2023, while activation code supplies lasts. Offer limited to 1 per new Dropbox account, subject to acceptance of Dropbox Terms of Service. For existing accounts, limitations apply. See the Dropbox website for details. Western Digital reserves the right to change or discontinue this offer at any time without notice. This offer is not available in all countries.
Capacity
250 GB
Interface
SATA III
Sequential Read Performance
555MB/s
Sequential Write Performance
440MB/s
Item Dimension (L inchxW inchxH inch)
4 x 1 x 1

Weight
1.00 lb

Warranty Information
5 Years















Note: 1 Hard Drive in a Static Shield Bag only. Does not come with cable, instructions, or any other accessories.

Available Quantity

5

UPC

718037884691

SKU

mingleWDS250G3B0B

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Highly reliable performance with enhanced caching, making it the logical choice for cloud data center and massive scale-out data center applications


Hyperscale SATA model tuned for large data transfers and low latency


PowerBalance feature optimizes Watts/TB


Maximize total cost of ownership savings through lower power and weight with helium sealed-drive design


Proven helium side-sealing weld technology for added handling robustness and leak protection


Digital environmental sensors to monitor internal drive conditions for optimal operation and performance


Data protection and security Seagate Secure features for safe, affordable, fast, and easy drive retirement


Best-Fit Applications

Scalable hyperscale applications/cloud data centers

Massive scale-out data centers

Big data applications

High-capacity density RAID storage

Mainstream enterprise external storage arrays

Distributed file systems, including Hadoop and Ceph

Enterprise backup and restore D2D, virtual tape

Centralized surveillance
Specifications
SATA 6Gb/s
Capacity
14TB
Standard Model FastFormat^TM (512e/4Kn)
ST14000NM000J
Features
Helium Sealed-Drive Design
Yes
Conventional Magnetic Recording (CMR)
Yes
Protection Information (T10 DIF)
-
SuperParity
Yes
Low Halogen
Yes
PowerChoice^TM Idle Power Technology
Yes
PowerBalance^TM Power/Performance Technology
Yes
Hot-Plug Support
Yes
Cache, Multisegmented (MB)
256
Organic Solderability Preservative
Yes
RSA 3072 Firmware Verification (SD and D)
Yes
Reliability/Data Integrity
Mean Time Between Failures (MTBF, hours)
2,500,000
Reliability Rating at Full 24x7 Operation (AFR)
0.35%
Nonrecoverable Read Errors per Bits Read
1 sector per 10E15
Power-On Hours per Year (24x7)
8760
512e Sector Size (Bytes per Sector)
512
4Kn Sector Size (Bytes per Sector)
4096
Note: 1 Hard Drive in a Static Shield Bag only. Does not come with cable, instructions, or any other accessories.

Available Quantity

5

UPC

763649139059

SKU

mingleST14000NM000J

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

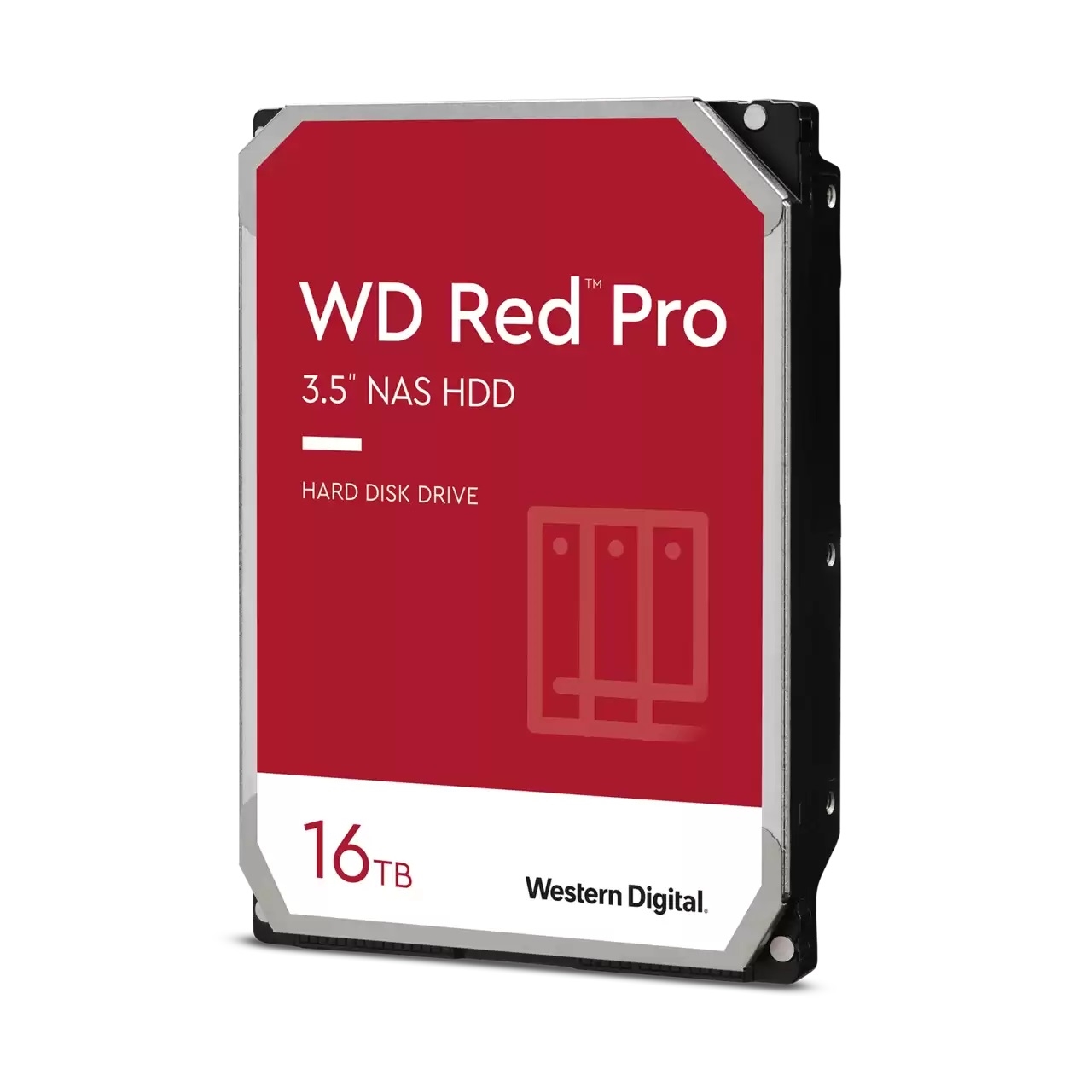

Product Description

For the Demands of Big Business
Designed specifically with medium or large scale business customers in mind, WD Red Pro drives are available for up to 24-bay NAS systems. Engineered to handle high-intensity workloads1 in 24x7 environments, WD Red Pro is ideal for archiving and sharing, as well as RAID array rebuilding on extended operating systems such as ZFS or other file systems. These drives add value to your business by enabling your employees to quickly share their files and back-up folders reliably in your NAS solution.
Exclusive NASware 3.0 Technology
Our exclusive advanced firmware technology, NASware 3.0, enables seamless integration, robust data protection and optimal performance for NAS systems operating under heavy demand. Built into every WD Red Pro hard drive, NASware 3.0s advanced technology improves storage performance by increasing compatibility, integration, upgradeability, and reliability.
Built for Optimum NAS Compatibility
WD Red Pro drives with NASware technology takes the guesswork out of selecting a drive. Optimized for NAS systems, our unique algorithm balances performance and reliability in NAS and RAID environments. Simply put, a WD Red Pro drive is one of the most compatible drives available for NAS enclosures. But dont take our word for it. WD Red Pro drives are a reflection of extensive NAS partner technology engagement and compatibility-testing.
Larger NAS Bay Shock Protection
WD Red Pro drives are equipped with a multi-axis shock sensor that automatically detects subtle shock events and dynamic fly height technology which adjusts each read-write function to compensate and protect the data. This combination of technology further protects the drives in larger 24-bay NAS environments and helps increase hard drive reliability.
Capacity
16 TB
Cache Size
512 MB
Disk Speed (RPM)
7200rpm
Interface
SATA
Transfer Rate
up to 259MB/s
Compatibility
Designed with CMR technology for medium or large-sized businesses in RAID-optimized NAS systems with up to 24 bays. Perfect for archiving, sharing and handling high-intensity workloads.
Item Dimension (L"xW"xH")
6 x 4 x 2

Weight
1.65 lbs

Warranty Information
3 years













Note: 1 Hard Drive in a Static Shield Bag only. Does not come with cable, instructions, or any other accessories.

Available Quantity

5

UPC

718037877662

SKU

mingleWD161KFGX

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

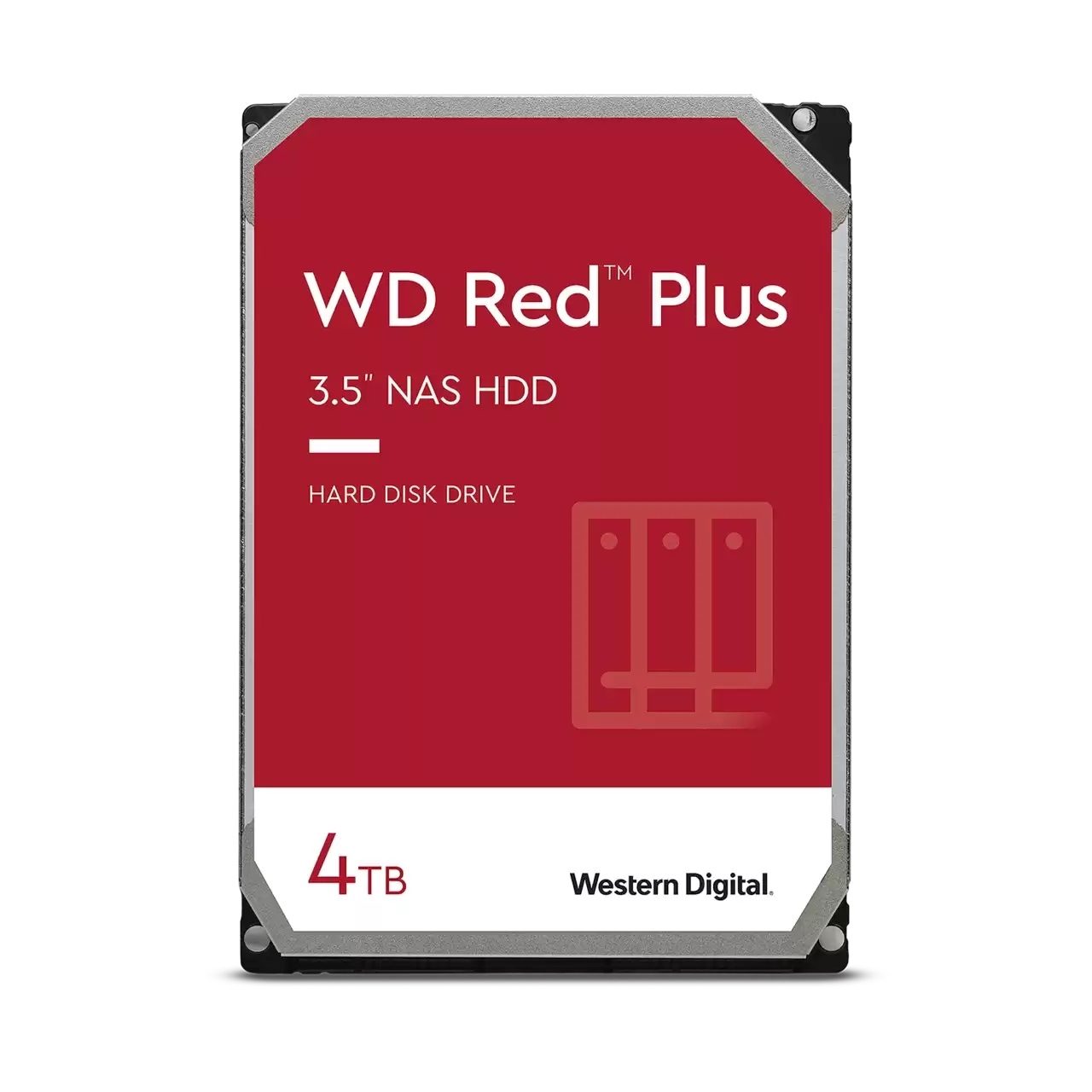

Product Description

Powerful hard drives designed for performance, reliability and power efficiency in small to medium NAS environments.

WD Red Plus drives are designed to handle workloads of power users and small to medium business NAS environments. WD Red Plus drives deliver the speed and capacity required to store, protect and share growing amounts of data in mid-sized RAID-optimized NAS systems with increased power efficiency.


Tuned for NAS with NASware

Western Digital s exclusive NASware technology fine tunes drive parameters to match NAS system workloads which helps increase performance and reliability.


Designed for Continuous Operation

Since your NAS system is always on, a reliable drive is essential. WD Red Plus hard drives are designed for systems that operate 24x7, giving users the confidence of knowing they can reliably access their data.


Tested for Dependable Compatibility

Western Digital partners with a wide range of NAS system vendors for extensive testing to ensure compatibility with most NAS enclosures.


Optimized for Lower TCO

WD Red Plus drives are engineered to use less power (versus previous models) and run cooler, which reduces operating costs and helps reduce heat in thermally challenged NAS boxes.


Powered for Strong Performance

Despite using less power, the drives have plenty of bandwidth to handle the mixed performance demands of multi-drive NAS systems.


Balanced for Increased Reliability

Hard drives that are not properly balanced may cause excessive vibration and noise in multi-drive systems, which could reduce hard drive life span and degrade the performance over time. Our enhanced dual-plane balance control technology significantly improves balance and increases overall drive performance and reliability.
Features
Ideal for Home Offices, Power Users, Small to Medium Businesses and Consumer/Commercial NAS systems
For RAID-optimized NAS systems with up to 8 bays
Rated for 180TB/year workload1 and 1M hours MTBF
Capacity
4TB
Form Factor
3.5-Inch
Connector
SATA
Compatibility
RAID-optimized NAS systems with up to 8 bays
Interface
SATA
Transfer Rate
up to 180MB/s
Disk Speed (RPM)
5400 RPM
Recording Technology
CMR
Cache Size
256MB
Model Number
WD40EFPX
Operating Temperature
0^oC to 65^oC
Non-Operating Temperature
-40^oC to 70^oC
Certifications
BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
Item Dimension (L inchxW inchxH inch)
6 x 4 x 2

Weight
1.65 lb

Warranty Information
3 Year limited





Note: 1 Hard Drive in a Static Shield Bag only. Does not come with cable, instructions, or any other accessories.

Available Quantity

5

UPC

718037899794

SKU

mingleWD40EFPX-SINGLE

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

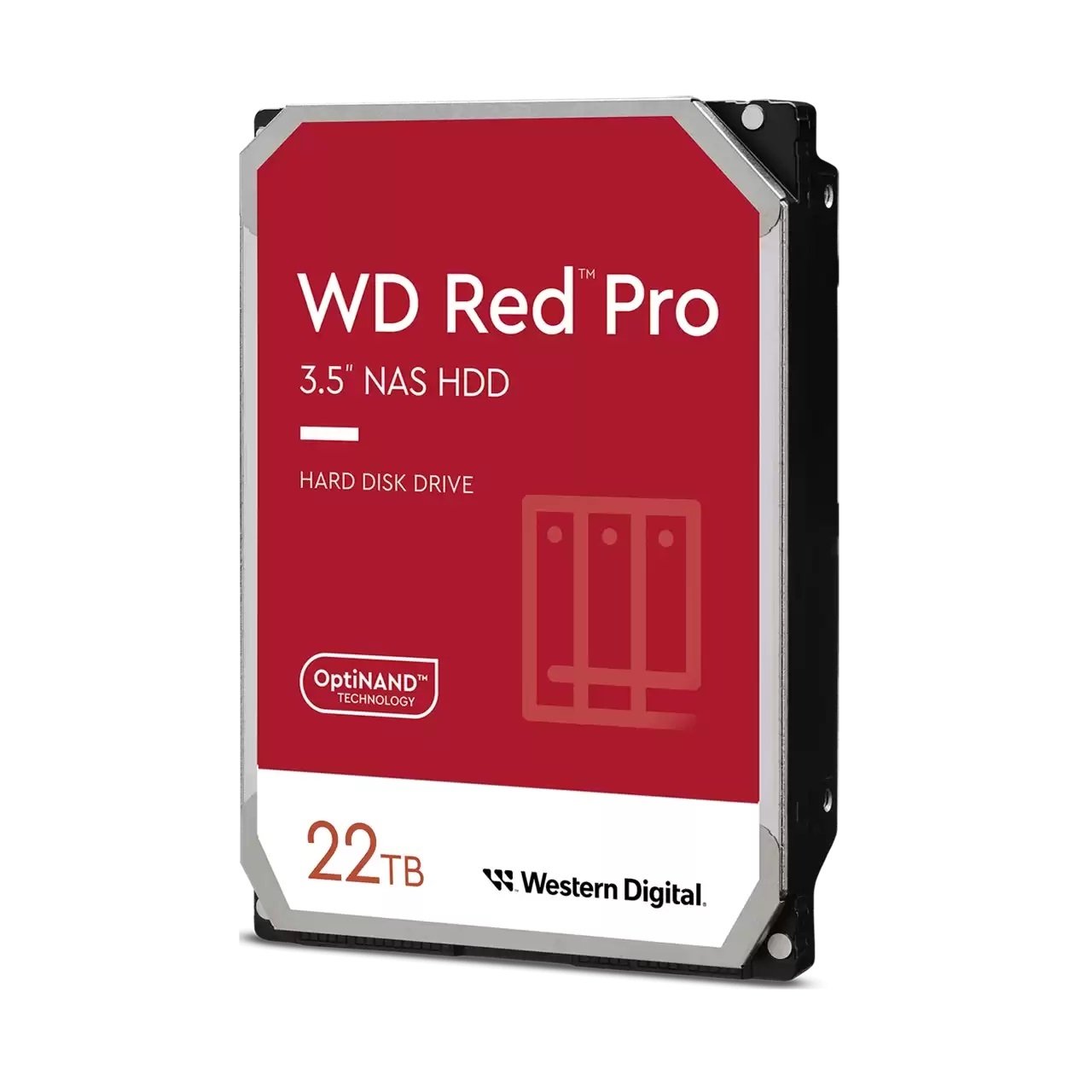

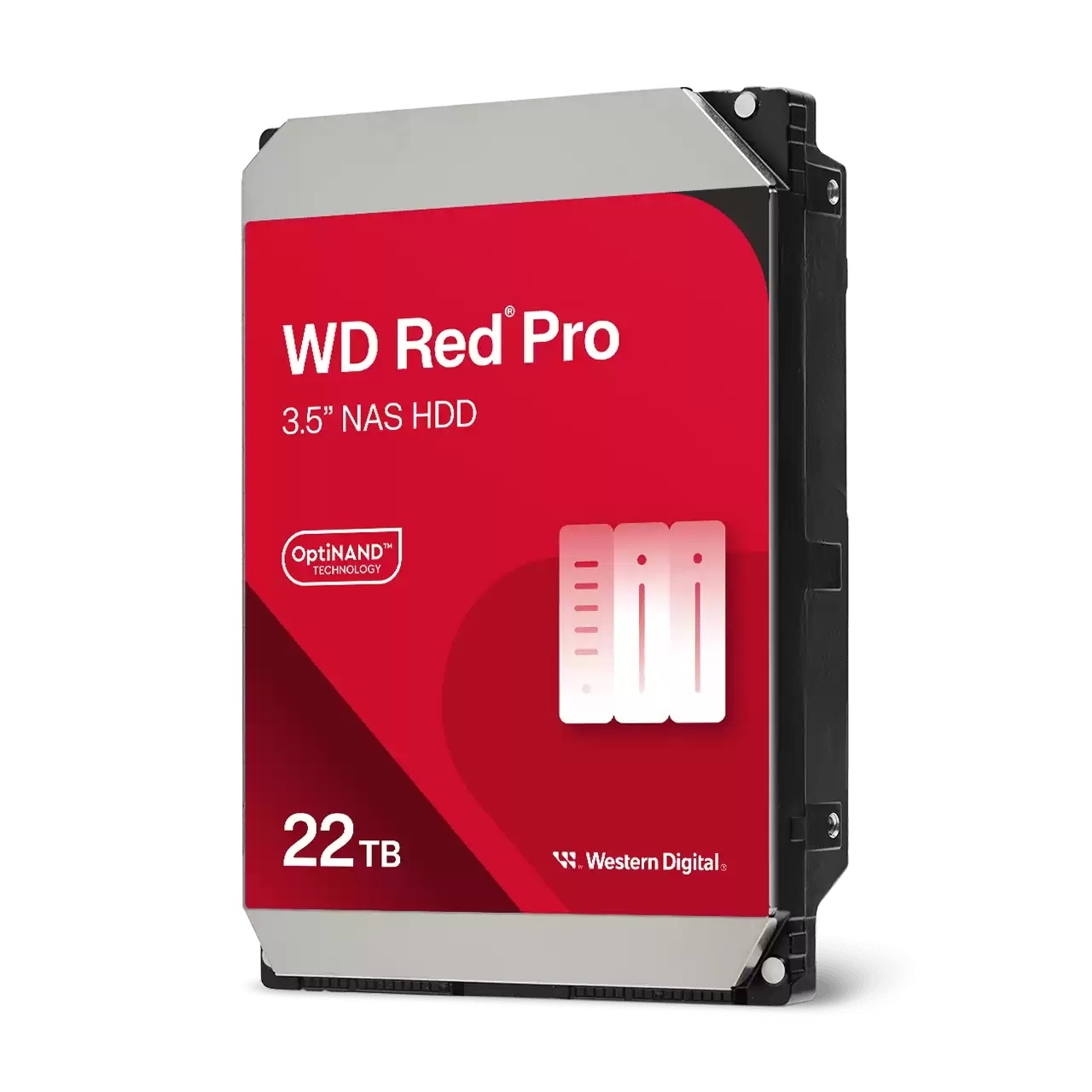

Product Description

Enterprise-class hard drives engineered to deliver high performance and reliability to commercial and enterprise NAS environments.

WD Red Pro drives are engineered to handle high-intensity workloads in 24 7 multi-user commercial and enterprise NAS environments. WD Red Pro drives deliver the performance, scalability and dependability businesses require to store, share and collaborate on large amounts of data in multi-bay RAID-optimized NAS systems.


Optimized for NAS with NASware

Western Digital s exclusive NASware technology fine tunes drive parameters to match NAS system workloads, which helps increase performance and reliability.


Designed for Continuous Operation

WD Red Pro hard drives are designed to handle the rigorous demands of high-intensity 24x7 multi-user NAS environments and increase system durability.


Tested for Dependable Compatibility

Western Digital partners with a wide range of NAS system vendors for extensive testing to ensure compatibility with most NAS enclosures.


Protected against Excessive Vibration

WD Red Pro drives include Rotation Vibration (RV) sensors that anticipate and proactively counteract disturbances caused by increased vibration. By dispersing excess vibration across the drive chassis, turbulence is minimized, performance is maintained and drives are protected.


Built to Absorb Shock

WD Red Pro hard drives include a multi-axis shock sensor to detect subtle shock events and automatically compensate with dynamic fly height technology to further protect the drives in NAS enclosures.


Engineered with Industry-Leading Technology

WD Red Pro 22TB hard drives feature Western Digital s proprietary OptiNAND technology which leverages integrated iNAND embedded flash to perform key housekeeping functions, freeing up more capacity and improving the overall drive performance.
Features
- Ideal for creative pros, medium to large businesses, and commercial/enterprise NAS systems
- For RAID-optimized NAS systems with an unlimited number of bays
- Rated for 550TB/year workloads¹ and up to 2.5M hours MTBF
Disclosures
1. Workload Rate is defined as the amount of user data transferred to or from the hard drive. Workload Rate is annualized (TB transferred x (8760 / recorded power-on hours)). Workload Rate will vary depending on your hardware and software components and configurations.
Capacity
22TB
Form Factor
3.5-Inch
Connector
SATA
SATA
Compatibility
RAID-optimized NAS systems with unlimited Number of bays
Interface
SATA
SATA
Transfer Rate
up to 265MB/s
Disk Speed (RPM)
7200 RPM
Recording Technology
CMR
Cache Size
512MB
Operating Temperature
0^oC to 65^oC
Non-Operating Temperature
-40^oC to 70^oC
Certifications
BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
Item Dimension (L inchxW inchxH inch)
6 x 4 x 2

Weight
1.00 lb

Warranty Information
5 Year limited warranty






Note: 1 Hard Drive in a Static Shield Bag only. Does not come with cable, instructions, or any other accessories.

Available Quantity

5

UPC

718037893501

SKU

mingleWD221KFGX-SINGLE

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Enterprise-class hard drives engineered to deliver high performance and reliability to commercial and enterprise NAS environments.

WD Red Pro drives are engineered to handle high-intensity workloads in 24 7 multi-user commercial and enterprise NAS environments. WD Red Pro drives deliver the performance, scalability and dependability businesses require to store, share and collaborate on large amounts of data in multi-bay RAID-optimized NAS systems.


Optimized for NAS with NASware

Western Digital s exclusive NASware technology fine tunes drive parameters to match NAS system workloads, which helps increase performance and reliability.


Designed for Continuous Operation

WD Red Pro hard drives are designed to handle the rigorous demands of high-intensity 24x7 multi-user NAS environments and increase system durability.


Tested for Dependable Compatibility

Western Digital partners with a wide range of NAS system vendors for extensive testing to ensure compatibility with most NAS enclosures.


Protected against Excessive Vibration

WD Red Pro drives include Rotation Vibration (RV) sensors that anticipate and proactively counteract disturbances caused by increased vibration. By dispersing excess vibration across the drive chassis, turbulence is minimized, performance is maintained and drives are protected.


Built to Absorb Shock

WD Red Pro hard drives include a multi-axis shock sensor to detect subtle shock events and automatically compensate with dynamic fly height technology to further protect the drives in NAS enclosures.


Engineered with Industry-Leading Technology

WD Red Pro 22TB and 24TB hard drives feature Western Digital s proprietary OptiNAND technology which leverages integrated iNAND embedded flash to perform key housekeeping functions, freeing up more capacity and improving the overall drive performance.
Features
- Ideal for creative pros, medium to large businesses, and commercial/enterprise NAS systems
- For RAID-optimized NAS systems with an unlimited number of bays
- Rated for 550TB/year workloads1 and up to 2.5M hours MTBF
Capacity
22TB
Form Factor
3.5-Inch
Compatibility
RAID-optimized NAS systems with unlimited Number of bays
Interface
SATA
Transfer Rate
up to 265MB/s
Disk Speed (RPM)
7200 RPM
Recording Technology
CMR
Cache Size
512MB
Operating Temperature
0^oC to 65^oC
Non-Operating Temperature
-40^oC to 70^oC
Certifications
BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
Item Dimension (L inchxW inchxH inch)
6 x 4 x 2

Weight
1.00 lb

Warranty Information
5 Year limited warranty







Note: 1 Hard Drive in a Static Shield Bag only. Does not come with cable, instructions, or any other accessories.

Available Quantity

5

UPC

718037893501

SKU

mingleWD221KFGX

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

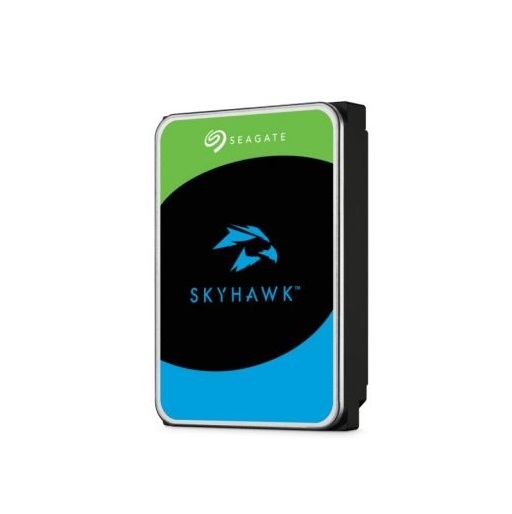

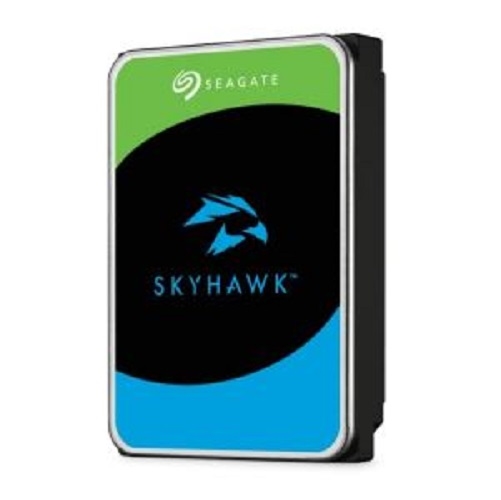

Product Description

SkyHawkleverages Seagates extensive experience in designing drives purpose-built for surveillance applications.
Key Advantages
ImagePerfect firmware is designed to ensure seamless video footage capture in 247 surveillance workloads that record video from 64 HD cameras.
SkyHawk Health Management actively helps protect your surveillance storage by focusing on prevention, intervention, and recovery options. Included is RAID RapidRebuild, which provides 3 faster volume rebuilds over traditional RAID rebuilds.
Unparalleled data protection with included 3-year Rescue Data Recovery Services plan, helping protect important video data with Seagates in-house data recovery services.
RV sensors built in allow drives to maintain performance in multi-bay systems, giving customers the flexibility to scale their systems when more storage is needed.
ATA streaming support enables recordings from up to 64 HD cameras for smooth, uninterrupted footage.
1M hours MTBF, 3-year limited warranty represents an improved total cost of ownership (TCO) with reduced maintenance costs.
Lower power consumption means a reduction in heat emissions, which improves reliability in surveillance solutions. Tarnish-resistant components help protect drive from environmental elements, increasing field reliability.
Specifications
8TB
SkyHawk Health Management Included
Yes
Interface
SATA 6Gb/s
Recording Technology
CMR
Drive Design
Air
Features and Performance
Drive Bays Supported
Up to 16
Cameras Supported
Up to 64
RV Sensors
Yes
Max Sustained Transfer Rate OD (MB/s)
180MB/s
Cache (MB)
256
Reliability/Data Integrity
Tarnish Resistant
Yes
Load/Unload Cycles
600,000
Nonrecoverable Read Errors Rate, Max
1 per 10E14
Power-On Hours per year
8760
Workload Rate Limit (WRL)
180
Mean Time Between Failures (MTBF) (hours)
1,000,000hr
Rescue Data Recovery Services (years)
3
Power Management
Startup Current, Typical (12V, A)
1.8
Average Operating Power (W)
5.3W
Idle Average (W)
3.4W
Standby Mode/Sleep Mode, Typical (W)
0.25/0.25
Voltage Tolerance (5V)
+/-5%
Voltage Tolerance (12V)
+/-10%
Environmental/Temperature
Operating (ambient, min ^oC)
0
Operating (drive reported, max^oC)
65
Nonoperating (ambient, min ^oC)
-40
Item Dimension (L"xW"xH")
1 x 4 x 6

Weight
1.4 lbs

Warranty Information
3 years










Note: 1 Hard Drive in a Static Shield Bag only. Does not come with cable, instructions, or any other accessories.

Available Quantity

5

UPC

763649148112

SKU

mingleST8000VX010

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

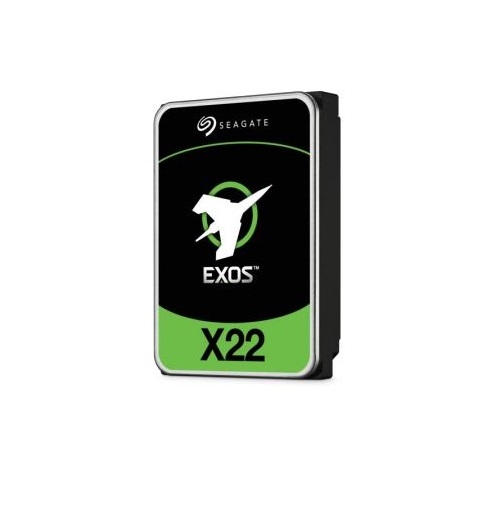

Powerful performance with proven technology-Seagates Exos X22 drives are built off the platform thats shipped millions globally and deployed in leading cloud service provider solutionsmaking them the most sought-after drives in our datasphere. Designed with the highest rack-space efficiency and protected with Seagate Secure, Exos X22 offers extreme market-leading capacity, earning customer confidence by delivering trusted peace of mind.
Maximum Storage Capacity for Highest Rack Space Efficiency
Market-leading 22TB HDD offering the highest capacity available for more petabytes per rack
Highly reliable performance with enhanced caching-making it the logical choice for cloud data center and massive scale-out data center applications
Hyperscale SATA model tuned for large data transfers and low latency
PowerBalance feature optimizes watts per TB
Maximize total cost of ownership savings through lower power and weight with helium-sealed drive design
Proven helium side-sealing weld technology for added handling, robustness, and leak protection
Digital environmental sensors to monitor internal drive conditions for optimal operation and performance
Data protection and security-featuring Seagate Secure for safe, affordable, fast, and easy drive retirement
Proven enterprise-class reliability backed by a 5-year limited warranty and 2.5M-hr MTBF rating

Capacity
22TB
Features
Helium Sealed-Drive Design
Yes
Conventional Magnetic Recording (CMR)
Yes
Protection Information (T10 DIF)
-
Super Parity
Yes
Low Halogen
Yes
PowerChoice Idle Power Technology
Yes
PowerBalance Power/Performance Technology
Yes
Hot-Plug Support
Yes
Cache, Multisegmented (MB)
512
Organic Solderability Preservative
Yes
RSA 3072 Firmware Verification (SDandD)
Yes
Reliability/Data Integrity
Mean Time Between Failures (MTBF, hours)
2500000hr
Reliability Rating at Full 247 Operation (AFR)
0.35%
Nonrecoverable Read Errors per Bits Read
1 sector per 10E15
Power-On Hours per Year (24x7)
8760
512e Sector Size (Bytes per Sector)
512
4Kn Sector Size (Bytes per Sector)
4096
Performance
Spindle Speed (RPM)
7200RPM
Interface Access Speed (Gb/s)
6.0, 3.0
Max. Sustained Transfer Rate OD (MB/s,MiB/s)
285/272
Random Read/Write 4K QD16 WCD (IOPS)
168/550
Average Latency (ms)
4.16ms
Interface Ports
Single
Rotation Vibration at 20-1500 Hz (rad/sec²)
12.5
Power Consumption
Idle A (W) Average
5.74W
Max Operating, Random Read/Write 4K/16Q (W)
9.4, 6.4
Power Supply Requirements
+12 V and +5 V
Environmental
Temperature, Operating (^oC)
5^oC - 60^oC
Vibration, Nonoperating: 2 to 500Hz (Grms)
2.27
Shock, Operating 2ms (Read/Write) (Gs)
40Gs
Shock, Nonoperating, 2ms (Gs)
200
Item Dimension (L"xW"xH")
2 x 5 x 6

Weight
1 lb

Warranty Information
5 Years













Note: 1 Hard Drive in a Static Shield Bag only. Does not come with cable, instructions, or any other accessories.

Available Quantity

5

UPC

763649171059

SKU

mingleST22000NM001E

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

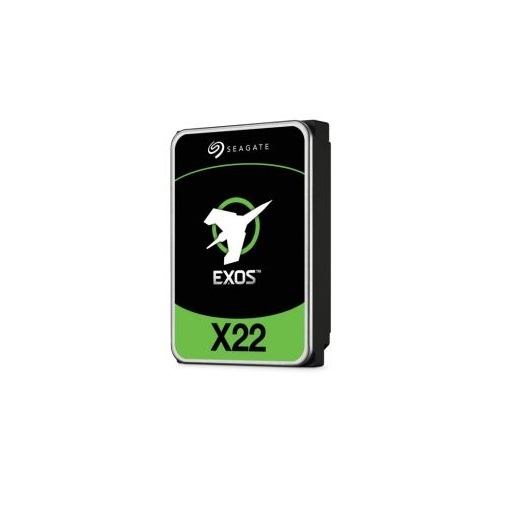

Exos X22-Powerful performance. Proven technology. Scalable design.
Powerful performance with proven technology-Seagates Exos X22 drives are built off the platform thats shipped millions globally and deployed in leading cloud service provider solutions-making them the most sought-after drives in our datasphere. Designed with the highest rack-space efficiency and protected with Seagate Secure, Exos X22 offers extreme market-leading capacity, earning customer confidence by delivering trusted peace of mind.
Maximum Storage Capacity for Highest Rack Space Efficiency
Market-leading 22TB HDD offering the highest capacity available for more petabytes per rack
Highly reliable performance with enhanced caching-making it the logical choice for cloud data center and massive scale-out data center applications
Hyperscale SATA model tuned for large data transfers and low latency
PowerBalance feature optimizes watts per TB
Maximize total cost of ownership savings through lower power and weight with helium-sealed drive design
Proven helium side-sealing weld technology for added handling, robustness, and leak protection
Digital environmental sensors to monitor internal drive conditions for optimal operation and performance
Data protection and security-featuring Seagate Secure for safe, affordable, fast, and easy drive retirement
Proven enterprise-class reliability backed by a 5-year limited warranty and 2.5M-hr MTBF rating
Capacity
22TB
Features
Helium Sealed-Drive Design
Yes
Conventional Magnetic Recording (CMR)
Yes
Protection Information (T10 DIF)
Yes
Super Parity
Yes
Low Halogen
Yes
PowerChoice Idle Power Technology
Yes
PowerBalance Power/Performance Technology
Yes
Hot-Plug Support
Yes
Cache, Multisegmented (MB)
512
Organic Solderability Preservative
Yes
RSA 3072 Firmware Verification (SDandD)
Yes
Reliability/Data Integrity
Mean Time Between Failures (MTBF, hours)
2500000hr
Reliability Rating at Full 24x7 Operation (AFR)
0.35%
Nonrecoverable Read Errors per Bits Read
1 sector per 10E15
Power-On Hours per Year (24x7)
8760
512e Sector Size (Bytes per Sector)
512, 520, 528
4Kn Sector Size (Bytes per Sector)
4096
Performance
Spindle Speed (RPM)
7200RPM
Interface Access Speed (Gb/s)
12.0, 6.0, 3.0
Max. Sustained Transfer Rate OD (MB/s,MiB/s)
285/272
Random Read/Write 4K QD16 WCD (IOPS)
168/550
Average Latency (ms)
4.16ms
Interface Ports
Dual
Rotation Vibration at 20-1500 Hz (rad/sec²)
12.5
Power Consumption
Idle A (W) Average
5.5W
Max Operating, Random Read/Write 4K/16Q (W)
9.8, 7.0
Power Supply Requirements
+12 V and +5 V
Environmental
Temperature, Operating (^oC)
10(^oC - 60(^oC
Vibration, Nonoperating: 2 to 500Hz (Grms)
2.27
Shock, Operating 2ms (Read/Write) (Gs)
40Gs
Shock, Nonoperating, 2ms (Gs)
200
Item Dimension (L"xW"xH")
1 x 4 x 6

Weight
1.5 lbs

Warranty Information
5 years













Note: 1 Hard Drive in a Static Shield Bag only. Does not come with cable, instructions, or any other accessories.

Available Quantity

5

UPC

763649171042

SKU

mingleST22000NM000E

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

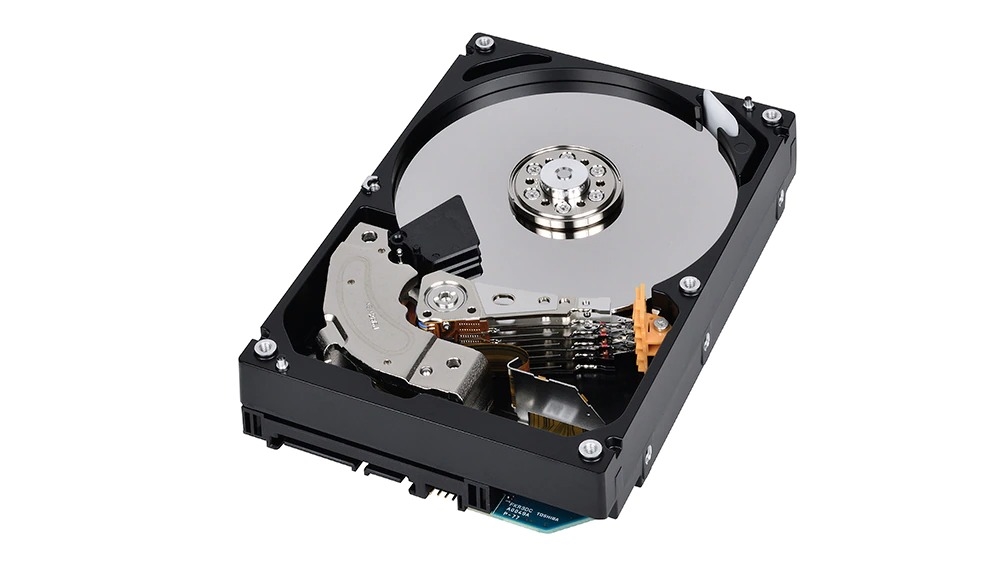

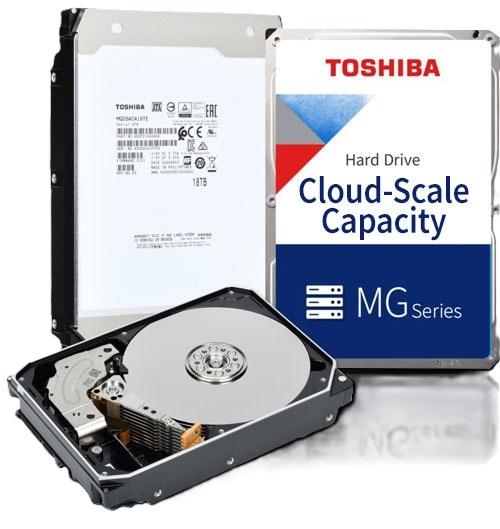

Product Description

Features

Up to 20 TB capacity

Conventional Magnetic Recording (CMR) for broad compatibility

Toshiba Flux Control Microwave-assisted Magnetic Recording (FC-MAMR ) Technology

Industry-leading 10-disk helium-sealed design for superior storage density

Industry Standard 3.5-inch 26.1mm height Form Factor

7200

rpm Performance

SATA 6.0Gbit/s Interfacess

Lower operational power profile, providing excellent power efficiency (W/TB) for better TCO

550 Total TB Transferred per Year Workload Rating

512e or 4Kn Advanced Format Sector Technology; (512e Model) Includes Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events

Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events

Power efficiency improvements vs. prior MG Series generations

Sanitize Instant Erase (SIE) option model and Self Encrypting Drive (SED) option model


Applications

File- and Object-based storage infrastructure

Tiered Storage Infrastructure Solutions

Workloads and Use-Cases that Benefit from High Capacity per Spindle disk drives

Capacity-Optimized Cloud-scale and Rack-Scale Storage Systems

Compliance Data Archives and Data Life-Cycle Management Storage Systems

Data Center Data-Protection and Data Back-up Infrastructure
Available Capacities
20 TB
Form Factor
3.5-inch
Buffer Size
512MiB
Rotation Speed
7200rpm
Maximum Data Transfer Speed (Sustained)(Typ.)
268MiB/s
Power Consumption (Idle-A)
SATA 20 TB: 4.38W
MTTF/MTBF(AFR)
2 500 000 h (0.35%)
Interface
SATA-3.3
Format
512e
Type
Standard
Item Dimension (L inchxW inchxH inch)
6 x 4 x 2

Weight
1.58 lb

Warranty Information
5 Years

Available Quantity

5

UPC

723844001575

SKU

mingleMG10ACA20TE

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

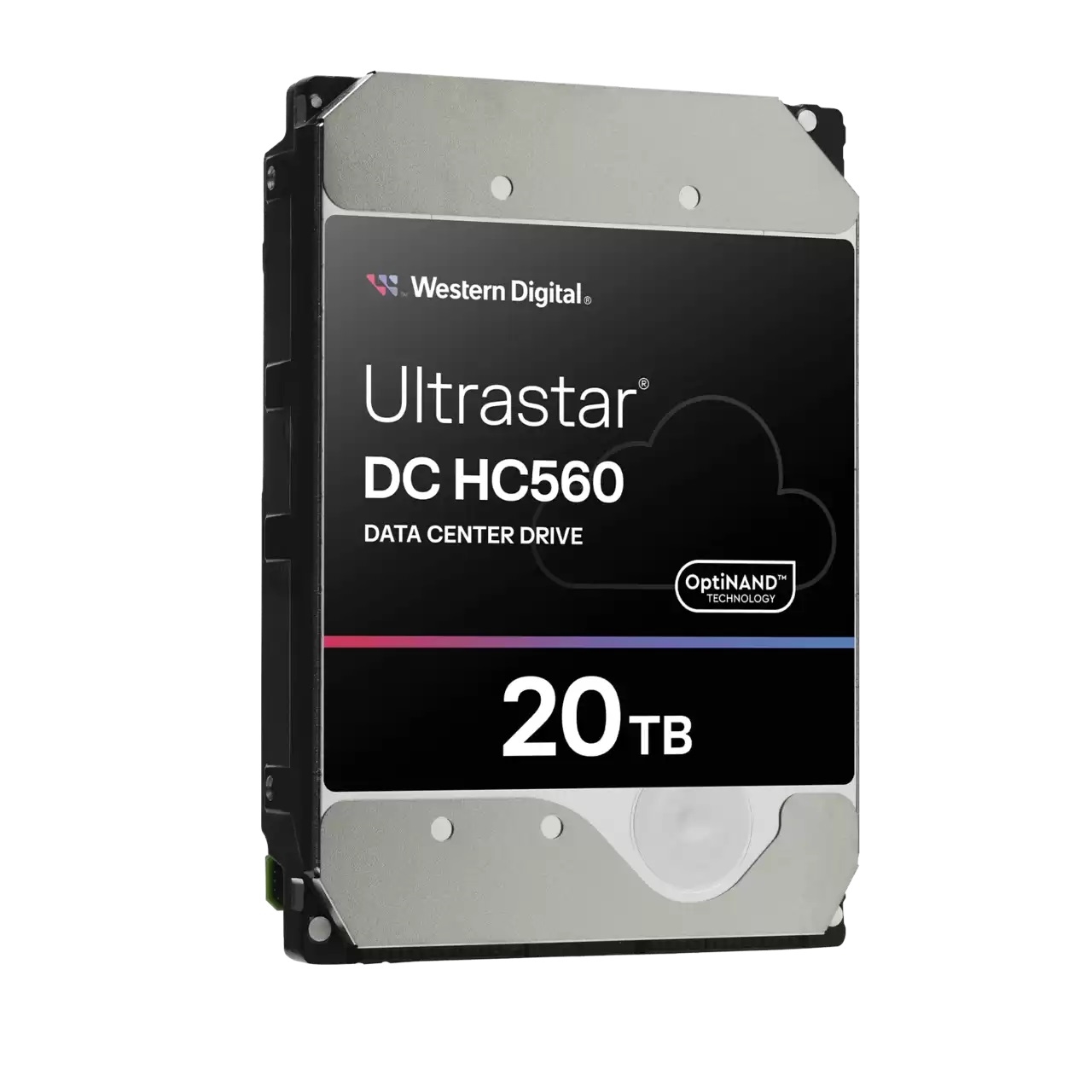

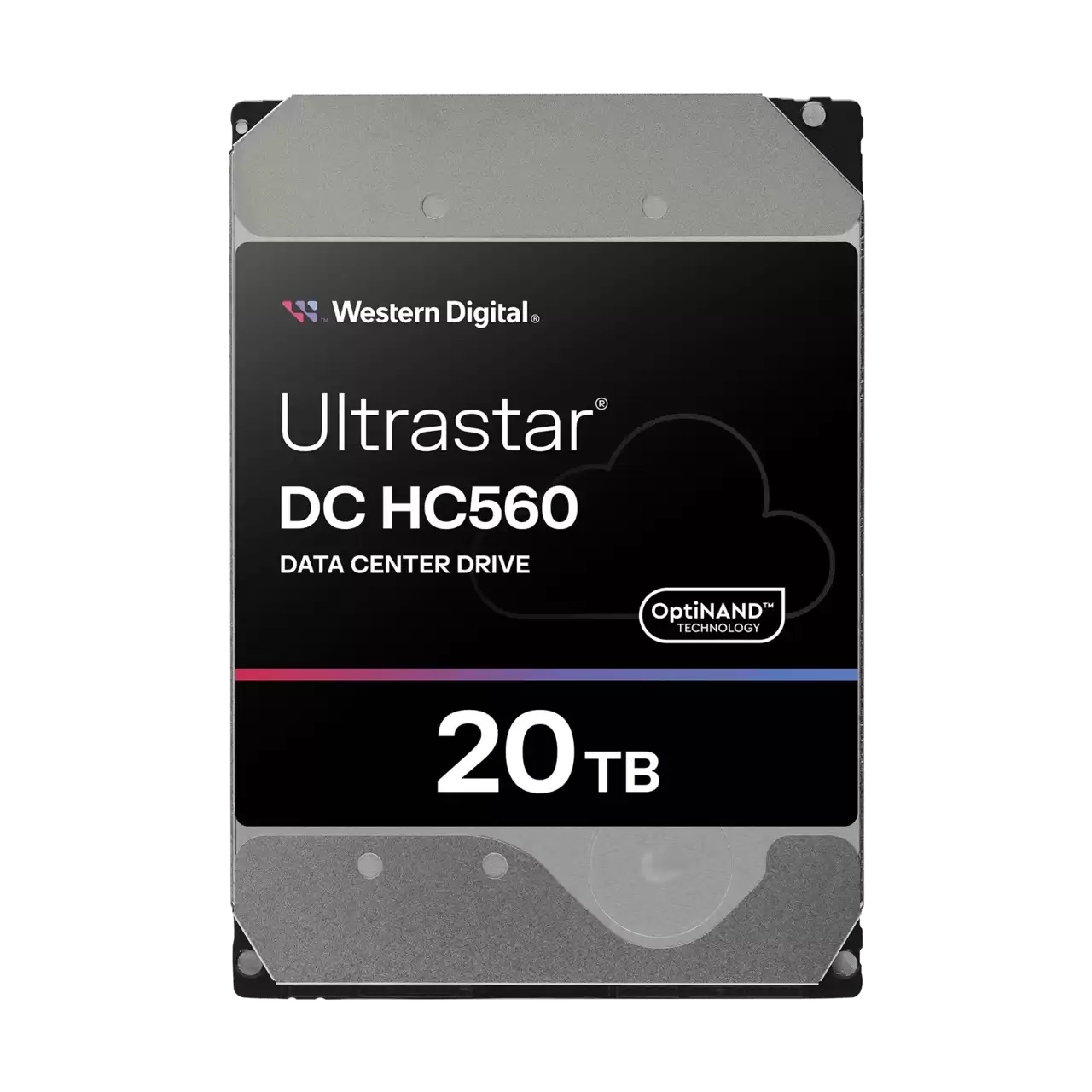

Product Description

20TB capacity with a reimagined HDD

An innovative storage architecture to help our customers meet their need for exponential data growth.


Reimagining the HDD for Exponential Data Growth

Hyperscale cloud, CSPs, enterprises, smart video surveillance partners, NAS suppliers and more need storage solutions to meet the exponential growth in data creation. When it comes to cost-effective storage of data at scale, hard disk drives (HDDs) continue to play a central role. HDDs deliver the capacity, performance and reliability needed to store vast amounts of data today and well into the future. Investments in HDD technology remain critical to supporting worldwide data growth.


Western Digital has developed flash-enhanced drives with OptiNAND technology by vertically integrating our leading NAND flash with our world-class HDDs. Western Digital HDDs have been leaders in areal density with industry first technologies of energy-assisted magnetic recording technology (EAMR), triple-stage actuator (TSA), HelioSeal , and now OptiNAND technology. Higher areal density means higher capacities to meet storage challenges.


Note

1. One megabyte (MB) is equal to one million bytes, one gigabyte (GB) is equal to 1,000MB (one billion bytes), one terabyte (TB) is equal to 1,000GB (one trillion bytes), and one petabyte (PB) is equal to 1,000TB. Actual user capacity may be less due to operating environment.
Features
- Ideal for high-capacity enterprise applications and environments
- Industry-leading HDD technologies: OptiNAND technology, EAMR, TSA, HelioSeal
- Projected 2.5M hours MTBF
Capacity
20TB
Form Factor
3.5-Inch
Compatibility
Windows, Windows Server, Linux
Interface
SATA
Transfer Rate
up to 291MB/s
Disk Speed (RPM)
7200 RPM
Recording Technology
EAMR
Cache Size
512MB
Security
SE
Operating Temperature
5^oC to 60^oC
Non-Operating Temperature
-40^oC to 70^oC
Drive
3.5"
Certifications
BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
Item Dimension (L inchxW inchxH inch)
6 x 4 x 2

Weight
1.50 lb

Warranty Information
5 Years

Available Quantity

5

UPC

Does not apply

SKU

mingle0F38785

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

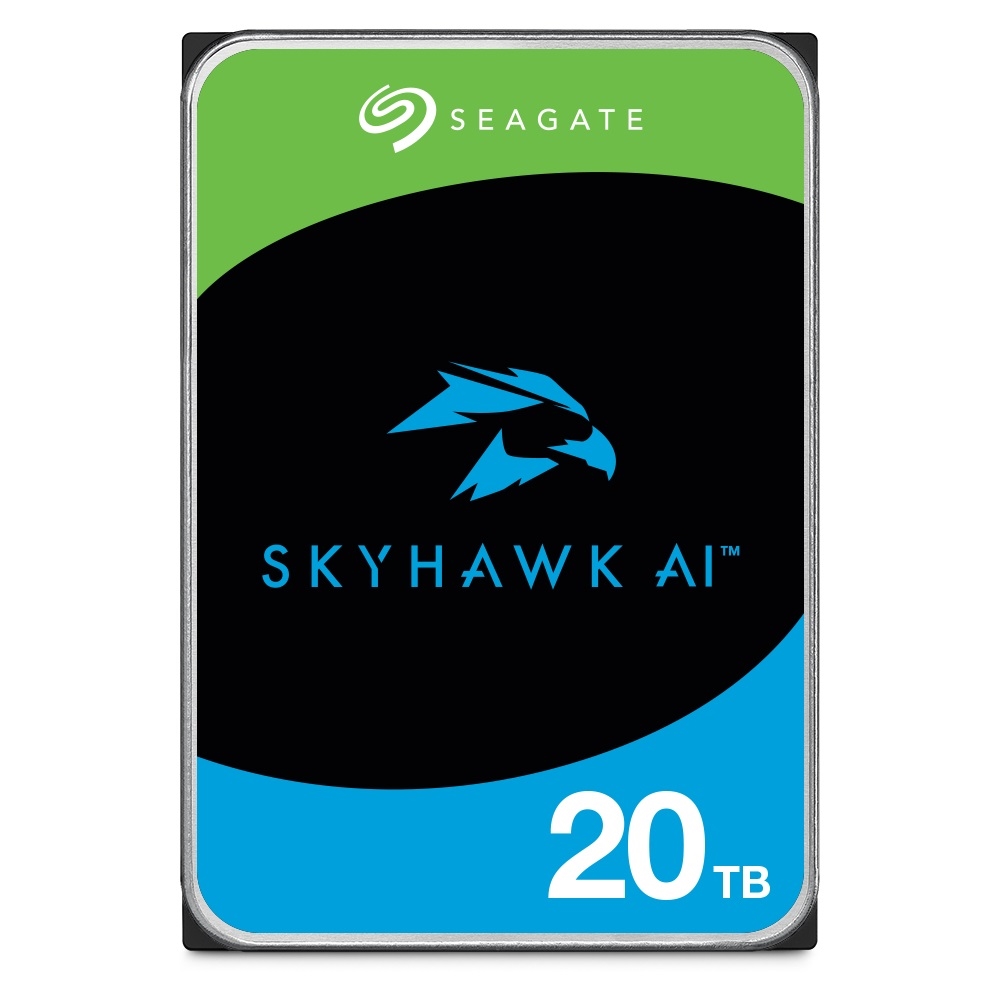

Product Description

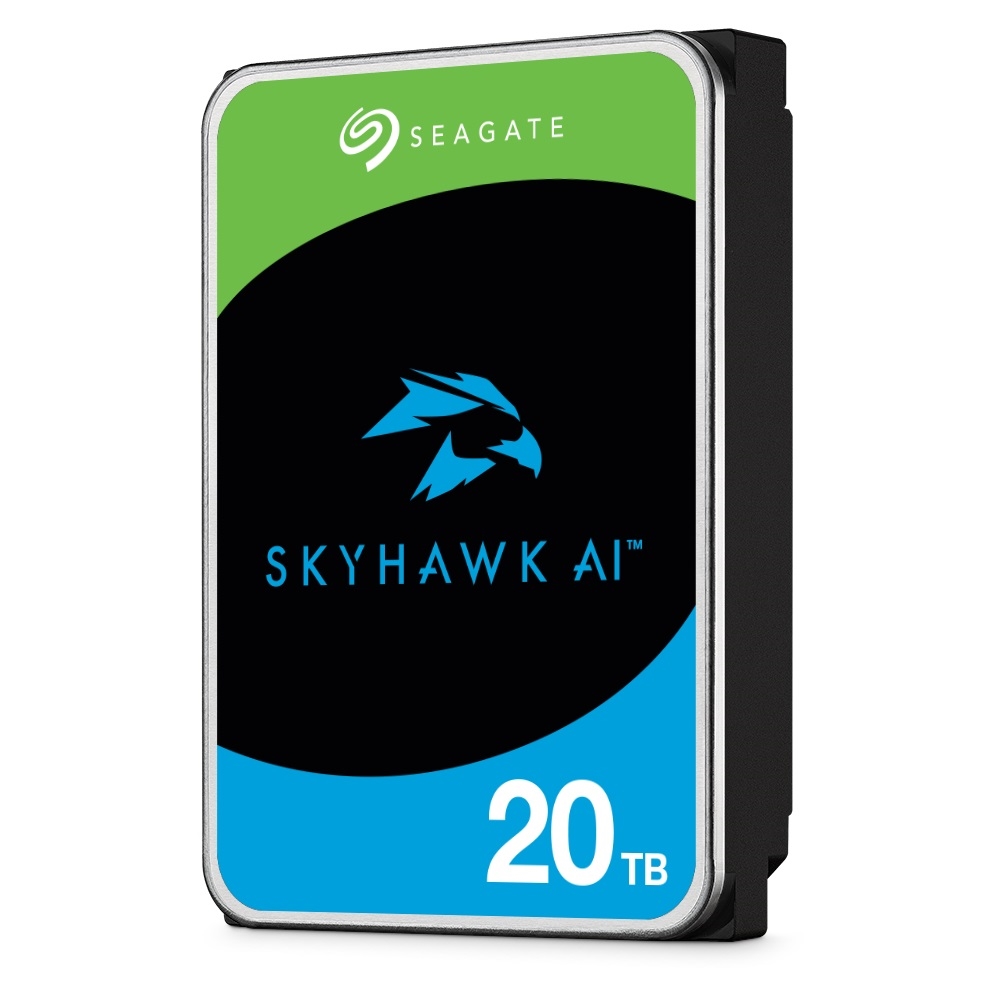

SkyHawk AI 20TB
Skyhawk AI is optimized for use in video analytics and imaging applications. Designed with advanced features, it is suitable for use with AI NVRs, servers, and appliances with AI analytics and deep learning capabilities.
SkyHawk AI
Designed for AI video analytics, SkyHawk AI supports up to 64 HD cameras and 32 additional AI streams while offering capacities up to 20TB. It delivers zero dropped frames with ImagePerfect AI and has enterprise-class workload rates at 550TB/yr for high reliability.
SkyHawk
Leverage up to 8TB for 24x7 workloads with SkyHawk video drives enhanced with ImagePerfect the faster, more efficient, quieter drive designed for DVR and NVR systems.
Drive Health and Data Recovery
When integrated into compatible NVR systems, these drives provide overall system reliability increases due to SkyHawk Health Management (SHM). In addition, SkyHawk drives include a robust three-year Rescue Data Recovery Services plan.
Interface
SATA 6Gb/s
Recording Technology
CMR
Drive Design
Helium
Features and Performance
Drive Bays Supported
Unlimited
AI Channels
32
AI Real Time Capture Events/Sec
Up to 120
AI Real Time Compare Events/Sec
Up to 96
HD Cameras Supported
Up to 64
RV Sensors
Yes
Max Data Transfer Rate (MB/s)
Up to 285
Cache (MB)
256
Reliability/Data Integrity
Tarnish Resistant
Yes
Load/Unload Cycles
600,000
Nonrecoverable Read Errors Rate, Max
1 per 10E15
Power-On Hours per year
8760
Workload Rate Limit (WRL)
550
Mean Time Between Failures (MTBF) (hours)
2,500,000hr
Rescue Data Recovery Services (years)
5
Power Management
Startup Current, Typical (12V, A)
2.0
Average Read/Write Power (W)
7
Idle Average (W)
3.5W
Standby Mode/Sleep Mode, Typical (W)
1.0/1.0
Voltage Tolerance (5V)
+/-5%
Voltage Tolerance (12V)
+/-10%
Environmental/Temperature
Operating (Ambient, min ^oC)
5
Operating (drive reported, max ^oC)
8
Nonoperating (ambient, min ^oC)
-40
Item Dimension (L"xW"xH")
6 x 5 x 2

Weight
1.5 lbs

Warranty Information
Limited Warranty 5 years












Note: 1 Hard Drive in a Static Shield Bag only. Does not come with cable, instructions, or any other accessories.

Available Quantity

5

UPC

763649169926

SKU

mingleST20000VE002

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

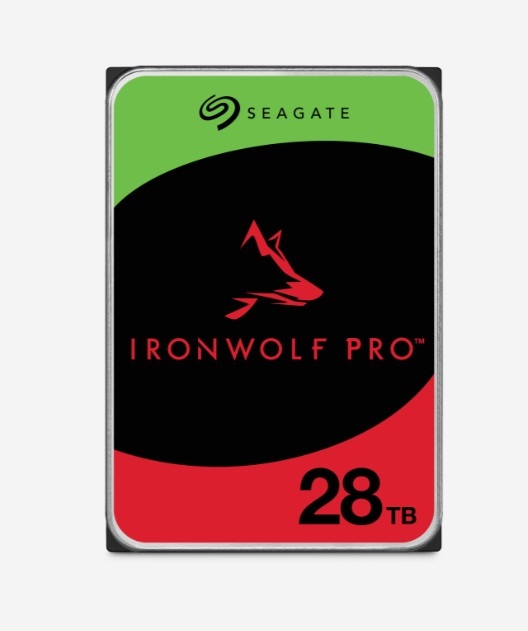

Product Description

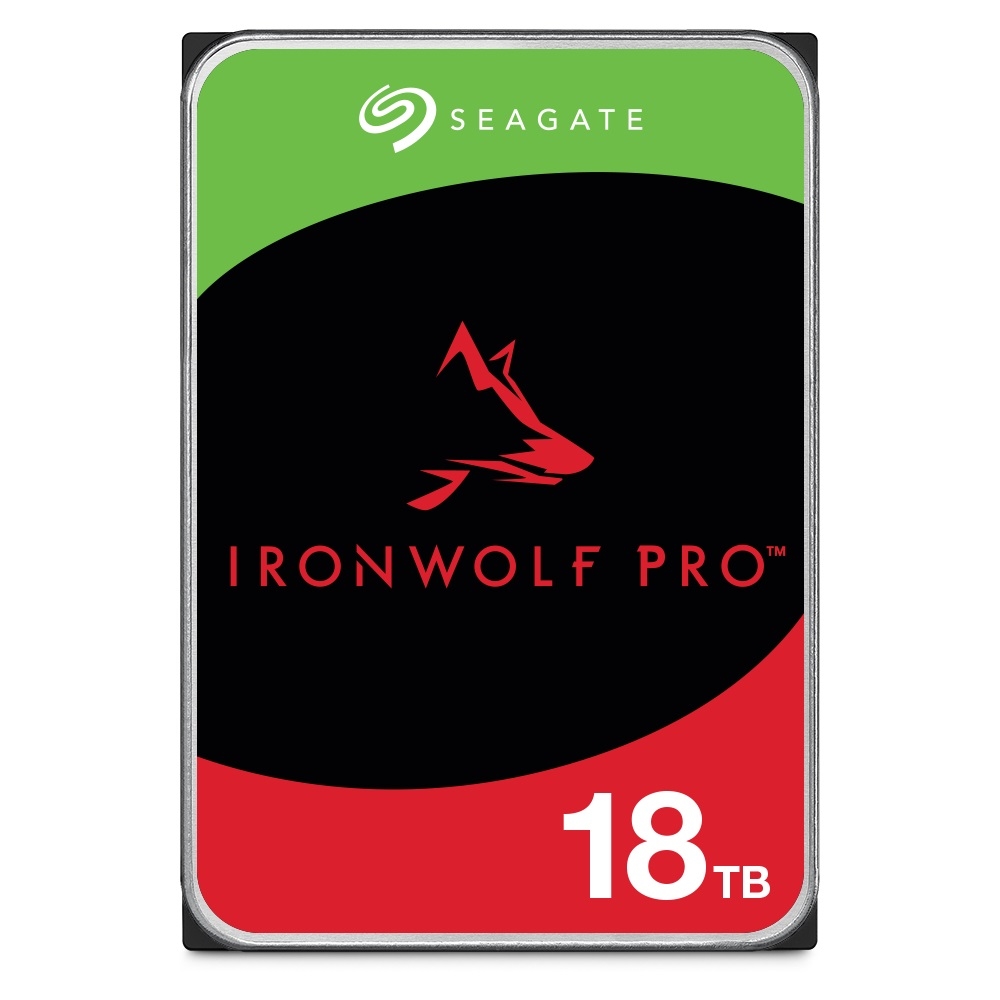

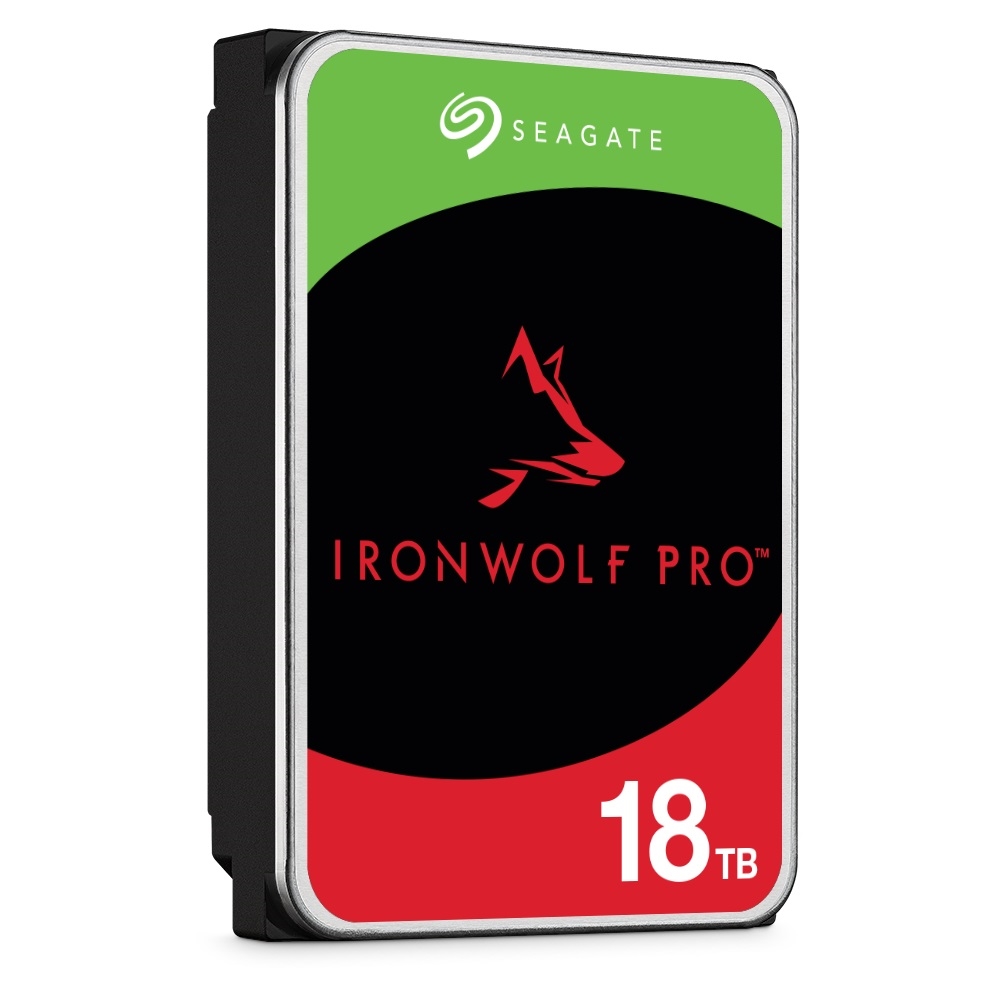

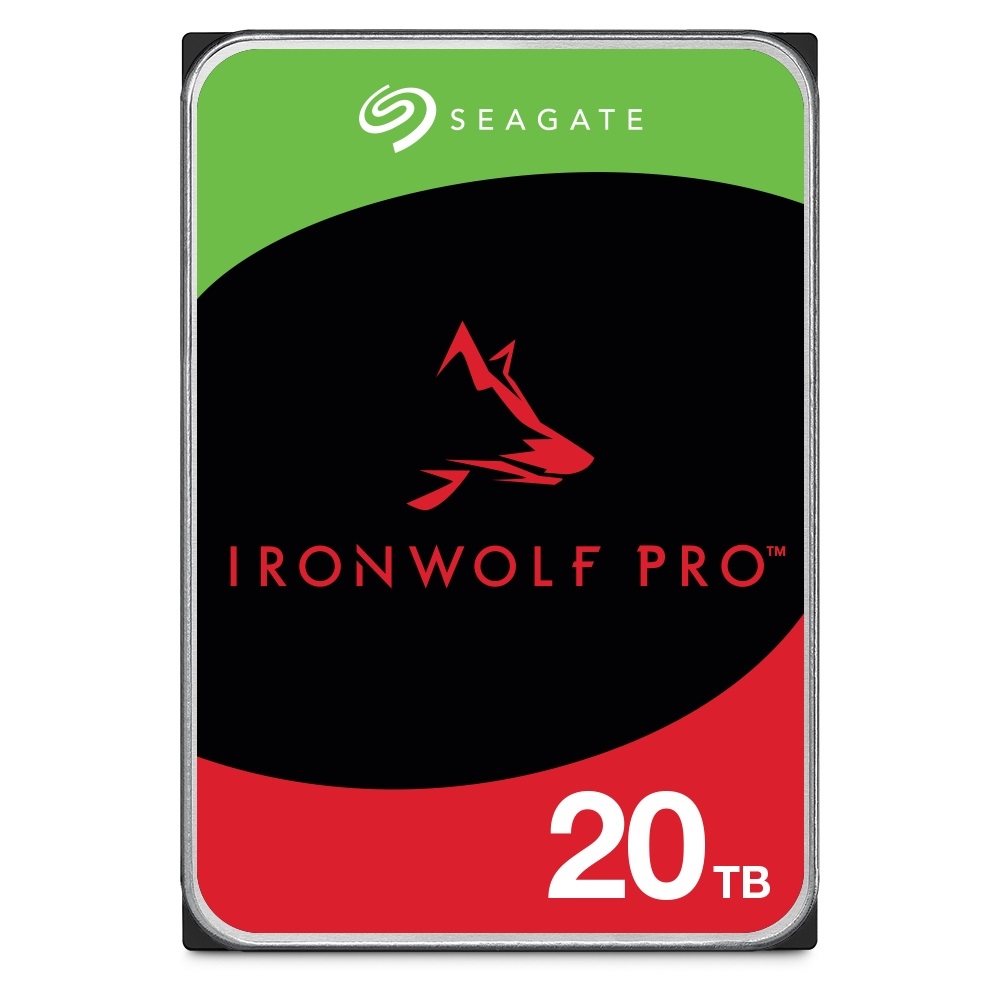

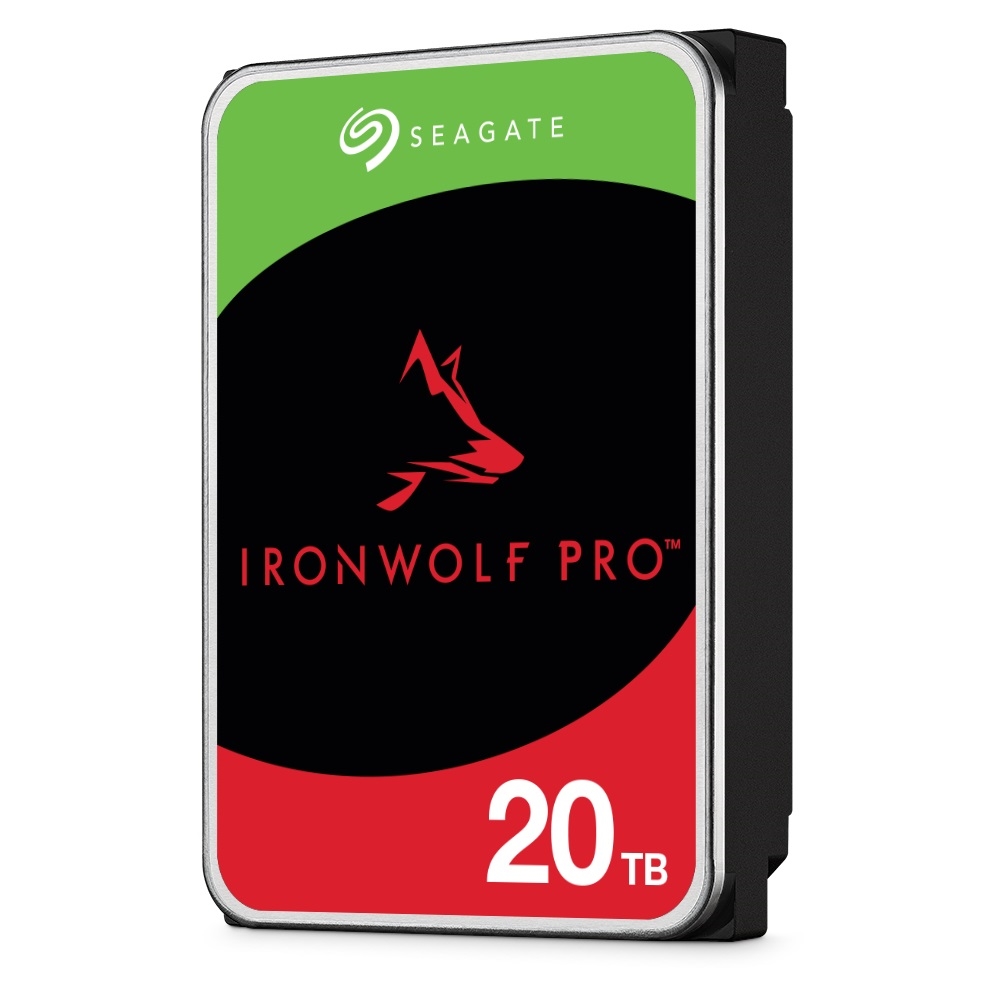

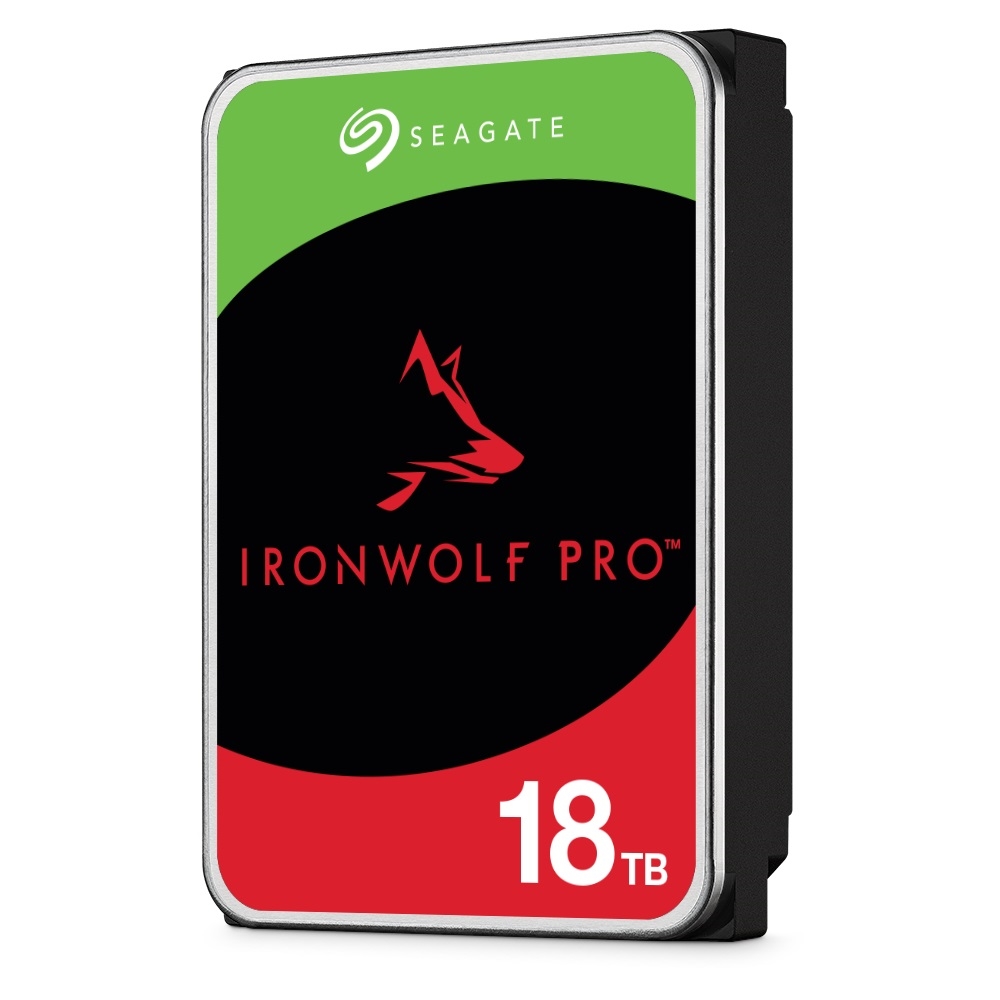

IronWolf Pro drives are engineered to deliver 24x7 performance, reliability, and dependability in multi-bay, multi-user commercial and enterprise RAID storage solutions. Total peace of mind with five-year limited warranty, complimentary three-year Rescue Data Recovery Services, and IronWolf Health Management.


Key Advantages

Optimized for NAS with AgileArray
AgileArray uses dual-plane balancing and time-limited
error recovery (TLER) to deliver best-in-class RAID performance in multi-bay systems.

Always On, Always Accessible
IronWolf Pro drives are designed for 24x7 performance,
allowing users to access their data anytime, anywhere.

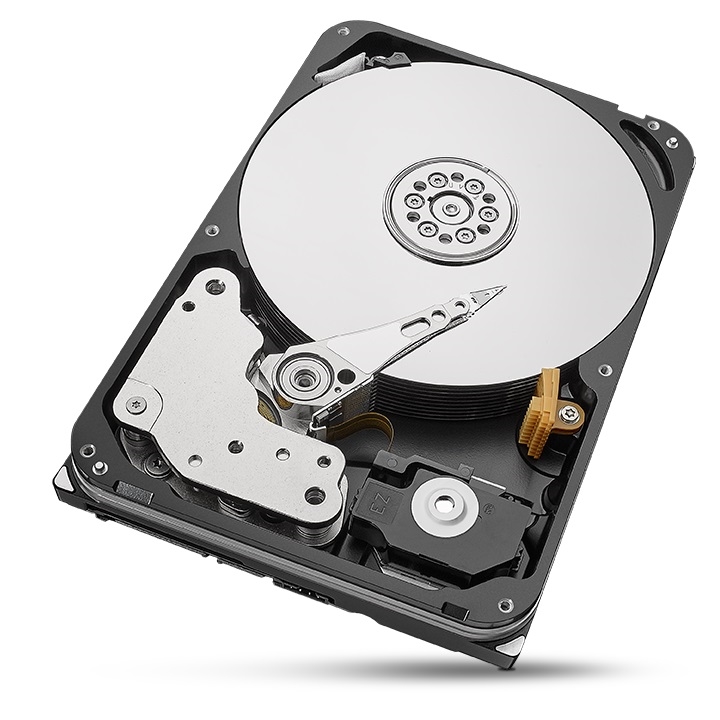

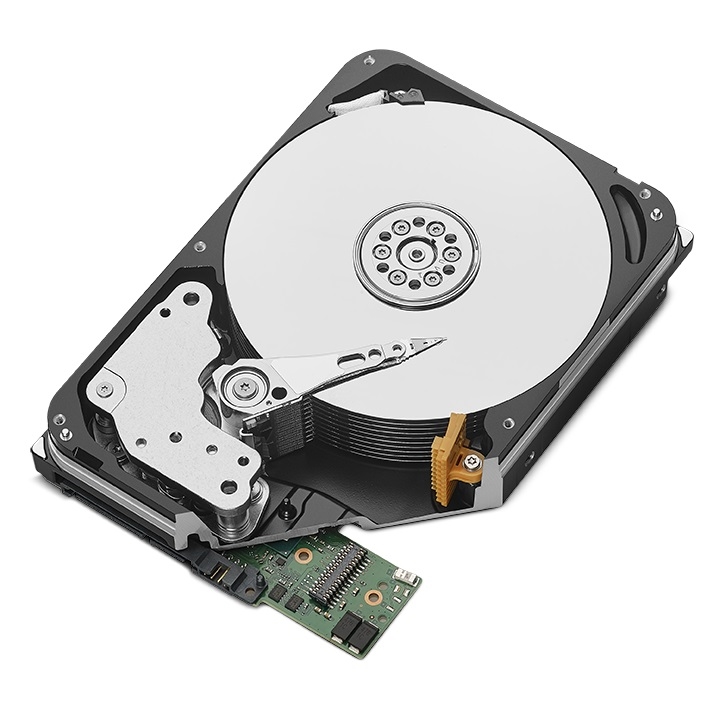

All-CMR Portfolio
All IronWolf Pro drives utilize conventional magnetic recording (CMR)
technology for consistent, best-in-class NAS performance.

Up to 20TB
Broad range of high-performance capacity options to deliver scalable and cost-efficient storage solutions.

Built Tough
IronWolf Pro drives are rated for up to 550TB/year workload rate, allowing
commercial and enterprise NAS users to seamlessly store, share, and collaborate on large amounts of data over a network.

Class-Leading Reliability and Dependability
IronWolf Pro drives are rated for up to 2.5M
hours MTBF and include a 5-year limited warranty for hassle-free data storage and best-inclass total cost of ownership (TCO).

Rotational Vibration (RV) sensors
Built-in RV sensors coupled with dynamic fly-height
technology correct for external vibration to deliver consistently high performance and reliability in multi-bay systems.

IronWolf Health Management (IHM)
Actively protect your data with prevention, intervention, and recovery recommendations to ensure peak system health.
Specifications
Capacity
20TB
Interface
SATA 6Gb/s
Features
Drive Bays Supported
Unlimited
Recording Technology
CMR
Drive Design (Air or Helium)
Helium
Workload Rate Limit (WRL)
550
Rotational Vibration (RV) Sensors
Yes
Cache (MB)
256
Reliability/Data Integrity
Mean Time Between Failures (MTBF, hours)
2500000
Nonrecoverable Read Errors per Bits Read, Max
1 per 10E15
Power-On Hours (per year)
8760
Sector Size (Bytes per Logical Sector)
512E
Rescue Data Recovery Services(years) ³
3
Performance
Spindle Speed (RPM)
7200
Interface Access Speed (Gb/s)
6.0, 3.0, 1.5
Max. Sustained Transfer Rate OD (MB/s)
285MB/s
Rotational Vibration at 10-1500 Hz (rad/s)
12.5
Power Consumption
Startup Current, Typical (12V, A)
2
Idle Power, Average (W)
5.5v
Average Operating Power (W)
7.7Wv
Standby Mode, Typical (W)
1
Sleep Mode, Typical (W)
1
Power Supply Requirements
+12 V and +5 V
Environmental/Temperature
Operating Temperature (ambient, min ^oC)
0
Operating Temperature (drive reported, max ^oC)⁴
65
Nonoperating Temperature (ambient, min ^oC)
-40
Nonoperating Temperature (ambient, max ^oC)
70
Environmental/Acoustics
Vibration, Nonoperating: 10Hz to 500Hz (Grms)
2.27
Acoustics, Idle (typical, measured in Idle 1 state) (dBA)
20
Acoustics, Seek (typical) (dBA)
26
Environmental/Shock
Shock, Operating 2ms (Read/Write) (Gs)
40/40Gs
Shock, Nonoperating, 1ms and 2ms (Gs)
200
Notes:
3 Rescue Data Recovery Services not available in some countries.
4 Seagate does not recommend operating at sustained drive temperatures above 60^oC. Operating at higher temperatures may affect drive health.
Item Dimension (L inchxW inchxH inch)
1 x 4 x 6

Weight
1.48lb

Warranty Information
5 Years
















Note: 1 Hard Drive in a Static Shield Bag only. Does not come with cable, instructions, or any other accessories.

Available Quantity

5

UPC

763649176252

SKU

mingleST20000NT001

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Reliable Drives for Home and Small Office Systems

Synology Plus Series SATA HDDs are designed to meet the reliability, endurance, and performance requirements of 24/7 storage in Synology small and medium-sized business storage systems. Stringent validation testing and NAS-class reliability ensure consistent performance in high-uptime and multi-user environments.



Highlights

Reliable Always-On Operation

Backed by 1 million hours MTBF and 180 TB/year workload rating

Tested for Maximum Reliability

Stringent validation and up to 300,000 hours of testing ensure reliability in Synology systems

Seamless Firmware Updates

Firmware updates can be performed directly in Synology DSM

Reliable Recording Technology

Conventional magnetic recording (CMR) technology offers consistent performance
Capacity¹
4 TB
Model number
HAT3300-4T
Form factor²
3.5"
Interface
SATA 6 Gb/s
Sector size
512e
Drive design
Air
Performance
Rotational speed
5,400 rpm
Interface speed
SATA 6 Gb/s
Cache (MB)
256 MB
Maximum sustained data transfer speed (typical)
202 MB/s
Reliability
Mean Time Between Failure (MTBF)³
1,000,000 hours
Workload rating⁴
180 TB/year data write/read
Power Consumption
Supply voltage
12 V (+/- 10%) / 5 V (+/- 5%)
Idle power average
3.96 W
Average operating power
4.85 W
Environmental conditions
Temperature
Operating
0^oC to 65^oC (32^oF to 149^oF)
Non-operating
-40^oC to 70^oC (-40^oF to 158^oF)
Shock
Operating
80 Gs (2 ms duration)
Non-operating
300 Gs (2 ms duration)
Vibration
Operating
10 Hz to 22 Hz: 0.25 Gs, Limited displacement
22 Hz to 350 Hz: 0.50 Gs
350 Hz to 500 Hz: 0.25 Gs
Non-operating
5 Hz to 22 Hz: 3.0 Gs
22 Hz to 350 Hz: 3.0 Gs
350 Hz to 500 Hz: 3.0 Gs
Altitude
Operating
-304 m to 3,048 m
Non-operating
-304 m to 12,192 m
Relative humidity
Operating
5% to 90% R.H. (No condensation)
Non-operating
5% to 95% R.H. (No condensation)
Acoustics
Acoustics, Idle (typical, measured in Idle 1 state) (dBA)
23
Acoustics, seek (typical) (dBA)
27
Others
Certification
CE, RCM, BSMI, KC, UKCA, UL, TUV, RoHS
Note
¹ Definition of capacity: Hard drives defines a terabyte (TB) as 1,000,000,000,000 bytes. A computer operating system, however, reports storage capacity using powers of 2 for the definition of 1GB equals 230 equals 1,073,741,824 bytes and therefore shows less storage capacity. Available storage capacity will vary based on file size, formatting, settings, software and operating system. Actual formatted capacity may vary.
² "3.5-inch" is the form factor of HDDs. They do not indicate the physical size of the drive.
³ Mean Time Between Failure (MTBF) is not a guarantee or estimate of product life, it is a statistical value related to mean failure rates for a large number of products which may not accurately reflect actual operation. Actual operating life of the product may be different from the MTBF.
⁴ Workload is defined as the amount of data written, read, or verified by commands from a host system.
Item Dimension (L inchxW inchxH inch)
1 x 5 x 6

Weight
1 lbs

Warranty Information
3 Years

Available Quantity

5

UPC

846504005123

SKU

mingleHAT3300-4T

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

WD Red Pro NAS HDD. For the Demands of Big Business.

Designed specifically with medium or large scale business customers in mind, WD Red Pro NAS HDDs are available for up to 24-bay NAS systems. Engineered to handle high-intensity workloads¹ in 24x7 environments, WD Red Pro is ideal for archiving and sharing, as well as RAID array rebuilding on extended operating systems such as ZFS or other file systems. These drives add value to your business by enabling your employees to quickly share their files and back-up folders reliably in your NAS solution.


Exclusive NASware 3.0 Technology

Our exclusive advanced firmware technology, NASware 3.0, enables seamless integration, robust data protection and optimal performance for NAS systems operating under heavy demand. Built into every WD Red Pro hard drive, NASware 3.0 s advanced technology improves storage performance by increasing compatibility, integration, upgradeability, and reliability.


Built for Optimum NAS Compatibility

WD Red Pro drives with NASware technology takes the guesswork out of selecting a drive. Optimized for NAS systems, our unique algorithm balances performance and reliability in NAS and RAID environments. Simply put, a WD Red Pro drive is one of the most compatible drives available for NAS enclosures. But don t take our word for it. WD Red Pro drives are a reflection of extensive NAS partner technology engagement and compatibility-testing.


Note
1. Workload Rate is defined as the amount of user data transferred to or from the hard drive. Workload Rate is annualized (TB transferred (8760 / recorded power-on hours)). Workload Rate will vary depending on your hardware and software components and configurations.
Capacity
20 TB
Cache Size
512 MB
Disk Speed (RPM)
7200rpm
Interface
SATA
Transfer Rate
up to 268MB/s
Compatibility
Designed with CMR technology for medium or large-sized businesses in RAID-optimized NAS systems with up to 24 bays. Perfect for archiving, sharing and handling high-intensity workloads.
Recording Technology
CMR
Item Dimension (L inchxW inchxH inch)
6 x 4 x 2

Weight
1.00 lb

Warranty Information
NA












Note: 1 Hard Drive in a Static Shield Bag only. Does not come with cable, instructions, or any other accessories.

Available Quantity

5

UPC

718037894164

SKU

mingleWD201KFGX

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Powerful performance. Proven technology. Scalable design.

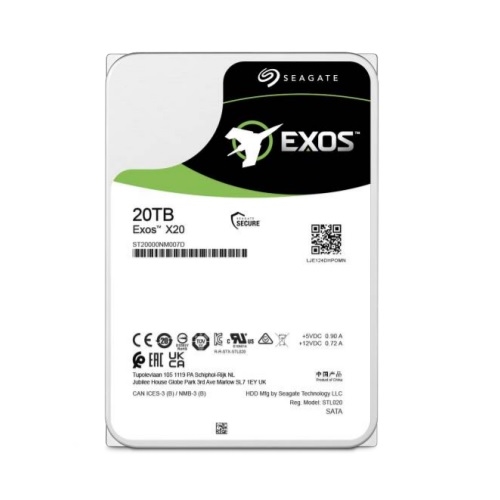

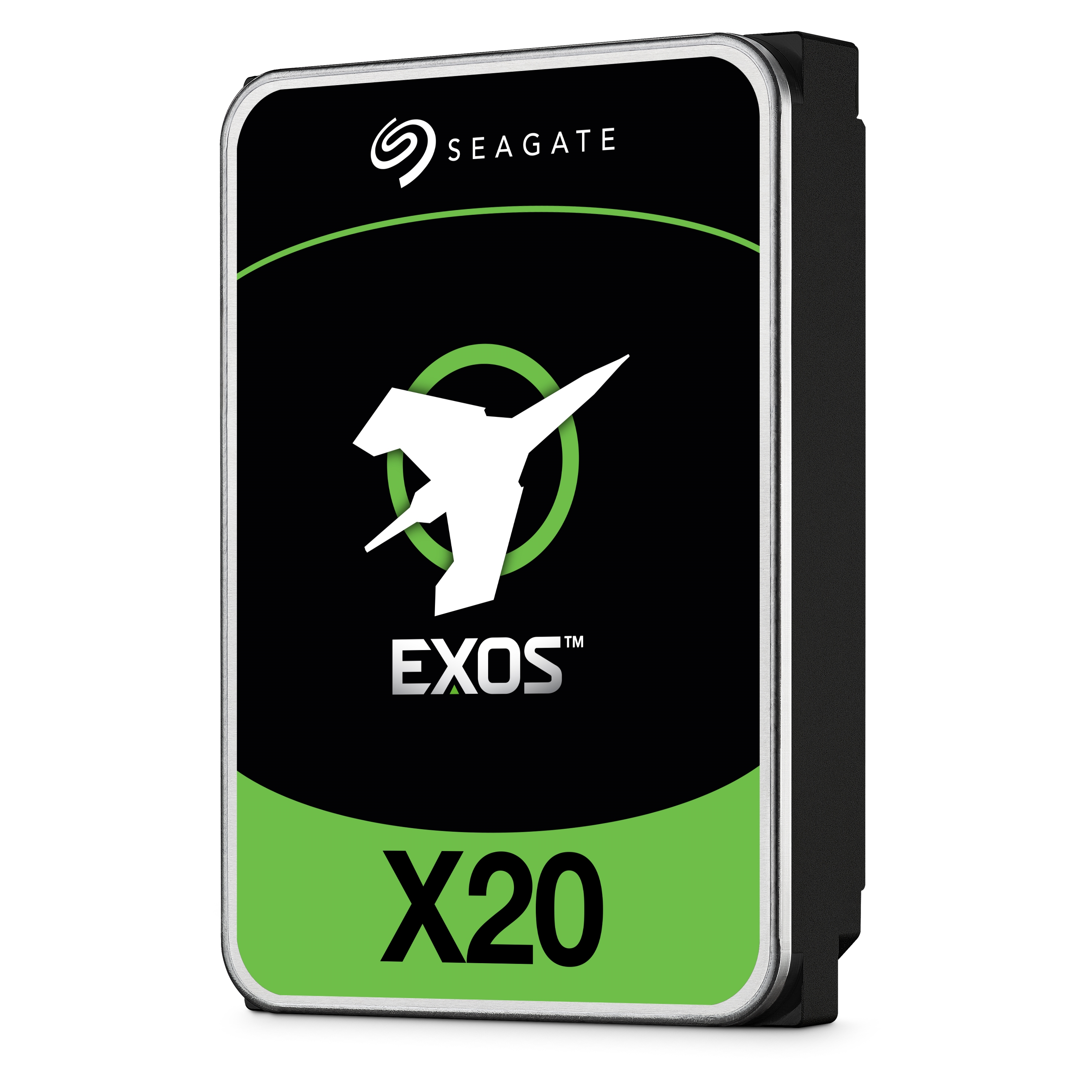

Exos X20

"Designed with the highest rack-space efficiency and protected with Seagate Secure Exos X20 offers extreme market-leading capacity, earning customer confidence by delivering trusted peace of mind."


Market-leading 20TB HDD offering the highest capacity available for more petabytes per rack¹

Highly reliable performance with enhanced caching, making it the logical choice for cloud data center and massive scale-out data center applications

Hyperscale SATA model tuned for large data transfers and low latency

PowerBalance feature optimizes Watts/TB

Maximize total cost of ownership savings through lower power and weight with helium sealed-drive design

Proven helium side-sealing weld technology for added handling robustness and leak protection

Digital environmental sensors to monitor internal drive conditions for optimal operation and performance

Data protection and security Seagate Secure features for safe, affordable, fast, and easy drive retirement


Note:

1 Compared to 18TB competitive product
Specifications
SATA 6Gb/s
Capacity
20TB
Standard Model FastFormat^TM (512e/4Kn)
ST20000NM007D
Features
Helium Sealed-Drive Design
Yes
Conventional Magnetic Recording (CMR)
Yes
Protection Information (T10 DIF)
-
Super Parity
Yes
Low Halogen
Yes
PowerChoice^TM Idle Power Technology
Yes
PowerBalance^TM Power/Performance Technology
Yes
Hot-Plug Support
Yes
Cache, Multisegmented (MB)
256
Organic Solderability Preservative
Yes
RSA 3072 Firmware Verification (SD and D)
Yes
Reliability/Data Integrity
Mean Time Between Failures (MTBF, hours)
2,500,000
Reliability Rating at Full 24x7 Operation (AFR)
0.35%
Nonrecoverable Read Errors per Bits Read
1 sector per 10E15
Power-On Hours per Year (24x7)
8760
512e Sector Size (Bytes per Sector)
512
4Kn Sector Size (Bytes per Sector)
4096
Note: 1 Hard Drive in a Static Shield Bag only. Does not come with cable, instructions, or any other accessories.

Available Quantity

5

UPC

763649153116

SKU

mingleST20000NM007D

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

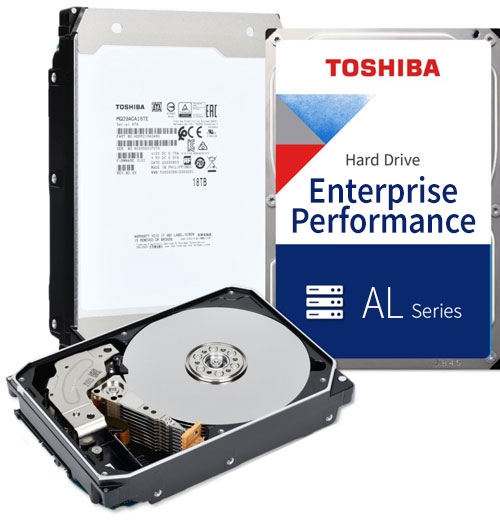

Toshiba AL15SE Series Hard Disk Drives
1200, 900, 600, 300 GB (512n sector technology models)
Space Efficient, Power Saving 2.5-inch Form Factor
12.0 Gbit/s SAS Interface for Better Performance
Engineered for Mission Critical IT Operations
The 12.0 Gbit/s SAS interface AL15SEB Series Enterprise Performance HDDs provide up to 2.4 TB capacity and 10,500rpm performance with Enterprise-class reliability.
Engineered for mission critical IT operations, including database servers and hybrid storage platforms, AL15SE Series provides a range of models including 512 native (512n), or emulated 512 (512e) or 4K native(4Kn) sector length technologies for suitable application and operating system compatibility.
Toshiba Persistent Write Cache technology protects against data loss in the event of unexpected power loss, and helps maintain suitable performance and data reliability for high-duty cycle Mission Critical environments.
Key Features
Mission Critical Performance
With up to 2.4 TB of capacity and 10,500rpm performance, AL15SE Series is engineered for mission critical IT operations. 12.0 Gbit/s SAS Interface for Better Performance.
An Extensive Lineup
Range of models with 512n, 512e, or 4Kn sector length technologies for optimum application and operating system compatibility.
Toshiba Persistent Write Cache Technology
Protects against data loss in the event of unexpected power loss, and helps maintain optimum data reliability for high-duty cycle Mission Critical environments.
Available Capacities
600 GB
Form Factor
2.5-inch
Interface
SAS 12.0 Gbit/s
Buffer Size
128 MiB
Rotation Speed
10500 rpm
MTTF
2 000 000 h
Item Dimension (L"xW"xH")
1 x 3 x 4

Weight
1 lb

Warranty Information
5 Years

Available Quantity

5

UPC

Does not apply

SKU

mingleAL15SEB060N

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

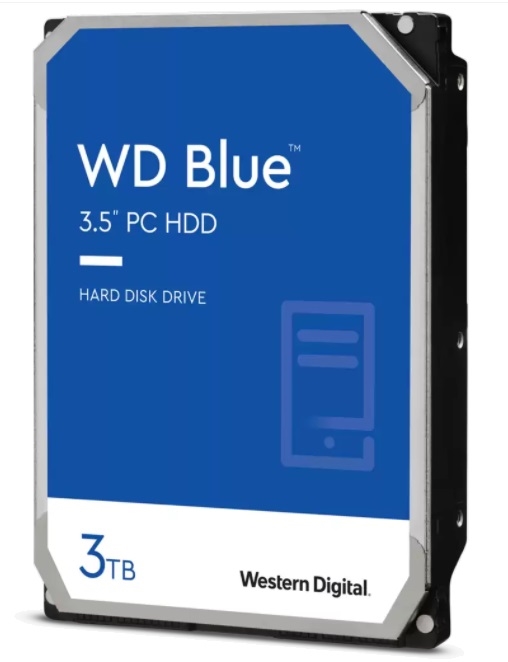

Improve PC Performance

Give your desktop a performance and storage boost when you combine your hard drive with an SSD to maximize speed of data access and a WD Blue drive for up to 6TB of additional capacity.


Plan for the Future

With better technology comes bigger storage needs. Digital cameras that record ultra-high definition video at 4K resolution and 30 frames per second require a ton of storage. Handling all that media is a snap with our 6TB drive.


Trust in WD

With legendary reliability, WD Blue drives are designed, tested and built to last, and ship with a 2-year limited warranty.


Easy Backup And Upgrade

Acronis True Image WD Edition software, available as a free download, can clone drives and back up your operating system, applications, settings and all of your data.


Technology To Help Protect Your Data

NoTouch Ramp Load technology safely positions the recording head off the disk surface to help protect your data.
Capacity
3 TB
Interface
SATA
Form Factor
3.5 Inch
Cache Size
256 MB
Disk Speed (RPM)
5400rpm
Compatibility
Windows 10. Windows 8.1, Windows 7
macOS High Sierra^TM, Sierra El Capitan
Note: Compatibility may vary depending on users hardware configuration and operating system. Acronis^TM True Image^TM WD Edition designed to work with Windows systems only.
Item Dimension (L inchxW inchxH inch)
6 x 4 x 2

Weight
2.00 lb

Warranty Information
3 Year Limited













Note: 1 Hard Drive in a Static Shield Bag only. Does not come with cable, instructions, or any other accessories.

Available Quantity

5

UPC

718037859484

SKU

mingleWD30EZAZ

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

The Enterprise Capacity 7200rpm HDD models offer up to 8TB(SATA/SAS), a choice of interface (SATA - MG08ADA Series, and SAS - MG08SDA Series), as well as a choice of 512 Native(512n) sector or 512 emulation(512e) sector technologies. All models utilize a power-efficient mechanical design incorporating the latest advancements in HDD technology. MG08-D Series models are designed to provide plug-and-play robustness using the industry standard 3.5-inch form factor. Model options supporting Sanitize Instant Erase (SIE) and Self-Encrypting Drive(SED) are also available.
Form Factor
3.5-inch
Buffer Size
256MiB
Rotation Speed
7200rpm
Data Transfer Speed ( Sustained ) ( Typ. )
6TB:
512e
239MiB/s
Power Consumption ( Idle - A ) ( Typ. )
SATA: 4.90W
MTTF / AFR
2,000,000h / 0.44%
Item Dimension (L inchxW inchxH inch)
6 x 4 x 2

Weight
1.50 lb

Warranty Information
5 Years

Available Quantity

5

UPC

723844001483

SKU

mingleMG08ADA600E

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

For the Demands of Big Business
Designed specifically with medium or large scale business customers in mind, WD Red Pro drives are available for up to 24-bay NAS systems. Engineered to handle high-intensity workloads1 in 24x7 environments, WD Red Pro is ideal for archiving and sharing, as well as RAID array rebuilding on extended operating systems such as ZFS or other file systems. These drives add value to your business by enabling your employees to quickly share their files and back-up folders reliably in your NAS solution.
Exclusive NASware 3.0 Technology
Our exclusive advanced firmware technology, NASware 3.0, enables seamless integration, robust data protection and optimal performance for NAS systems operating under heavy demand. Built into every WD Red Pro hard drive, NASware 3.0s advanced technology improves storage performance by increasing compatibility, integration, upgradeability, and reliability.
Built for Optimum NAS Compatibility
WD Red Pro drives with NASware technology takes the guesswork out of selecting a drive. Optimized for NAS systems, our unique algorithm balances performance and reliability in NAS and RAID environments. Simply put, a WD Red Pro drive is one of the most compatible drives available for NAS enclosures. But dont take our word for it. WD Red Pro drives are a reflection of extensive NAS partner technology engagement and compatibility-testing.
Larger NAS Bay Shock Protection
WD Red Pro drives are equipped with a multi-axis shock sensor that automatically detects subtle shock events and dynamic fly height technology which adjusts each read-write function to compensate and protect the data. This combination of technology further protects the drives in larger 24-bay NAS environments and helps increase hard drive reliability.
Capacity
18 TB
Cache Size
512 MB
Disk Speed (RPM)
7200rpm
Interface
SATA
Transfer Rate
up to 272MB/s
Compatibility
Designed with CMR technology for medium or large-sized businesses in RAID-optimized NAS systems with up to 24 bays. Perfect for archiving, sharing and handling high-intensity workloads.
Item Dimension (L"xW"xH")
6 x 4 x 2

Weight
1.65 lbs

Warranty Information
5 years













Note: 1 Hard Drive in a Static Shield Bag only. Does not come with cable, instructions, or any other accessories.

Available Quantity

5

UPC

718037875729

SKU

mingleWD181KFGX

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Connectivity
Connector
Serial ATA 7-pin
Connector Type
SATA 6Gbps
Connectivity
Connector
Serial ATA 7-pin
Connector Type
SATA 6Gbps
Contents
Drive
General
Enclosure Type
Internal
Form Factor
3.5"
Performance
Average Seek Time
8.5 ms
Buffer Size, Cache
128 MB
Data Transfer Rate
6 Gbps
Performance
Average Seek Time
8.5 ms
Buffer Size, Cache
128 MB
Data Transfer Rate
6 Gbps
Storage
Hard Drive Capacity
2 TB
Spindle Speed
7200 rpm
Weight
1.00 lb
Item Dimension
5.79 x 4 x 1.03
Warranty Information
5 years limited

Available Quantity

5

UPC

Does not apply

SKU

mingleMG04ACA200E

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Uncompromising Surveillance Storage


WD Purple drives are designed to meet the challenges of 24x7 video surveillance recording. These drives are engineered specifically for surveillance to help withstand the elevated heat fluctuations and equipment vibrations within NVR environments. An average desktop drive is built to run for only short intervals, not the harsh 24/7 always-on environment of a high-definition surveillance system. With WD Purple drives, you get reliable, surveillance-class storage that s tested for compatibility in a wide range of security systems. Exclusive AllFrame technology helps reduce frame loss and improve overall video playback.



Industry-Leading Storage. Surveillance You Can Trust

Western Digital has provided surveillance-grade storage for more than a decade. With WD Purple surveillance storage, drives are engineered for high temperature, always-on surveillance systems so you can rely on quality video when you need it most.



Western Digital's Exclusive AllFrame Technology

All WD Purple drives are equipped with AllFrame technology, which helps reduce video frame drops and improves video recording and playback.



Wide Compatibility. Seamless Integration

WD Purple hard drives are built with compatibility in mind, so you can quickly and seamlessly add capacity to your surveillance system. With a wide range of industry-leading enclosures and chipsets supported, you re sure to find the DVR or NVR configuration that s right for you.
Capacity
6TB

Form Factor
3.5-Inch

Connector
SATA

Compatibility
Up to 64 HD cameras
Up to 16 drive bays
AllFrame firmware technology

Interface
SATA

Transfer Rate
up to 175MB/s

Recording Technology
CMR

Cache Size
256MB

Model Number
WD64PURZ

Operating Temperature
0^oC to 65^oC

Non-Operating Temperature
-40^oC to 70^oC

Certifications
BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
Item Dimension (L inchxW inchxH inch)
6 x 4 x 1

Weight
1.26 lbs

Warranty Information
3 Years


















Note: 1 Hard Drive in a Static Shield Bag only. Does not come with cable, instructions, or any other accessories.

Available Quantity

5

UPC

718037898339

SKU

mingleWD64PURZ

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Powerful hard drives designed for performance, reliability and power efficiency in small to medium NAS environments.

WD Red Plus drives are designed to handle workloads of power users and small to medium business NAS environments. WD Red Plus drives deliver the speed and capacity required to store, protect and share growing amounts of data in mid-sized RAID-optimized NAS systems with increased power efficiency.


Tuned for NAS with NASware

Western Digital s exclusive NASware technology fine tunes drive parameters to match NAS system workloads which helps increase performance and reliability.


Designed for Continuous Operation

Since your NAS system is always on, a reliable drive is essential. WD Red Plus hard drives are designed for systems that operate 24x7, giving users the confidence of knowing they can reliably access their data.


Tested for Dependable Compatibility

Western Digital partners with a wide range of NAS system vendors for extensive testing to ensure compatibility with most NAS enclosures.


Optimized for Lower TCO

WD Red Plus drives are engineered to use less power (versus previous models) and run cooler, which reduces operating costs and helps reduce heat in thermally challenged NAS boxes.


Powered for Strong Performance

Despite using less power, the drives have plenty of bandwidth to handle the mixed performance demands of multi-drive NAS systems.
Capacity
6TB

Form Factor
3.5-Inch

Connector
SATA

Compatibility
RAID-optimized NAS systems with up to 8 bays

Interface
SATA

Transfer Rate
up to 180MB/s

Disk Speed (RPM)
5400 RPM

Recording Technology
CMR

Cache Size
256MB

Model Number
WD60EFPX

Operating Temperature
0^oC to 65^oC

Non-Operating Temperature
-40^oC to 70^oC

Certifications
BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
Item Dimension (L inchxW inchxH inch)
6 x 4 x 2

Weight
1.65 lbs

Warranty Information
3 Years


















Note: 1 Hard Drive in a Static Shield Bag only. Does not come with cable, instructions, or any other accessories.

Available Quantity

5

UPC

718037899800

SKU

mingleWD60EFPX

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Enterprise-class hard drives engineered to deliver high performance and reliability to commercial and enterprise NAS environments.

WD Red Pro drives are engineered to handle high-intensity workloads in 24 7 multi-user commercial and enterprise NAS environments. WD Red Pro drives deliver the performance, scalability and dependability businesses require to store, share and collaborate on large amounts of data in multi-bay RAID-optimized NAS systems.


Optimized for NAS with NASware

Western Digital s exclusive NASware technology fine tunes drive parameters to match NAS system workloads, which helps increase performance and reliability.


Designed for Continuous Operation

WD Red Pro hard drives are designed to handle the rigorous demands of high-intensity 24x7 multi-user NAS environments and increase system durability.


Tested for Dependable Compatibility

Western Digital partners with a wide range of NAS system vendors for extensive testing to ensure compatibility with most NAS enclosures.


Protected against Excessive Vibration

WD Red Pro drives include Rotation Vibration (RV) sensors that anticipate and proactively counteract disturbances caused by increased vibration. By dispersing excess vibration across the drive chassis, turbulence is minimized, performance is maintained and drives are protected.


Built to Absorb Shock

WD Red Pro hard drives include a multi-axis shock sensor to detect subtle shock events and automatically compensate with dynamic fly height technology to further protect the drives in NAS enclosures.


Engineered with Industry-Leading Technology

WD Red Pro 22TB hard drives feature Western Digital s proprietary OptiNAND technology which leverages integrated iNAND embedded flash to perform key housekeeping functions, freeing up more capacity and improving the overall drive performance.
Features
- Ideal for creative pros, medium to large businesses, and commercial/enterprise NAS systems
- For RAID-optimized NAS systems with an unlimited number of bays
- Rated for 550TB/year workloads¹ and up to 2.5M hours MTBF
Disclosures
1. Workload Rate is defined as the amount of user data transferred to or from the hard drive. Workload Rate is annualized (TB transferred x (8760 / recorded power-on hours)). Workload Rate will vary depending on your hardware and software components and configurations.
Capacity
6TB
Form Factor
3.5-Inch
Connector
SATA
SATA
Compatibility
RAID-optimized NAS systems with unlimited Number of bays
Interface
SATA
SATA
Transfer Rate
up to 238MB/s
Disk Speed (RPM)
7200 RPM
Recording Technology
CMR
Cache Size
256MB
Operating Temperature
0^oC to 65^oC
Non-Operating Temperature
-40^oC to 70^oC
Certifications
BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
Item Dimension (L inchxW inchxH inch)
6 x 4 x 2

Weight
1.58 lb

Warranty Information
5 Years






Note: 1 Hard Drive in a Static Shield Bag only. Does not come with cable, instructions, or any other accessories.

Available Quantity

5

UPC

718037855943

SKU

mingleWD6003FFBX-RET

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Uncompromising Surveillance Storage

WD Purple drives are designed to meet the challenges of 24x7 video surveillance recording. These drives are engineered specifically for surveillance to help withstand the elevated heat fluctuations and equipment vibrations within NVR environments. An average desktop drive is built to run for only short intervals, not the harsh 24/7 always-on environment of a high-definition surveillance system. With WD Purple drives, you get reliable, surveillance-class storage that s tested for compatibility in a wide range of security systems. Exclusive AllFrame technology helps reduce frame loss and improve overall video playback.



Industry-Leading Storage. Surveillance You Can Trust

Western Digital has provided surveillance-grade storage for more than a decade. With WD Purple surveillance storage, drives are engineered for high temperature, always-on surveillance systems so you can rely on quality video when you need it most.



Western Digital's Exclusive AllFrame Technology

All WD Purple drives are equipped with AllFrame technology, which helps reduce video frame drops and improves video recording and playback.



Multiple Cameras, Multiple Streams

Modern recorders now support multiple video streams per camera. WD Purple drives support up to 64 single-stream HD cameras5. With so many options, you have the flexibility to upgrade or expand your security applications in the future



Wide Compatibility. Seamless Integration

WD Purple hard drives are built with compatibility in mind, so you can quickly and seamlessly add capacity to your surveillance system. With a wide range of industry-leading enclosures and chipsets supported, you re sure to find the DVR or NVR configuration that s right for you.
Capacity
4TB

Form Factor
3.5-Inch

Connector
SATA

Compatibility
Up to 64 HD cameras
Up to 16 drive bays
All Frame firmware technology

Interface
SATA

Transfer Rate
up to 175MB/s

Recording Technology
CMR

Cache Size
256MB

Model Number
WD43PURZ

Operating Temperature
0^oC to 65^oC

Non-Operating Temperature
-40^oC to 70^oC

Certifications
BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
Item Dimension (L inchxW inchxH inch)
6 x 4 x 1

Weight
1.26 lbs

Warranty Information
3 Years


















Note: 1 Hard Drive in a Static Shield Bag only. Does not come with cable, instructions, or any other accessories.

Available Quantity

5

UPC

718037898308

SKU

mingleWD43PURZ

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

WD Blue PC Desktop Hard Drive


Reliable everyday computing

WD Blue internal hard drives deliver reliability for office and web applications. They are ideal for use as primary drives in desktop PCs and for office applications. With a range of capacities and cache sizes, there s a WD Blue internal hard drive that s just right for you.



NoTouch Ramp Load technology

The recording head never touches the disk media, ensuring significantly less wear to the recording head and media as well as better drive protection in transit.



Low power consumption

State-of-the-art seeking algorithms and advanced power management features ensure low power consumption



Tested for compatibility

We perform tests on hundreds of systems and a multitude of platforms in our FIT Lab to give our customers confidence that our drives will work in their systems.



Upgrading your drive is easy

Seamlessly migrate your current system to your new Western Digital drive using Acronis True Image WD Edition software, available as a free download on the Western Digital Support site. This software enables you to copy all your data to a new drive so you don't have to reinstall your operating system to get all the benefits of a new drive.



The Western Digital advantage

Western Digital puts our products through extensive Functional Integrity Testing (F.I.T.) prior to any product launch. On average, each new product goes through 600,000 hours of testing. Western Digital also has a detailed Knowledge Base with more than 1,000 helpful articles. You can also call toll-free support 7 days per week in the U.S. and Canada. See the Western Digital Support site for full details. Recommended use - WD Desktop hard drives are tested and recommended for use in PCs, industrial applications and external enclosures.
Capacity
4TB

Form Factor
3.5-Inch

Connector
SATA

Compatibility
Windows 11
Windows 10
Windows 8.1

Interface
SATA

Transfer Rate
up to 185MB/s

Disk Speed (RPM)
5400 RPM

Recording Technology
CMR

Cache Size
256MB

In The Box
WD Blue 3.5-Inch PC HDD

Model Number
WD40EZAX

Operating Temperature
0^oC to 60^oC

Non-Operating Temperature
-40^oC to 70^oC

Certifications
BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
Item Dimension (L inchxW inchxH inch)
4 x 6 x 2

Weight
2 lbs

Warranty Information
2 Years Limited


















Note: 1 Hard Drive in a Static Shield Bag only. Does not come with cable, instructions, or any other accessories.

Available Quantity

5

UPC

718037898605

SKU

mingleWD40EZAX

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Powerful hard drives designed for performance, reliability and power efficiency in small to medium NAS environments.

WD Red Plus drives are designed to handle workloads of power users and small to medium business NAS environments. WD Red Plus drives deliver the speed and capacity required to store, protect and share growing amounts of data in mid-sized RAID-optimized NAS systems with increased power efficiency.


Tuned for NAS with NASware

Western Digital s exclusive NASware technology fine tunes drive parameters to match NAS system workloads which helps increase performance and reliability.


Designed for Continuous Operation

Since your NAS system is always on, a reliable drive is essential. WD Red Plus hard drives are designed for systems that operate 24x7, giving users the confidence of knowing they can reliably access their data.


Tested for Dependable Compatibility

Western Digital partners with a wide range of NAS system vendors for extensive testing to ensure compatibility with most NAS enclosures.


Optimized for Lower TCO

WD Red Plus drives are engineered to use less power (versus previous models) and run cooler, which reduces operating costs and helps reduce heat in thermally challenged NAS boxes.


Powered for Strong Performance

Despite using less power, the drives have plenty of bandwidth to handle the mixed performance demands of multi-drive NAS systems.


Balanced for Increased Reliability

Hard drives that are not properly balanced may cause excessive vibration and noise in multi-drive systems, which could reduce hard drive life span and degrade the performance over time. Our enhanced dual-plane balance control technology significantly improves balance and increases overall drive performance and reliability.
Features
Ideal for Home Offices, Power Users, Small to Medium Businesses and Consumer/Commercial NAS systems
For RAID-optimized NAS systems with up to 8 bays
Rated for 180TB/year workload1 and 1M hours MTBF
Capacity
4TB
Form Factor
3.5-Inch
Connector
SATA
Compatibility
RAID-optimized NAS systems with up to 8 bays
Interface
SATA
Transfer Rate
up to 180MB/s
Disk Speed (RPM)
5400 RPM
Recording Technology
CMR
Cache Size
256MB
Model Number
WD40EFPX
Operating Temperature
0^oC to 65^oC
Non-Operating Temperature
-40^oC to 70^oC
Certifications
BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
Item Dimension (L inchxW inchxH inch)
6 x 4 x 2

Weight
1.65 lb

Warranty Information
3 Year limited





Note: 1 Hard Drive in a Static Shield Bag only. Does not come with cable, instructions, or any other accessories.

Available Quantity

5

UPC

718037899794

SKU

mingleWD40EFPX-RET

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

WD Red Plus NAS Hard Drive 3.5-Inch

Tackle intensity with a WD Red Plus Hard Drive

Packed with power to handle the small- to medium-sized business NAS environments and increased workloads1 for SOHO customers, WD Red Plus is ideal for archiving and sharing, as well as RAID array rebuilding on systems using ZFS and other file systems. Built and tested for up to 8-bay NAS systems, these drives give you the flexibility, versatility, and confidence in storing and sharing your precious home and work files.


Compatibility: Unlike desktop drives, these 3.5 HDDs are specifically tested for compatibility with NAS systems for optimum performance.

Reliability: The always-on environment of a NAS or RAID is a hot one, and desktop drives aren t typically designed and tested under those conditions like WD Red Plus drives are.

Error Recovery Controls: WD Red Plus NAS hard drives are specifically designed with RAID error recovery control to help reduce failures within the NAS system.

Noise and Vibration Protection: Designed to operate solo, desktop drives typically offer little or no protection from the noise and vibration present in a multi-drive system. WD Red Plus drives are designed to thrive in multi-bay NAS system environments.
Features
Ideal for SMB NAS systems in a 24x7 environment
Support for up to 8 bays
Up to 180TB/yr workload rate

Capacity
4TB

Form Factor
3.5-Inch

Connector
SATA

Compatibility
RAID-optimized NAS systems with up to 8 bays

Interface
SATA

Transfer Rate
up to 180MB/s

Disk Speed (RPM)
5400 RPM

Recording Technology
CMR

Cache Size
256MB

Model Number
WD40EFPX

Operating Temperature
0^oC to 65^oC

Non-Operating Temperature
-40^oC to 70^oC

Certifications
BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
Item Dimension (L inchxW inchxH inch)
11 x 6 x 10

Weight
5 lbs

Warranty Information
3 Years


















Note: 1 Hard Drive in a Static Shield Bag only. Does not come with cable, instructions, or any other accessories.

Available Quantity

5

UPC

718037899794

SKU

mingleWD40EFPX

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Uncompromising Surveillance Storage


WD Purple drives are designed to meet the challenges of 24x7 video surveillance recording. These drives are engineered specifically for surveillance to help withstand the elevated heat fluctuations and equipment vibrations within NVR environments. An average desktop drive is built to run for only short intervals, not the harsh 24/7 always-on environment of a high-definition surveillance system. With WD Purple drives, you get reliable, surveillance-class storage that s tested for compatibility in a wide range of security systems. Exclusive AllFrame technology helps reduce frame loss and improve overall video playback.



Industry-Leading Storage. Surveillance You Can Trust

Western Digital has provided surveillance-grade storage for more than a decade. With WD Purple surveillance storage, drives are engineered for high temperature, always-on surveillance systems so you can rely on quality video when you need it most.



Western Digital's Exclusive AllFrame Technology

All WD Purple drives are equipped with AllFrame technology, which helps reduce video frame drops and improves video recording and playback.



Wide Compatibility. Seamless Integration

WD Purple hard drives are built with compatibility in mind, so you can quickly and seamlessly add capacity to your surveillance system. With a wide range of industry-leading enclosures and chipsets supported, you re sure to find the DVR or NVR configuration that s right for you.
Capacity
3TB

Form Factor
3.5-Inch

Connector
SATA

Compatibility
Up to 64 HD cameras
Up to 16 drive bays
AllFrame firmware technology

Interface
SATA

Transfer Rate
up to 175MB/s

Recording Technology
CMR

Cache Size
256MB

Model Number
WD33PURZ

Operating Temperature
0^oC to 65^oC

Non-Operating Temperature
-40^oC to 70^oC

Certifications
BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
Item Dimension (L inchxW inchxH inch)
6 x 4 x 1

Weight
1.26 lbs

Warranty Information
3 Years


















Note: 1 Hard Drive in a Static Shield Bag only. Does not come with cable, instructions, or any other accessories.

Available Quantity

5

UPC

718037898278

SKU

mingleWD33PURZ

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Uncompromising Surveillance Storage

WD Purple drives are designed to meet the challenges of 24x7 video surveillance recording. These drives are engineered specifically for surveillance to help withstand the elevated heat fluctuations and equipment vibrations within NVR environments. An average desktop drive is built to run for only short intervals, not the harsh 24/7 always-on environment of a high-definition surveillance system. With WD Purple drives, you get reliable, surveillance-class storage that s tested for compatibility in a wide range of security systems. Exclusive AllFrame technology helps reduce frame loss and improve overall video playback.


Industry-Leading Storage. Surveillance You Can Trust

Western Digital has provided surveillance-grade storage for more than a decade. With WD Purple surveillance storage, drives are engineered for high temperature, always-on surveillance systems so you can rely on quality video when you need it most.


Western Digital's Exclusive AllFrame Technology

All WD Purple drives are equipped with AllFrame technology, which helps reduce video frame drops and improves video recording and playback.


Enhanced Workload Ratings

WD Purple drives feature a workload rating of up to 180TB/year - up to three times that of desktop drives - to handle the unique demands of mainstream video surveillance DVR and NVR systems.


Multiple Cameras, Multiple Streams

Modern recorders now support multiple video streams per camera. WD Purple drives support up to 64 single-stream HD cameras. With so many options, you have the flexibility to upgrade or expand your security applications in the future.
Capacity
2TB

Form Factor
3.5-Inch

Connector
SATA

Compatibility
Up to 64 HD cameras
Up to 16 drive bays
AllFrame firmware technology

Interface
SATA

Transfer Rate
up to 175MB/s

Recording Technology
CMR

Cache Size
256MB

Model Number
WD23PURZ

Operating Temperature
0^oC to 65^oC

Non-Operating Temperature
-40^oC to 70^oC

Certifications
BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
Item Dimension (L inchxW inchxH inch)
6 x 4 x 1

Weight
1 lb


















Note: 1 Hard Drive in a Static Shield Bag only. Does not come with cable, instructions, or any other accessories.

Available Quantity

5

UPC

718037896199

SKU

mingleWD23PURZ

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Enterprise-class hard drives engineered to deliver high performance and reliability to commercial and enterprise NAS environments.

WD Red Pro drives are engineered to handle high-intensity workloads in 24 7 multi-user commercial and enterprise NAS environments. WD Red Pro drives deliver the performance, scalability and dependability businesses require to store, share and collaborate on large amounts of data in multi-bay RAID-optimized NAS systems.


Optimized for NAS with NASware

Western Digital s exclusive NASware technology fine tunes drive parameters to match NAS system workloads, which helps increase performance and reliability.


Designed for Continuous Operation

WD Red Pro hard drives are designed to handle the rigorous demands of high-intensity 24x7 multi-user NAS environments and increase system durability.


Tested for Dependable Compatibility

Western Digital partners with a wide range of NAS system vendors for extensive testing to ensure compatibility with most NAS enclosures.


Protected against Excessive Vibration

WD Red Pro drives include Rotation Vibration (RV) sensors that anticipate and proactively counteract disturbances caused by increased vibration. By dispersing excess vibration across the drive chassis, turbulence is minimized, performance is maintained and drives are protected.


Built to Absorb Shock

WD Red Pro hard drives include a multi-axis shock sensor to detect subtle shock events and automatically compensate with dynamic fly height technology to further protect the drives in NAS enclosures.


Engineered with Industry-Leading Technology

WD Red Pro 22TB hard drives feature Western Digital s proprietary OptiNAND technology which leverages integrated iNAND embedded flash to perform key housekeeping functions, freeing up more capacity and improving the overall drive performance.
Features
- Ideal for creative pros, medium to large businesses, and commercial/enterprise NAS systems
- For RAID-optimized NAS systems with an unlimited number of bays
- Rated for 550TB/year workloads¹ and up to 2.5M hours MTBF
Disclosures
1. Workload Rate is defined as the amount of user data transferred to or from the hard drive. Workload Rate is annualized (TB transferred x (8760 / recorded power-on hours)). Workload Rate will vary depending on your hardware and software components and configurations.
Capacity
22TB
Form Factor
3.5-Inch
Connector
SATA
SATA
Compatibility
RAID-optimized NAS systems with unlimited Number of bays
Interface
SATA
SATA
Transfer Rate
up to 265MB/s
Disk Speed (RPM)
7200 RPM
Recording Technology
CMR
Cache Size
512MB
Operating Temperature
0^oC to 65^oC
Non-Operating Temperature
-40^oC to 70^oC
Certifications
BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
Item Dimension (L inchxW inchxH inch)
6 x 4 x 2

Weight
1.00 lb

Warranty Information
5 Year limited warranty






Note: 1 Hard Drive in a Static Shield Bag only. Does not come with cable, instructions, or any other accessories.

Available Quantity

5

UPC

718037893501

SKU

mingleWD221KFGX-RET

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Powerful hard drives designed for performance, reliability and power efficiency in small to medium NAS environments.

WD Red Plus drives are designed to handle workloads of power users and small to medium business NAS environments. WD Red Plus drives deliver the speed and capacity required to store, protect and share growing amounts of data in mid-sized RAID-optimized NAS systems with increased power efficiency.


Tuned for NAS with NASware

Western Digital s exclusive NASware technology fine tunes drive parameters to match NAS system workloads which helps increase performance and reliability.


Designed for Continuous Operation

Since your NAS system is always on, a reliable drive is essential. WD Red Plus hard drives are designed for systems that operate 24x7, giving users the confidence of knowing they can reliably access their data.


Tested for Dependable Compatibility

Western Digital partners with a wide range of NAS system vendors for extensive testing to ensure compatibility with most NAS enclosures.


Optimized for Lower TCO

WD Red Plus drives are engineered to use less power (versus previous models) and run cooler, which reduces operating costs and helps reduce heat in thermally challenged NAS boxes.


Powered for Strong Performance

Despite using less power, the drives have plenty of bandwidth to handle the mixed performance demands of multi-drive NAS systems.
Capacity
2TB

Form Factor
3.5-Inch

Connector
SATA

Compatibility
RAID-optimized NAS systems with up to 8 bays

Interface
SATA

Transfer Rate
up to 175MB/s

Disk Speed (RPM)
5400 RPM

Recording Technology
CMR

Cache Size
512MB

Model Number
WD20EFPX

Operating Temperature
0^oC to 65^oC

Non-Operating Temperature
-40^oC to 70^oC

Certifications
BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
Item Dimension (L inchxW inchxH inch)
6 x 4 x 2

Weight
1.65 lbs

Warranty Information
3 Years


















Note: 1 Hard Drive in a Static Shield Bag only. Does not come with cable, instructions, or any other accessories.

Available Quantity

5

UPC

Does not apply

SKU

mingleWD20EFPX

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Add or Remove from Cart

Product Description

Enterprise-class hard drives engineered to deliver high performance and reliability to commercial and enterprise NAS environments.

WD Red Pro drives are engineered to handle high-intensity workloads in 24 7 multi-user commercial and enterprise NAS environments. WD Red Pro drives deliver the performance, scalability and dependability businesses require to store, share and collaborate on large amounts of data in multi-bay RAID-optimized NAS systems.


Optimized for NAS with NASware

Western Digital s exclusive NASware technology fine tunes drive parameters to match NAS system workloads, which helps increase performance and reliability.


Designed for Continuous Operation

WD Red Pro hard drives are designed to handle the rigorous demands of high-intensity 24x7 multi-user NAS environments and increase system durability.


Tested for Dependable Compatibility

Western Digital partners with a wide range of NAS system vendors for extensive testing to ensure compatibility with most NAS enclosures.


Protected against Excessive Vibration

WD Red Pro drives include Rotation Vibration (RV) sensors that anticipate and proactively counteract disturbances caused by increased vibration. By dispersing excess vibration across the drive chassis, turbulence is minimized, performance is maintained and drives are protected.


Built to Absorb Shock

WD Red Pro hard drives include a multi-axis shock sensor to detect subtle shock events and automatically compensate with dynamic fly height technology to further protect the drives in NAS enclosures.


Engineered with Industry-Leading Technology

WD Red Pro 22TB hard drives feature Western Digital s proprietary OptiNAND technology which leverages integrated iNAND embedded flash to perform key housekeeping functions, freeing up more capacity and improving the overall drive performance.
Features
- Ideal for creative pros, medium to large businesses, and commercial/enterprise NAS systems
- For RAID-optimized NAS systems with an unlimited number of bays
- Rated for 550TB/year workloads¹ and up to 2.5M hours MTBF
Disclosures
1. Workload Rate is defined as the amount of user data transferred to or from the hard drive. Workload Rate is annualized (TB transferred x (8760 / recorded power-on hours)). Workload Rate will vary depending on your hardware and software components and configurations.
Capacity
18TB
Form Factor
3.5-Inch
Connector
SATA
SATA
Compatibility
RAID-optimized NAS systems with unlimited number of bays
Interface
SATA
SATA
Transfer Rate
up to 272MB/s
Disk Speed (RPM)
7200 RPM
Recording Technology
CMR
Cache Size
512MB
Model Number
WD181KFGX
Operating Temperature
0^oC to 65^oC
Non-Operating Temperature
-40^oC to 70^oC
Certifications
BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
Item Dimension (L inchxW inchxH inch)
6 x 4 x 2

Weight
1.65 lb

Warranty Information
5 years





Note: 1 Hard Drive in a Static Shield Bag only. Does not come with cable, instructions, or any other accessories.
