Item SIIG Accessory CE-H23L11-S1 4-Port HDMI2.0 HDR Mini Splitter Amplifier with EDID Management Brown Box
|
|
Show more images
|
|
Please note, Login or Registration at time of checkout will be required. Thank you.
|
Price $72.00
Buy Now
Expand to see more details...
Rebate 10% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping Free 2 day shipping
Return Policy 6 months free return. Return item within the time specified.
Add or Remove from Cart

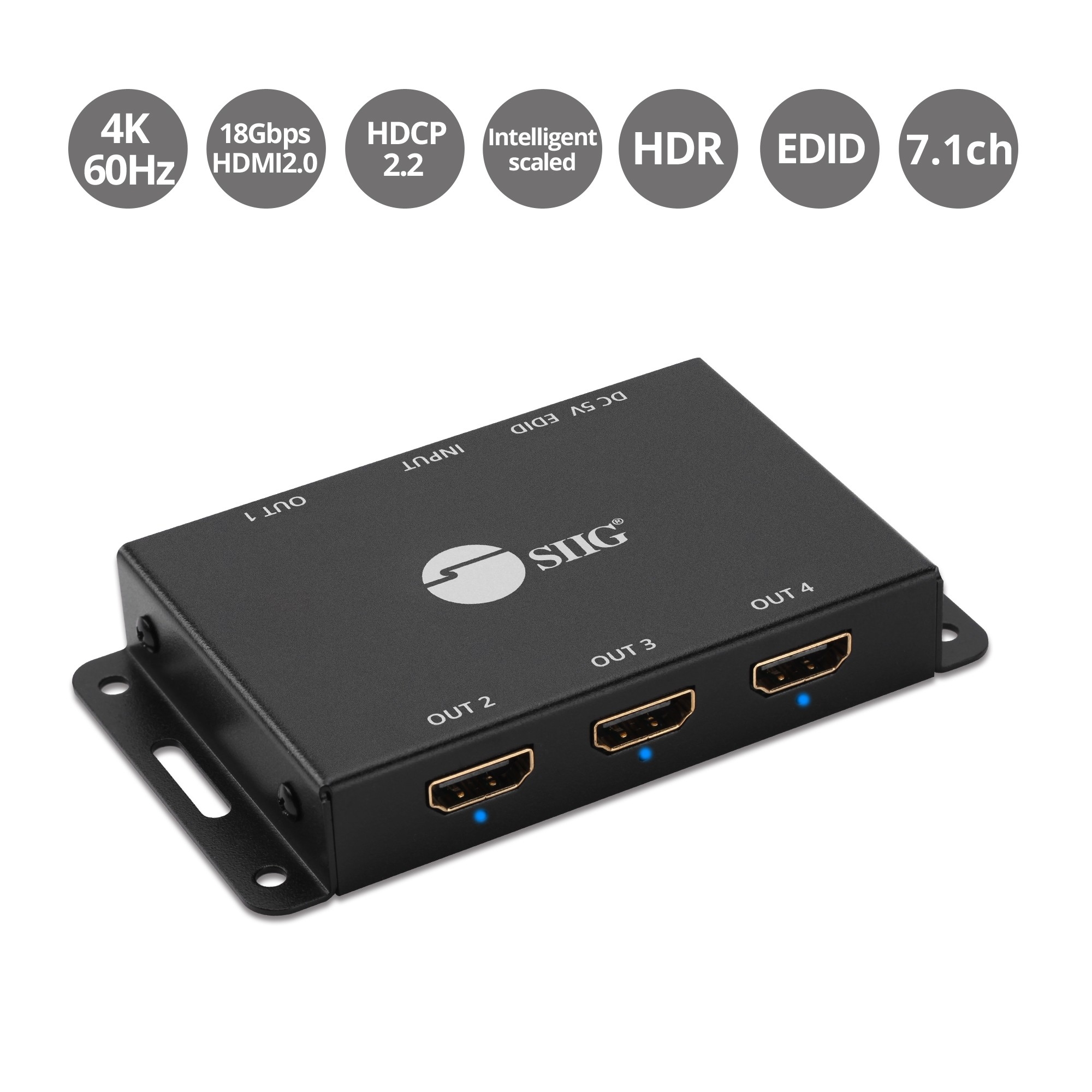

Product Description 4-Port HDMI 2.0 HDR Mini Splitter Amplifier with EDID Management

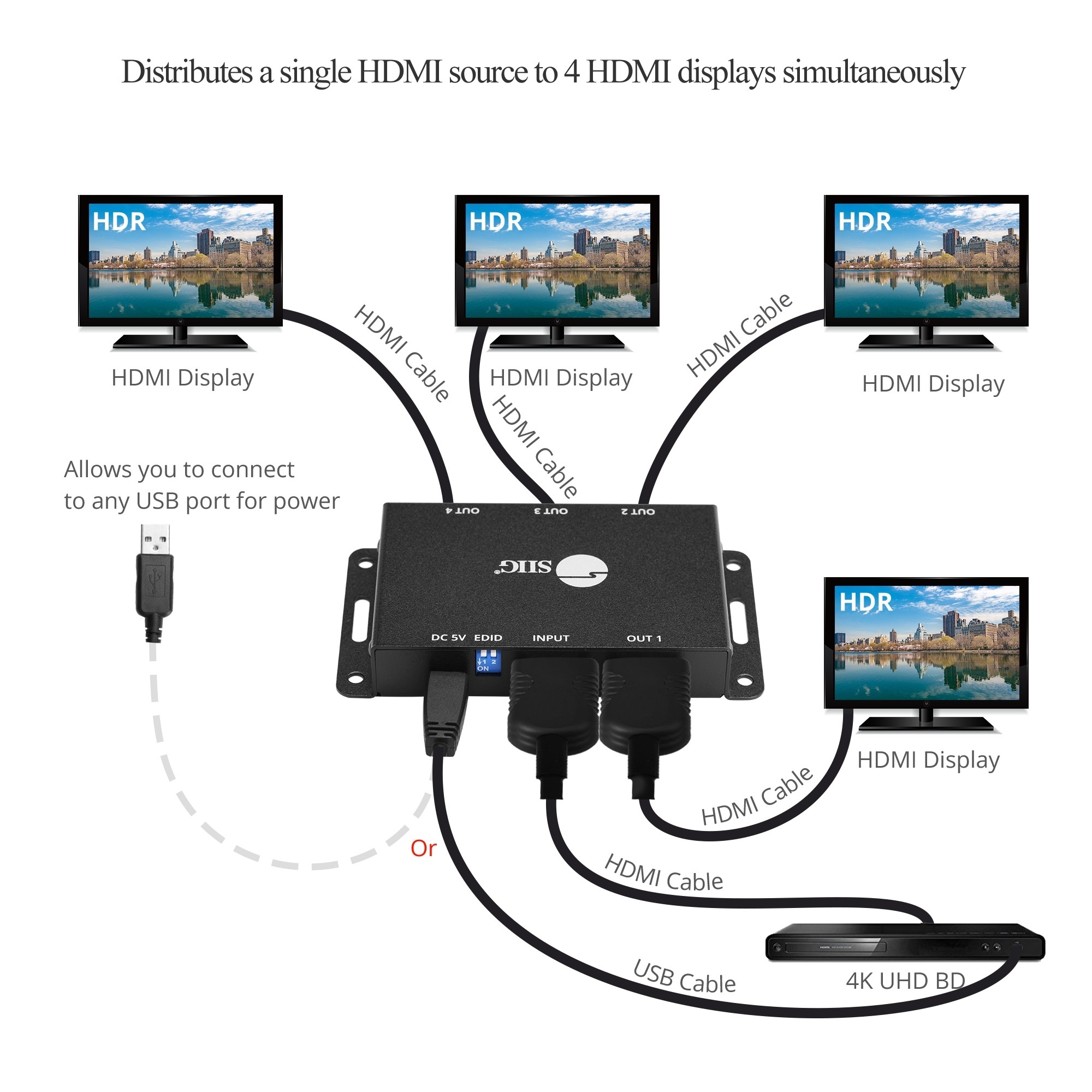

Distributes HDMI video/audio signals from one HDMI source to 4 HDMI displays while maintaining signal quality
Distributes HDMI video and audio from a single source to up to 4 HDMI displays simultaneously while maintaining signal quality
Compliant with HDMI 2.0 and HDCP 2.2
Supports 18Gbps bandwidth
Supports 4K (3840x2160) @60Hz (YUV 4:4:4 8bit), HDR 4K (3840x2160) @60Hz (YUV 4:2:0 10bit), 3D, xvYCC, x.v.Color & Deep Color
Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
Resolution downscaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor
Allows simultaneous 4K and 1080P output. Supports simultaneous mixed 4K and 1080p display outputs. *See Notes below for limitations
EDID and firmware management feature for maximum compatibility now and into the future, offers widest range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays. Firmware upgradeable (via Mini USB port) for expanded compatibility

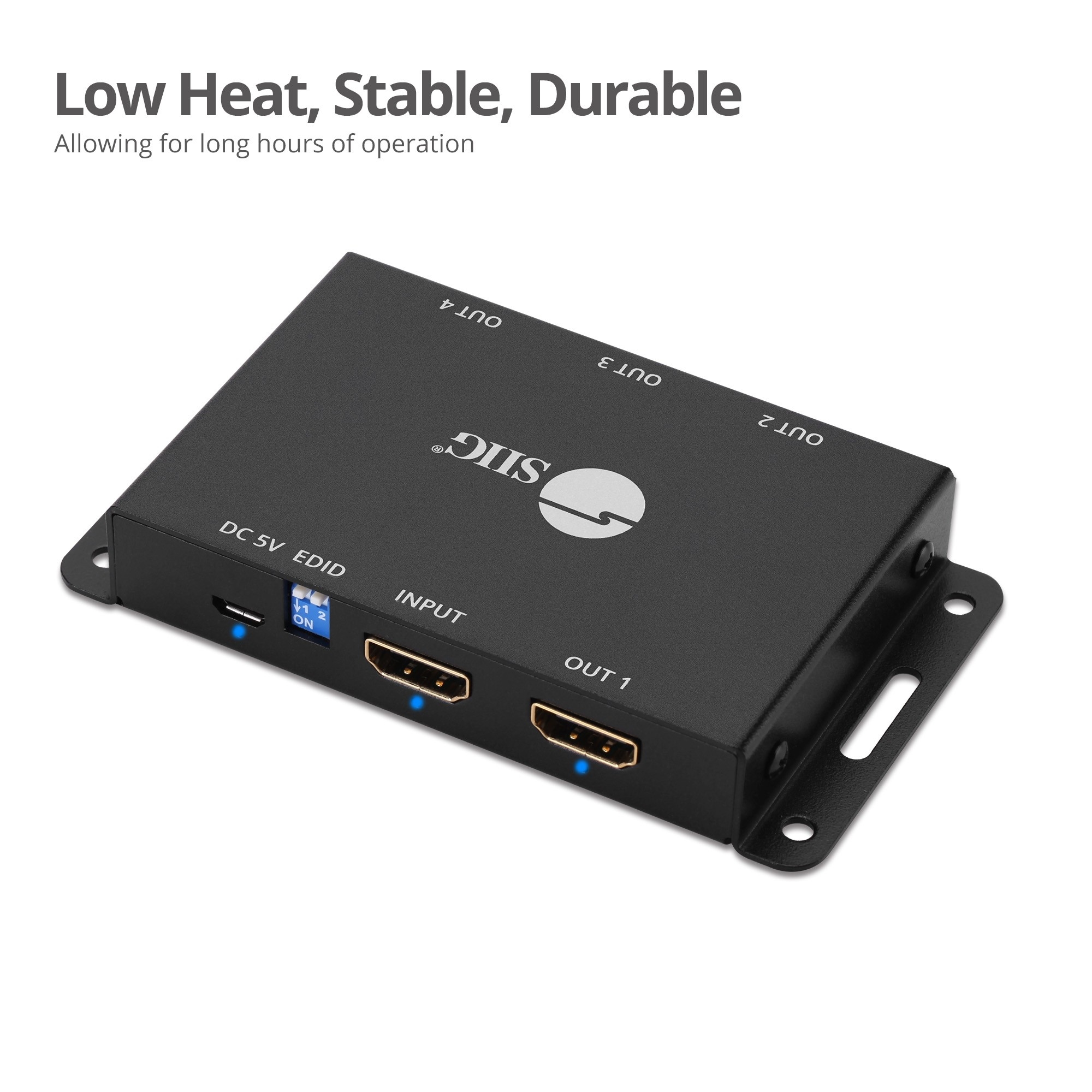

Low heat generation with sturdy metal housing provides excellent heat dissipation, durability, and minimizes EMI/RFI noise interference. Low heat generation and ESD protection to guarantee stability and reliable performance
*Notes:
- Down scaling to 720p and 480p is not supported
- YUV 4:2:2 down scaling is not supported
- Frame rate conversion (e.g., 60Hz to 24Hz) is not supported
- 4K@30Hz monitors will display in 1080p@60Hz when the source content is 4K@60Hz
- The Splitter can bypass 4K HDR data content but cannot process it to make 4K HDR content fit 1080p proportionally
- Chip:
IT6664E
- Compliant with HDMI 2.0 and HDCP 2.2
- Supports xvYCC, x.v.Color and Deep Color
- Supports 3840x2160 at 60Hz ,YUV 4:4:4, 8bit
- Supports 3840x2160 at 60Hz HDR, YUV 4:2:0 10bit
- Video bandwidth:
18Gbps (single-link 600MHz)
- Resolution support:
480p/720p/1080i/1080p/2160p at 60Hz, 4K HDR
- HDMI cable length:
3840x2160 at 60Hz: up to 10m (5m/In, 5m/Out)
1080p and 3840x2160 at 30Hz: up to 15m (5m/In, 10m/Out)
- Supports default EDID and EDID learning from display

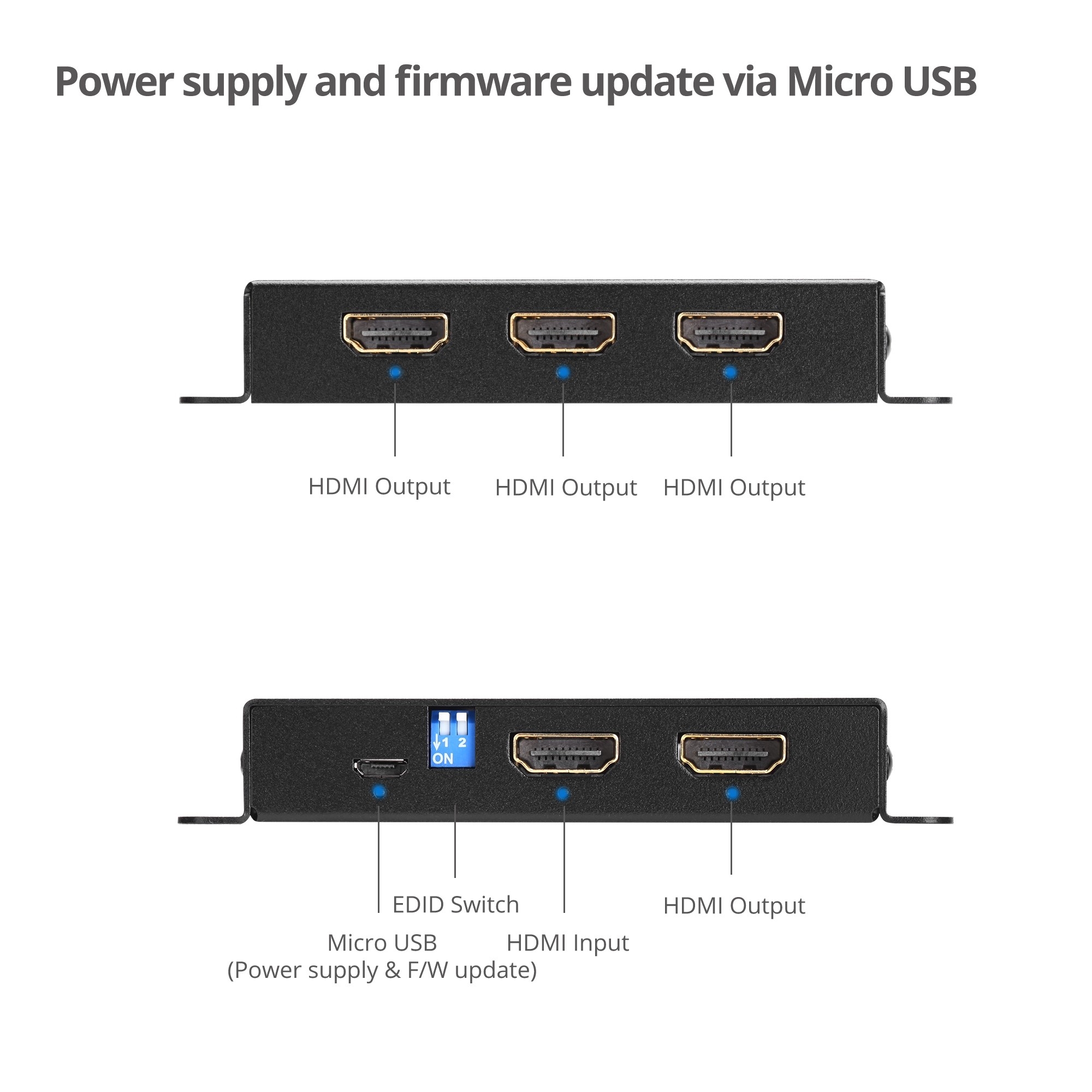

- Built-in Micro-USB port for power or firmware update
- Audio support:
Dolby Digital, DTS-HD and Dolby TrueHD audio
- LED indication for power and signal status
- ESD protection:
+/- 15kV Air
+/- 8kV Contact
- Product:
Color: Black
Housing material: Metal
Connector:
-1x 19-Pin, HDMI, Type A, Female, Input
-4x 19-Pin, HDMI, Type A, Female, Output
-1x 5-Pin, Micro-USB, Female, Power / Firmware update
-1x 2-Pin, Switch, EDID Management
- Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity: 20 to 90% RH (non-condensing)
- Certifications/Standards:
FCC, CE, RoHS
- TAA compliant
Item Dimension(L inchxW inchxH inch)
5 x 6 x 1
Weight
1.00lb
Warranty Information
3 years
Available Quantity 5
UPC 662774041650
SKU mingleCE-H23L11-S1
Item SIIG Accessory CE-H25Q11-S1 3x1 HDMI 4K Multi format Presentation Switcher - BYOD Brown Box
|
|
Show more images
|
|
Please note, Login or Registration at time of checkout will be required. Thank you.
|
Price $168.32
Buy Now
Expand to see more details...
Rebate 10% of item price after purchase. Details to redeem rebate will be provided in shipment
Shipping Free 2 day shipping
Return Policy 6 months free return. Return item within the time specified.
Add or Remove from Cart

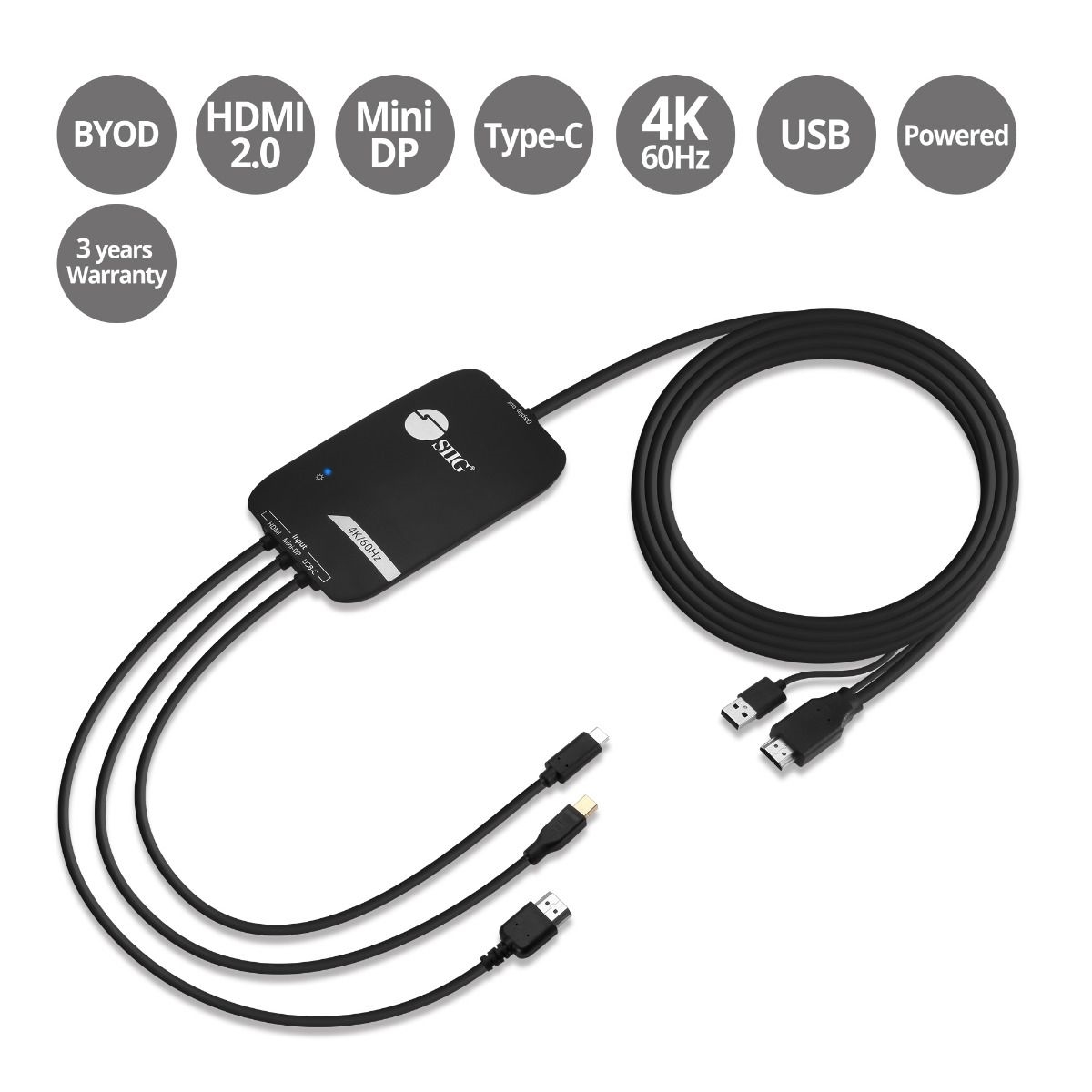

Product Description Allows HDMI, Mini DisplayPort, or USB-C DP Alt source signals to display on an HDMI projector or display
Device Auto Detection - recognizes when a source device is powered on or connected and switches it to the HDMI output automatically
Auto Scan - Scans input sources, starting at HDMI, then Mini DisplayPort, ending at USB-C, and automatically switches the 1st active source to the HDMI display. This feature is activated when the active source device is either unplugged or turned off
Mini DisplayPort and USB-C input delivers video resolutions up to 4K@60Hz YUV 4:4:4
HDMI input delivers video resolutions up to 4K@60Hz YUV 4:4:4, 4K HDR, and Dolby Vision
HDMI 2.0, DisplayPort 1.2, and HDCP 2.2 compliant
Plug-n-play, no driver installation required
Powered by USB Type-A port or wall charger
Perfect multimedia tool for meeting rooms, class rooms, lecture halls
Compliant with HDMI 2.0 / DP 1.2 / HDCP 2.2
Resolution:
HDMI input:
up to 4K at 60Hz YUV 4:4:4, 4K at 60Hz 10-bit YUV 4:2:0 HDR
Mini DisplayPort input:
up to 4Kx2K at 60Hz YUV 4:4:4
USB-C input:
up to 4Kx2K at 60Hz YUV 4:4:4
HDMI Audio:
LPCM 7.1 audio, Dolby Atmos, DolbyTrueHD, Dolby Digital Plus, DTS:X, and DTS-HD Master Audio pass-through
Input connector:
HDMI, Male
Mini DisplayPort, Male
USB Type-C, Male
Output connector:
HDMI Type-A, Male
USB Type-A, Male, Power only
Video resolution:
Up to 4K at 60Hz 8-bit YUV 4:4:4 / 10-bit YUV 4:2:0 HDR (HDMI input only)
Cable length:
Input:
HDMI / Mini DP / USB-C: 1ft
Output:
HDMI: 9.8ft
USB Type-A: 5ft
Product:
Color:
Black
Housing material:
Plastic
ESD protection:
Human body model +/-15kV air-gap discharge and +/-8kV contact discharge
Environmental conditions:
Operating temperature:
32 to 104 degrees F
Storage temperature:
-4 to 140 degrees F
Relative humidity:
10-90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Item Dimension (L"xW"xH")
4 x 1 x 6
Weight
1 lb
Warranty Information
3 years
Available Quantity 5
UPC 662774043357
SKU mingleCE-H25Q11-S1
|
