Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

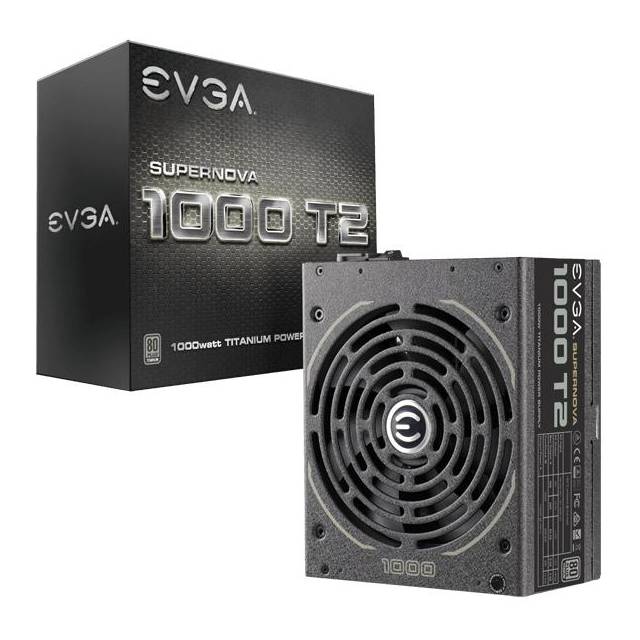

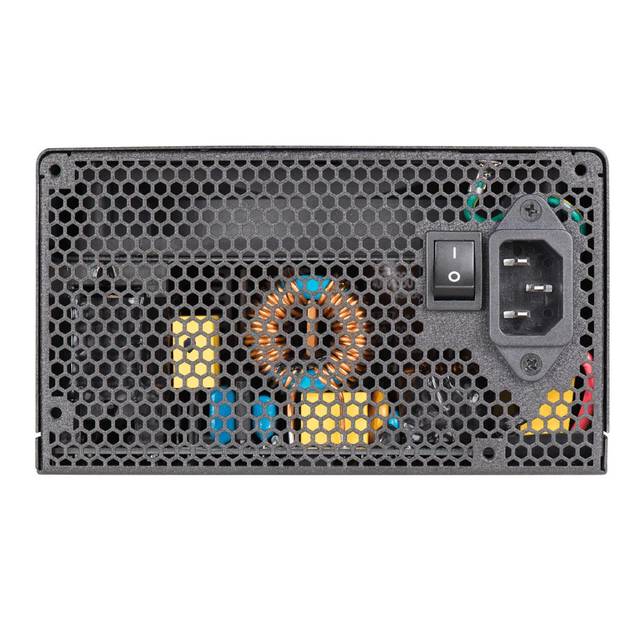

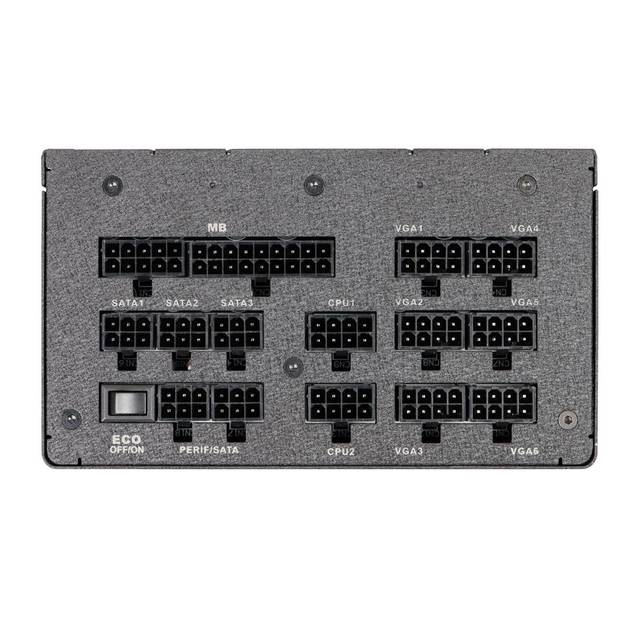

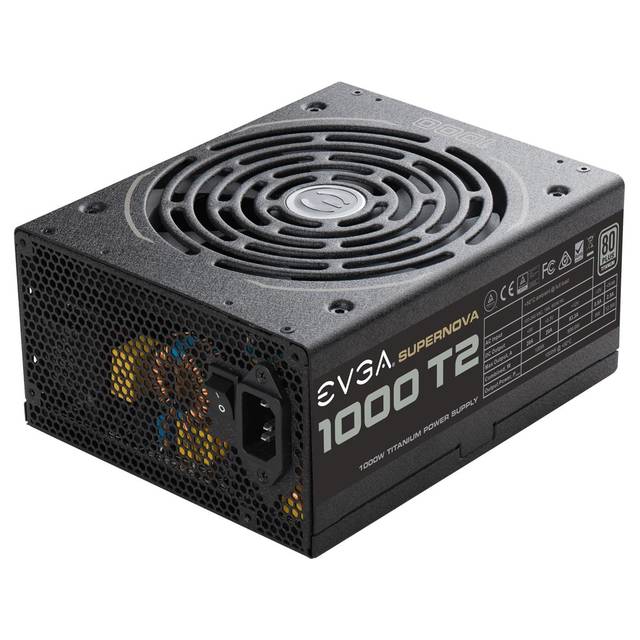

• Mfr Part Number: 220-T2-1000-X1
• Features:
  • Unbeatable 10 Year Warranty and unparalleled EVGA Customer Support
  • Highest quality Japanese brand capacitors ensure long-term reliability
  • Fully Modular to reduce clutter and improve airflow
  • NVIDIA SLI & AMD Crossfire Ready
  • Double Ball Bearing fan for exceptional reliability and quiet operation
  • Ultra Quiet Fan with ECO Intelligent Thermal Control Fan system (Zero Fan Noise < 45 C)
  • 80 PLUS Titanium certified, with 94% (115VAC) / 96% (220VAC~240VAC) efficiency or higher under typical loads
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
• Maximum Power: 1000 W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 15 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V / EPS12V
• Efficiency: 94% (115VAC) / 96% (220VAC~240VAC) or Higher Typical
• MTBF: 100,000 hours
• Fan: 1x 140mm Double Ball Bearing
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 83.3A, +5VSB @ 2.5A, -12V @ 0.5A

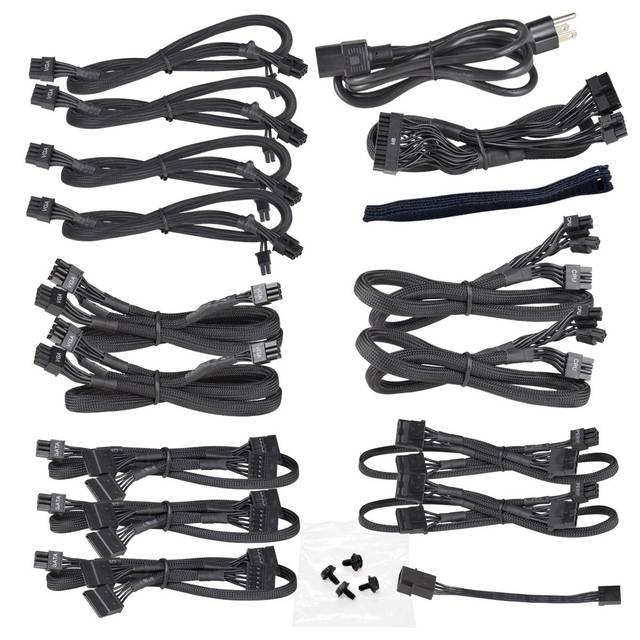

• Connectors: 1x 24pin ATX Main Connector, 2x 8(4+4)pin EPS (CPU) Power Connector, 6x 8(6+2)pin PCI-Express Connectors, 2x 6pin PCI-Express Connectors, 12x SATA Connectors, 6x 4pin Peripheral Connectors, 1x Floppy Connector
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement
• Dimensions (WxLxH): 150.0 x 180.0 x 85.0 mm
• Weight: 8.0 lbs

Note

Currently out of stock

Available Quantity

0

UPC

843368035136

SKU

mingle220-T2-1000-X1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

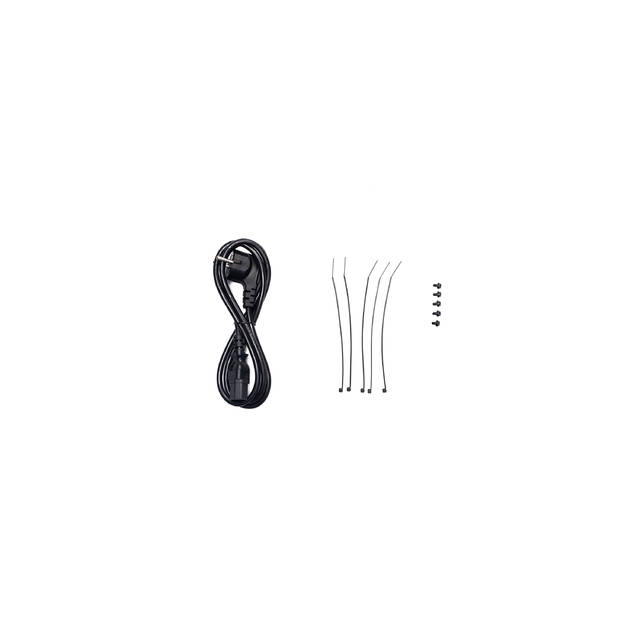

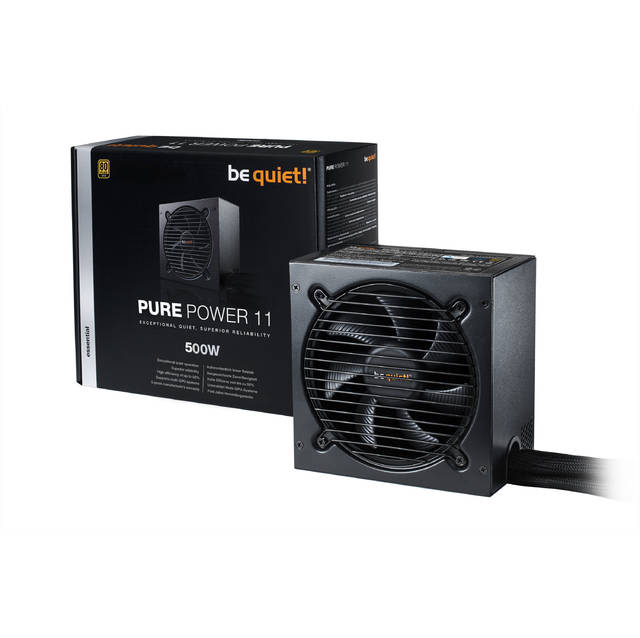

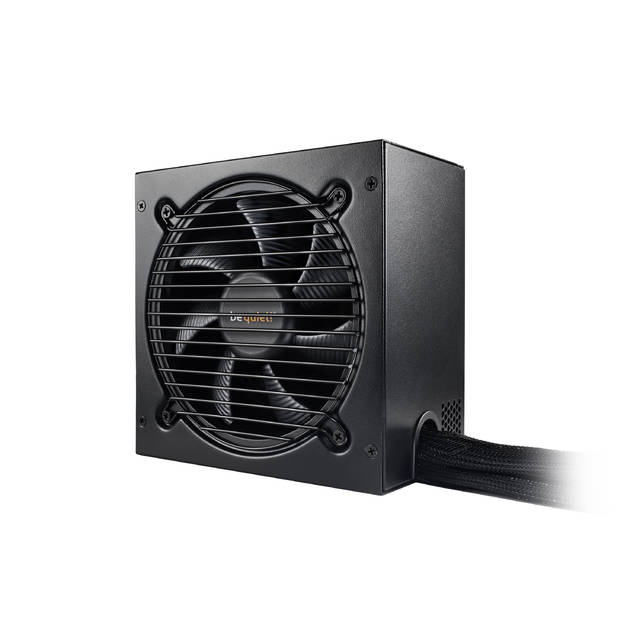

• Mfr Part Number: BN626
• Features:
  • 80 PLUS Gold efficiency (up to 92%)
  • Two strong 12V-rails
  • Stable operation thanks to Active Clamp and Synchronous Rectifier (SR) technology
  • DC-to-DC conversion for even tighter voltage regulation under heavy cross-loading conditions
  • Silence-optimized 120mm be quiet! fan
  • Full suite of top safety features

• Power:
  • Continuous Power: 500W
  • Peak Power: 550W

• Input:
  • Voltage: 100 ~ 240 VAC

  • Current: 8 - 5 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V v2.4
• Power Factor Correction: Active PFC

• Efficiency: 80Plus Gold, up to 92% @ 20~100% load

• Fan: 120mm Silence-optimized Rifle Fan

• Output: +3.3V @ 24A, +5V @ 15A, +12V1 @ 28A, +12V2 @ 20A, +5VSB @ 3A, -12V @ 0.3A
• Connectors: 1x 20+4-pin ATX Main Connector, 1x P4+4 CPU Connectors, 2x 6+2pin GPU PCI-Express Connectors, 6x 15-pin SATA Connectors, 3x 4-pin PATA Connectors, 1x Floppy Connector
• Protection: OCP/ OVP/ UVP/ SCP/ OTP/ OPP
• Approvals: CE, CB, TUV, FCC, cTUVus, RCM (Australia), BSMI, CU (Russia), CCC, ErP, WEEE, RoHS
• Color: Black

• Dimensions (WxLxD): 150.0 x 150.0 x 86.0 mm
• Weight: 2.05 kg


Note

Currently out of stock

Available Quantity

0

UPC

Does not apply

SKU

mingleBN626

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

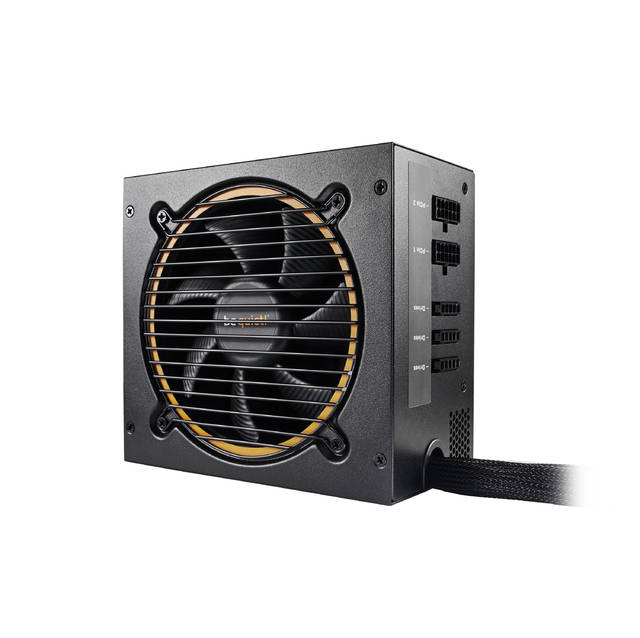

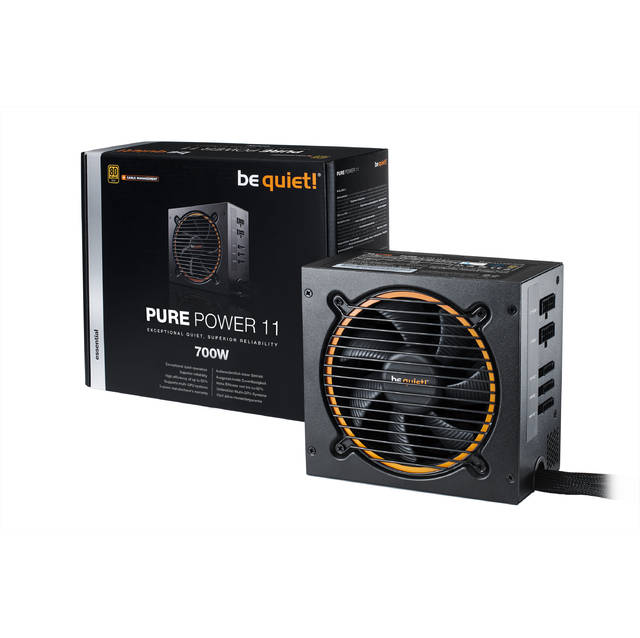

• Mfr Part Number: BN630
• Features:
  • 80 PLUS Gold efficiency (up to 92%)
  • Two strong 12V-rails
  • Stable operation thanks to Active Clamp and Synchronous Rectifier (SR) technology
  • DC-to-DC conversion for even tighter voltage regulation under heavy cross-loading conditions
  • Silence-optimized 120mm be quiet! fan
  • Full suite of top safety features

• Power:
  • Continuous Power: 700W

  • Peak Power: 750W
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 10 - 5 A

  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V v2.4 / EPS12V v2.92

• Power Factor Correction: Active PFC

• Efficiency: 80Plus Gold, 89.8% @ 20% load, 92.0% @ 50% load, 90.4% @ 100% load (All at 230V)
• Fan: 120mm Silence-optimized Rifle Fan
• Output: +3.3V @ 25A, +5V @ 20A, +12V1 @ 36A, +12V2 @ 30A, +5VSB @ 3A, -12V @ 0.3A
• Connectors: 1x 20+4-pin ATX Main Connector, 1x P4+4 CPU Connectors, 4x 6+2pin GPU PCI-Express Connectors, 6x 15-pin SATA Connectors, 3x 4-pin PATA Connectors, 1x Floppy Connector
• Protection: OCP/ OVP/ UVP/ SCP/ OTP/ OPP

• Approvals: CE, CB, TUV, FCC, cTUVus, RCM, BSMI, CU, CCC, ErP, WEEE, RoHS
• Color: Black
• Dimensions (WxLxD): 150.0 x 160.0 x 86.0 mm

• Weight: 2.10 kg


Note

Currently out of stock

Available Quantity

0

UPC

Does not apply

SKU

mingleBN630

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

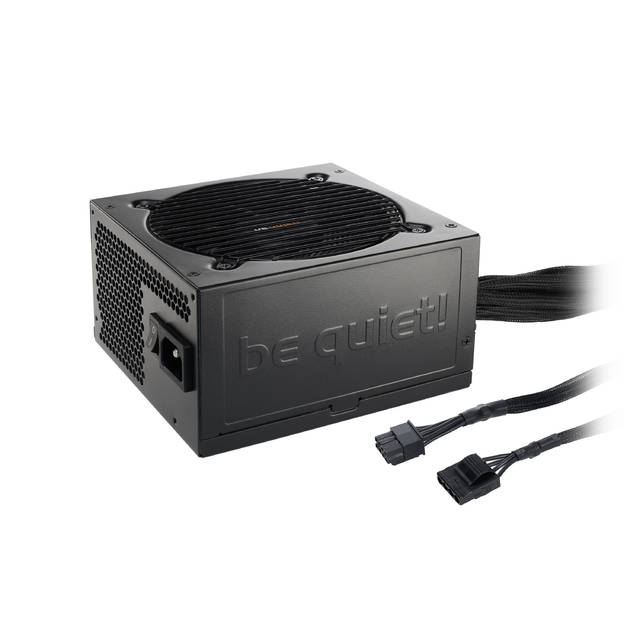

• Mfr Part Number: BN631
• Features:
  • 80 PLUS Gold efficiency (up to 92%)
  • Two strong 12V-rails
  • Stable operation thanks to Active Clamp and Synchronous Rectifier (SR) technology
  • DC-to-DC conversion for even tighter voltage regulation under heavy cross-loading conditions
  • Silence-optimized 120mm be quiet! fan

  • Full suite of top safety features

• Power:
  • Continuous Power: 700W
  • Peak Power: 750W

• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 10 - 5 A
  • Frequency Range: 50 ~ 60 Hz
• Type: ATX12V v2.4 / EPS12V v2.92
• Power Factor Correction: Active PFC
• Efficiency: 80Plus Gold, 90.6% @ 20% load, 92.4% @ 50% load, 90.1% @ 100% load (All at 230V)
• Fan: 120mm Silence-optimized Rifle Fan
• Output: +3.3V @ 25A, +5V @ 20A, +12V1 @ 36A, +12V2 @ 30A, +5VSB @ 3A, -12V @ 0.3A
• Connectors: 1x 20+4-pin ATX Main Connector, 1x P4+4 CPU Connectors, 4x 6+2pin GPU PCI-Express Connectors, 6x 15-pin SATA Connectors, 3x 4-pin PATA Connectors, 1x Floppy Connector
• Protection: OCP/ OVP/ UVP/ SCP/ OTP/ OPP
• Approvals: CE, CB, TUV, FCC, cTUVus, RCM, BSMI, CU, CCC, ErP, WEEE, RoHS

• Color: Black
• Dimensions (WxLxD): 150.0 x 150.0 x 86.0 mm

• Weight: 2.11 kg


Note

Currently out of stock

Available Quantity

0

UPC

Does not apply

SKU

mingleBN631

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

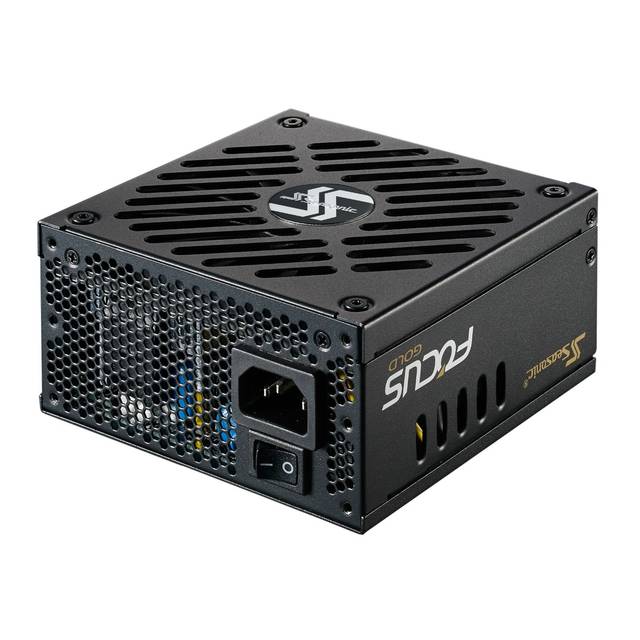

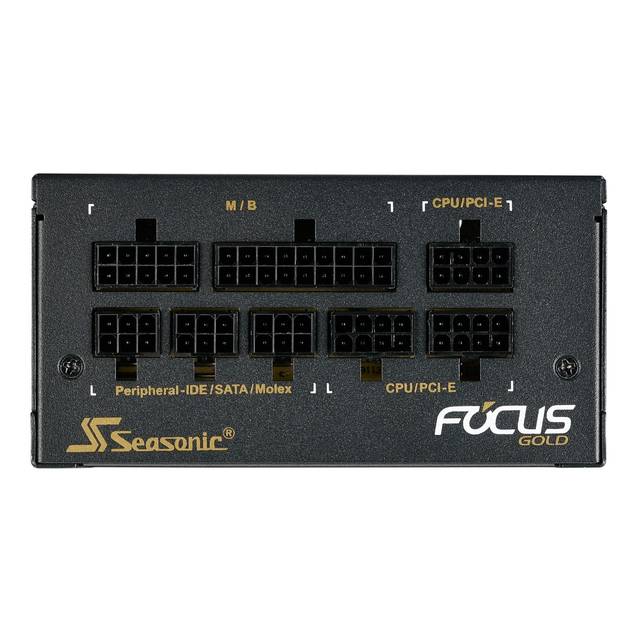

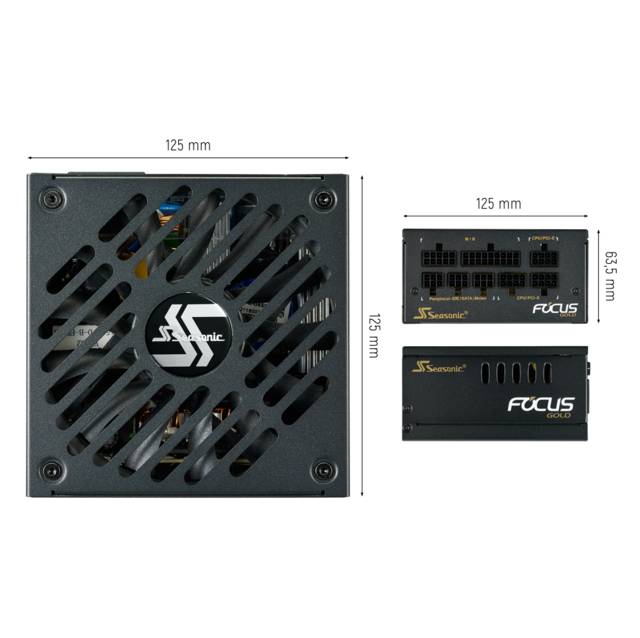

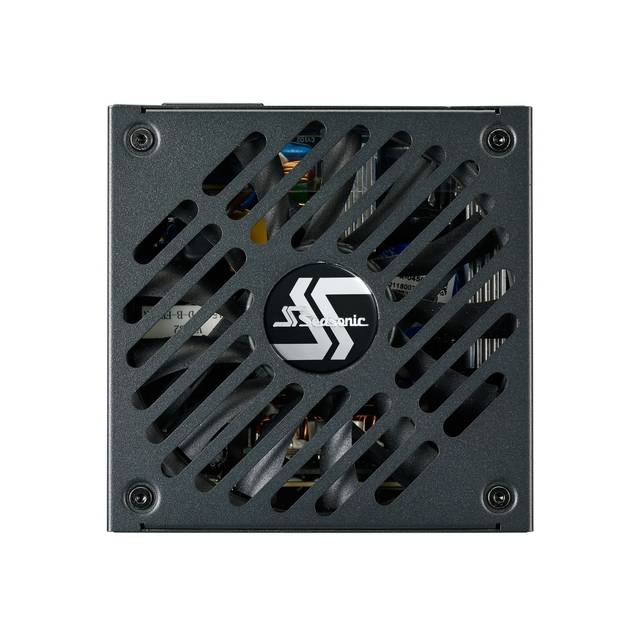

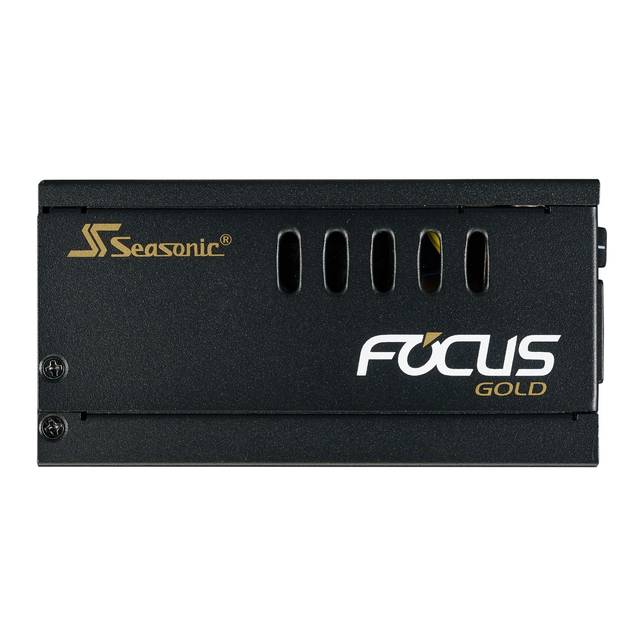

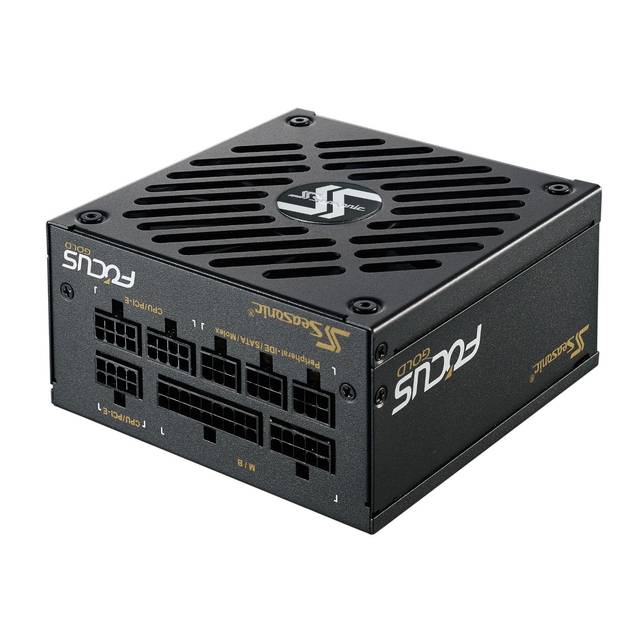

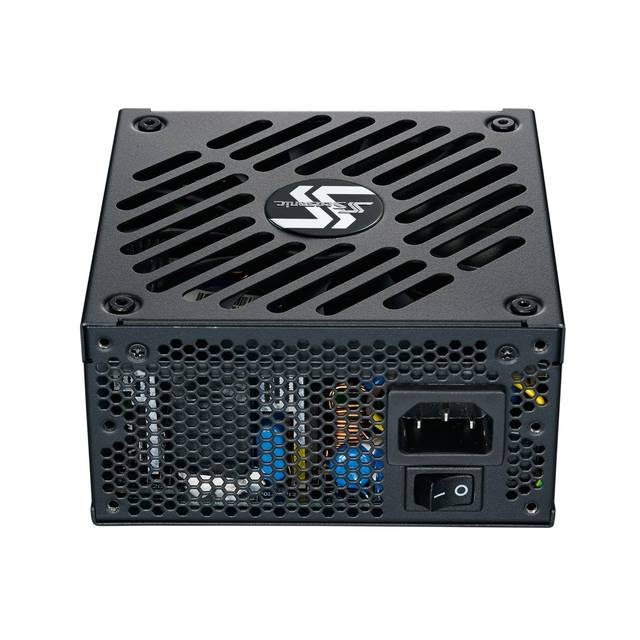

• Mfr Part Number: FOCUS SGX-500
• Features:
  • 80 PLUS Gold certified
  • Compact SFX-L Size - 125 (L) x 125 (W) x 63.5 (H) mm
  • Tight Voltage Regulation
  • Cable-free Connection Design
  • S3FC - Fanless until 30 % load
  • SFX to ATX Expandability
  • Gold plated connectors
  • 10 Years Warranty
• Type: Intel ATX12V
• Total Power: 500 W
• Input:
  • Voltage: 100 - 240V
  • Current: 6 - 3 A
  • Frequency: 50 Hz - 60 Hz
• MTBF: 100,000 hours (@ 25 C, excl. fan)
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 41A, -12V @ 0.3A, +5Vsb @ 3V
• Connectors: 1x 20/24pin M/B Connector, 1x 8/4pin CPU Connector, 2x 8/6pin PCI-Express Connectors, 3x SATA Connectors, 3x Peripheral Connectors, 1x Floppy Connector
• Cooling System:120mm Fluid Dynamic Bearing Fan
• Protection: OPP, OVP, UVP, OCP, OTP, SCP
• Safety and EMC: cULus, TUV, CB, CCC, BSMI, EAC, RCM
• Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
• Dimensions (WxLxH): 125.0 x 125.0 x 63.5 mm

Note

Currently out of stock

Available Quantity

0

UPC

Does not apply

SKU

mingleFOCUS SGX-500 (SSR-500SGX)

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

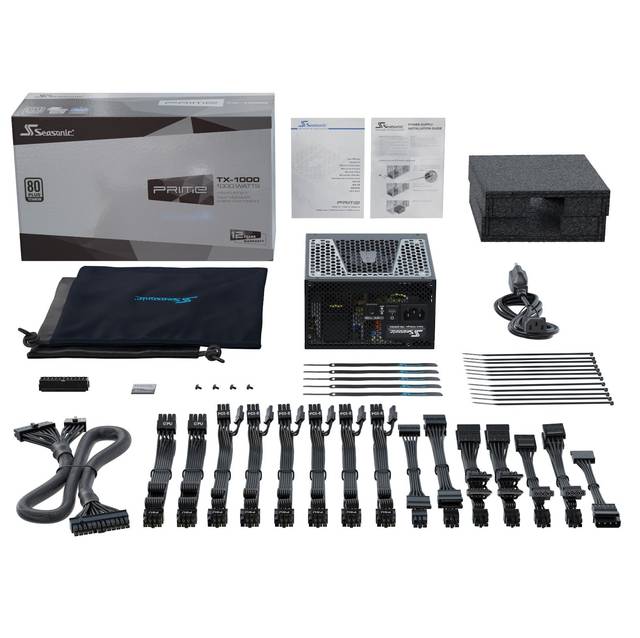

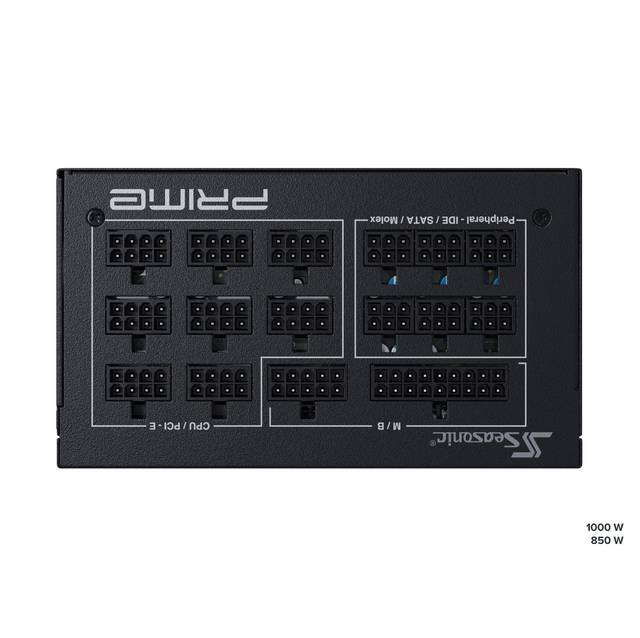

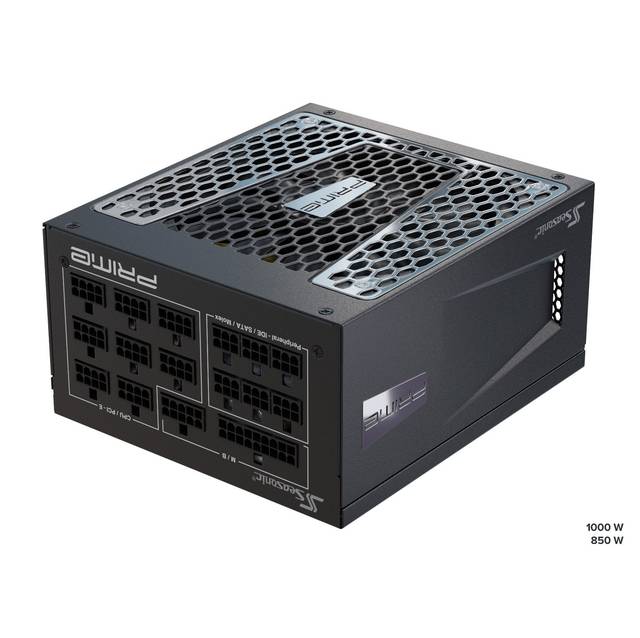

• Mfr Part Number: PRIME TX-1000
• Features:
  • MICRO TOLERANCE LOAD REGULATION (under 0.5 %): This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.
  • FULL MODULAR - Use only the cables you need to reduce clutter and improve airflow for a better ventilated system.
  • 80 PLUS TITANIUM - Less energy gets wasted during power conversion; Cut down your electricity usage and be Eco-Friendly.
  • PREMIUM HYBRID FAN CONTROL: Unsurpassed silent performance in Fanless Mode. The fan control button at the back of the power supply allows users to customize cooling needs by selecting between Seasonic S2FC (fan control without Fanless Mode) and S3FC (fan control including Fanless Mode).
  • 12 YEAR WORRY-FREE WARRANTY: Our commitment to superior quality.
• Type: Intel ATX12V
• Total Power: 1000W
• Input:
  • Voltage: 100 - 240V
  • Current: 13 - 6.5A
  • Frequency: 50/60Hz
• MTBF: 150,000 hours (@ 25 C, excl. fan)
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 83A, -12V @ 0.3A, +5Vsb @ 3A
• Connectors: 1x 20/24-pin Main Power Connector, 2x 4/8-pin CPU Connectors, 4x 6/8-pin PCI-Express Connectors, 8x SATA Connectors, 5x Peripheral Connectors, 1x Floppy Connector
• Cooling System: 135mm Fluid Dynamic Bearing Fan w/ Premium Hybrid Fan Control
• Protection: OPP, OVP, UVP, OCP, OTP, SCP
• Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, EAC, CE
• Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
• Dimensions (WxLxH): 150.0 x 170.0 x 86.0 mm
• Shipping weight(lbs): 7.45

Note

Currently out of stock

Available Quantity

0

UPC

Does not apply

SKU

minglePRIME TX-1000 (SSR-1000TR)

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

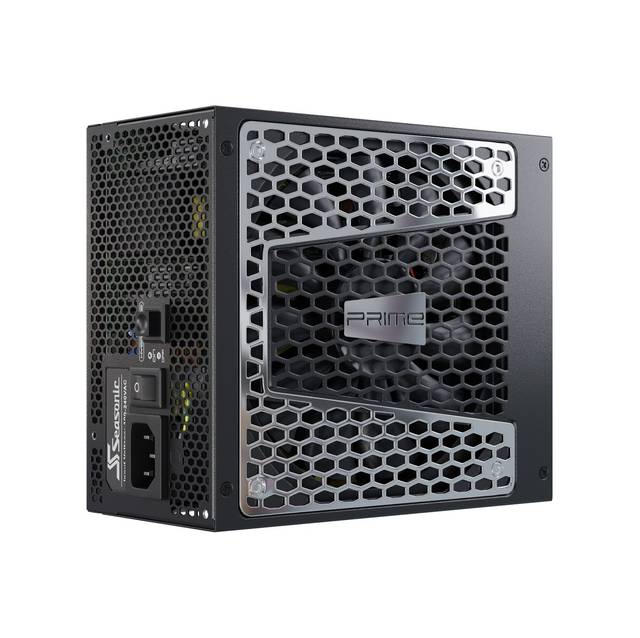

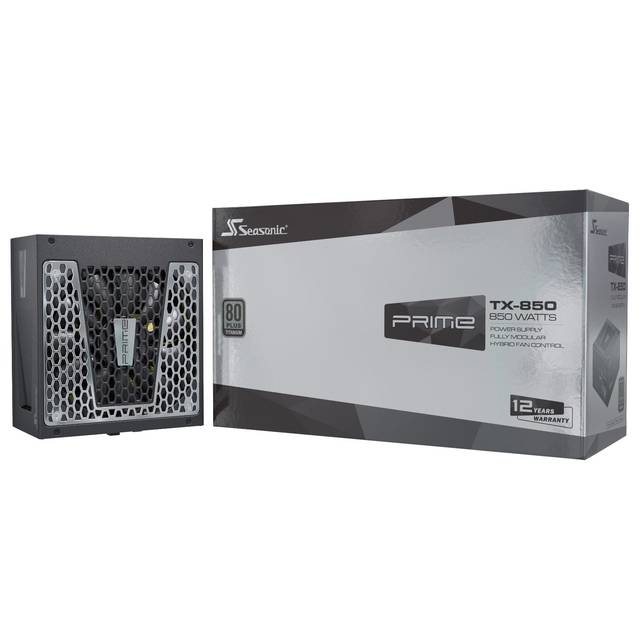

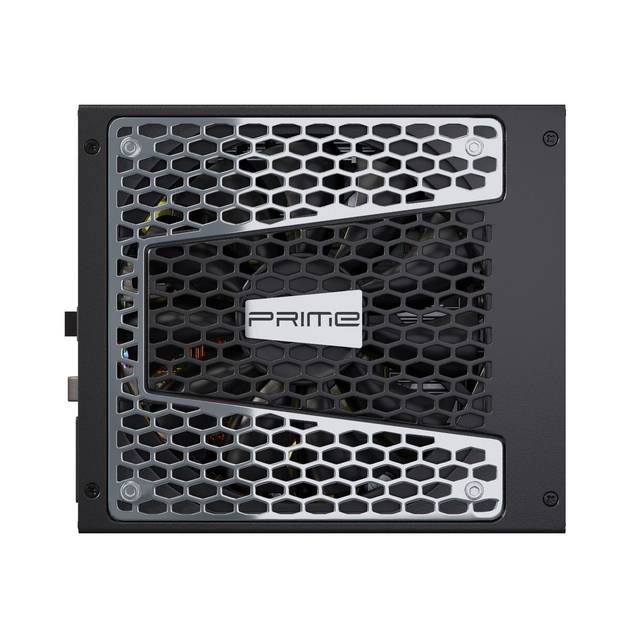

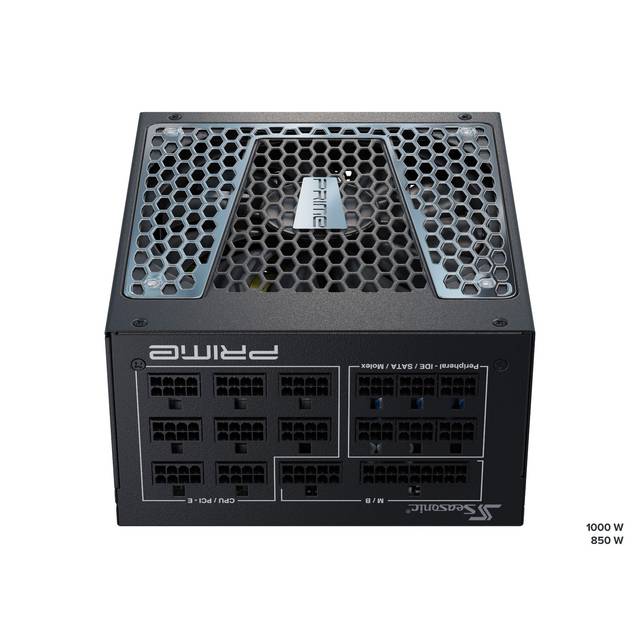

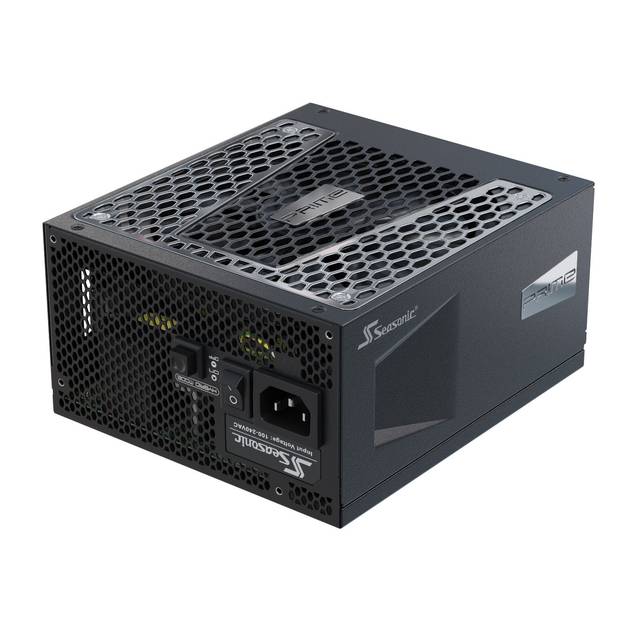

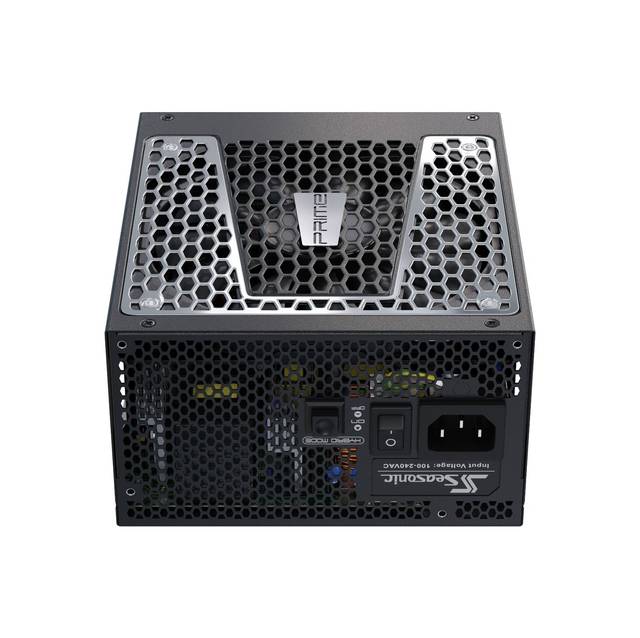

• Mfr Part Number: PRIME TX-850
• Features:
  • MICRO TOLERANCE LOAD REGULATION (under 0.5 %): This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.
  • FULL MODULAR - Use only the cables you need to reduce clutter and improve airflow for a better ventilated system.
  • 80 PLUS TITANIUM - Less energy gets wasted during power conversion; Cut down your electricity usage and be Eco-Friendly.
  • PREMIUM HYBRID FAN CONTROL: Unsurpassed silent performance in Fanless Mode. The fan control button at the back of the power supply allows users to customize cooling needs by selecting between Seasonic S2FC (fan control without Fanless Mode) and S3FC (fan control including Fanless Mode).
  • 12 YEAR WORRY-FREE WARRANTY: Our commitment to superior quality.
• Type: Intel ATX12V
• Total Power: 850W
• Input:
  • Voltage: 100 - 240V
  • Current: 11 - 5.5A
  • Frequency: 50/60Hz
• MTBF: 150,000 hours (@ 25 C, excl. fan)
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 70A, -12V @ 0.3A, +5Vsb @ 3A
• Connectors: 1x 20/24-pin Main Power Connector, 2x 4/8-pin CPU Connectors, 4x 6/8-pin PCI-Express Connectors, 8x SATA Connectors, 5x Peripheral Connectors, 1x Floppy Connector
• Cooling System: 135mm Fluid Dynamic Bearing Fan w/ Premium Hybrid Fan Control
• Protection: OPP, OVP, UVP, OCP, OTP, SCP
• Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, EAC, CE
• Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
• Dimensions (WxLxH): 150.0 x 170.0 x 86.0 mm
• Shipping weight(lbs): 7.46

Note

Currently out of stock

Available Quantity

0

UPC

Does not apply

SKU

minglePRIME TX-850 (SSR-850TR)

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

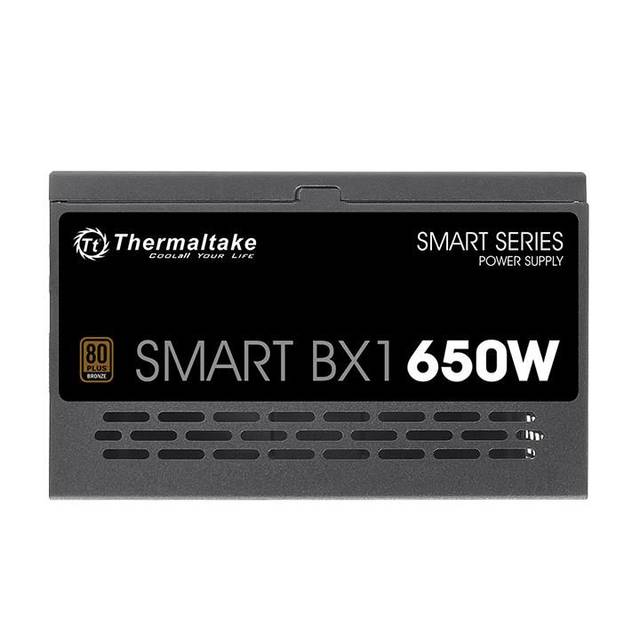

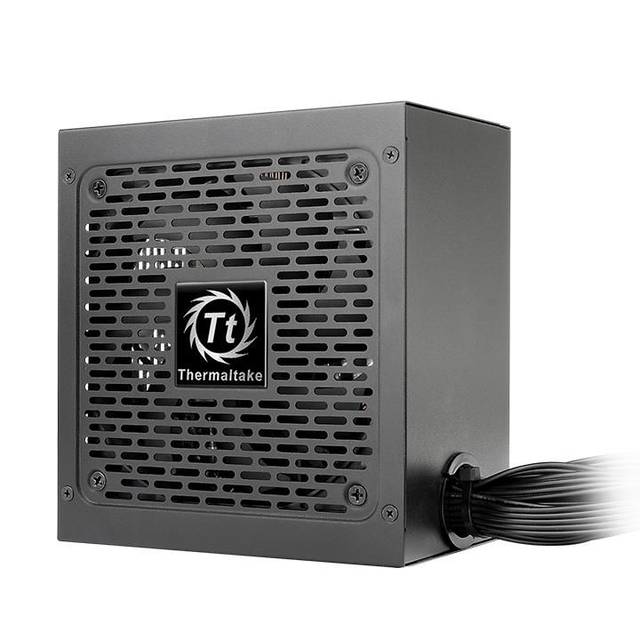

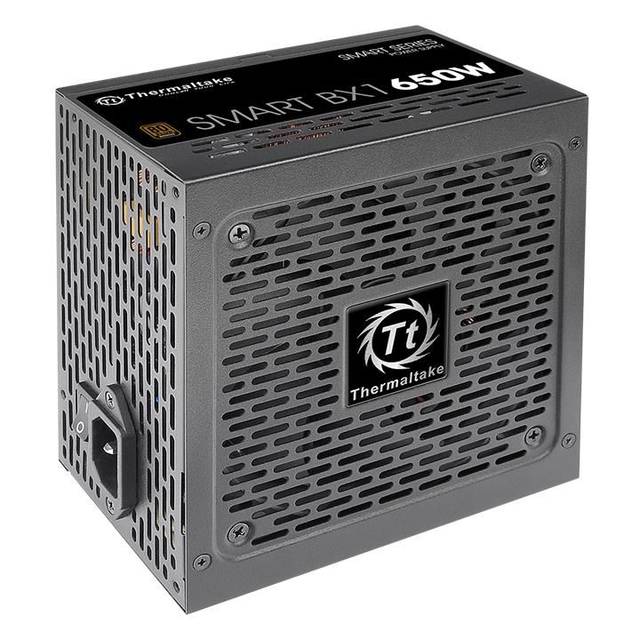

• Mfr Part Number:PS-SPD-0650NNFABU-1
• WATTS : 650W
• MODEL : SPD-550AH2NKB
• TYPE : ATX 12V v2.3 and EPS v2.92
• MAX. OUTPUT CAPACITY : 650W
• PEAK OUTPUT CAPACITY : 780W
• COLOR : Black
• DIMENSION ( W / H / D ) : 150mm(W) x 86mm(H) x 140mm(D)
• PFC (POWER FACTOR CORRECTION) : Active PFC
• POWER GOOD SIGNAL : 100-500 msec
• HOLD UP TIME : > 16msec at 70% of full load
• INPUT CURRENT : 12A max.
• INPUT FREQUENCY RANGE : 50Hz - 60Hz
• INPUT VOLTAGE : 100V 240V~
• OPERATING TEMPERATURE : 5 C to + 40 C
• OPERATING HUMIDITY : 20% to 85%, non-condensing
• STORAGE TEMPERATURE : -40 C to + 55 C
• STORAGE HUMIDITY : 10% to 95%, non-condensing
• COOLING SYSTEM : 12cm Hydraulic bearing fan
• EFFICIENCY : Meet 80 PLUS Bronze at 115Vac input.
• MTBF : 100,000 hrs minimum
• SAFETY APPROVAL : CE/CB/TUV/ UL/ FCC/ BSMI
• PCI-E 6+2PIN : 2

Note

Currently out of stock

Available Quantity

0

UPC

841163006238

SKU

minglePS-SPD-0650NNFABU-1

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

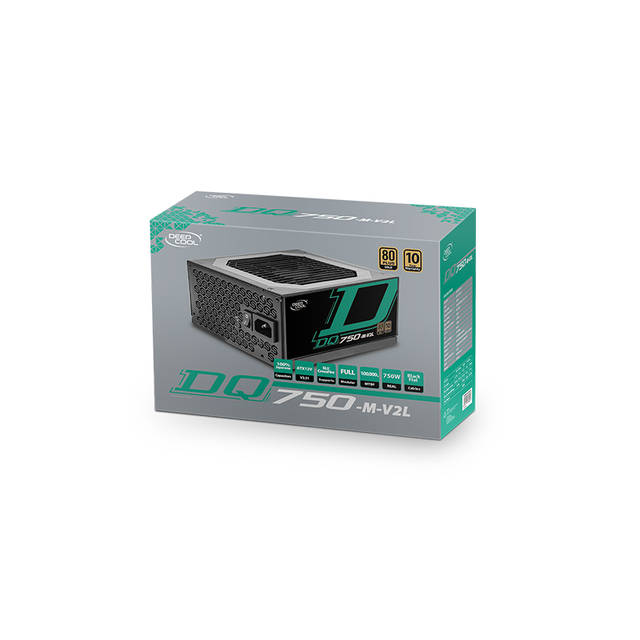

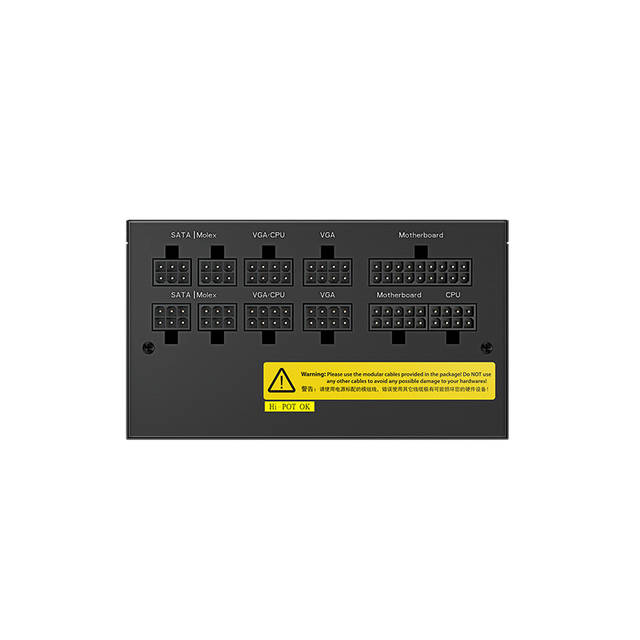

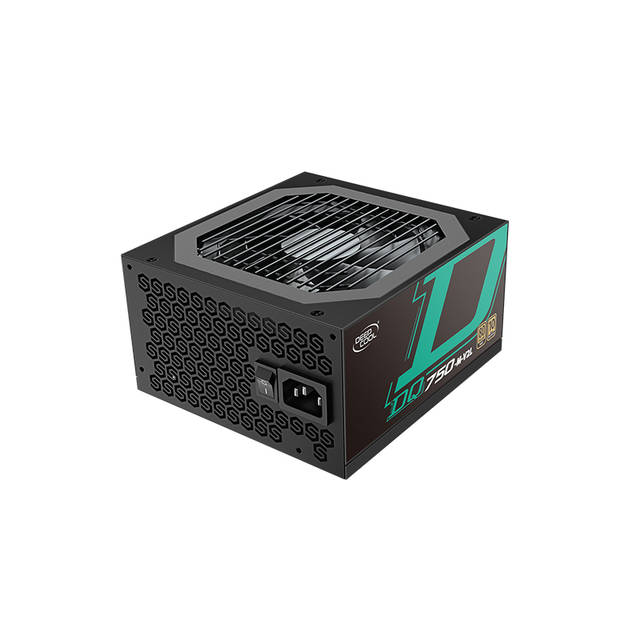

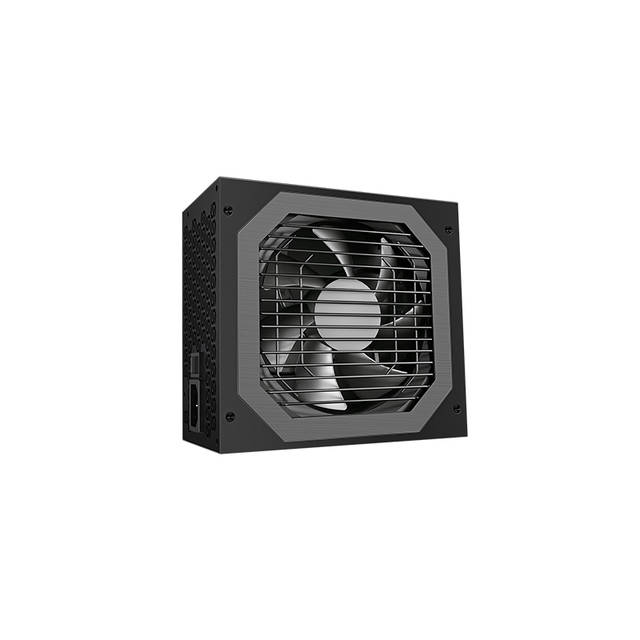

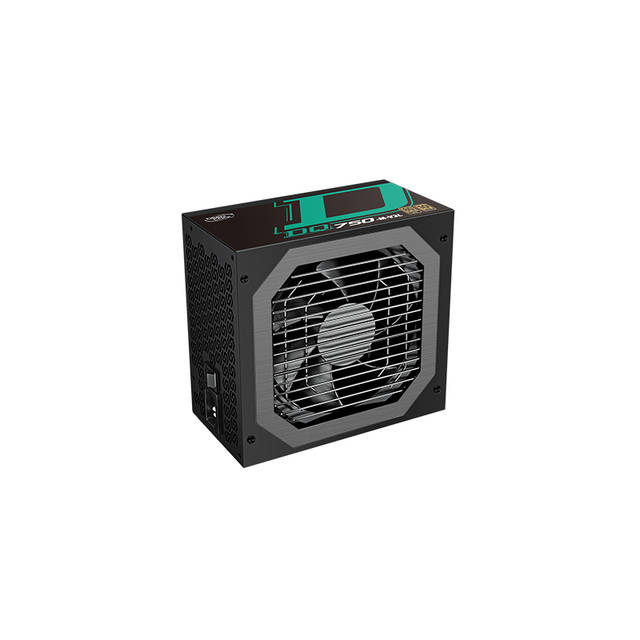

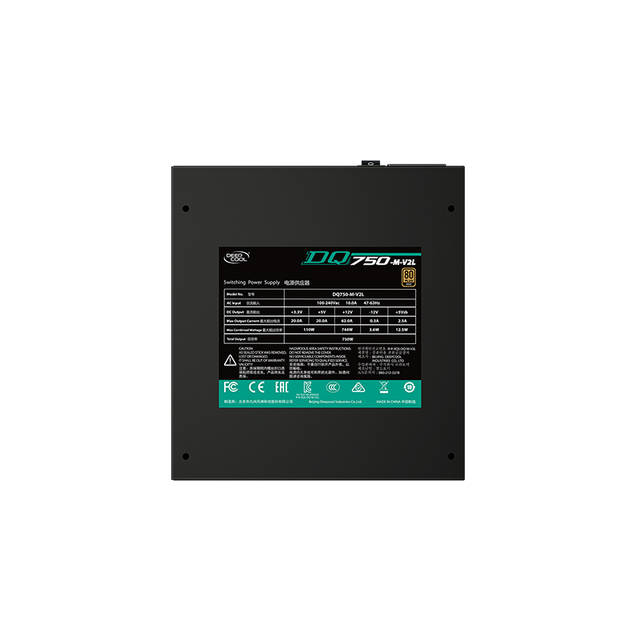

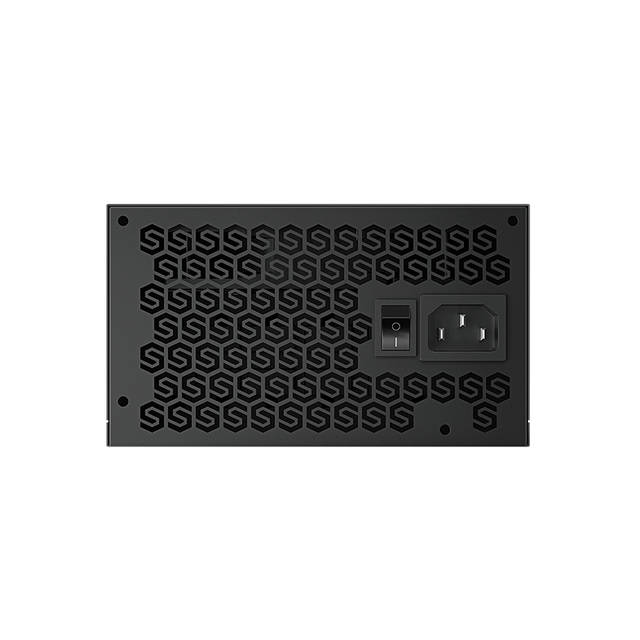

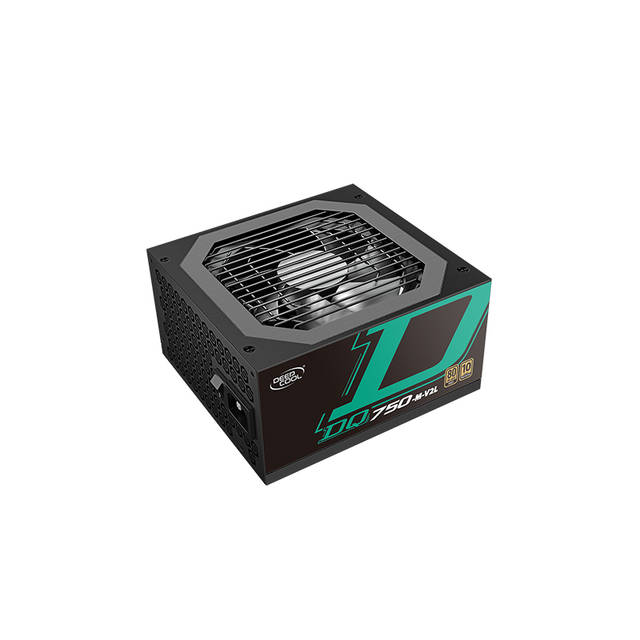

• Mfr Part Number: DQ750-M-V2L
• Features:
  • 80 PLUS Gold certified for efficient power delivery and lower temperatures
  • Industrial grade 100% Japanese capacitors provide longer lasting reliability and continous power.

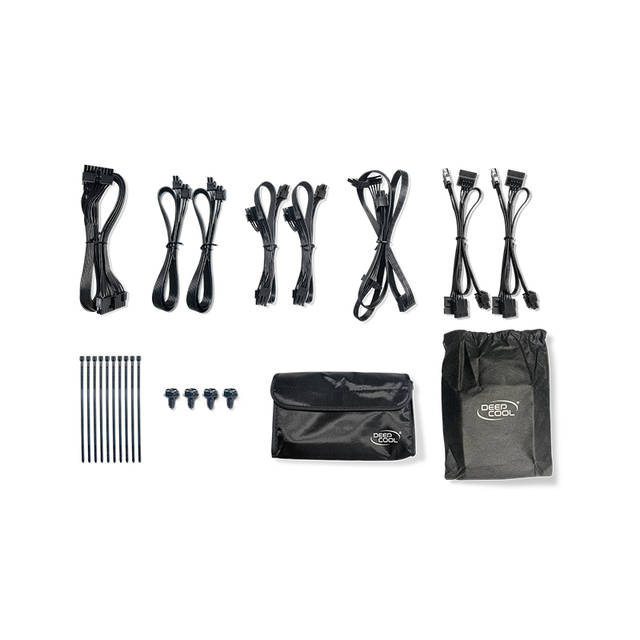

  • Fully modular with flat black cables help keep the clutter down.
  • Quiet low-noise operation with a tuned fan curve.
  • CircuitShield protects your PSU from irregular voltage and current issues including short circuit, overpower and over temperature.
  • 10 Year warranty for complete reassurance
• Maximum Power: 750 W
• Type: ATX12V / EPS12V
• Fans: 1 x 120mm Hydraulic Bearing Fan
• PFC: Active
• Main Connector: 20+4 Pin
• PCI-Express Connector: 2 x 6+2-Pin
• SATA Power Connector: 4
• Modular: Full Modular
• Energy-Efficient: 80 PLUS Gold Certified
• Over Voltage Protection: Yes
• Input Voltage: 100-240V
• Input Frequency Range: 47-63Hz
• Input Current: 12.0A
• Output: +3.3V@20A, +5V@20A, +12V@70.5A, -12V@0.3A, +5VSB@2.5A
• MTBF: 100,000 Hours
• Dimensions: 150 x 160 x 86 mm
• Max PSU Length: 160
• Weight: 2.6kg
• Warranty: 10 Year

Note

Currently out of stock

Available Quantity

0

UPC

Does not apply

SKU

mingleDQ750-M-V2L

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

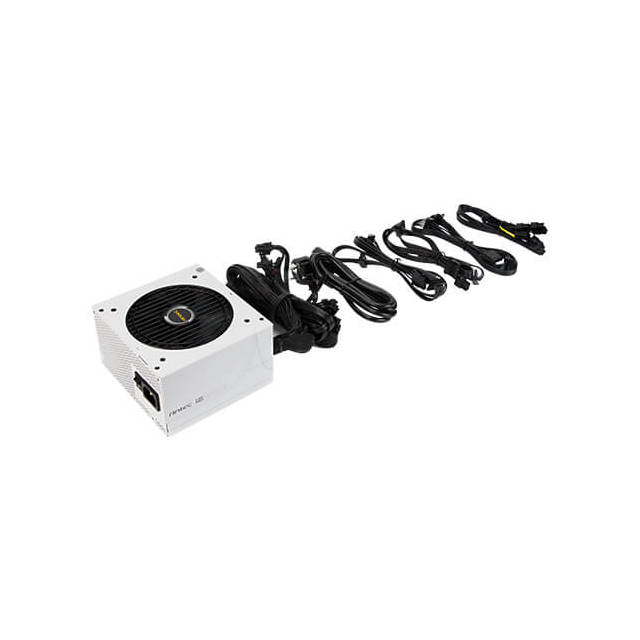

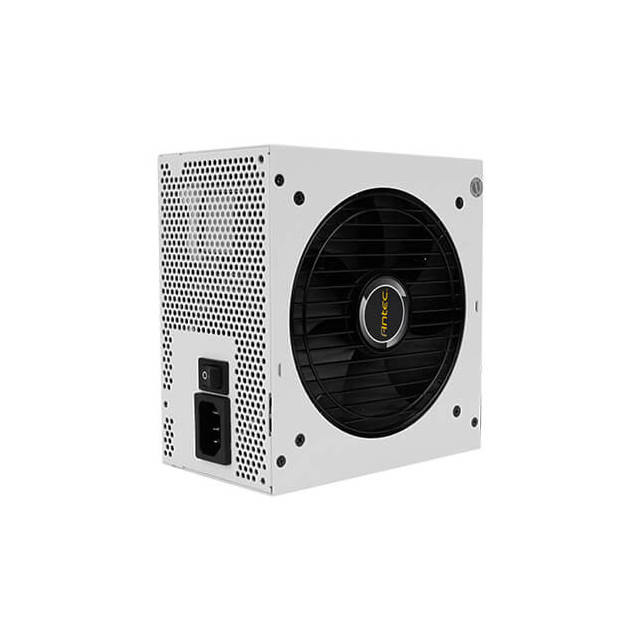

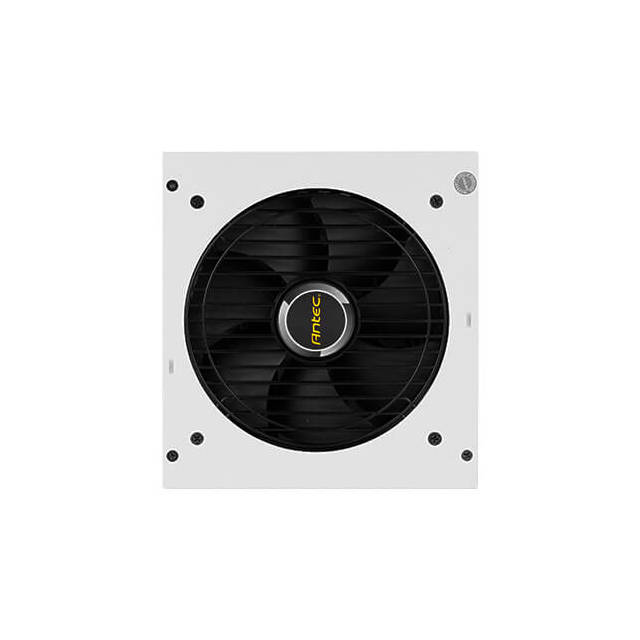

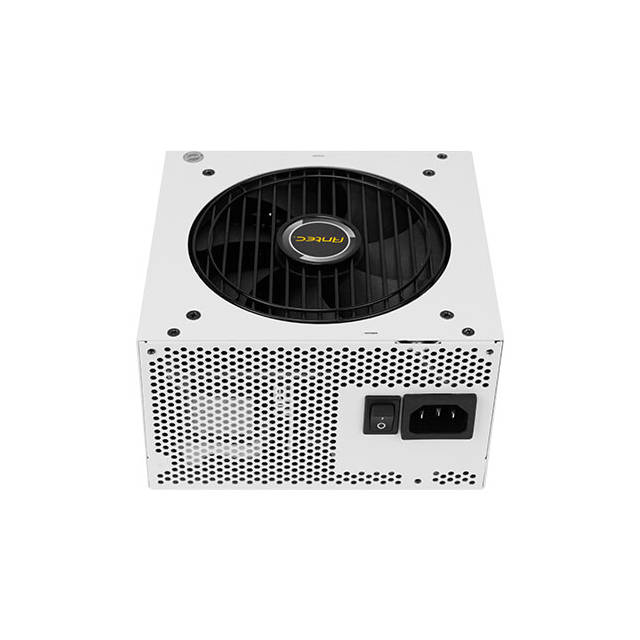

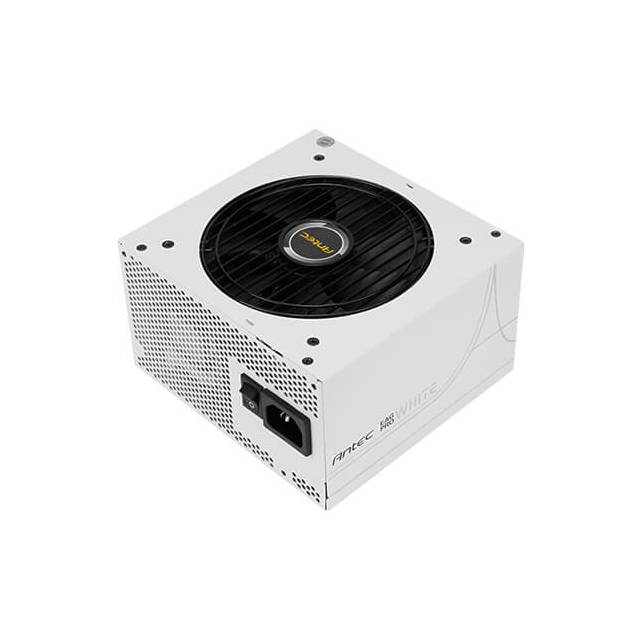

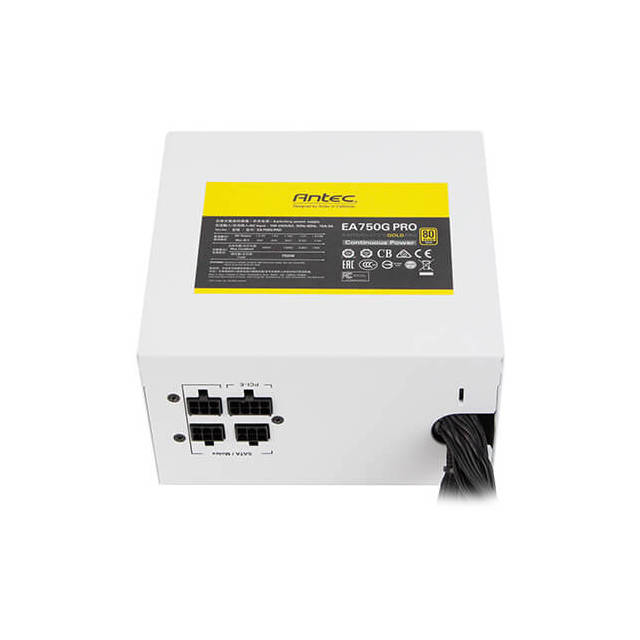

• Mfr Part Number: EA750G PRO WHITE EC
• Description:

  • The EARTHWATTS GOLD PRO WHITE series features high performance with an 80 PLUS GOLD rating, delivering up to 92% efficiency and reducing your electricity bill. Featuring hybrid modular cabling, a whisper-quiet 120mm fan controlled by Antec s renowned Thermal Manager, and CircuitShield Industrial Grade protection-all backed by our seven-year Antec Quality warranty, the EARTHWATTS GOLD PRO WHITE series is the power supply builders choose for a stable, quiet, and efficient system.
• Maximum Power: 750 W
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 62A, -12V @ 0.3A, +5Vsb @ 3A
• Type: ATX12V v2.4
• Efficiency: 92% Typically
• Protection: OCP/OVP/UVP/SCP/OPP/ OTP/SIP/NLO
• Fan: 120mm Silence Fan
• Regulatory: cTUVus/TUV/CB/RCM/CE/ EAC/CCC/BSMI/FCC
• Connectors: 1x 24-pin Main Power Connector, 2x8 (4+4)-Pin ATX/EPS Connectors, 4x 8(6+2)-pin PCI-Express Connectors, 8x SATA Connectors, 3x Molex Connectors
• Dimensions (WxDxH): 5.9 x 5.5 x 3.4 inch / 150.0 x 140.0 x 86.0 mm
• Weight: 2.24 kg / 4.94 Ibs

Note

Currently out of stock

Available Quantity

0

UPC

761345113632

SKU

mingleEA750G PRO WHITE

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

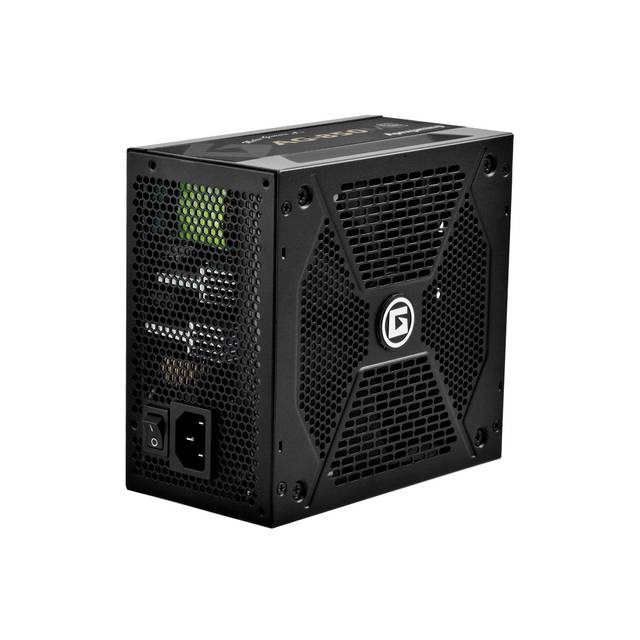

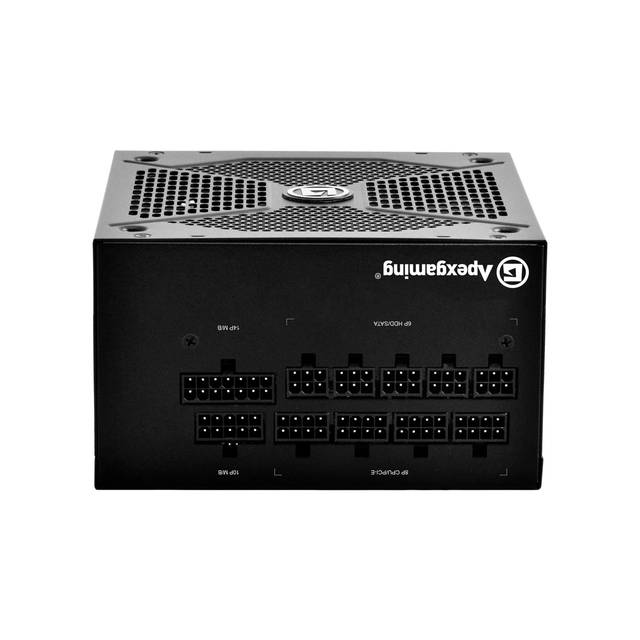

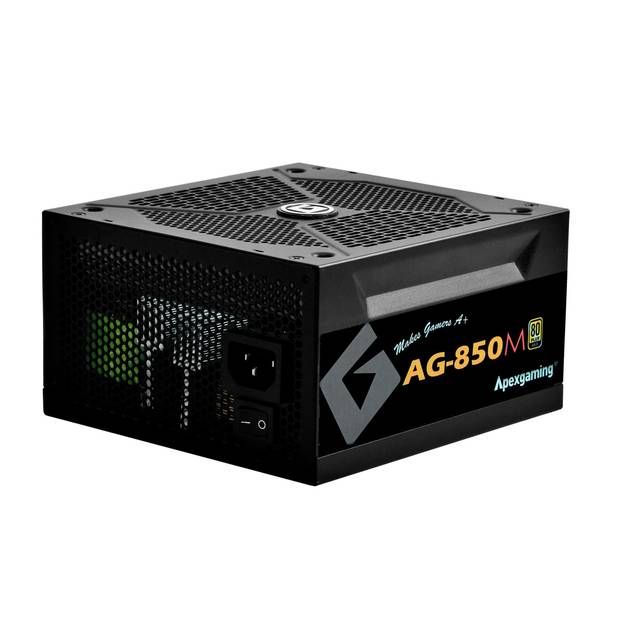

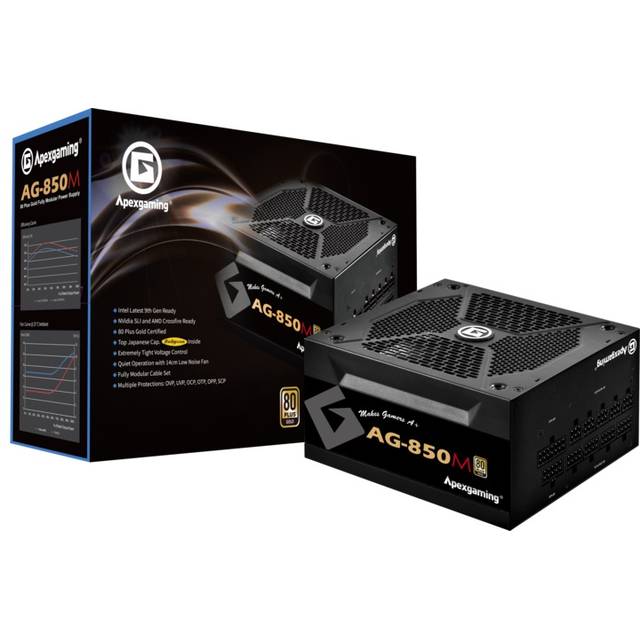

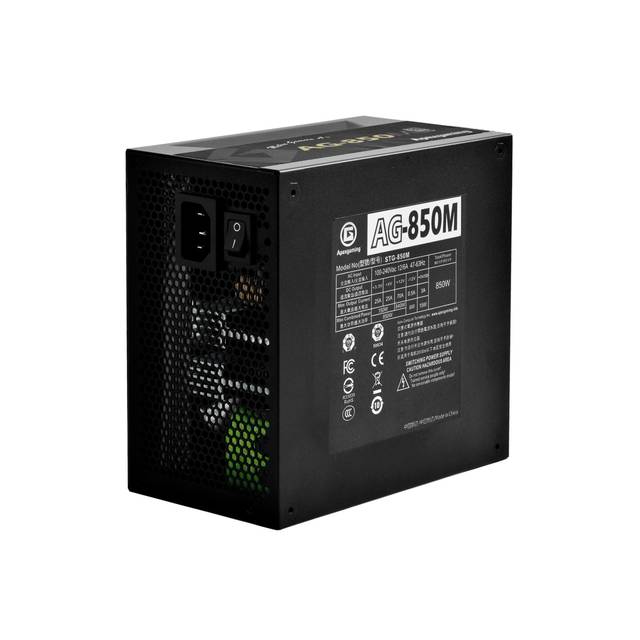

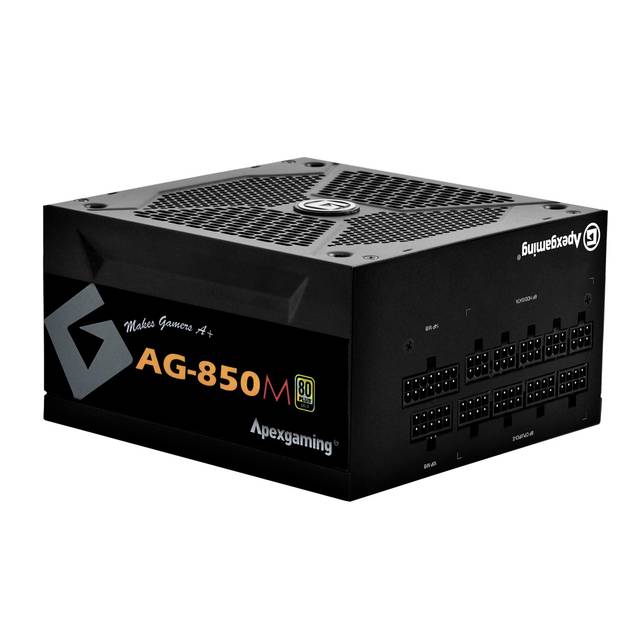

• Mfr Part Number: AG-850M
• Features:
  • 80 Plus Gold Certified
  • 850 Watt Power Supply
  • Fully Modular Design
  • High Quality Japanese primary capacitor inside
  • 140 mm Silent fan for low noise operation
  • Anti-Vibration design
  • Multiple Protections OVP / UVP / OCP / OPP / SCP / OTP
  • Certifications: CE / CB / TUV / FCC / cTUVus / CCC / BSMI / RCM
• Maximum Power: 850W (Continuous) / 1050W (Peak)
• Input:
  • Voltage: 100 - 240 V
  • Current: 12 - 6A
  • Frequency Range: 47- 63 Hz
• Output: +3.3V @ 25A; +5V @ 25A; +12V @ 70A; -12V @ 0.5A; +5VSB @ 3.0A
• Form Factor: ATX12V / EPS12V
• Efficiency: 90% efficiency, power factor at 100% Load: 0.99
• Hold-up Time: 16 ms @ 80% load
• Power Factor Correction: Active PFC ( >0.95 typical)
• Fan: 140mm Low Noise Fan
• MTBF: 100,000 Hours
• Connectors: 1 x (20+4) Pin ATX Connector, 1 x 8pin(4+4) EPS (CPU) Connector, 6 x 8pin(6+2) PCI-Express Connectors, 10 x SATA Connectors, 4 x Four-Pin Peripheral Connectors, 1x Floppy Connector
• Safety Approval: TUV, CB, CE, FCC, CCC, cTUVus, BSMI, RoHS
• Dimensions (WxDxH): 150.0 x 160.0 x 86.0 mm

Note

Currently out of stock

Available Quantity

0

UPC

604034682579

SKU

mingleAG-850M

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

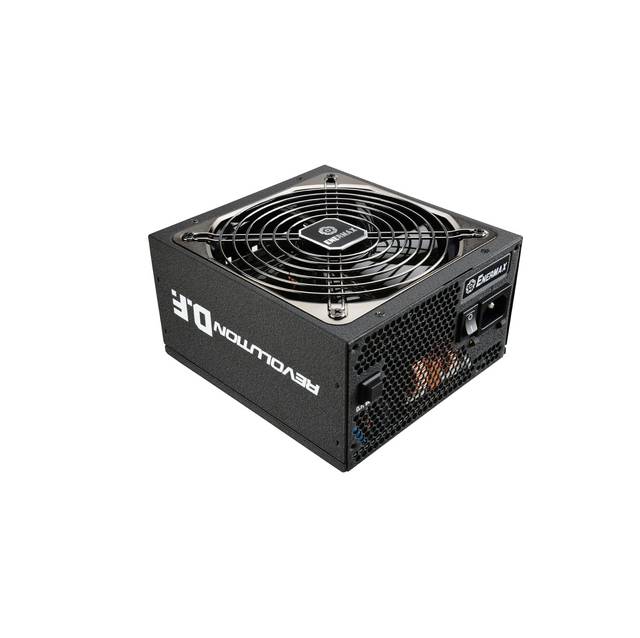

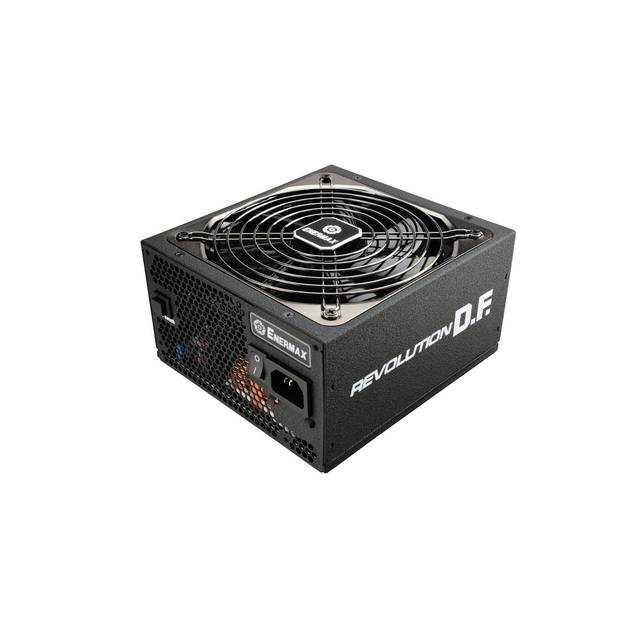

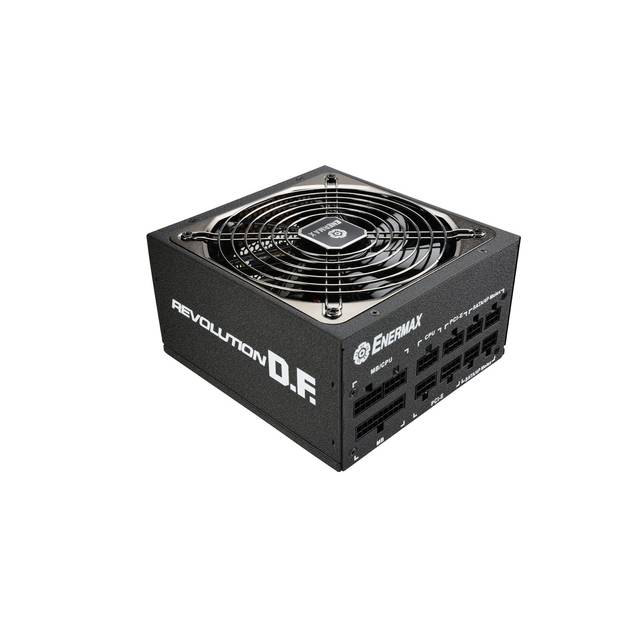

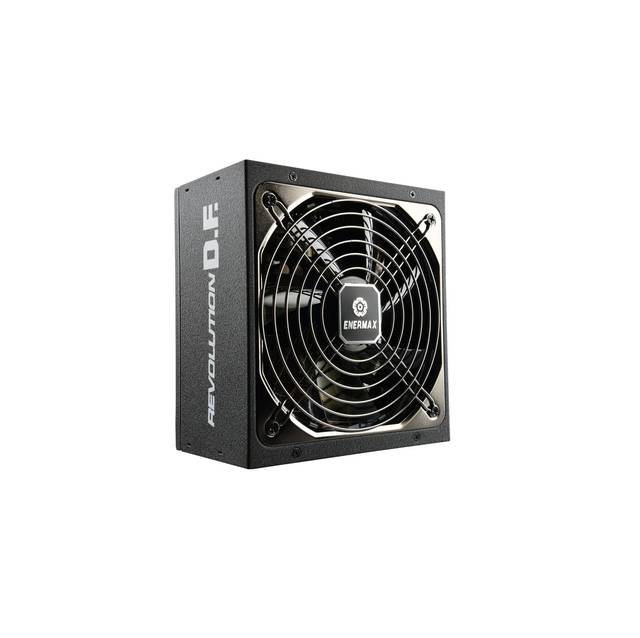

• Mfr Part Number: ERF750EWT
• Features:
  •  80 PLUS Gold certified efficiency
  • D. F. Switch for users to activate DFR function anytime during operation
  • Smart airflow control (sac) design ensures an almost inaudible operation
  • Full modular design with 100% flat cables
• Total Power: 750W
• Input:
  • Current: 10A
  • Voltage: 100V - 240V AC
  • Frequency Range: 47 - 63Hz
• Output: +3.3V @ 22A, +5V @ 22A, +12V1 @ 25A, +12V2 @ 25A, +12V3 @ 35A, +12V4 @ 35A, -12V @ 0.3A, +5VSB @ 2.5A
• Protection: OCP, OVP, UVP, SCP, OPP, OTP
• Connectors:
  • 1 x Mainboard 24 Pin
  • 2 x CPU 4+4 Pin
  • 4 x PCI-E 6+2 Pin (8 Pin)
  • 8 x SATA
  • 4 x 4 Pin Molex
  • 1 x FDD
• Dimensions: 160(D)x150(W)x86(H)mm

Note

Currently out of stock

Available Quantity

0

UPC

819315023952

SKU

mingleERF750EWT

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

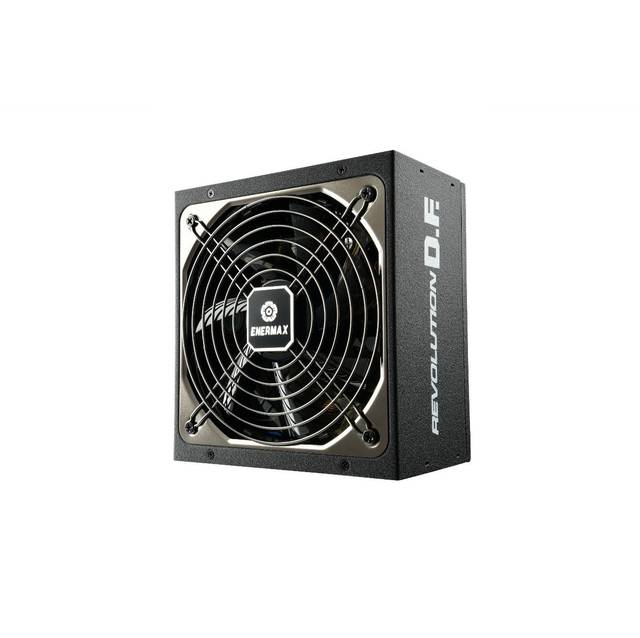

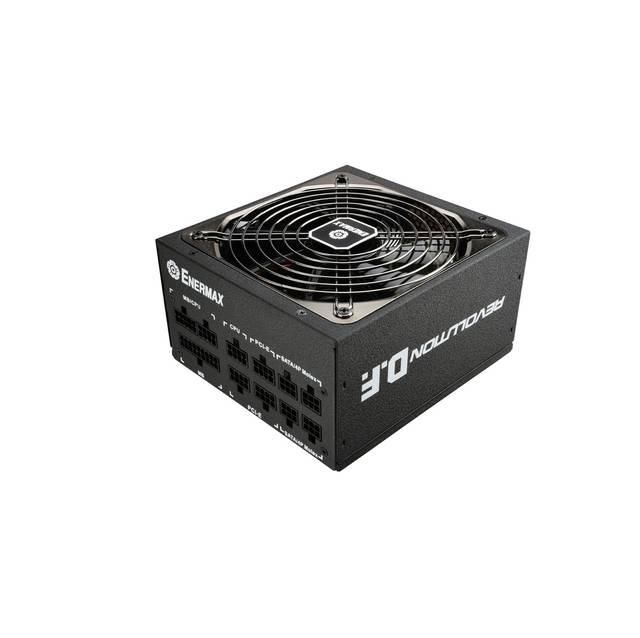

• Mfr Part Number: ERF850EWT
• Features:
  • 80 PLUS Gold certified efficiency
  • D. F. Switch for users to activate DFR function anytime during operation
  • Smart airflow control (sac) design ensures an almost inaudible operation
  • Full modular design with 100% flat cables
• Total Power: 850W
• Input:
  • Current: 12/6A
  • Voltage: 100V - 240V AC
  • Frequency Range: 47 - 63Hz
• Output: +3.3V @ 22A, +5V @ 22A, +12V1 @ 25A, +12V2 @ 25A, +12V3 @ 40A, +12V4 @ 40A,  -12V @ 0.3A, +5VSB @ 2.5A
• Protection: OCP, OVP, UVP, SCP, OPP, OTP
• Connectors:
  • 1 x Mainboard 24 Pin
  • 2 x CPU 4+4 Pin
  • 6 x PCI-E 6+2 Pin (8 Pin)
  • 12 x SATA
  • 4 x 4 Pin Molex
  • 1 x FDD
• Dimensions: 150(W) x 86(H) x 160(L)mm

Note

Currently out of stock

Available Quantity

0

UPC

819315023969

SKU

mingleERF850EWT

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

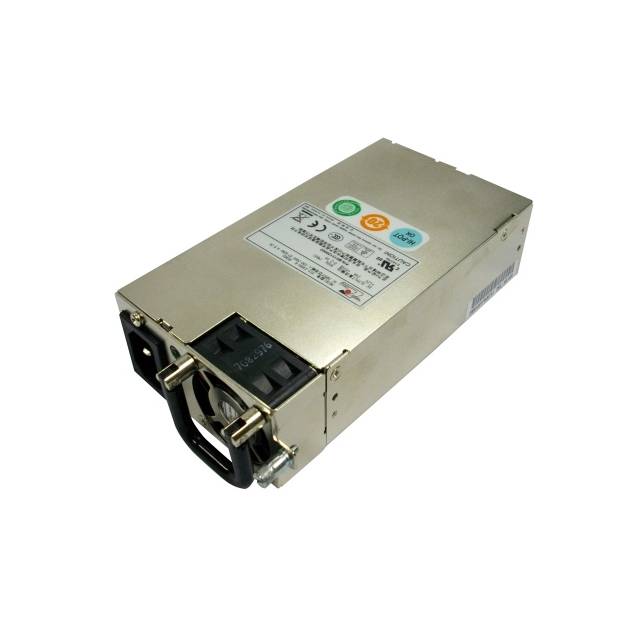

• Mfr Part Number: SP-1269U-S-PSU
• Power: 380W
• Applied Models: TS-1269U-RP
• Dimensions (WxDxH): 6.89 x 8.58 x 2.13 inch / 175.0 x 218.0 x 54.0 mm
• Weight: 1.98 lbs / 0.9 kg

Note

Currently out of stock

Available Quantity

0

UPC

885022003662

SKU

mingleSP-1269U-S-PSU

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

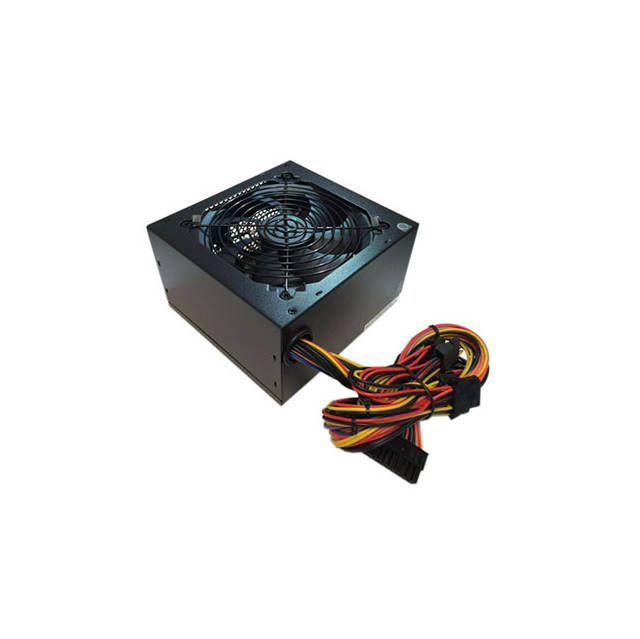

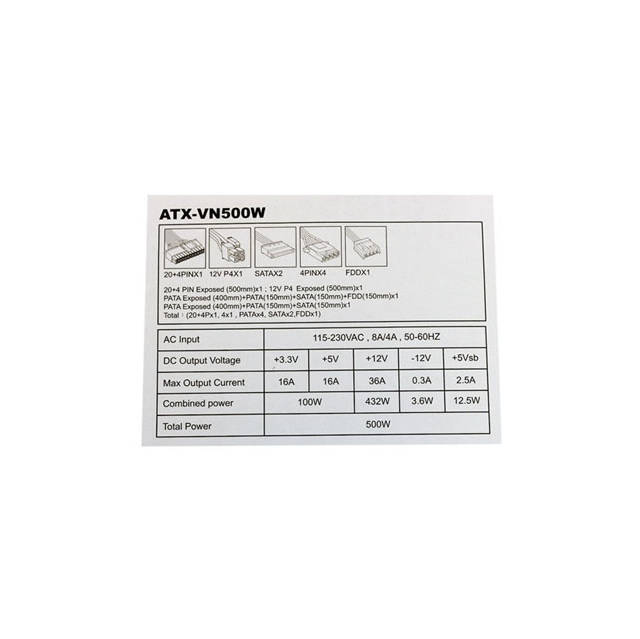

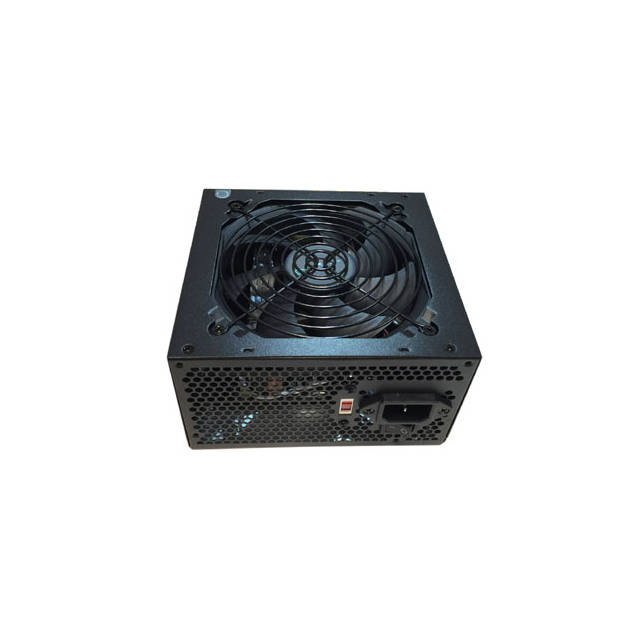

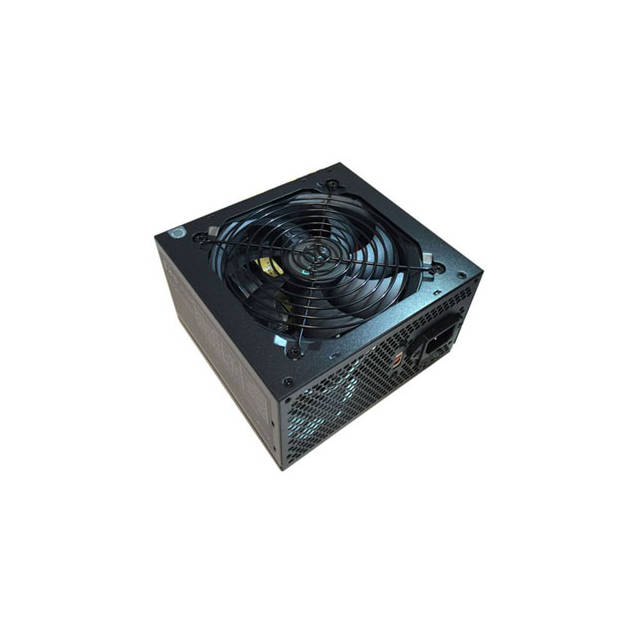

• Mfr Part Number: ATX-VN500W
• Features:
  • 500W Power with 12cm black fan
  • High quality components and housing
  • High stability with 5% tolerance of 5V, 3.3V & 12V output
  • Low noise auto-thermally control 120mm fan
• Maximum Power: 500 W
• Input:
  • Voltage Range: 115 - 230V
  • Frequency: 50 - 60Hz
  • Current: 10A for 115VAC, 5A for 230VAC
• Type: ATX12V
• Output: +3.3V @ 16A, +5V @ 16A, +12V @ 36A, -12V @ 0.3A, +5Vsb @ 2.5A
• Connectors: 1x 20/24pin Main Connector, 1x 4pin ATX Connector, 2x SATA Connectors, 4x Peripheral Connectors, 1x Floppy Connector
• Fan: Forced air ventilation by 1 x 120mm black fan
• Color: Black sandblasting coated case
• Dimensions (WxLxH): 5.5 x 5.9 x 3.4 inch / 140.0 x 159.0 x 86.0 mm
• Weight: 3.0 lbs

Note

Currently out of stock

Available Quantity

0

UPC

837344004629

SKU

mingleATX-VN500W

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

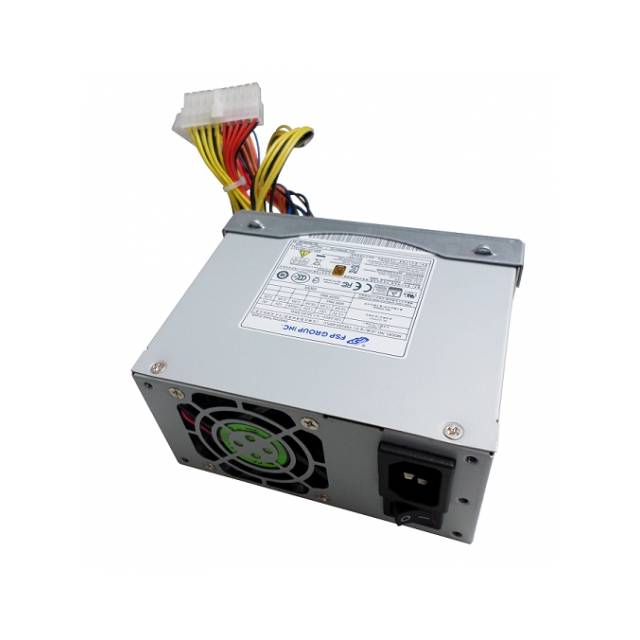

• Mfr Part Number: PWR-PSU-250W-FS01

• QNAP PWR-PSU-250W-FS01 250W Power Supply Unit, FSP


Note

Currently out of stock

Available Quantity

0

UPC

885022011667

SKU

minglePWR-PSU-250W-FS01

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

• Mfr Part Number: PWR-PSU-450W-FS01
• Description: 450W power supply unit, FSP

Note

Currently out of stock

Available Quantity

0

UPC

885022011674

SKU

minglePWR-PSU-450W-FS01

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

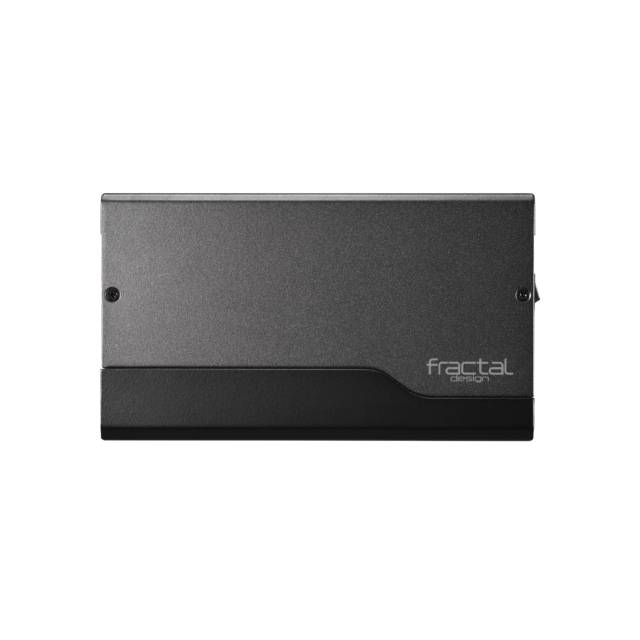

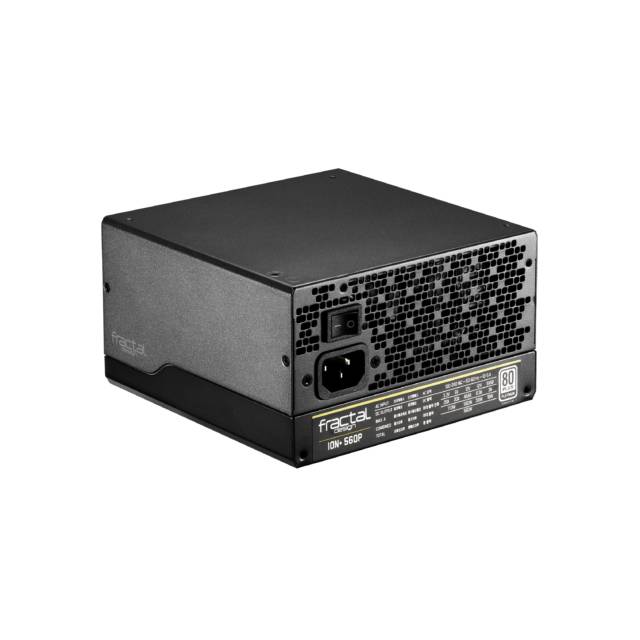

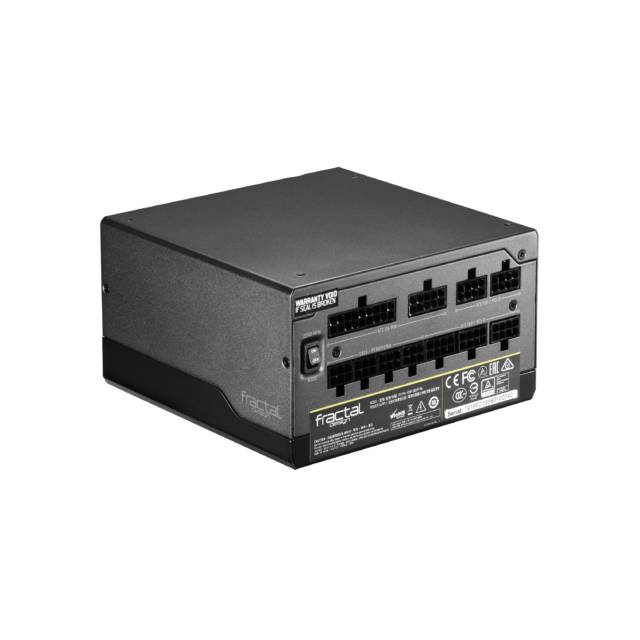

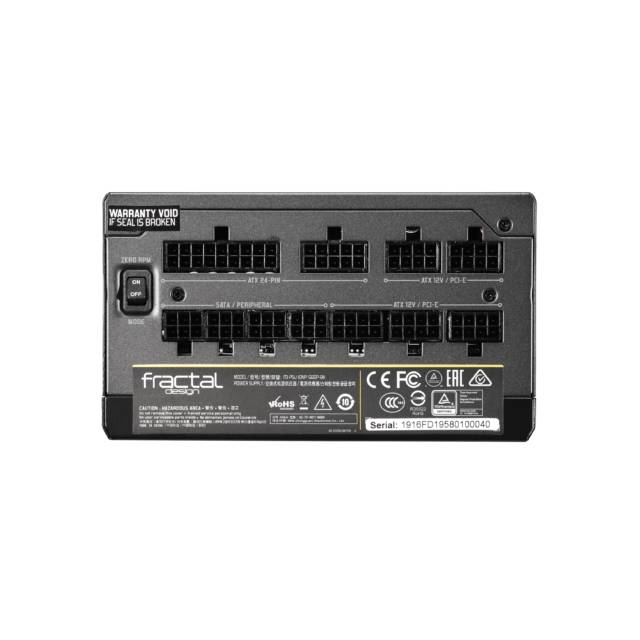

• Mfr Part Number: FD-PSU-IONP-560P-BK-US
• Features:
  • Fractal Design UltraFlex DC wires have game-changing flexibility for effortless cable-routing and connectors that twist and bend to fit your installation not fight it
  • Equipped with a custom-tailored Fractal Design Dynamic Series 140 mm fan with exceptionally low minimum speed and true long-life FDB bearing
  • 80PLUS Platinum Efficiency for optimized electrical performance and reduced heat generation
  • User selectable Zero RPM mode allows for either silent, passive operation in low load situations or continuous low speed fan operation for additional cooling
  • Outstanding output quality with tight voltage regulation and extremely low noise and ripple
  • Fully modular design for reduced clutter and maximum ease of installation
  • Premium Japanese 105 C capacitors provide enhanced reliability and durabilit
  • Compact 150 mm depth easily fits compact spaces with extra headroom for cable management
  • Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Current Protection and Over Temperature Protection
  • Extra-long 600 mm 24-pin ATX cable and 700 mm 4+4 pin cable
  • Extensive 10 year warranty
• Input:
  • Voltage: 100 ~ 240 VAC
  • Current: 10-5 A
  • Frequency Range: 50 ~ 60 Hz
• MTBF: 100,000 hours
• Fan: Customized 140 mm FDB bearing Fractal Design Dynamic Series fan
• Cable type:Modular 24-pin: Braided sleeve UltraFlex wire Others: Flat UltraFlex wire
• Modular cables:Fully modular
• 80 PLUS Certification:Platinum
• Output: +3.3V @ 20A, +5V @ 20A, +12V @46.6A, +5VSB @ 3A, -12V @ 0.3A
• Connectors: 1x 24pin ATX Main Connector, 1x 8pin (4+4) EPS Power Connector, 4x 8pin(6+2)PCI-Express Connector, 6x SATA Connectors, 4x Four-Pin Peripheral Connectors,
• Approvals: CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
• Standby efficiency:ErP 2013 (<0.45W @230 VAC, 45 mA load on +5Vsb)
• Package dimensions (WxLxH): 325.0 x 210.0 x 110.0 mm
• Package weight: 2.6kg

Note

Currently out of stock

Available Quantity

0

UPC

843276101954

SKU

mingleFD-PSU-IONP-560P-BK-US

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

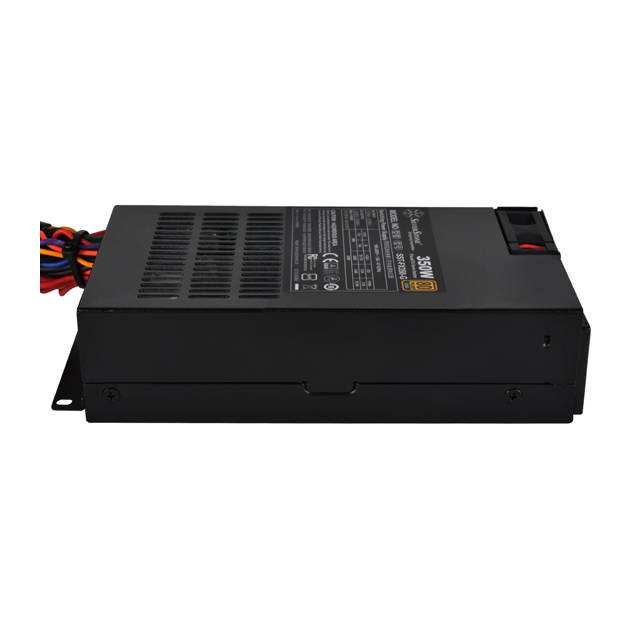

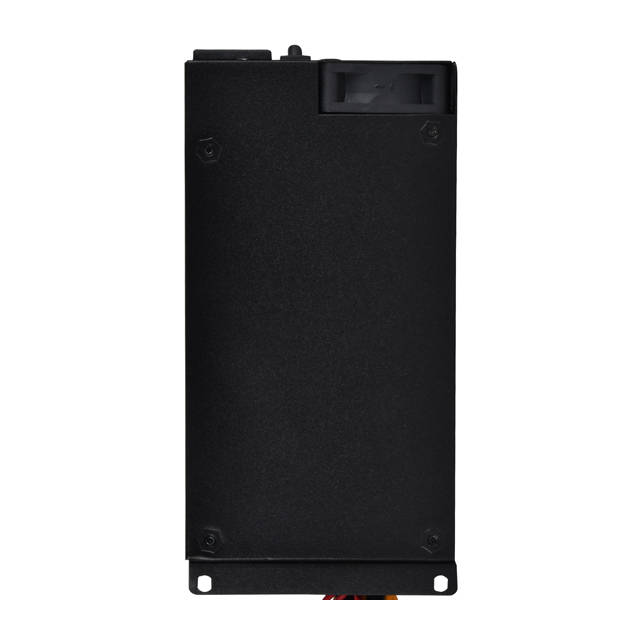

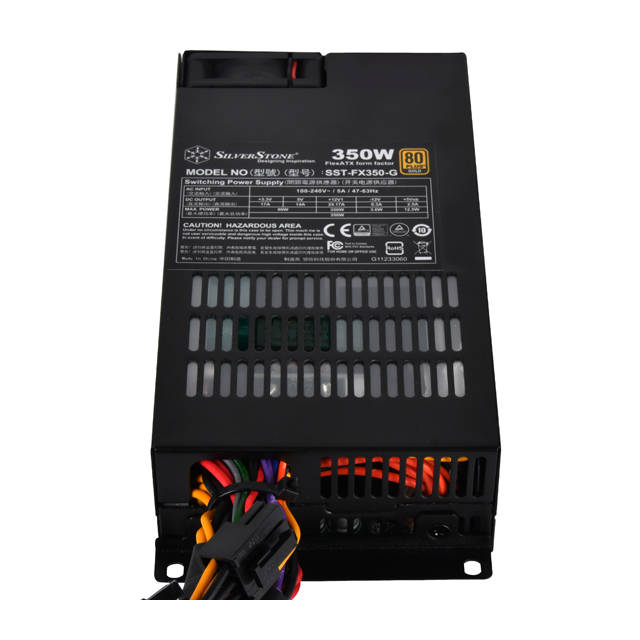

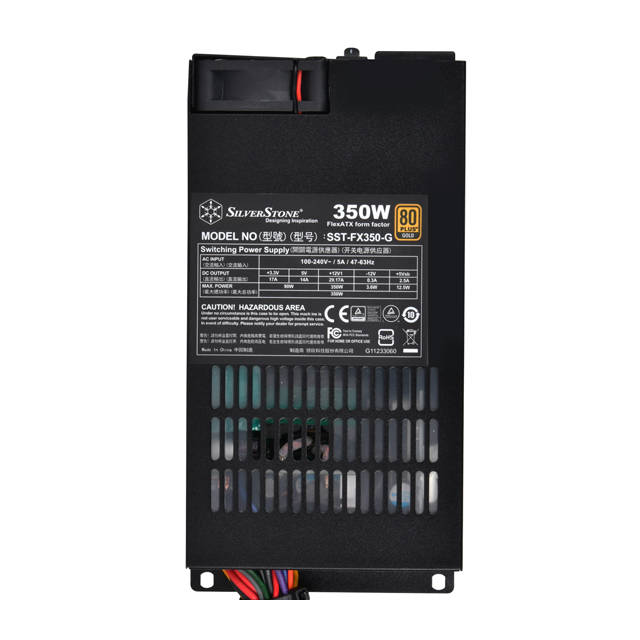

• Mfr Part Number: FX350-G
• Features:
  • Support standard TFX form factor
  • 350W continuous power output at 40 C operating temperature rated for 24/7 operation
  • High efficiency with 80 PLUS Gold certification
  • Class-leading single +12V rail
  • Support PCIe 6pin connector
  • Active PFC
• Output: +3.3V @ 17A, +5V @ 14A, +12V1 @ 29.17A, +12V2 @ / A,  +5VSB @ 2.5A, -12V @ 0.3A
• Connectors: 1 x 24 / 20-Pin motherboard connector 350mm 1 x 2-Pin connector (300mm)* 1 x 8 / 4-Pin EPS / ATX 12V connector 450mm 1 x 6-Pin PCIe connector 350mm 3 x SATA connector 350mm / 150mm / 150mm 2 x 4-Pin Peripheral connector 350mm / 150mm 1 x 4-Pin Floppy adapter connector 350mm / 150mm / 150mm
• Color : Black Lead-Free Paint
• Combined +3.3V & +5V : 90W
• Combined +12V : 350W
• Input Voltage : 90 ~ 264 Vrms
• Input Frequency Range : 47Hz ~ 63Hz
• PFC : Active PFC (PF>0.9 at full load)
• Efficiency : 87% ~ 90% at 20% ~ 100% loading
• MTBF : 100,000 hours
• Operating temperature : 0 C ~ 40 C
• Cooling System : Single 40mm silent fan
• Form factor : Flex ATX
• Noise Level : 20 dBA minimum
• Dimension : 81.5 mm (W) x 40.5mm (H) x 150 mm (D) 3.21" (W) x 1.59" (H) x 5.91" (D)
• Weight : 0.96 kg
• Certification : 80 PLUS Gold



Note

Currently out of stock

Available Quantity

0

UPC

844761015916

SKU

mingleFX350-G

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

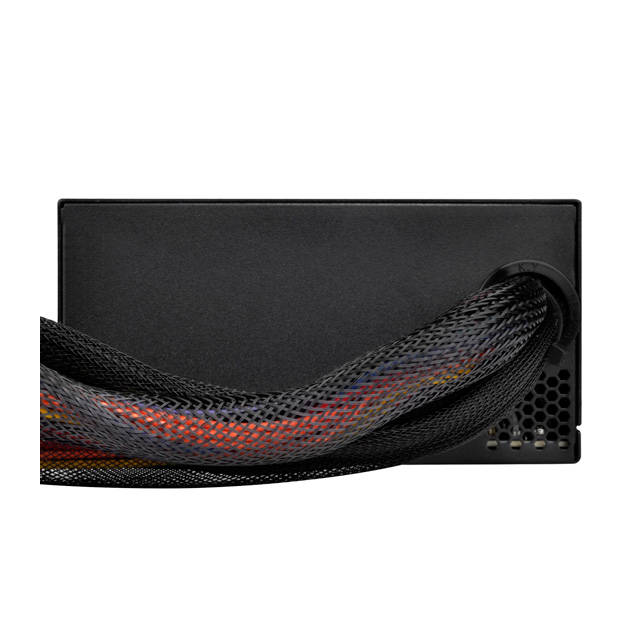

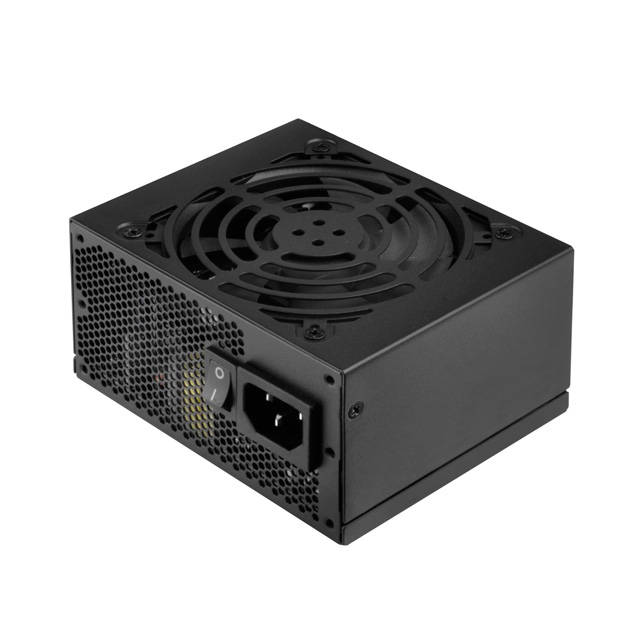

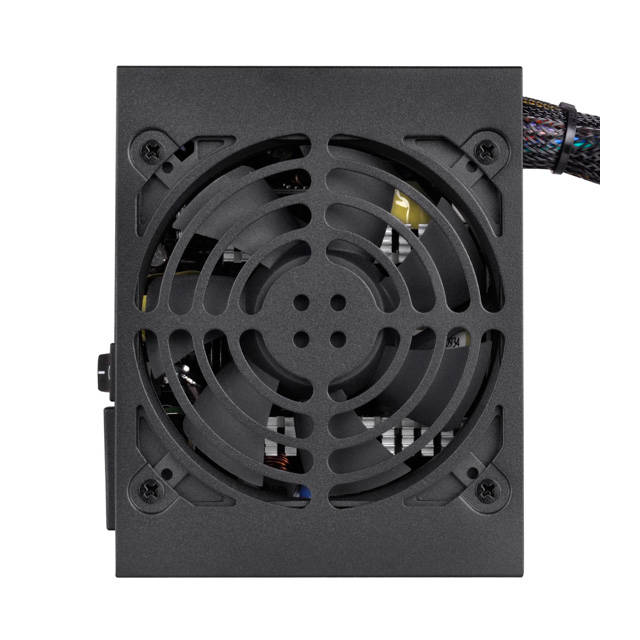

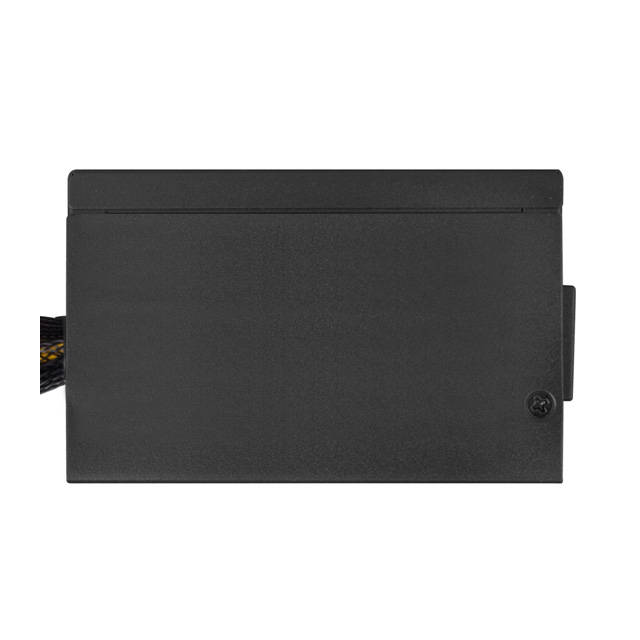

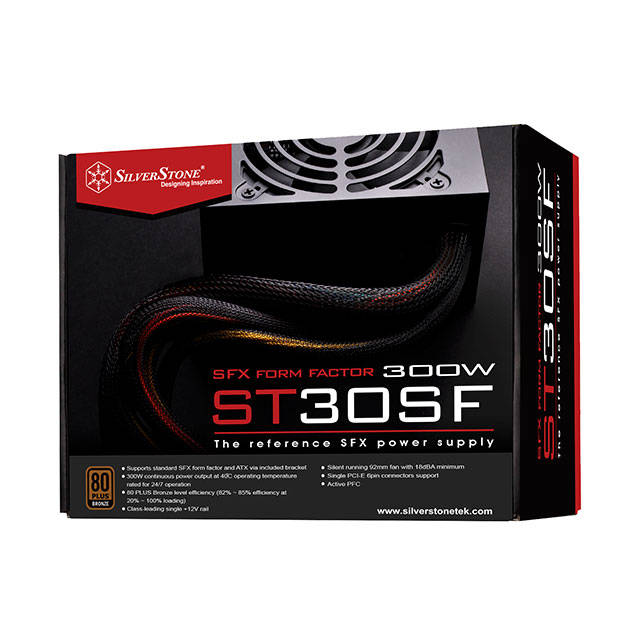

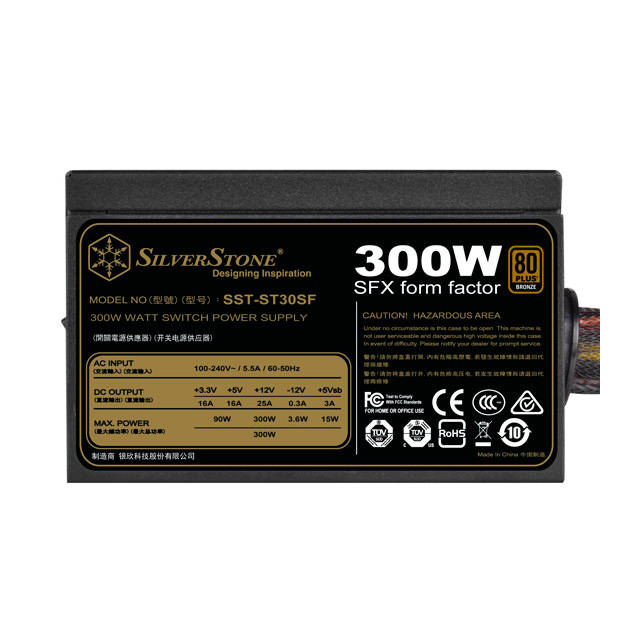

• Mfr Part Number: ST30SF-V2
• Features:
  • Supports standard SFX form factor and ATX via included bracket
  • 300W continuous power output at 40 temperature rated for 24/7 operation (V2.0)
  • 80 PLUS Bronze level efficiency (82% ~ 85% efficiency at 20% ~ 100% loading)
  • Class-leading single +12V rail
  • Silent running 92mm fan (V2.0)
  • Single PCI-E 6pin connectors support
  • Active PFC
• Output: +3.3V @ 16A, +5V @ 16A, +12V @ 25A,   +5VSB @ 3A, -12V @ 0.3A
• Connectors: 1 x 24 / 20-Pin motherboard connector (350mm) 1 x 8 / 4-Pin EPS / ATX 12V connector (450mm) 1 x 6-Pin PCIE connector (350mm) 3 x SATA connector ("350mm / 150mm" x 2) 2 x 4-Pin Peripheral connector (350mm / 150mm) 1 x 4-Pin Floppy adapter connector (350mm / 150mm / 150mm)
• Color : Black Lead-Free Paint
• Combined +3.3V & +5V : 90W
• Combined +12V : 300W / 25A (V2.0)
• Input Voltage : 90 ~ 264 Vrms
• Input Frequency Range : 47Hz ~ 63Hz
• PFC : Active PFC (PF>0.9 at full load)
• Efficiency : 82% ~ 85% at 20% ~ 100% loading
• MTBF : 100,000 hours
• Operating temperature : 0 C ~ 40 C
• Cooling System : Single 92mm silent fan
• Form factor : SFX
• Noise Level : 18 dBA minimum
• Dimension : 125 mm (W) x 63.5 mm (H) x 100 mm (D)4.92" (W) x 2.5" (H) x 3.94" (D)
• Weight : 1 kg
• Certification : 80 PLUS Bronze



Note

Currently out of stock

Available Quantity

0

UPC

844761014308

SKU

mingleST30SF-V2

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

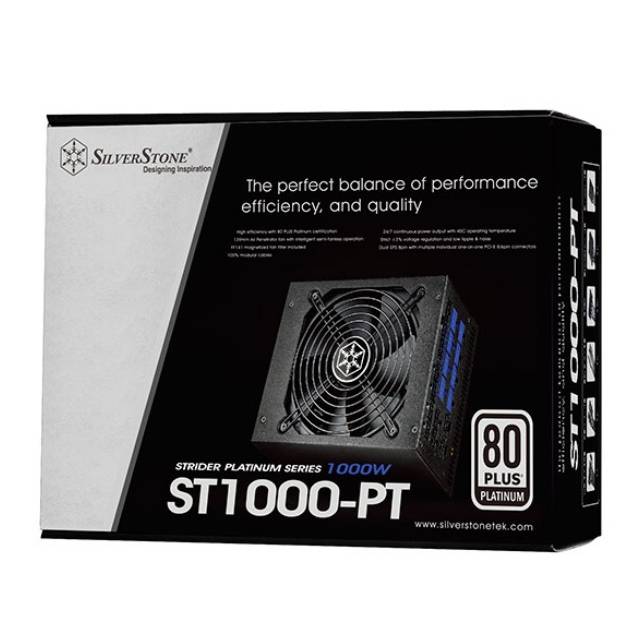

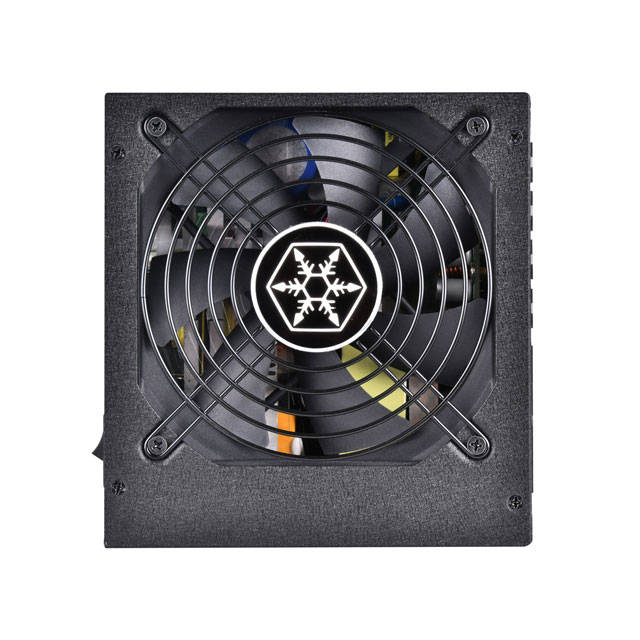

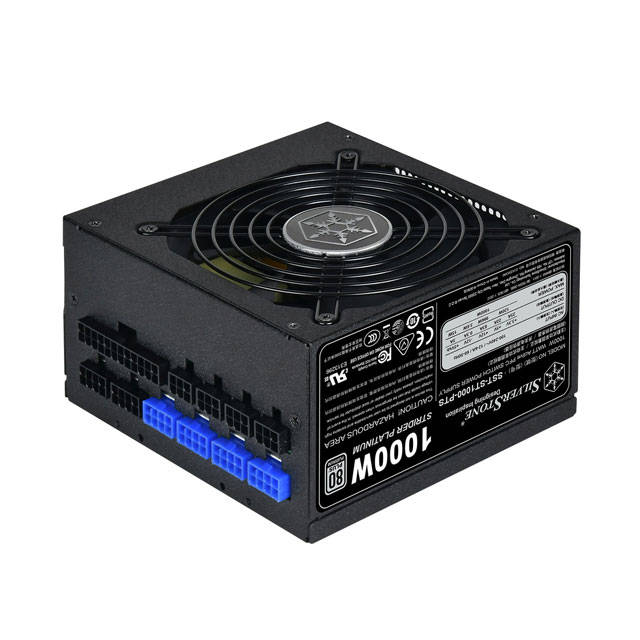

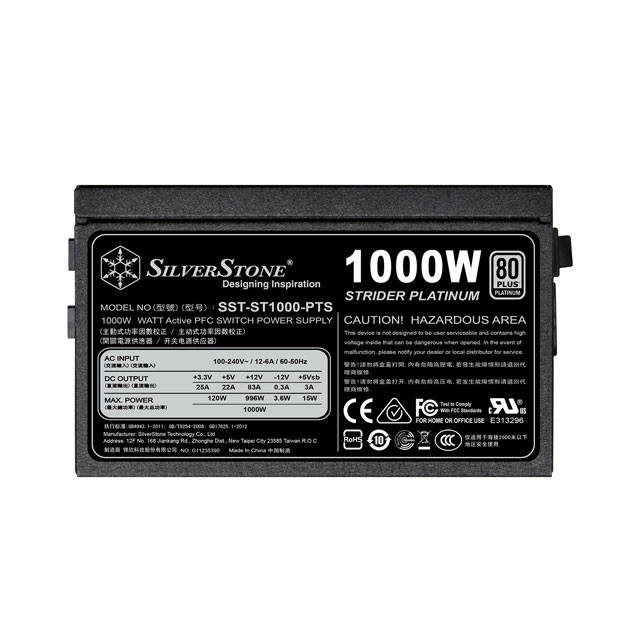

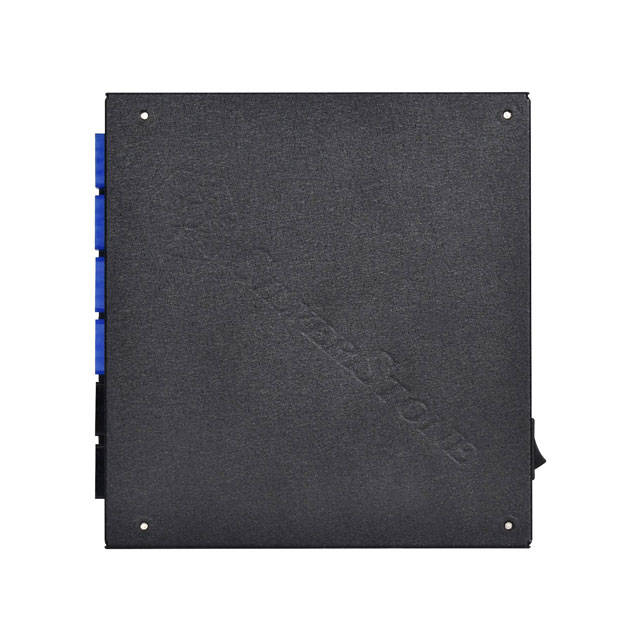

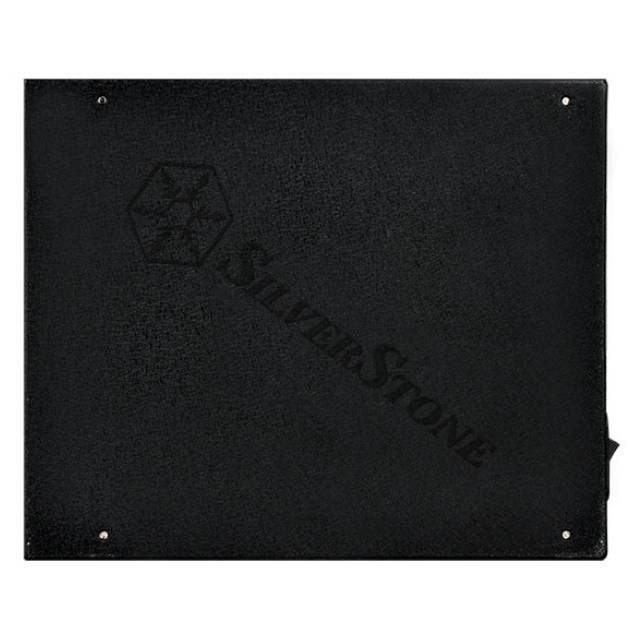

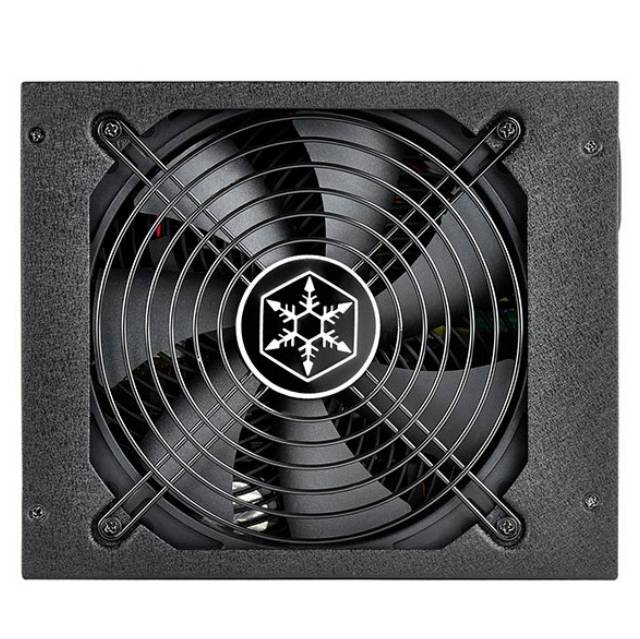

• Mfr Part Number: ST1000-PT
• Features:
  • High efficiency with 80 PLUS Platinum certification
  • 139mm Air Penetrator fan with intelligent semi-fanless operation
  • FF141 magnetized fan filter included
  • 100% modular cables
  • 24/7 continuous power output with 40 operating temperature
  • Strict 3% voltage regulation and low ripple & noise
  • Dual EPS 8pin with multiple individual one-on-one PCI-E 8/6pin connectors
• Type: ATX 12V v2.4 & EPS 12V
• Maximum Power: 1000W
• Input:
  • Voltage: 90V ~ 264V
  • Frequency Range: 47 ~ 63Hz
• Power Factor Correction: Active PFC (PF>0.9 at Full Load)
• Efficiency: 89% ~ 92% at 20% ~ 100% Loading
• MTBF: 100,000 hours
• Fans: Single 139mm Silent Fan
• Noise Level: 0 ~ 36 dBA
• Output: +3.3V @ 22A, +5V @ 25A, +12V @ 83A, -12V @ 0.3A, +5VSB @ 2.5A
• Connectors: 1x 24/20pin Main Connector, 2x 8/4pin EPS/ATX 12V Connectors, 6x 8/6pin PCI-Express Connectors, 16x SATA Connectors, 6x 4pin Peripheral Connectors, 2x 4pin Floppy Connectors
• Protection: Over Current, Over Power, Over Voltage, Over Temperature, Under Voltage, Short Circuit
• Color: Black (Lead-free Paint)
• Dimensions (WxDxH): 150.0 x 180.0 x 86.0 mm
• Weight: 3.3 kg

Note

Currently out of stock

Available Quantity

0

UPC

844761013257

SKU

mingleST1000-PT

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

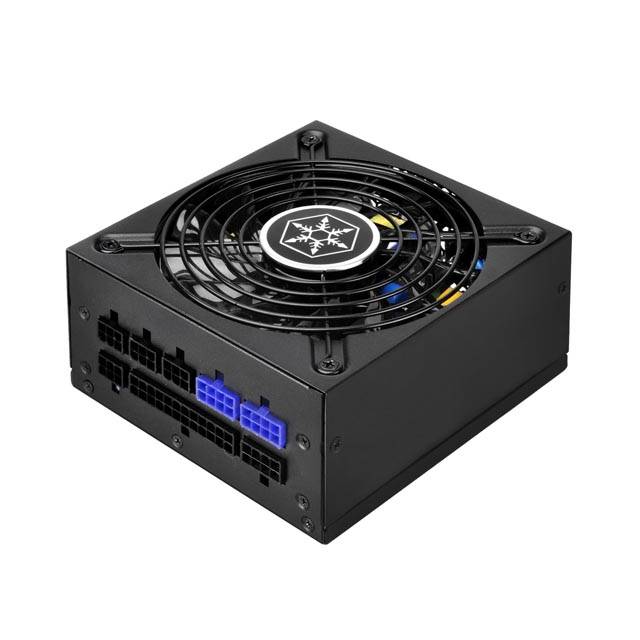

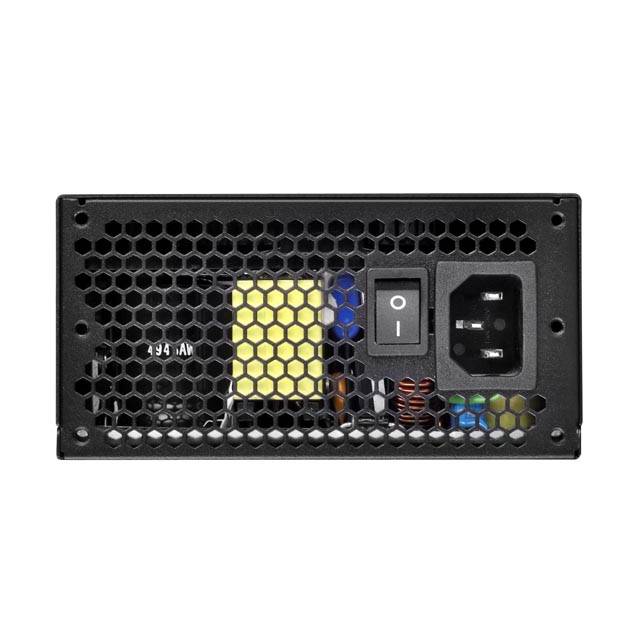

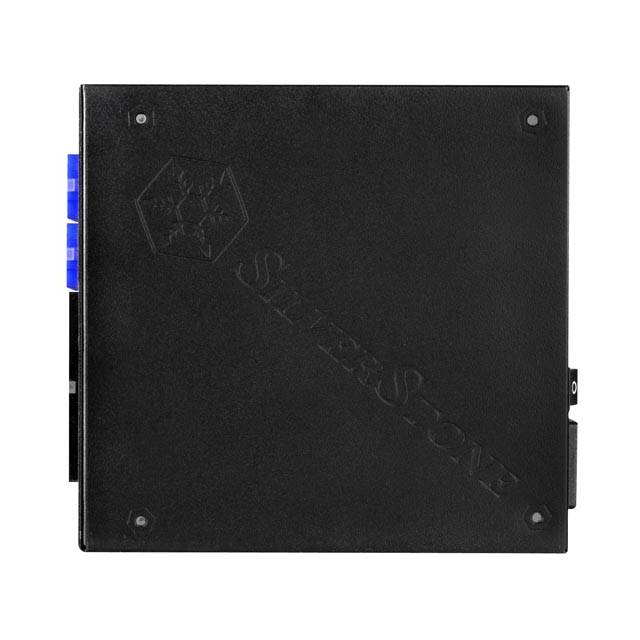

• Mfr Part Number: SX700-LPT
• Features:
  • SFX-L form factor for use small form factor computers

  • 700W continuous power output rated for 24/7 operation

  • Class-leading single +12V rail with 58.4A

  • High efficiency with 80 PLUS Platinum certification

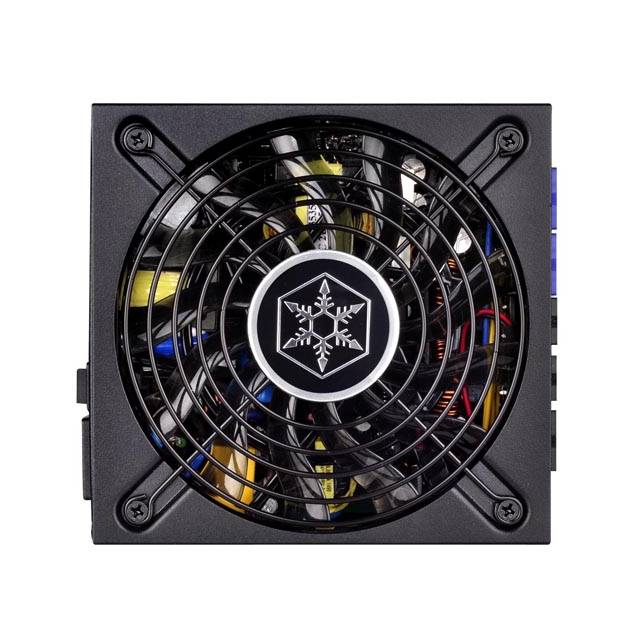

  • Silent running 120mm FDB* fan with advanced semi-fanless operation

  • 100% modular short cables with flexible flat arrays

  • Strict 3% voltage regulation and low ripple & noise

  • Support quad PCI-E 8/6pin connectors

  • High quality construction with all Japanese capacitors
• Output: +3.3V@22A, +5V@22A, +12V@58.4A, +5VSB@3A, -12V@0.3A

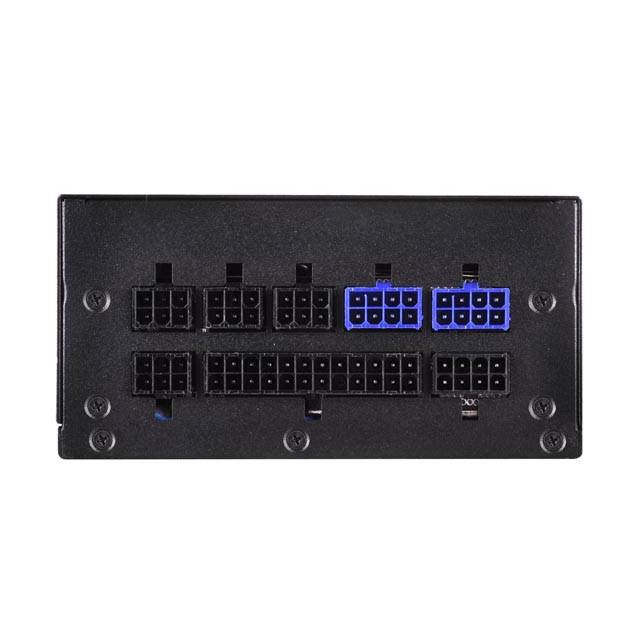

• Connectors:
  • 1 x 24 / 20-Pin motherboard connector 300mm

  • 1 x 8 / 4-Pin EPS / ATX 12V connector 400mm

  • 2 x 8 / 6-Pin PCIE connector 400mm / 150mm

  • 2 x 8 / 6-Pin PCIE connector 550mm / 150mm

  • 6 x SATA connector "300mm / 200mm / 100mm" x 2

  • 3 x SATA connector 600mm / 150mm / 150mm

  • 3 x 4-Pin Peripheral connector 300mm / 200mm / 200mm

  • 1 x 4-Pin Floppy adapter connector 100mm
• Color : Black Lead-Free Paint
• Combined +3.3V & +5V : 120W
• Combined +12V : 700W
• Input Voltage : 90V~264V
• Input Frequency Range : 47Hz ~ 63Hz
• PFC : Active PFC (PF>0.9 at full load)
• Efficiency : 87% ~ 90% at 20% ~ 100% loading
• MTBF : 100,000 hours
• Operating temperature : 0 C ~ 40 C
• Cooling System : Single 120mm FDB* silent fan
• Form factor : SFX
• Noise Level : 0-36 dBA minimum
• Dimension :125 mm (W) x 63.5 mm (H) x 130 mm (D) 4.92" (W) x 2.5" (H) x 5.12" (D)
• Weight : 1.68kg
• Certification : 80 PLUS Platinum



Note

Currently out of stock

Available Quantity

0

UPC

844761013271

SKU

mingleSX700-LPT

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

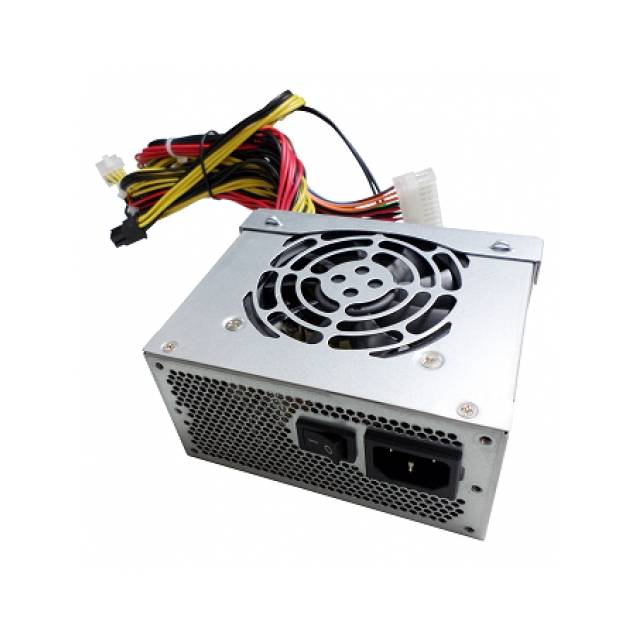

• Mfr Part Number: PWR-PSU-550W-FS01

• Description: 550W power supply unit, FSP


Note

Currently out of stock

Available Quantity

0

UPC

885022013289

SKU

minglePWR-PSU-550W-FS01

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

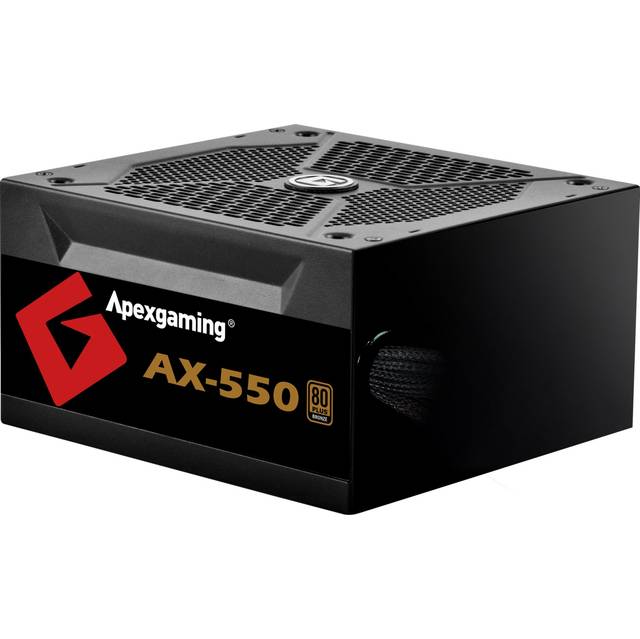

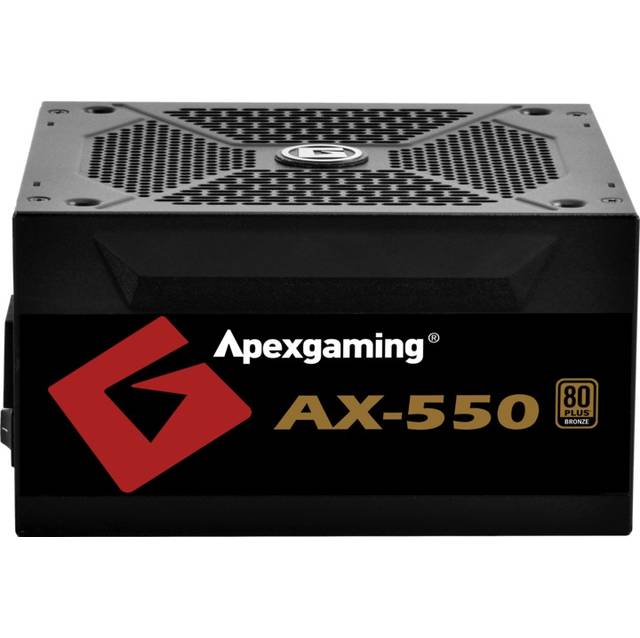

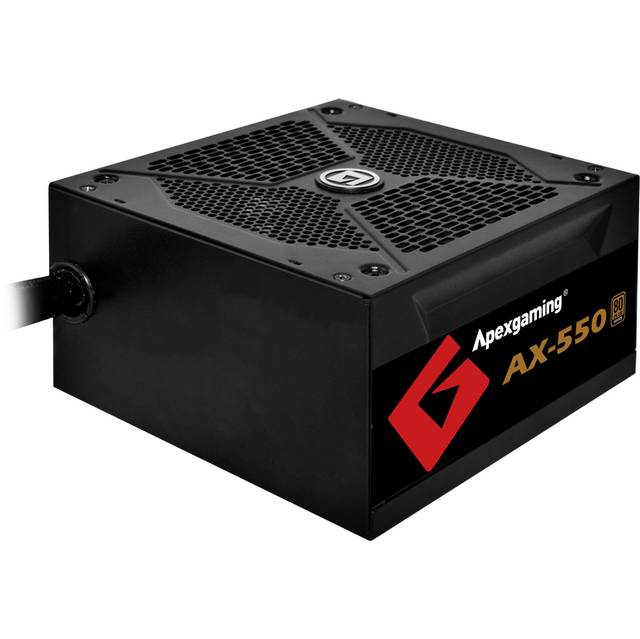

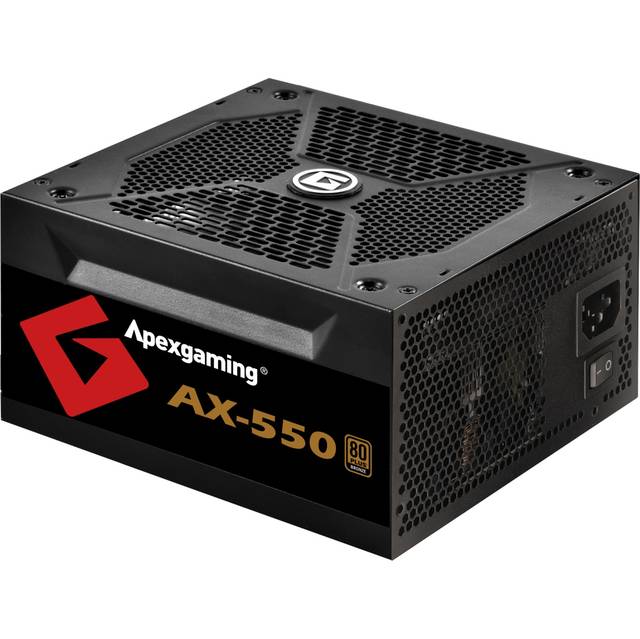

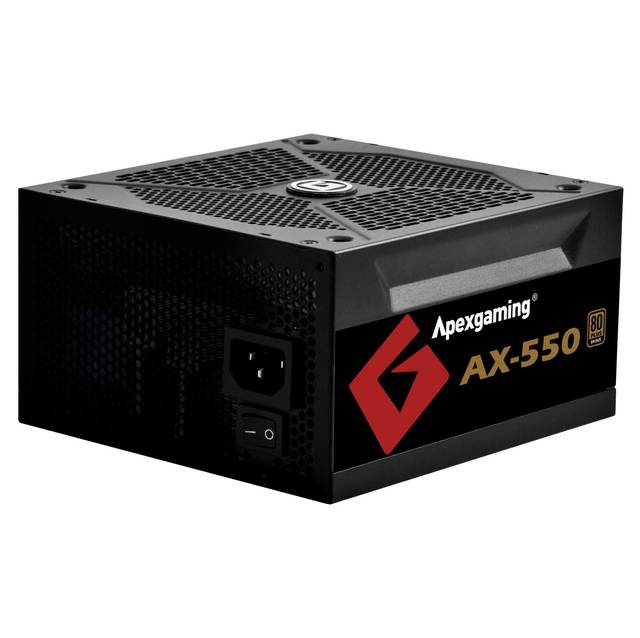

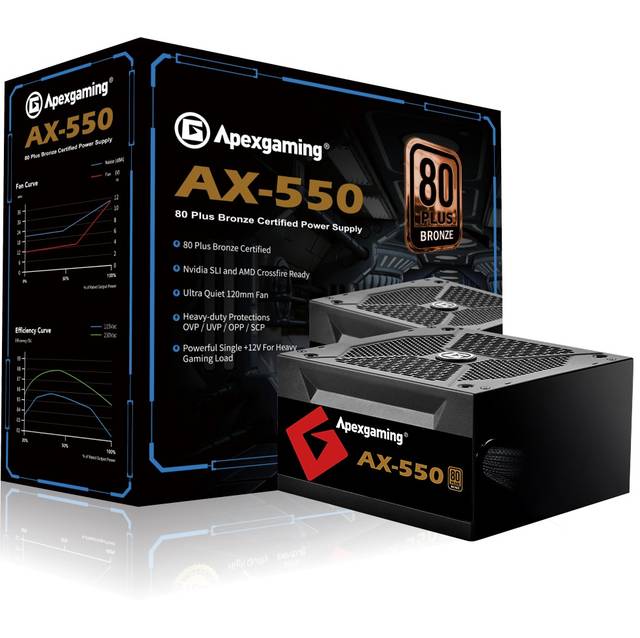

• Mfr Part Number: AX-550
• Features:
  • 80 PLUS Bronze Certified
  • 550 Watt Power Supply
  • Hybrid circle design (honeycomb ventilation)
  • High Quality Capacitor
  • Anti-Vibration
  • Silent Technology
• Maximum Power: 550W
• Input:
  • Voltage: 100 - 240 V
  • Current: 10 - 5A
  • Frequency Range: 50- 60 Hz
• Output: +3.3V @ 21A; +5V @ 16A; +12V @ 38A; -12V @ 0.5A; +5VSB @ 2.5A
• Form Factor: ATX12V 2.4 / EPS12V 2.92
• Efficiency: 85% at typically load
• Hold-up Time: > 16 ms @ 80% load
• Power Factor Correction: Active PFC
• Fan: 1 x 120mm Sleeve fan
• MTBF: >100,000 Hours
• Connectors: 1 x MB 20+4Pin Connector, 1 x CPU 12V 4+4Pin Connector, 2 x PCI-e 6+2Pin Connector, 6 x SATA Connectors, 3 x Peripheral 4 Pin Connectors, 1x Floppy 4 Pin Connector
• Safety Approval: CE, CB, TUV-SUD, FCC, cTUVus , CCC, BSMI
• Dimensions: 3.39" x 5.51" x 5.91"
• *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country. All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers.

Note

Currently out of stock

Available Quantity

0

UPC

604034683071

SKU

mingleAX-550

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

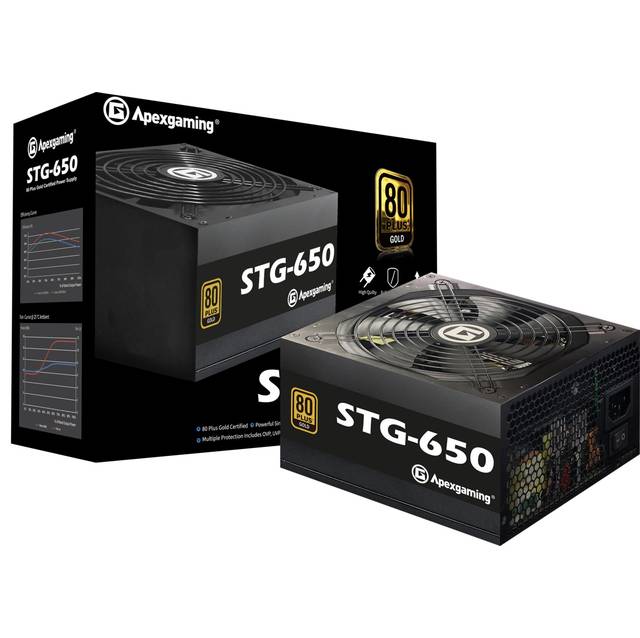

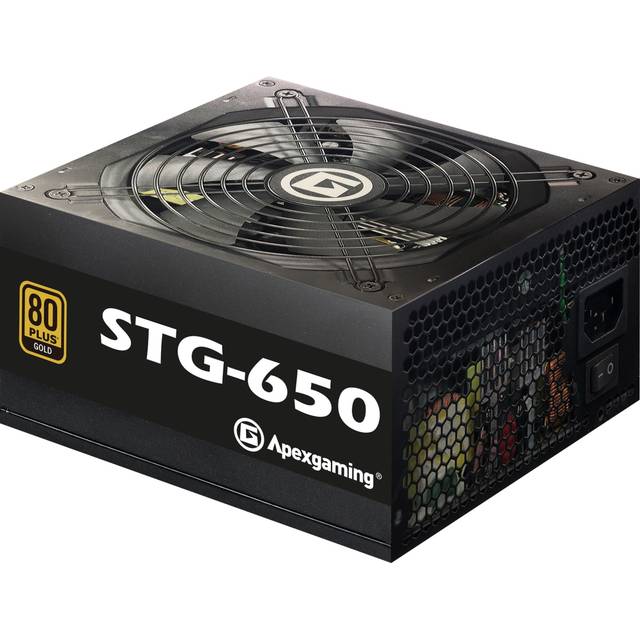

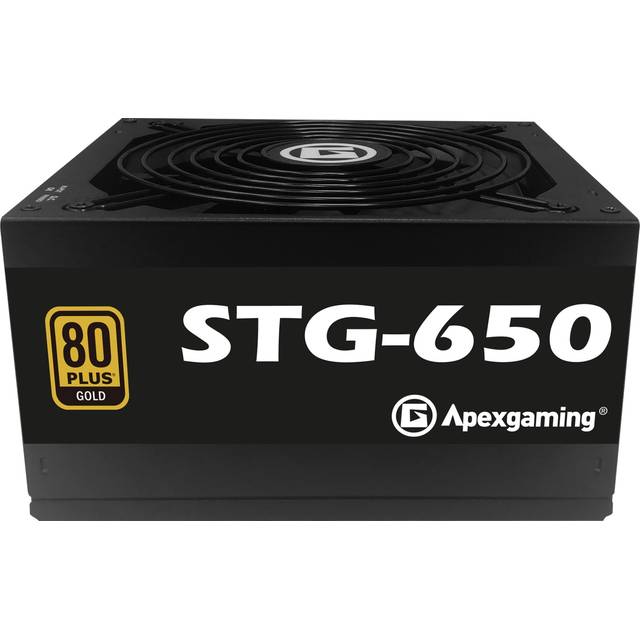

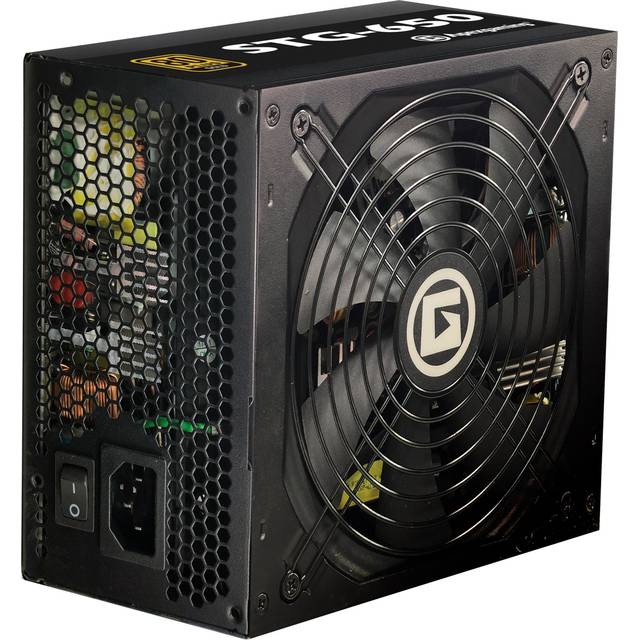

• Mfr Part Number: STG-650
• Features:
  • 80 Plus Gold Certified
  • 650 Watt Power Supply
  • Sleeved cable design
  • High Quality 105 C / 221 F electrolytic capacitors
  • 140 mm Silent Fan for low noise operation
  • Multiple Protections OVP / UVP / OCP / OPP / SCP / OTP
  • Certifications: CE / CB / TUV / FCC / cTUVus / CCC / BSMI / RCM
• Maximum Power: 650W (Continuous)
• 80 Plus Certification: Gold
• Form Factor: ATX12V/ EPS12V
• Efficiency: 90% Typically
• Technology: LLC+D2D
• MTBF: 100,000 Hours
• Fan:
  • Fan Size: 140mm
  • Fan Type: Sleeve
• ErP 2013 lot6 compliant: Yes
• Other features:
  • Flexible cables with sleeve design
  • Multi-GPU Ready
• AC Input Specification:
  • Voltage: 100 - 240 V
  • Current: 8 - 4A
  • Frequency Range: 47- 63 Hz
  • Power Factor>0.95 at typical, Active
  • Intel C6/C7 Sleep State Compatible
  • Hold-up Time: >16 ms @ 80% load
• DC Output Specification:
  • Ability to Toggle Single/Multiple +12V: Single
  • +3.3V@20A, +5V@20A, +12V@54A, -12V@0.5A, +5VSB@3A
• Connectors:
  • 1 x (20+4) Pin Motherboard Connector
  • 1 x (4+4) Pin CPU 12V Connector
  • 2 x (6+2) Pin PCI-Express Connectors
  • 6 x SATA Connectors
  • 3 x Peripheral 4pin Connectors
  • 1 x Floppy 4 Pin Connector
• Safety Approval: CB, CE, CCC, cTUVus, FCC
• Dimensions: 160.0 x 150.0 x 86.0 mm
• *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country. All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers.

Note

Currently out of stock

Available Quantity

0

UPC

604034690154

SKU

mingleSTG-650

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

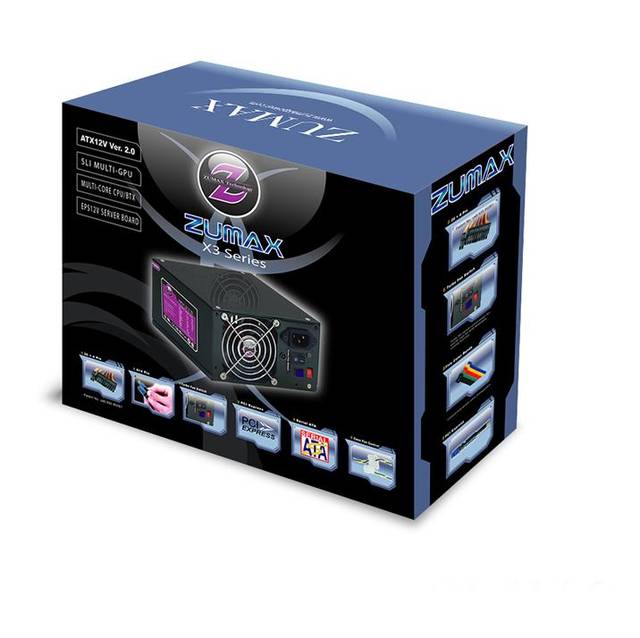

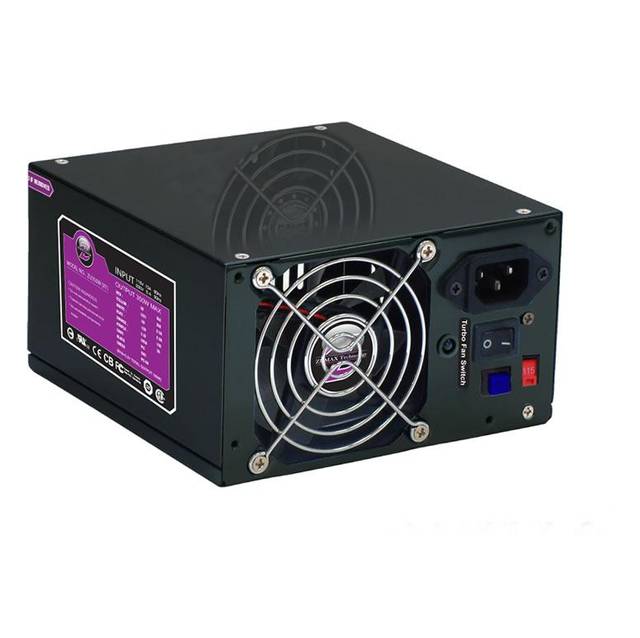

• Mfr Part Number: ZU-550W
• Features:
  • Support Intel Core i7, Dual Cores, Quad Cores, Core 2 Duo, Xeon, AMD Phenom, Athlon, and Opteron processors
  • Black Nickel Coating Chassis
  • Turbo Fan Switch (fan runs at full speed when pressed)
  • 2x 6pin PCI-Express Connector with EMI Filter attached to Copper-Shielded Power Lead
  • Protection - OCP, OVP, SCP

• Maximum Power: 550W

• Fans: 2x 80mm Fans (Front & Rear)

• Input:
  • Input Voltage: 115 ~ 230 V
  • Input Frequency Range: 50/60Hz
  • Input Current: 10 ~ 5 A

• Output: +3.3V @ 30A, +5V @ 50A, +12V1 @ 20A, +12V2 @ 20A, -5V @ 0.5A, -12V @ 0.8A, +5VSB @ 2.5A

• Connectors: 1x 20+4pin Main Power Connector, 1x 4pin 12V Power Connector, 2x 6pin PCI-Express Connectors, 2x SATA Connectors, 6x Peripheral Connectors, 2x FDD Connectors

• Approvals: UL, CE, FCC, TUV

• Form Factor: ATX12V v2.0 / EPS12V

• Dimensions (WxDxH): 5.90 x 6.25 x 3.40 inch


Note

Currently out of stock

Available Quantity

0

UPC

845659093559

SKU

mingleZU-550W

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

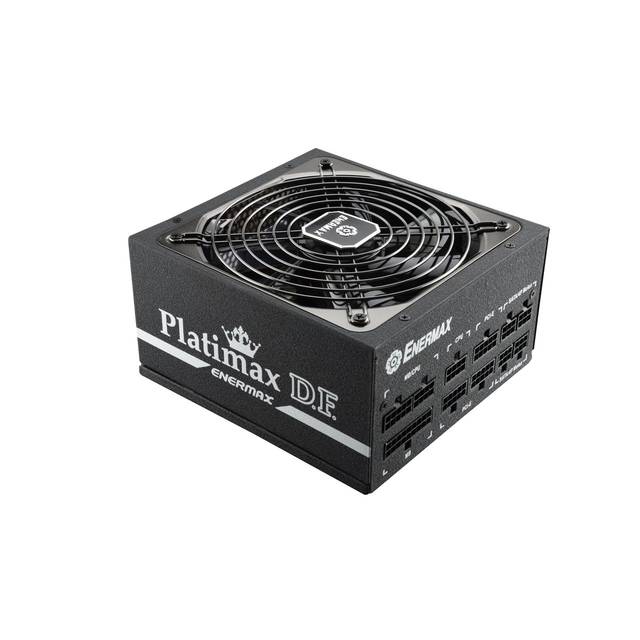

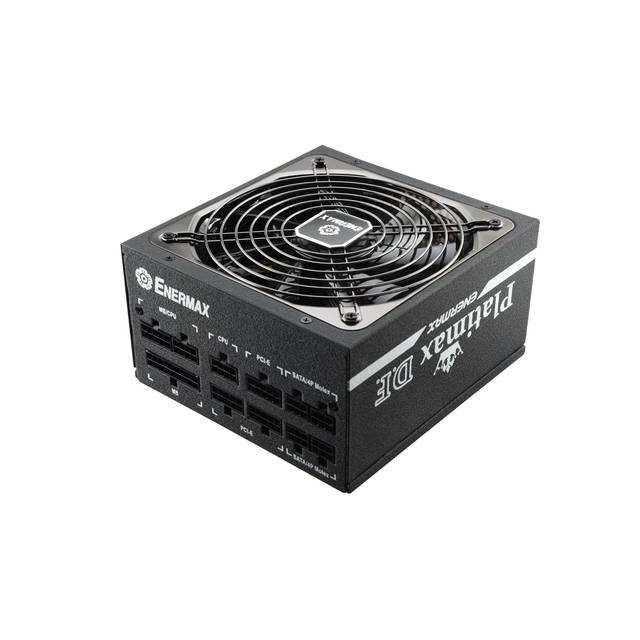

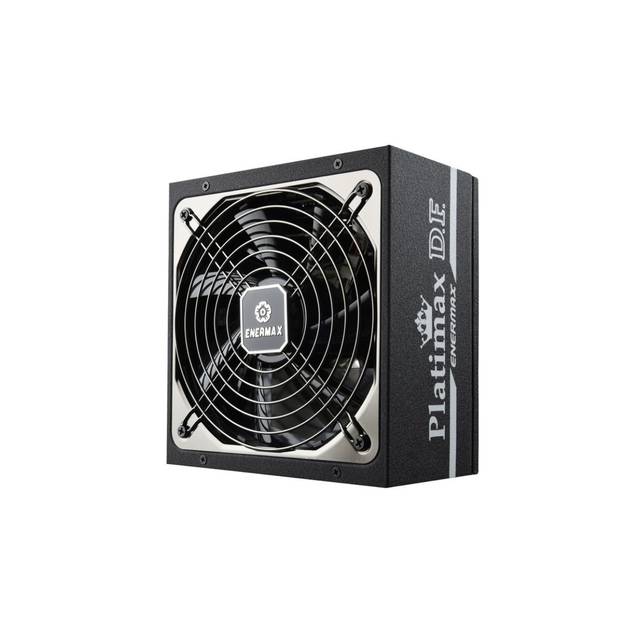

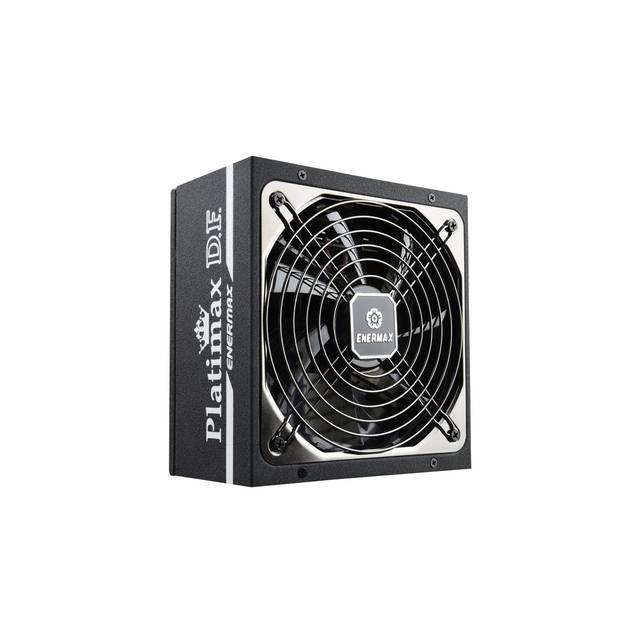

• Mfr Part Number: EPF1200EWT
• Features:
  • 80 PLUS Titanium with over 94% efficiency
  • Compact 160mm with up to 1200W powerful output

  • Patented Dust Free Rotation (DFR) technology for the PSU fan D.F. switch for users to activate

  • DFR function anytime during operation
• Total Power: 1200W
• Input:
  • Current: 15-7A
  • Voltage: 100V - 240V AC
  • Frequency Range: 47 - 63Hz
• Output: +3.3V @ 25A, +5V @ 25A, +12V1 @ 25A, +12V2 @ 25A,+12V3 @ 40A,+12V4 @ 40A,-12V @ 0.3A, +5VSB @ 3A
• Protection: OCP, OVP, UVP, SCP, OPP, OTP

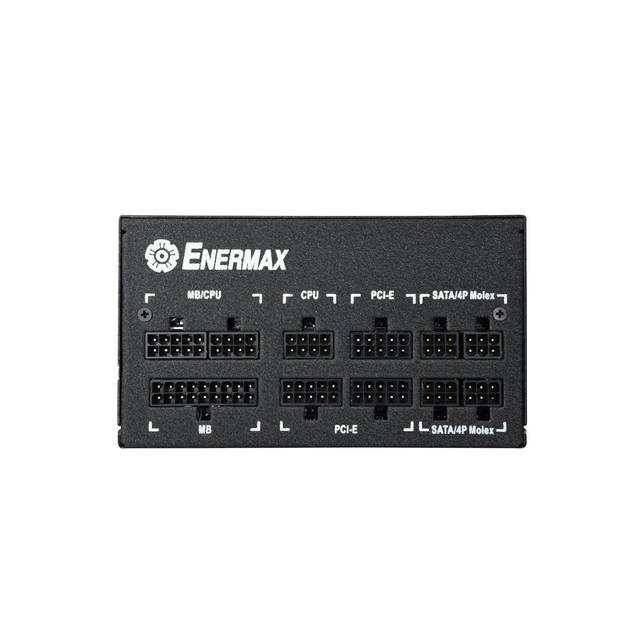

• Connectors:
  • 1 x Mainboard 24 Pin
  • 1 x CPU 4+4 Pin
  • 1 x CPU 8 Pin
  • 6 x PCI-E 6+2 Pin (8 Pin)
  • 12 x SATA
  • 4 x 4 Pin Molex
  • 1 x FDD
• Dimensions: 160(D) x 150(W) x 86(H)mm
• Gross Weight: 3.55kg

Note

Currently out of stock

Available Quantity

0

UPC

816163009183

SKU

mingleEPF1200EWT

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

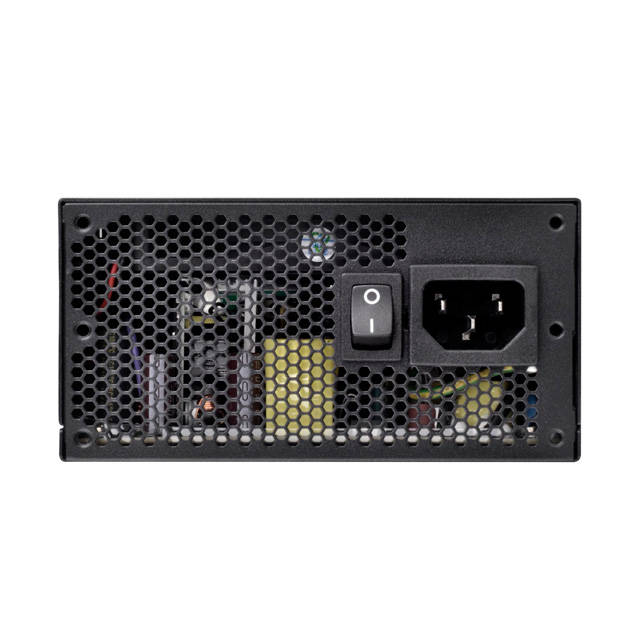

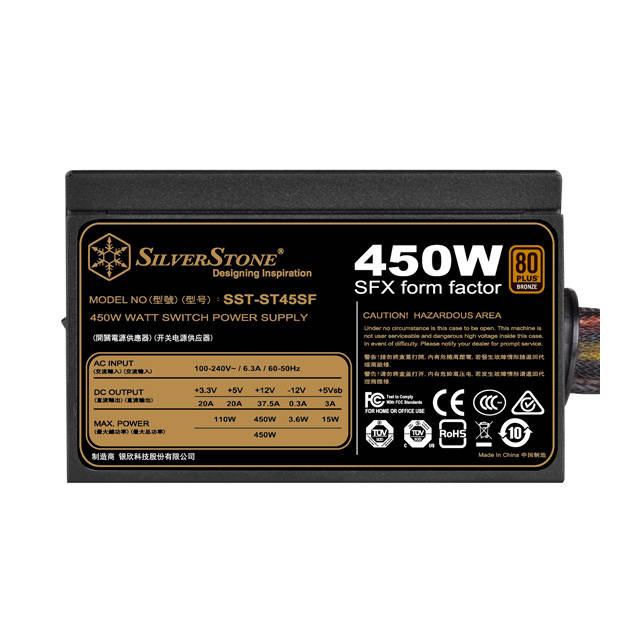

• Mfr Part Number: ST45SF-V3
• Features:
  • Supports standard SFX form factor and ATX via included bracket

  • 450W continuous power output at 40 temperature rated for 24/7 operation (V3.0)

  • 80 PLUS Bronze level efficiency (82%~85% efficiency at 20%~100% loading)

  • Class-leading single +12V rail with 36A

  • Silent running 92mm fan (V3.0)

  • Single PCI-E 8pin and dual PCI-E 6pin connectors support

  • Active PFC
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 37.5A,   +5VSB @ 3A, -12V @ 0.3A
• Connectors: 1 x 24 / 20-Pin motherboard connector  1 x 8 / 4-Pin EPS / ATX 12V connector 1 x 6-Pin PCIE connector  3 x SATA connector  2 x 4-Pin Peripheral connector ) 1 x 4-Pin Floppy adapter connector
• Color : Black Lead-Free Paint
• Combined +3.3V & +5V : 110W
• Combined +12V : 450W / 37.5A (V3.0)
• Input Voltage : 90 ~ 264 Vrms
• Input Frequency Range : 47Hz ~ 63Hz
• PFC : Active PFC (PF>0.9 at full load)
• Efficiency : 82% ~ 85% at 20% ~ 100% loading
• MTBF : 100,000 hours
• Operating temperature : 0 C ~ 40 C
• Cooling System : Single 92mm silent fan
• Form factor : SFX
• Noise Level : 18 dBA minimum
• Dimension : 125 mm (W) x 63.5 mm (H) x 100 mm (D)4.92" (W) x 2.5" (H) x 3.94" (D)
• Weight : 1.1 kg
• Certification : 80 PLUS Bronze



Note

Currently out of stock

Available Quantity

0

UPC

844761014292

SKU

mingleST45SF-V3

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

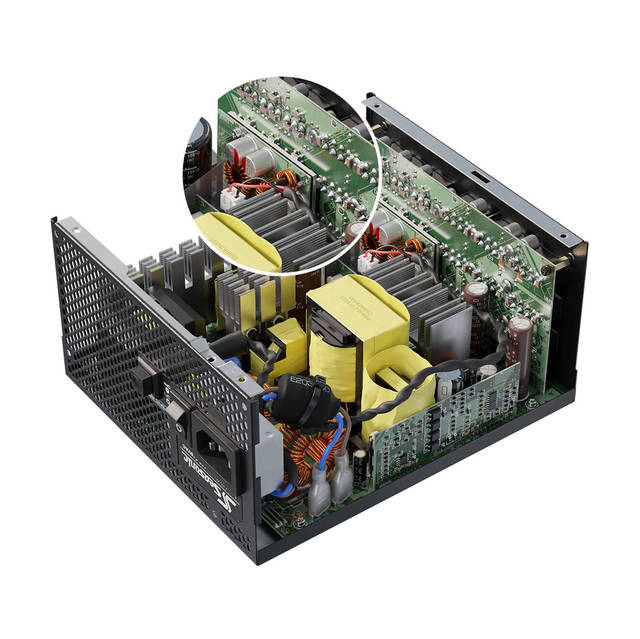

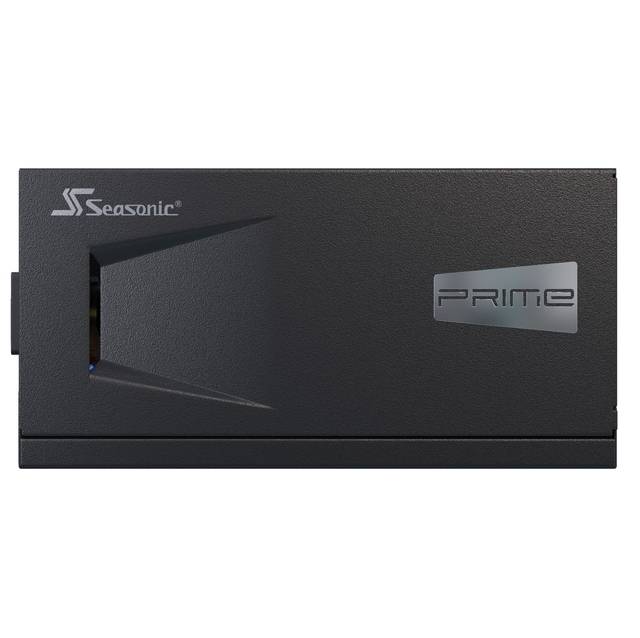

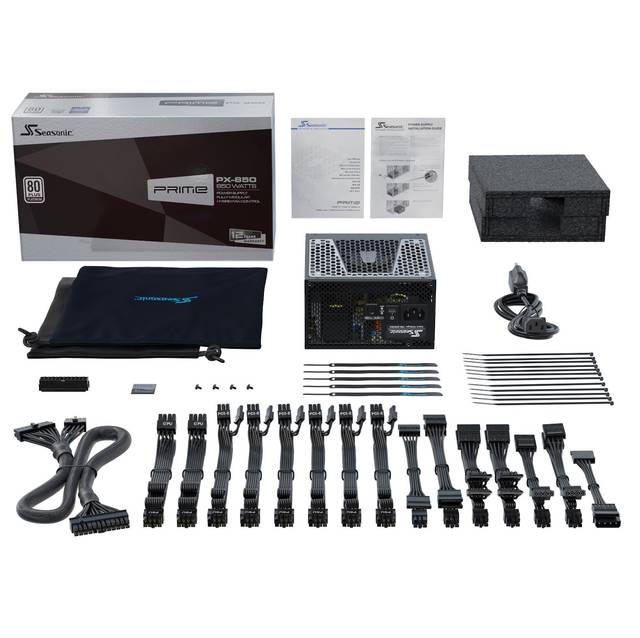

• Mfr Part Number: PRIME PX-850
• Product Description:Its ultra-high efficiency and outstanding performance are the fine results of Seasonic s continuous commitment to innovation and advancement. Improved low-load efficiency, highly suppressed ripple noise and a generous 12-year manufacturer s warranty are just some of the characteristics that set these series apart from other power supplies on the market.
• Features:
  • MICRO TOLERANCE LOAD REGULATION (under 0.5 %): This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.
  • FULL MODULAR - Use only the cables you need to reduce clutter and improve airflow for a better ventilated system.
  • 80 PLUS PLATINUM - Less energy gets wasted during power conversion; Cut down your electricity usage and be Eco-Friendly.
  • PREMIUM HYBRID FAN CONTROL: Unsurpassed silent performance in Fanless Mode. The fan control button at the back of the power supply allows users to customize cooling needs by selecting between Seasonic S2FC (fan control without Fanless Mode) and S3FC (fan control including Fanless Mode).
  • 12 YEAR WORRY-FREE WARRANTY: Our commitment to superior quality.
• Type: Intel ATX12V
• Total Power: 850W
• Input:
  • Voltage: 100 - 240V
  • Current: 11 - 5.5A
  • Frequency: 50 - 60Hz
• MTBF: 150,000 hours (@ 25 C, excl. fan)
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 70A, -12V @ 0.3A, +5Vsb @ 3A
• Connectors: 1x 20/24pin Main Power Connector, 2x 4/8pin CPU Connector, 6x 6/8pin PCI-Express Connectors, 8x SATA Connectors, 3x Peripheral Connectors, 1x FDD Connector
• Cooling System: 135mm Fluid Dynamic Bearing Fan w/ Premium Hybrid Fan Control
• Protection: OPP, OVP, UVP, OCP, OTP, SCP
• Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, EAC, CE
• Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
• PSU Dimension (inch) : 6.7 L x 6 W x 3.4 H
• Retail Package Dimension (inch) :13.3 L x 7.8 W x 5.3 H
• Carton Dimension (inch):13.9 L x 8.3 W x 21.9 H
• Dimensions: 170 mm (L) x 150 mm (W) x 86 mm (H)
• Weight (LBS): 8.16

Note

Currently out of stock

Available Quantity

0

UPC

Does not apply

SKU

minglePRIME PX-850 (SSR-850PD)

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

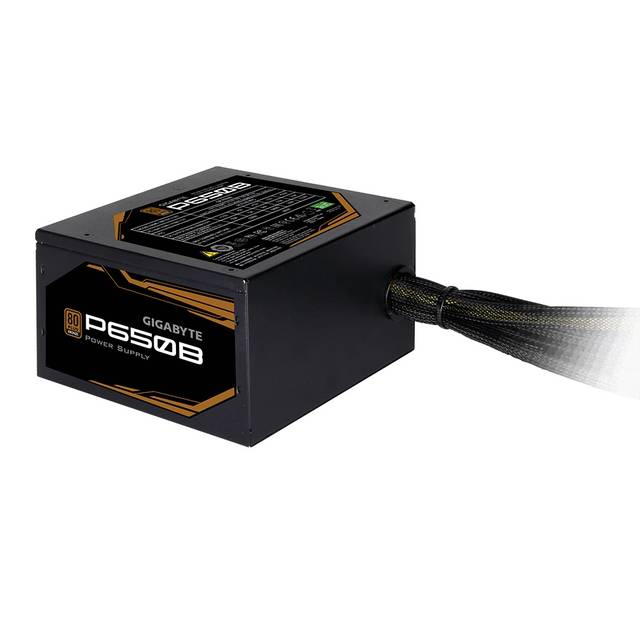

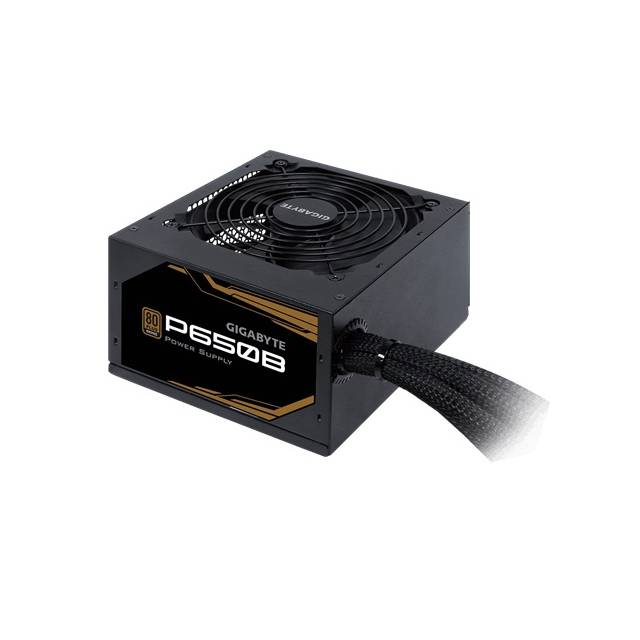

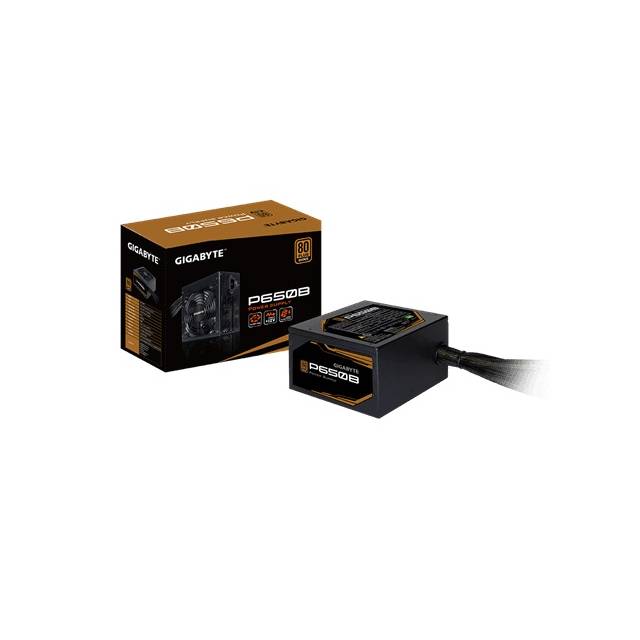

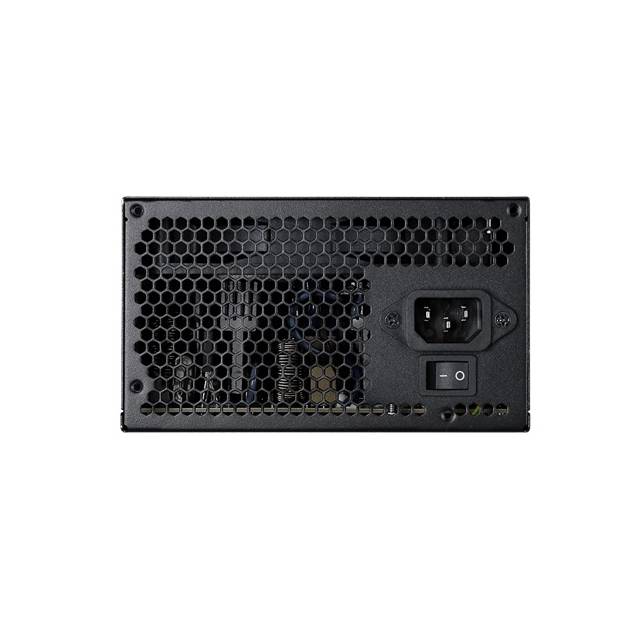

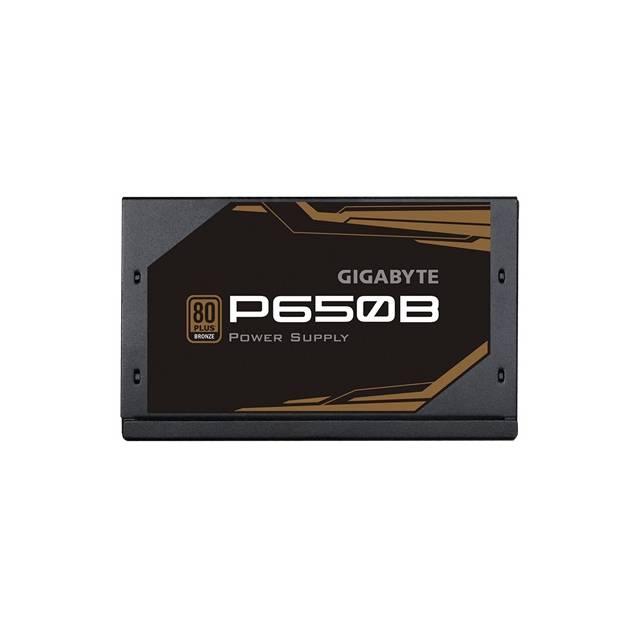

• Mfr Part Number: GP-P650B
• Model: P650B
• Features:
  • 80 PLUS bronze certified: up to 89% efficiency
  • 100% Japanese Capacitors
  • 120mm Hydraulic Bearing (HYB) Fan
  • Single +12V rail
  • Meet ErP LOT6 2013 (< 0.5W at standby mode)
  • OPP/UVP/OVP/SCP/OCP protection
  • 3 years warranty (Adjusted according to different regions)
• Maximum Power: 650 W
• Type: Intel Form Factor ATX 12V v2.31
• PFC: Active PFC(>0.9 typical)
• Input:
  • Voltage: 1 00-240 Vac(full range)
  • Current: 9 A-4A
  • Frequency Range: 5 0-60 Hz
• Fan: 1 20 mm Hydraulic Bearing Fan
• Efficiency: Up to 8 5% at typical load
• MTBF: >100,000 hours
• Protection: OPP/UVP/OVP/SCP/OCP
• Regulatory: CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC/PSE
• Connectors:
  • ATX/MB 20+4 Pin x 1
  • CPU/EPS 4+4 Pin x 1
  • PCI-e 6+2 Pin x 4
  • SATA x 6
  • 4 Pin Peripheral x 3

  • 4 Pin floppy x 1
• Dimensions (DxWxH): 150.0 x 140.0 x 86.0 mm

Note

Currently out of stock

Available Quantity

0

UPC

813567025573

SKU

mingleGP-P650B

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

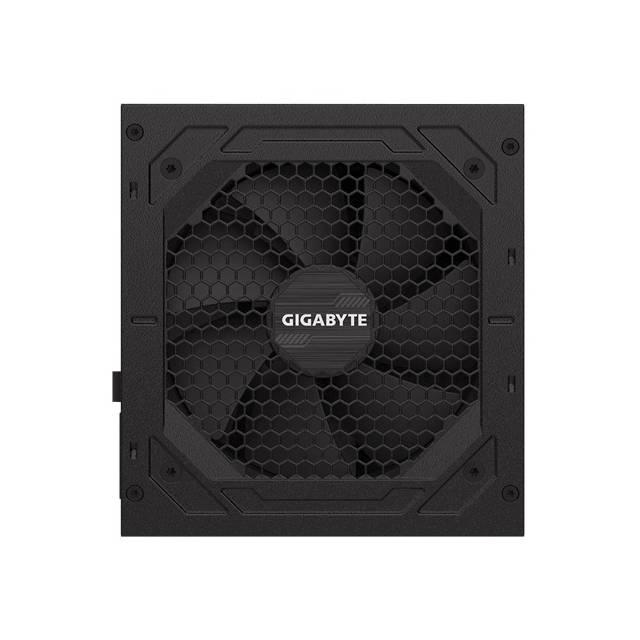

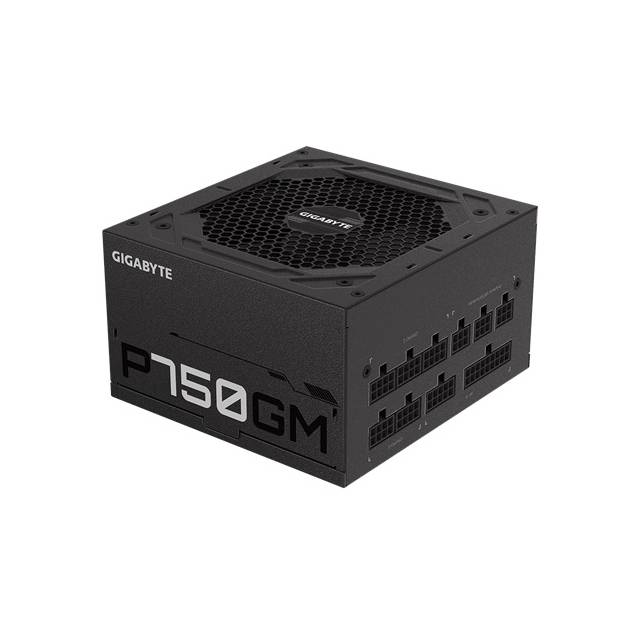

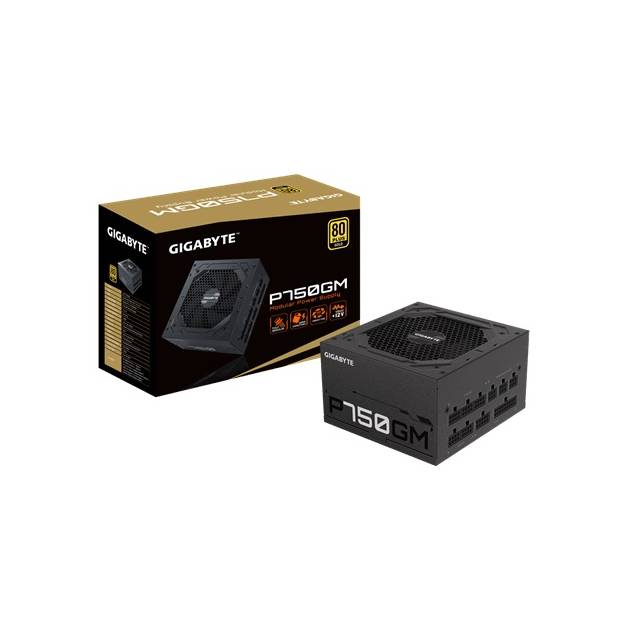

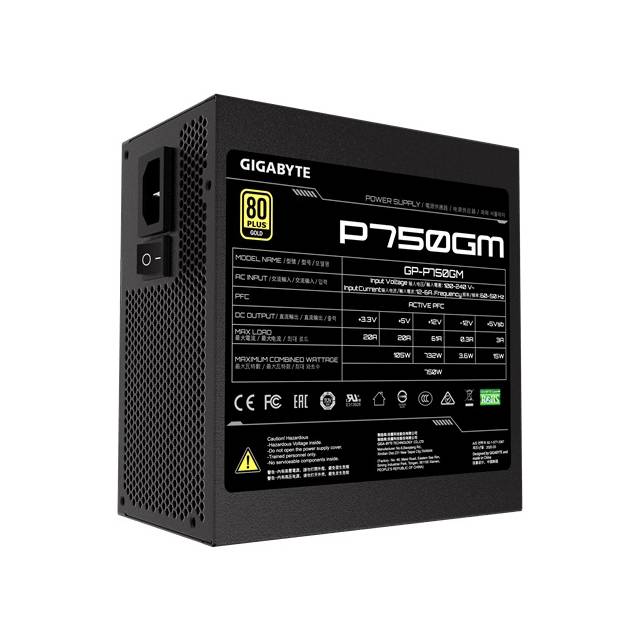

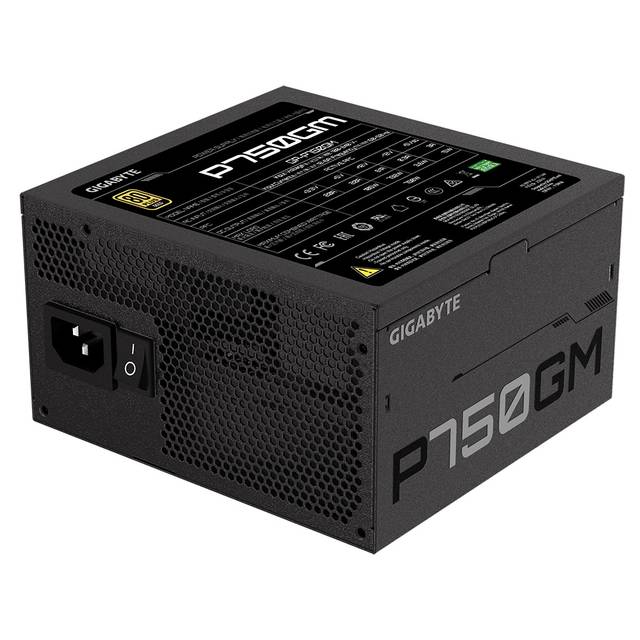

• Mfr Part Number: GP-P750GM
• Features:
  • 80 PLUS Gold certified
  • Fully modular design
  • 120mm Smart Hydraulic Bearing (HYB) Fan
  • Main Japanese capacitors
  • Powerful single +12V rail
  • OVP/OPP/SCP/UVP/OCP/OTP protection
  • Compact size
  • 5 years warranty (Adjusted according to different regions)
• Maximum Power: 750 W
• Type: Intel Form Factor ATX 12V v2.31
• PFC: Active PFC (>0.9 typical)
• Input:
  • Voltage: 1 00-240 Vac(full range)
  • Current: 1 2-6 A
  • Frequency Range: 6 0-50 Hz
• Fan: 1 20 mm Hydraulic Bearing (HYB) Fan
• 80 PLUS: Gold
• Efficiency: 90% at typical load
• MTBF: >100,000 hours
• Protection: OVP/OPP/SCP/UVP/OCP/OTP
• Power Good Signal: 1 00-500ms
• Hold Up Time: >16ms
• Cable Type: Flat, All black

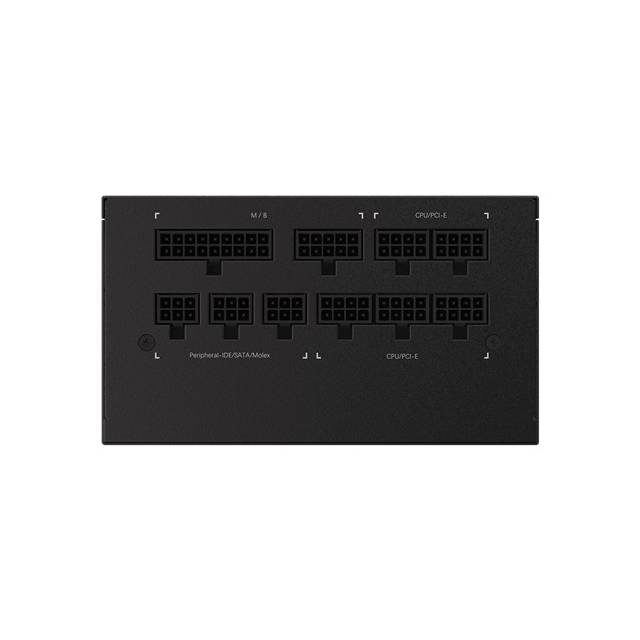

• Connectors:
  • ATX/MB 20+4 Pin x 1: 610mm*1
  • CPU/EPS 4+4 Pin x 2: 600mm*2
  • PCI-e 6+2 Pin x 4: 600mm+150mm*2
  • SATA x 8: 600mm+150mm+150mm+150mm*2
  • 4 Pin Peripheral x 3 + 4-Pin floppy x 1: 500mm+120mm+120mm+120mm*1
• Dimensions: 150.0 x 140.0 x 86.0 mm

Note

Currently out of stock

Available Quantity

0

UPC

813567028710

SKU

mingleGP-P750GM

Rebate

15% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

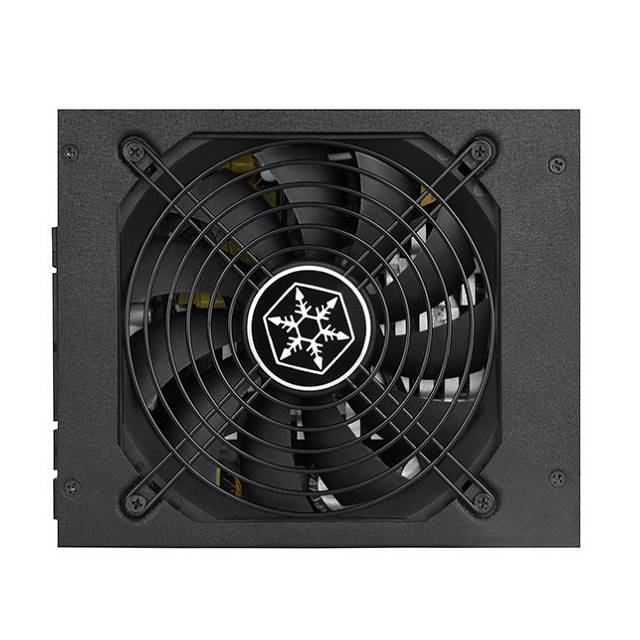

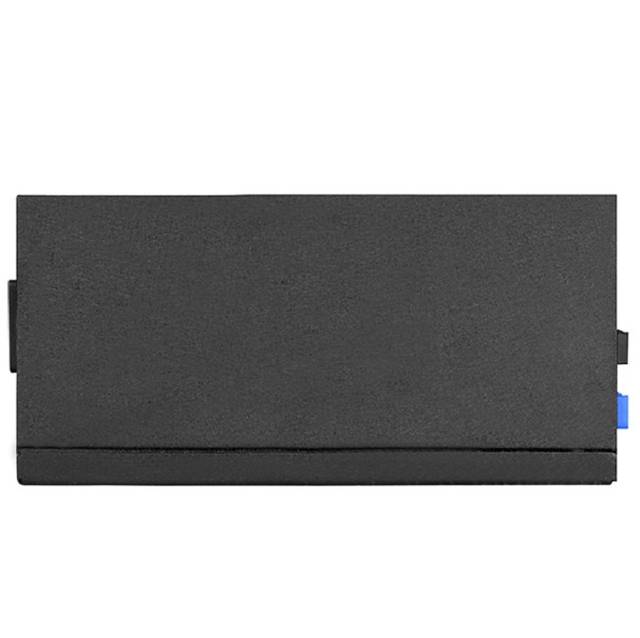

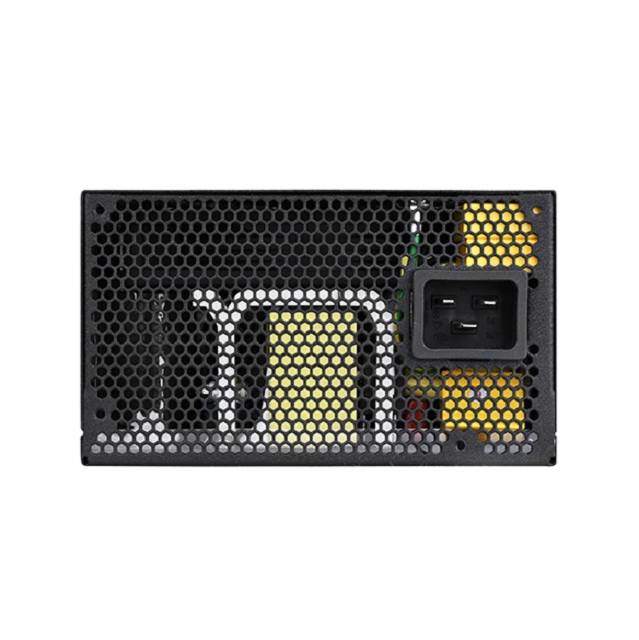

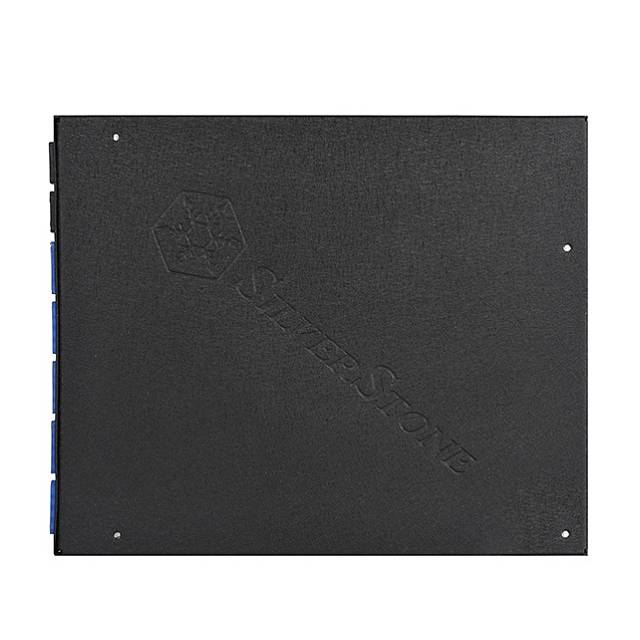

• Mfr Part Number: ST1500-TI
• Features:
  • Top-level efficiency with 80 PLUS Titanium certification
  • All Japanese capacitors
  • 100% modular cables
  • 24/7 continuous power output with 50 operating temperature
  • Class-leading single +12V rail
  • Strict 3% voltage regulation and low ripple & noise
  • Dual EPS 8pin with multiple PCI-E 8 / 6pin connectors support
  • Ultra silent 135mm fan with intelligent semi-fanless operation
• Type: ATX
• Maximum Power: 1500W (Peak 1600W)
• Input:
  • Voltage: 90V ~ 264V
  • Frequency Range: 47 ~ 63Hz
• Power Factor Correction: Active PFC (PF>0.9 at Full Load)
• Efficiency: 90% ~ 94% at 10% ~ 100% Loading
• MTBF: 100,000 hours
• Fans: Single 135mm Silent Fan
• Noise Level: 0 ~ 36 dBA
• Output: +3.3V @ 25A, +5V @ 22A, +12V1 @ 125A, -12V @ 0.3A, +5Vsb @ 3.0A

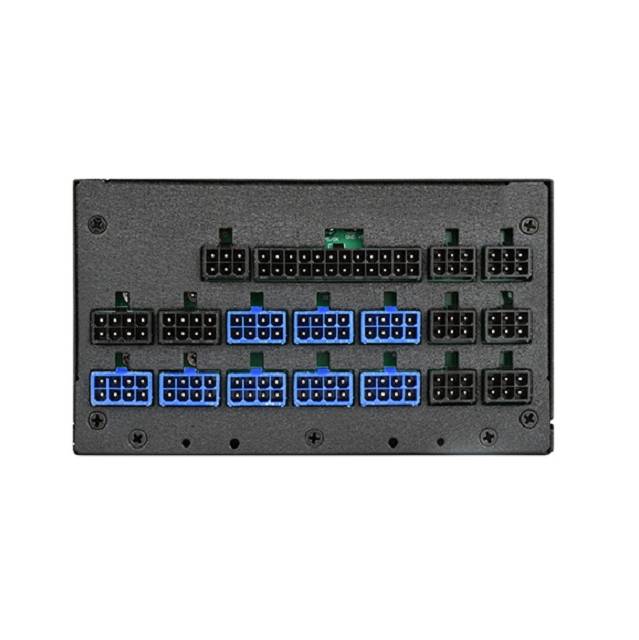

• Connectors: 1x 20/24pin Motherboard Connector, 2x 4/8pin EPS/ATX 12V Connectors, 8x 6/8pin PCI-Express Connectors, 16x SATA Connectors, 6x 4pin Peripheral Connectors, 1x 4pin Floppy Adapter Connector
• Protection: Over Current Protection, Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Temperature Protection
• Color: Black (Lead-free Paint)
• Dimensions (WxLxH): 5.91 x 7.09 x 3.39 inch / 150.0 x 180.0 x 86.0 mm
• Weight: 3.96 kg

Note

Currently out of stock

Available Quantity

0

UPC

844761015244

SKU

mingleST1500-TI

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

• Mfr Part Number: PRIME FANLESS PX-500
• Features:
  • ATX 12 V
  • Full Modular
  • 80 PLUS Platinum Certified
  • 12 Years Warranty
  • Dimensions: 140 mm (L) x 150 mm (W) x 86 mm (H)
• Type: Intel ATX12V
• Total Power: 500W
• Input:
  • Voltage: 100 - 240V
  • Current: 7 - 4A
  • Frequency: 50/60Hz
• MTBF: 150,000 hours (@ 25 C, excl. fan)
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 41A, -12V @ 0.3A, +5Vsb @ 3A
• Connectors: 1x 20/24-pin Main Power Connector, 2x 4/8-pin CPU Connectors, 2x 6/8-pin PCI-Express Connectors, 8x SATA Connectors, 1x Floppy Connector
• Protection: OPP, OVP, UVP, OCP, OTP, SCP
• Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, EAC, CE
• Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
• Dimensions: 140 mm (L) x 150 mm (W) x 86 mm (H)
• Shipping weight(lbs): 6.17

Note

Currently out of stock

Available Quantity

0

UPC

Does not apply

SKU

minglePRIME FANLESS PX-500 (SSR-500PL)

Rebate

10% of item price after purchase. Details to redeem rebate will be provided in shipment

Shipping

Free 2 day shipping

Return Policy

6 months free return. Return item within the time specified.

Product Description

Specifications

• Mfr Part Number: ST1000-PTS
• Features:
  • Compact design with a depth of 140mm for easy integration
  • High efficiency with 80 PLUS Platinum certification
  • 100% modular cables
  • 24/7 continuous power output with 40 operating temperature
  • Class-leading single +12V rail
  • Strict 3% voltage regulation and low ripple & noise
  • Built-in silent & durable HYB fan
  • FF122 magnetized fan filter included
• Output: +3.3V@25A, +5V@22A, +12V@83A, +5VSB@3A, -12V@0.3A
• Connectors:
  • 1 x 24 / 20-Pin motherboard connector 600mm
  • 1 x 8 / 4-Pin EPS / ATX 12V connector 550mm
  • 1 x 8 / 4-Pin EPS / ATX 12V connector 750mm
  • 8 x 8 / 6-Pin PCIE connector 550mm/150mm X4
  • 8 x SATA connector "600mm /150mm / 150mm / 150mm" X2
  • 6 x 4-Pin Peripheral connector 600mm / 150mm / 150mm X2
  • 2 x 4-Pin Floppy connector 150mm X2
• Color : Black Lead-Free Paint
• Certification : 80 PLUS Platinum
• Combined +3.3V & +5V : 120W
• Combined +12V : 996W
• Input Voltage : 90V~264V
• Input Frequency Range : 47Hz ~ 63Hz
• PFC : Active PFC (PF>0.9 at full load)
• Efficiency : 87% ~ 90% at 20% ~ 100% loading
• MTBF : 100,000 hours
• Operating temperature : 0 C ~ 40 C
• Cooling System : Single 120mm HYB fan
• Form factor : ATX
• Noise Level : 18 dBA minimum
• Dimension : 150 mm (W) x 86 mm (H) x 140 mm (D) 5.91" (W) x 3.39" (H) x 5.51" (D)
• Weight : 1.98kg

Note

Currently out of stock

Available Quantity

0

UPC

844761016579

SKU

mingleST1000-PTS
